HIDEA K2-C High Strength Thimble: Ideal for HMPE rope and wire rope

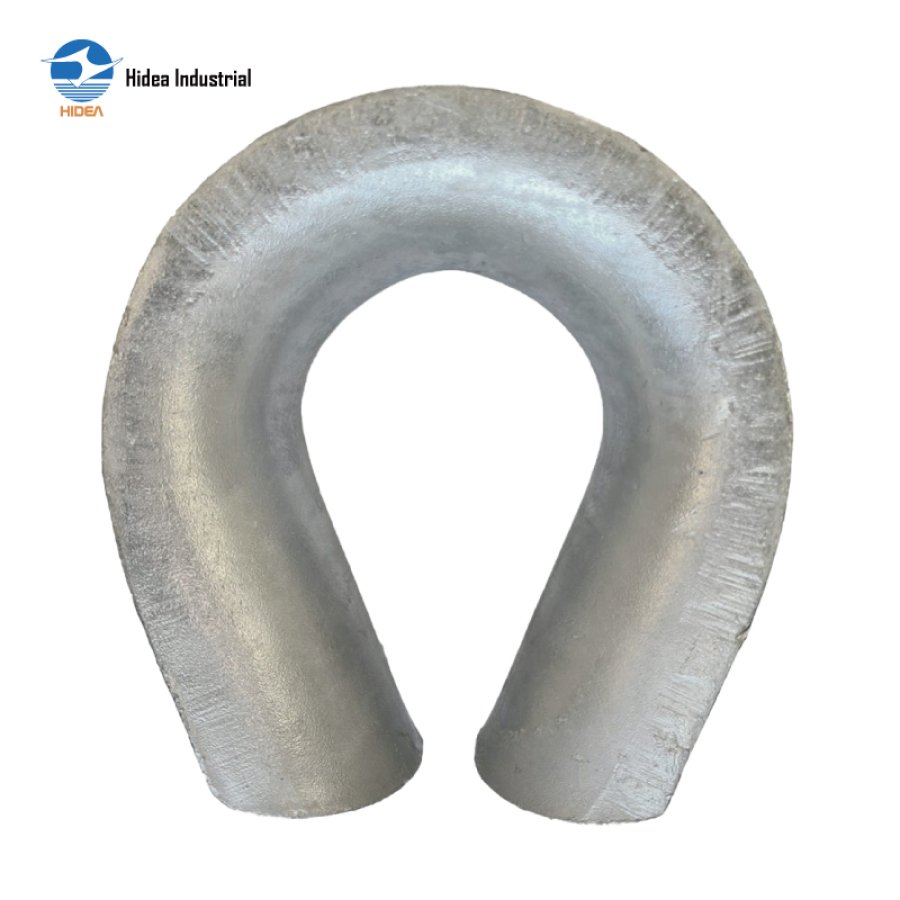

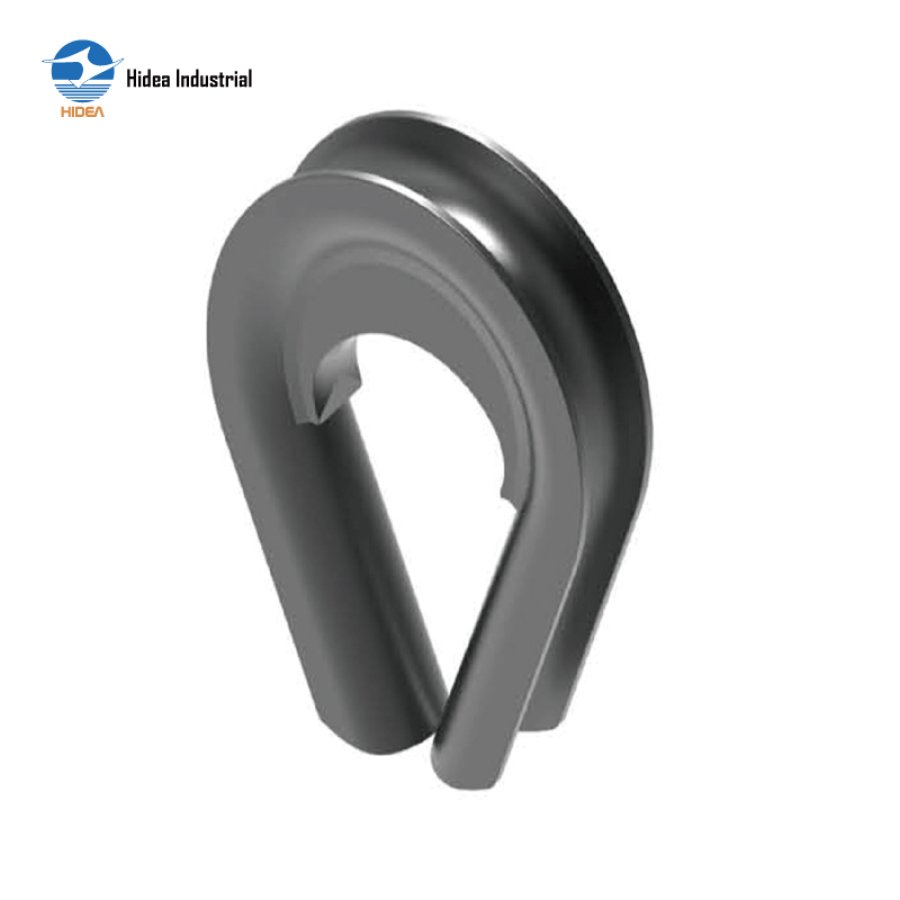

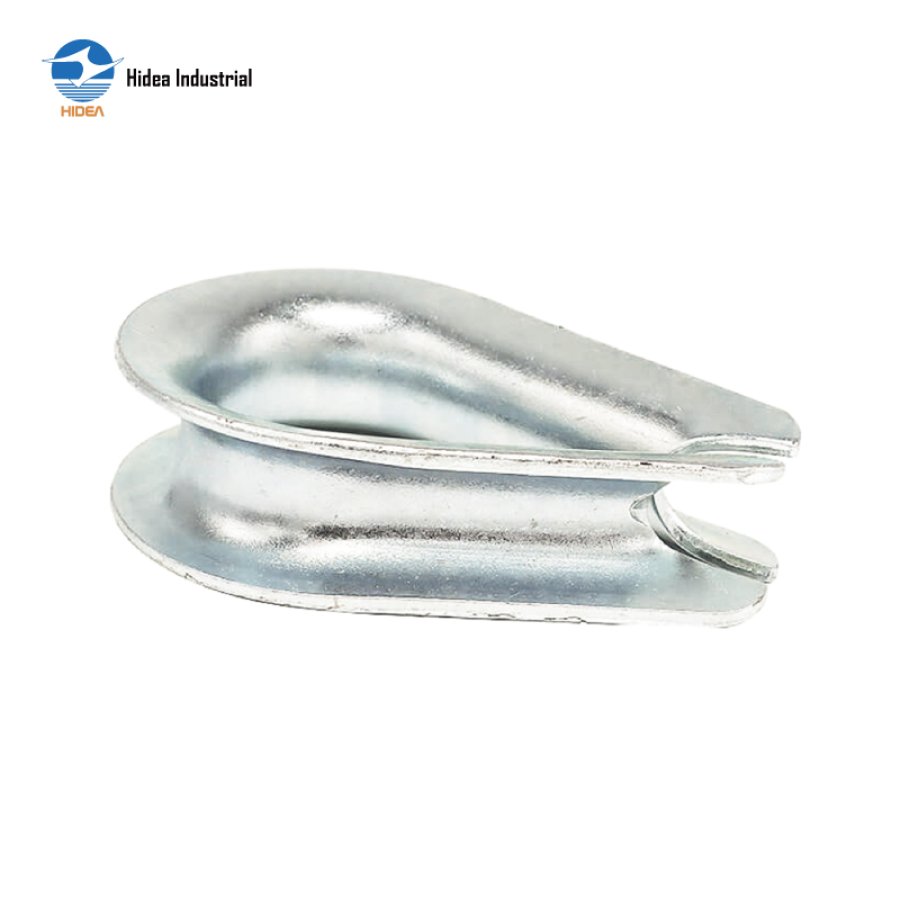

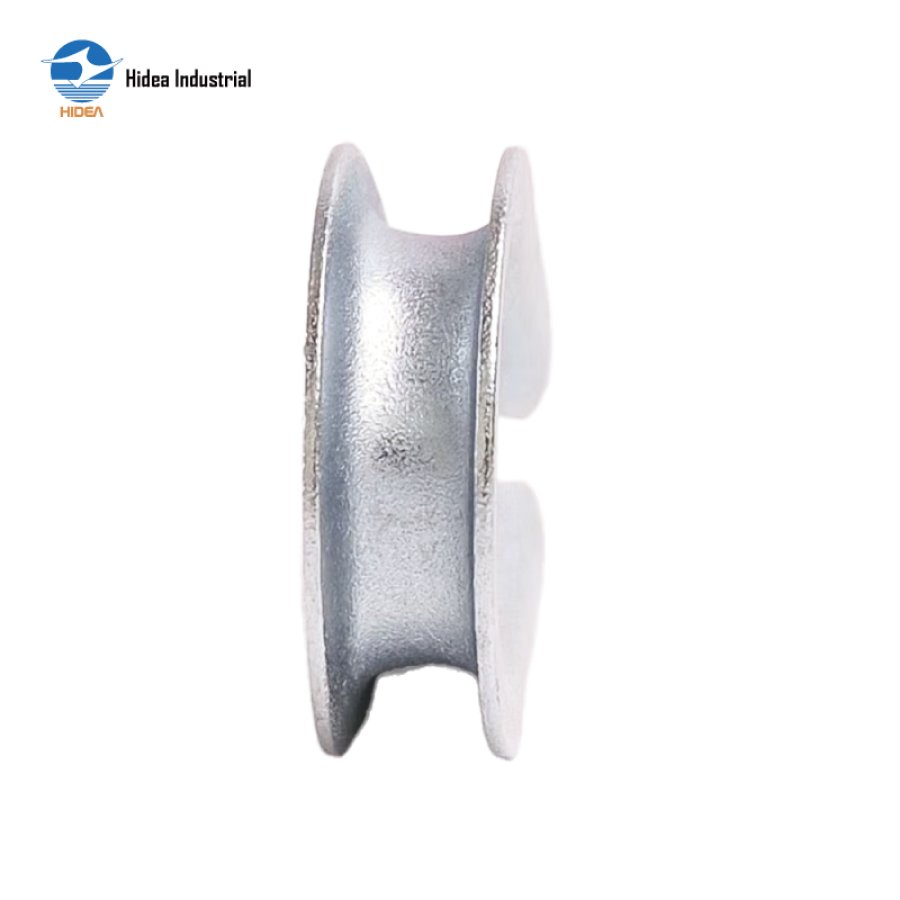

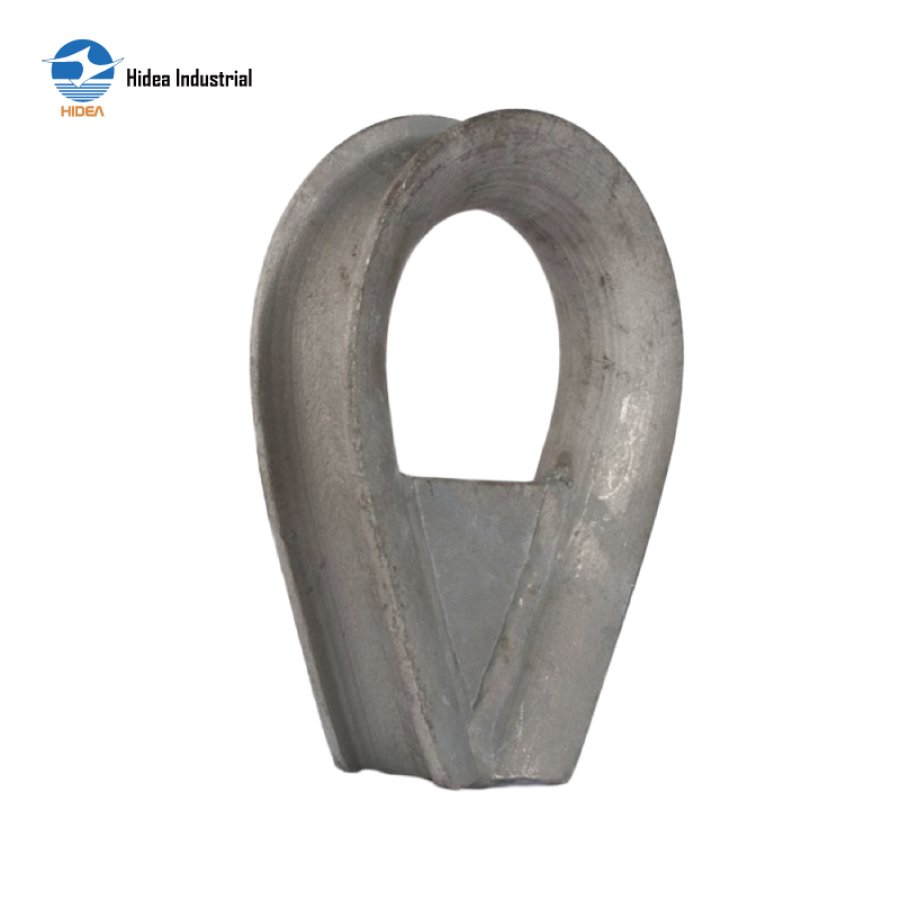

K2-C HIGH STRENGTH SYNTHETIC ROPE THIMBLE

Material Mild Steel
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv.,Electro Galv. / zinc plated OR as requested
Temperature range -20°C up to +200°C
K2-C thimbles reinforced for Synthetic poly fibre ropes / HMPE ropes

Inquire Now

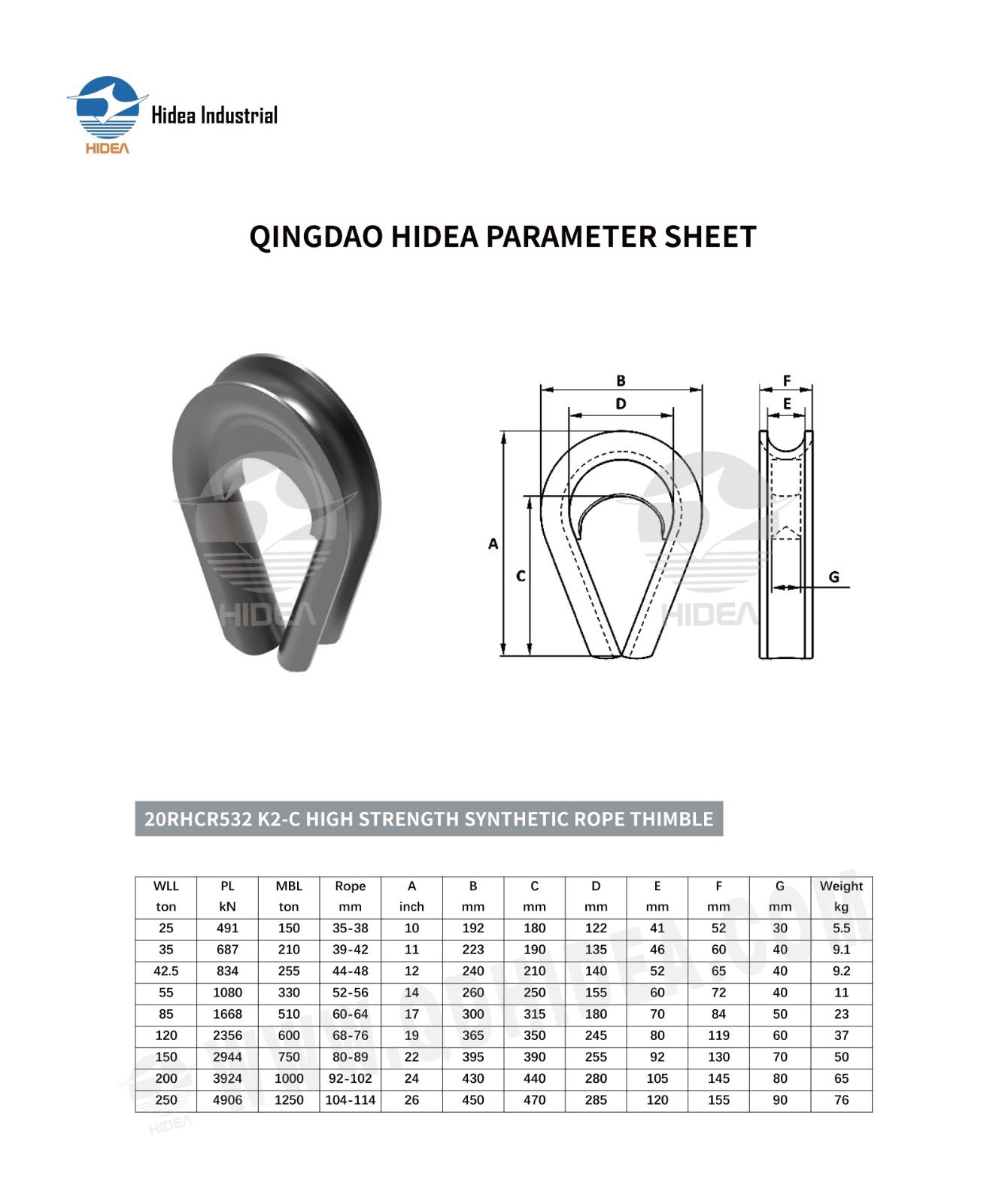

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR532 K2-C HIGH STRENGTH SYNTHETIC ROPE THIMBLE

WLL ton	PL kN	MBL ton	Rope mm	A inch	B mm	C mm	D mm	E mm	F mm	G mm	Weight kg
25	491	150	35-38	10	192	180	122	41	52	30	5.5
35	687	210	39-42	11	223	190	135	46	60	40	9.1
42.5	834	255	44-48	12	240	210	140	52	65	40	9.2
55	1080	330	52-56	14	260	250	155	60	72	40	11
85	1668	510	60-64	17	300	315	180	70	84	50	23
120	2356	600	68-76	19	365	350	245	80	119	60	37
150	2944	750	80-89	22	395	390	255	92	130	70	50
200	3924	1000	92-102	24	430	440	280	105	145	80	65
250	4906	1250	104-114	26	450	470	285	120	155	90	76
