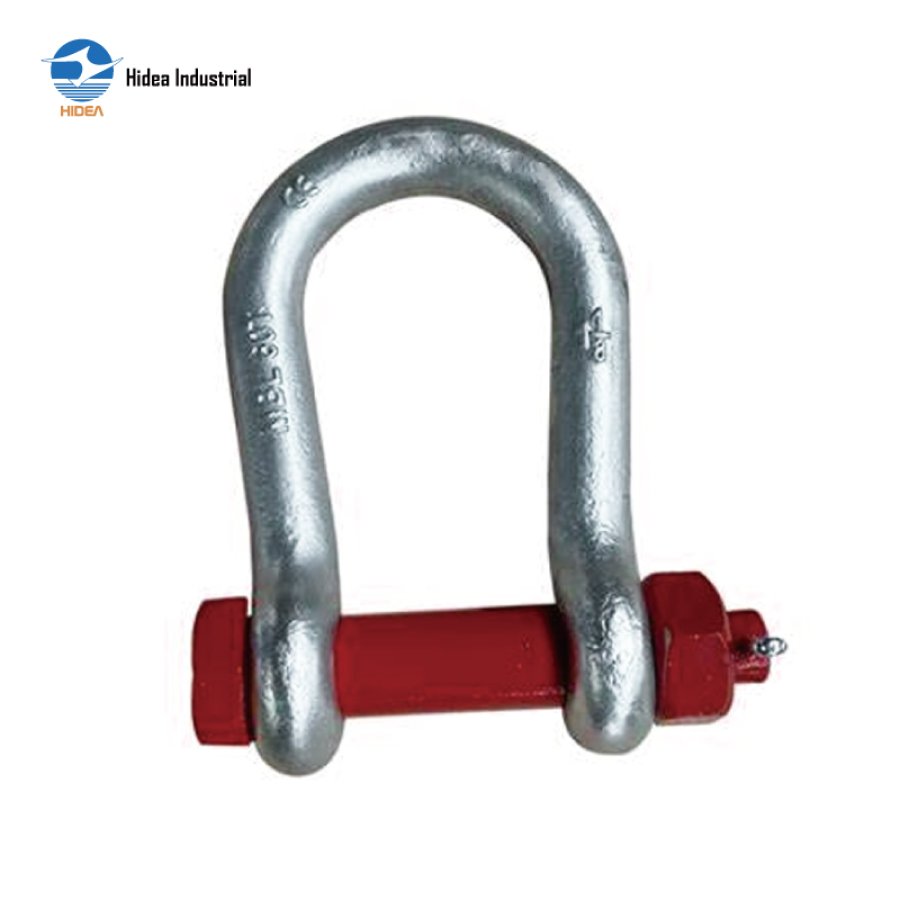

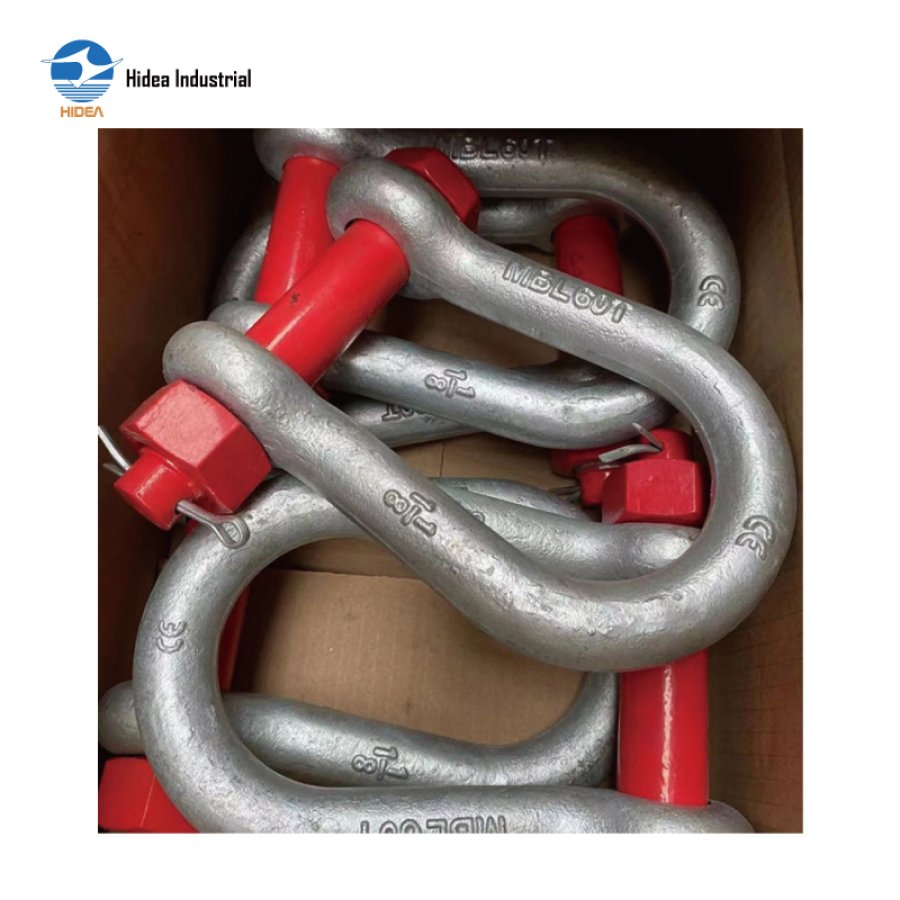

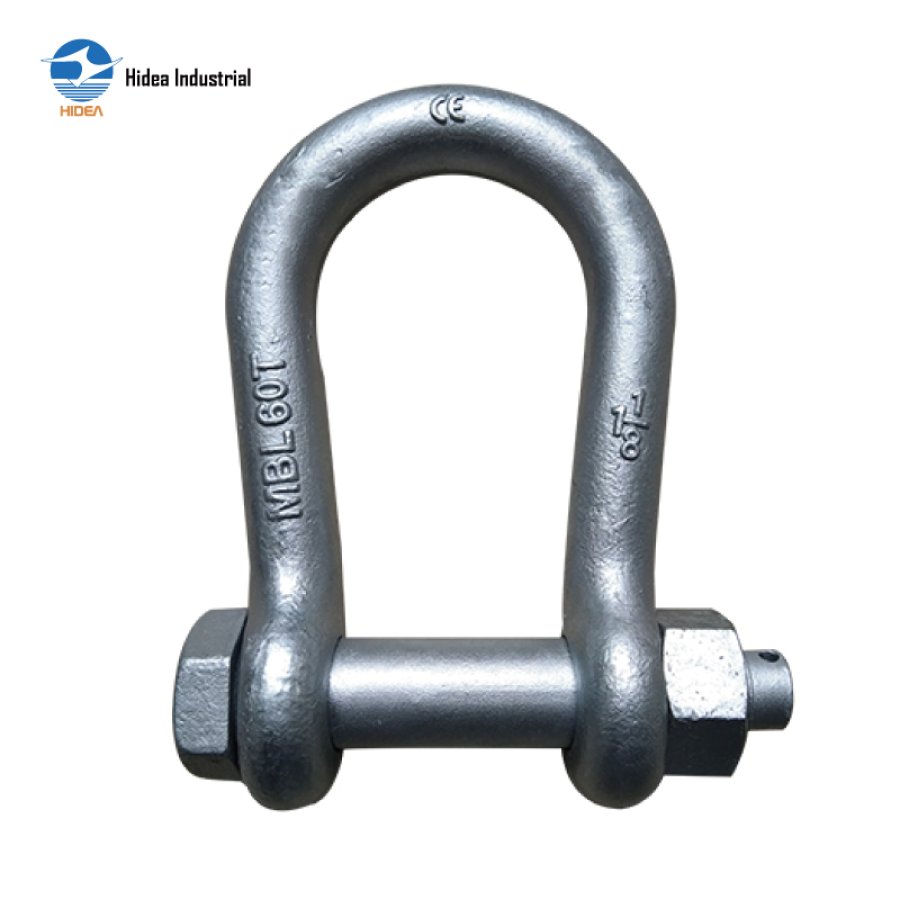

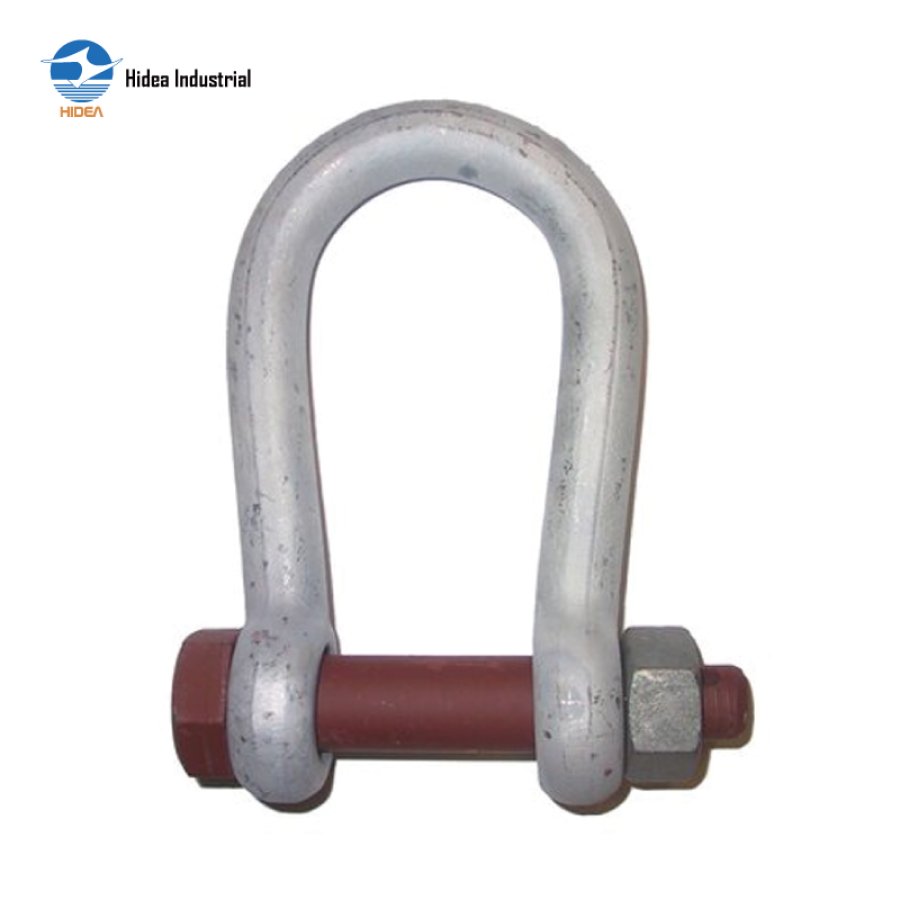

Hidea Wide Mouth Bow Shackle: Perfect for Offshore Rigging and Towing

OFFSHORE WIDE MOUTH SHACKLE

Material: body AND pin carbon steel
Drop forged, quenched &tempered
Safety factor 4:1 & certificates available
Surface hot dip galvanized (H.D.G)

Inquire Now

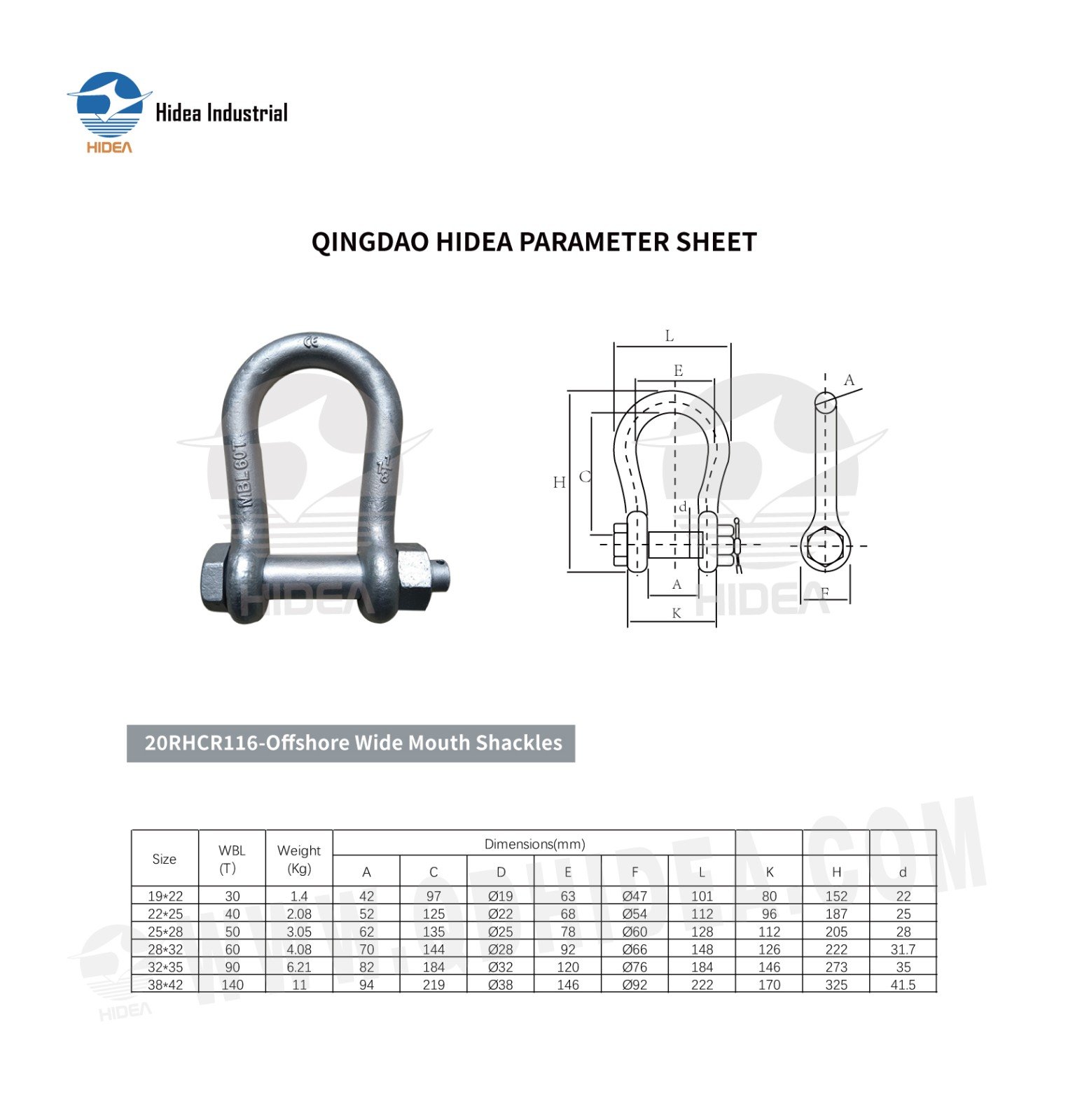

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR116-Offshore Wide Mouth Shackles

Size	WBL (T)	Weight (Kg)	Dimensions(mm)
Size	WBL (T)	Weight (Kg)	A	C	D	E	F	L	K	H	d
*1922**	30	1.4	42	97	019	63	047	101	80	152	22
*2225**	40	2.08	52	125	022	68	O54	112	96	187	25
*2528**	50	3.05	62	135	025	78	O60	128	112	205	28
*2832**	60	4.08	70	144	028	92	O66	148	126	222	31.7
*3235**	90	6.21	82	184	O32	120	076	184	146	273	35
*3842**	140	11	94	219	O38	146	092	222	170	325	41.5
