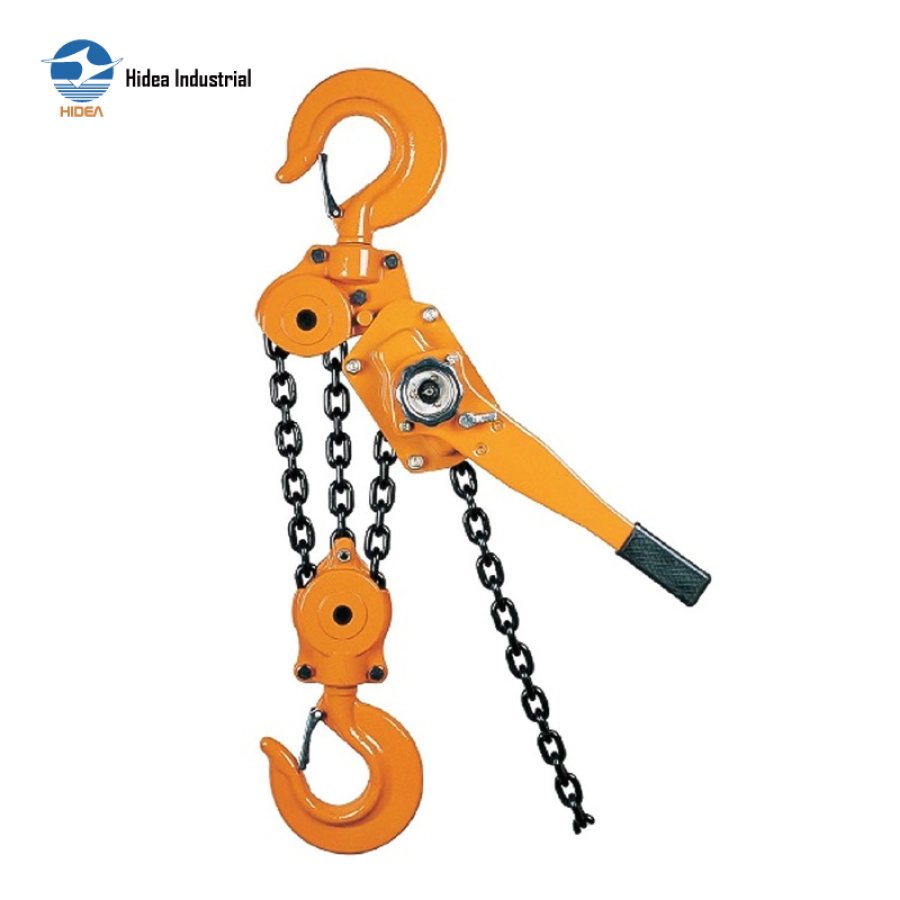

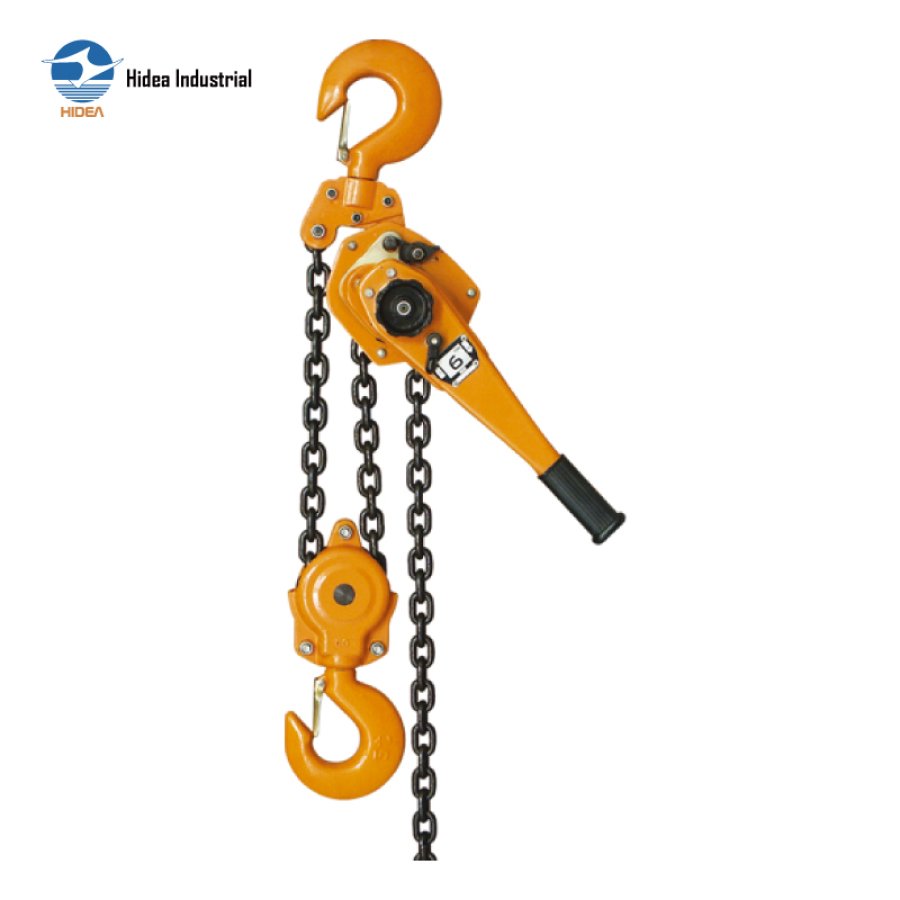

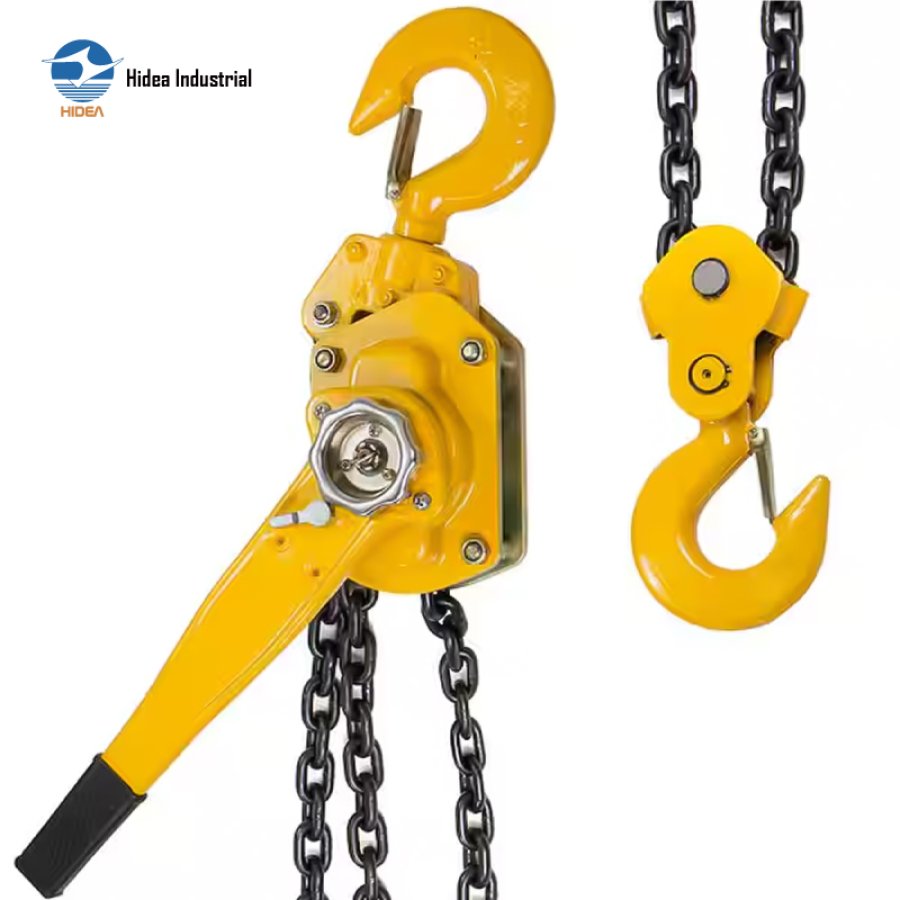

VL type lever block hoist is a kind of manual hoisting tool with a ratchet and pawl mechanism to lift and transport heavy loads, it is small in size, light in weight, and easy to operate
The VL type lever block hoist, suitable for high-altitude and narrow space operations and has a rated load range of 0.5 tons to 10 tons, with a leverage ratio of 1:40, and the lifting height can be ranged from 1.5 to 3.5 meters
VL type lever block also has the advantages of high efficiency, low noise, and long service life with wide application scenes & sites
The VL type lever block meeting standards ASME B30.16, ANSI/ASME HST-5 and EN14901

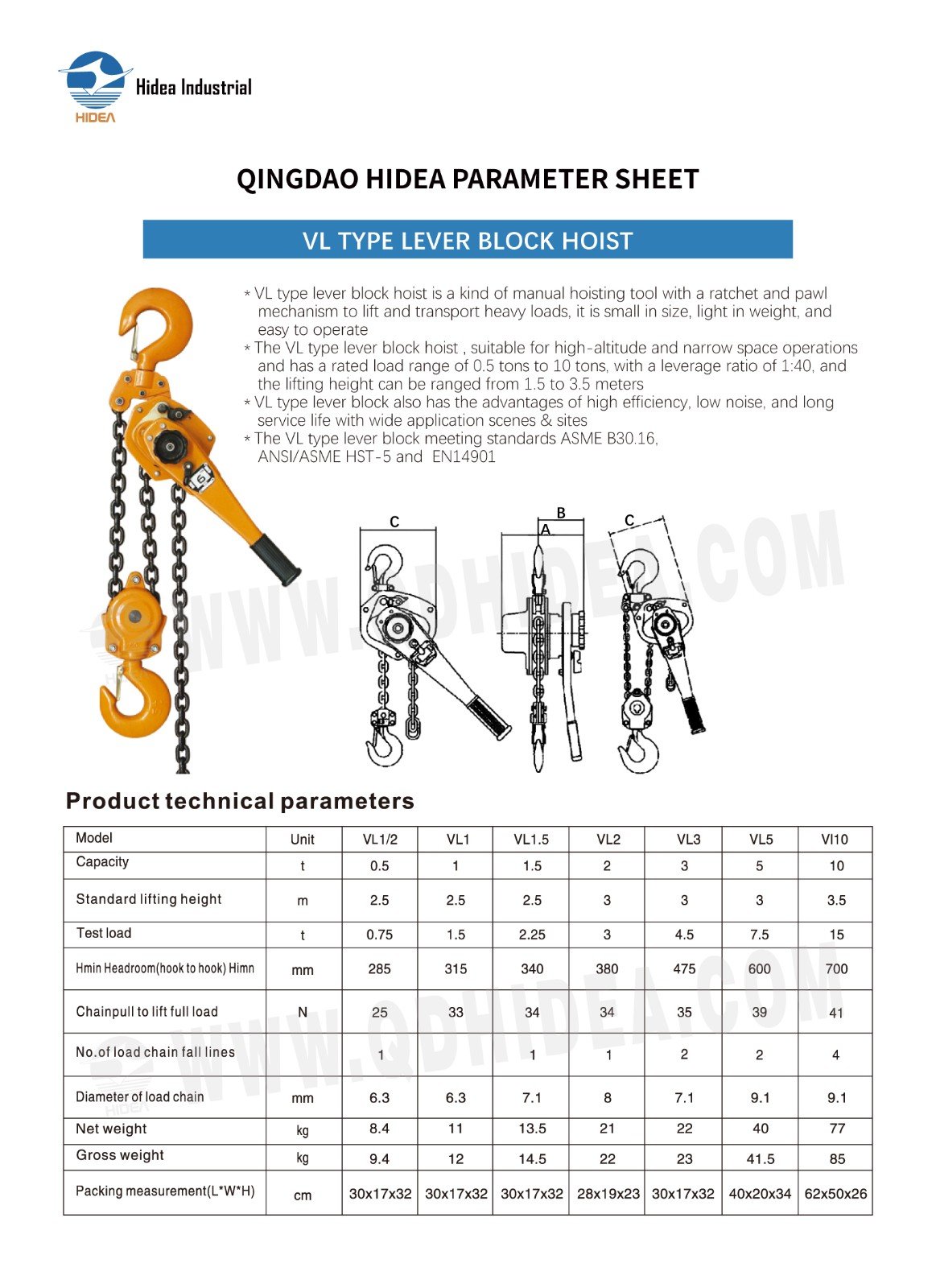

QINGDAO HIDEA PARAMETER SHEET FOR
VL TYPE LEVER BLOCK HOIST
| Model | Unit | VL1/2 | VL1 | VL1.5 | VL2 | VL3 | VL5 | VI10 | ||
| Capacity | t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | ||
| Standard lifting height | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 | ||
| Test load | t | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | ||
| Hmin Headroom(hook to hook)Himn | mm | 285 | 315 | 340 | 380 | 475 | 600 | 700 | ||
| Chainpull to lift full load | N | 25 | 33 | 34 | 34 | 35 | 39 | 41 | ||
| No.of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 4 | ||||
| Diameter of load chain | mm | 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9.1 | 9.1 | ||
| Net weight | kg | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 | ||
| Gross weight | kg | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 | ||
| Packing measurement(L*W*H) | cm | 30x17x32 | 30x17x32 | 30x17x32 | 28x19x23 | 30x17x32 | 40x20x34 | 62x50x26 | ||
