High-Quality Hidea Grade 80 US Type Eye Grab Hook for Rigging

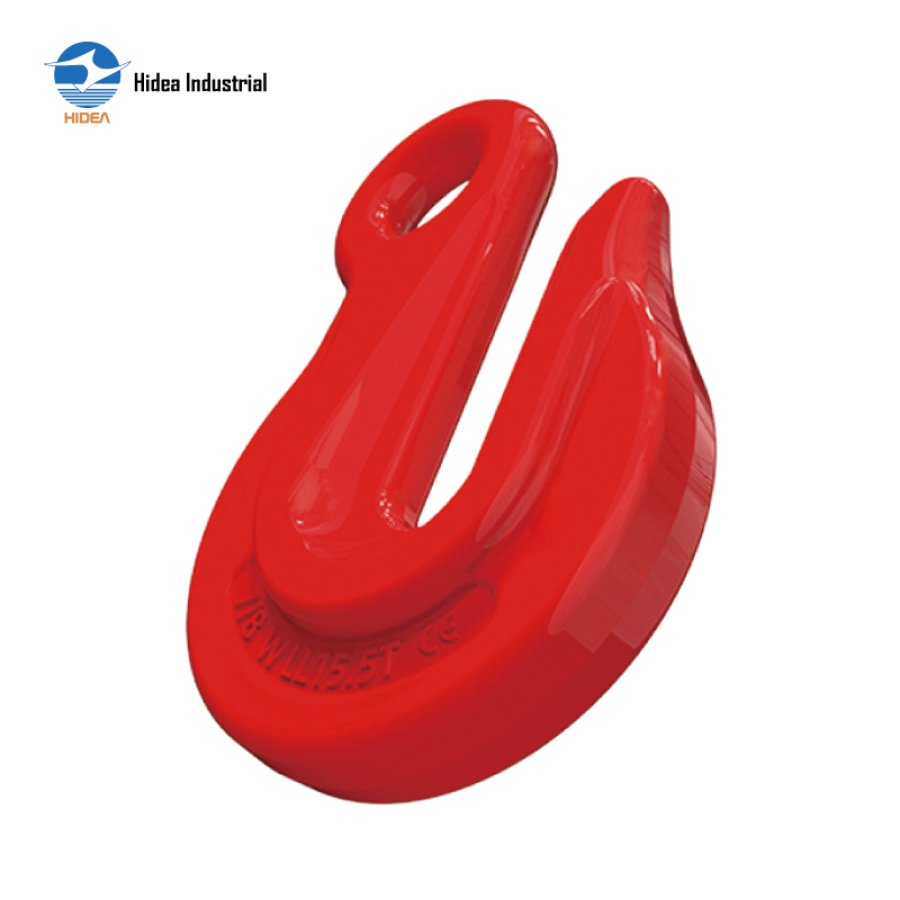

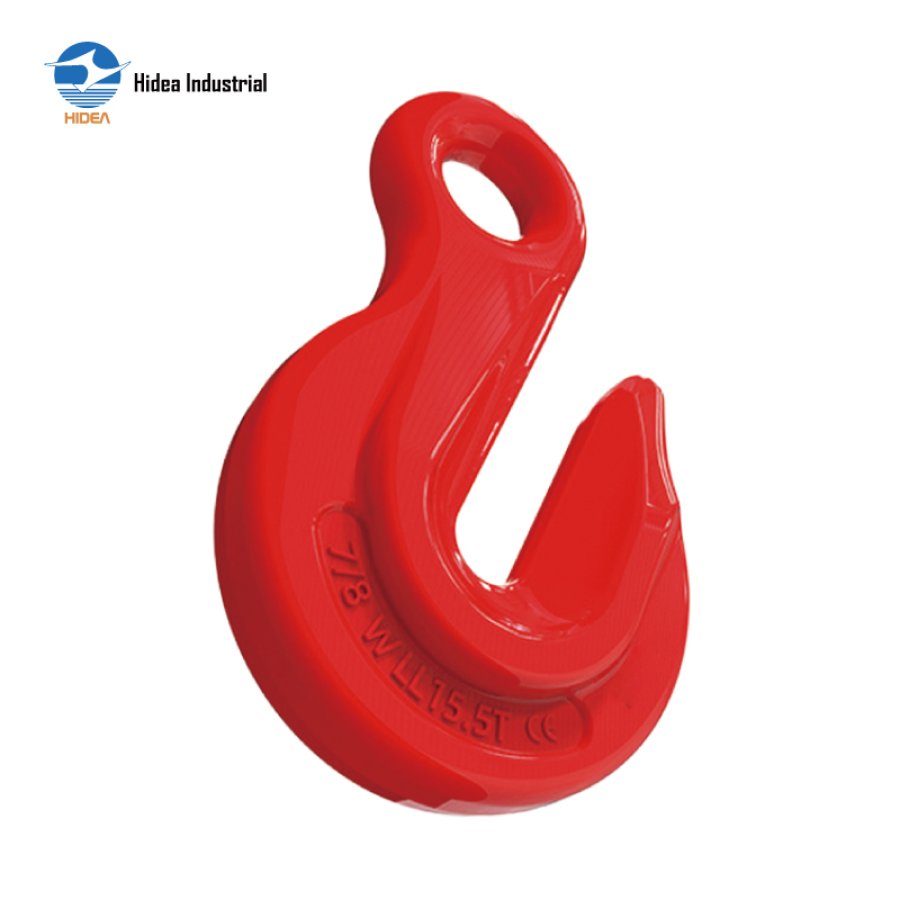

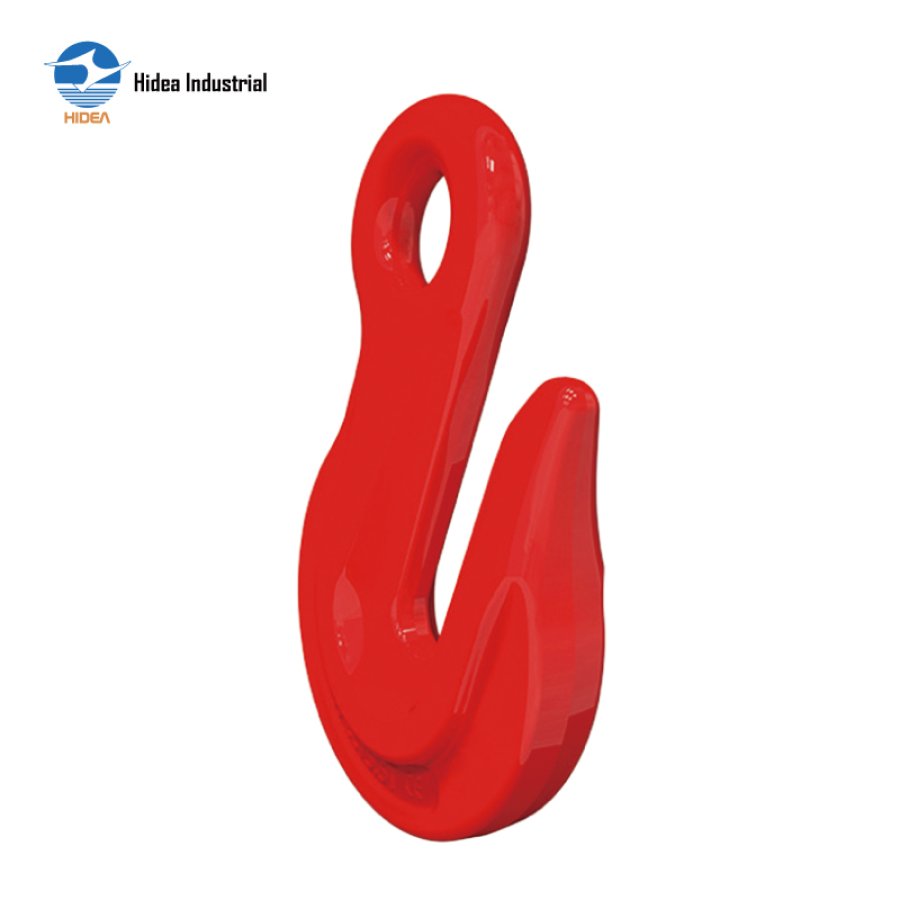

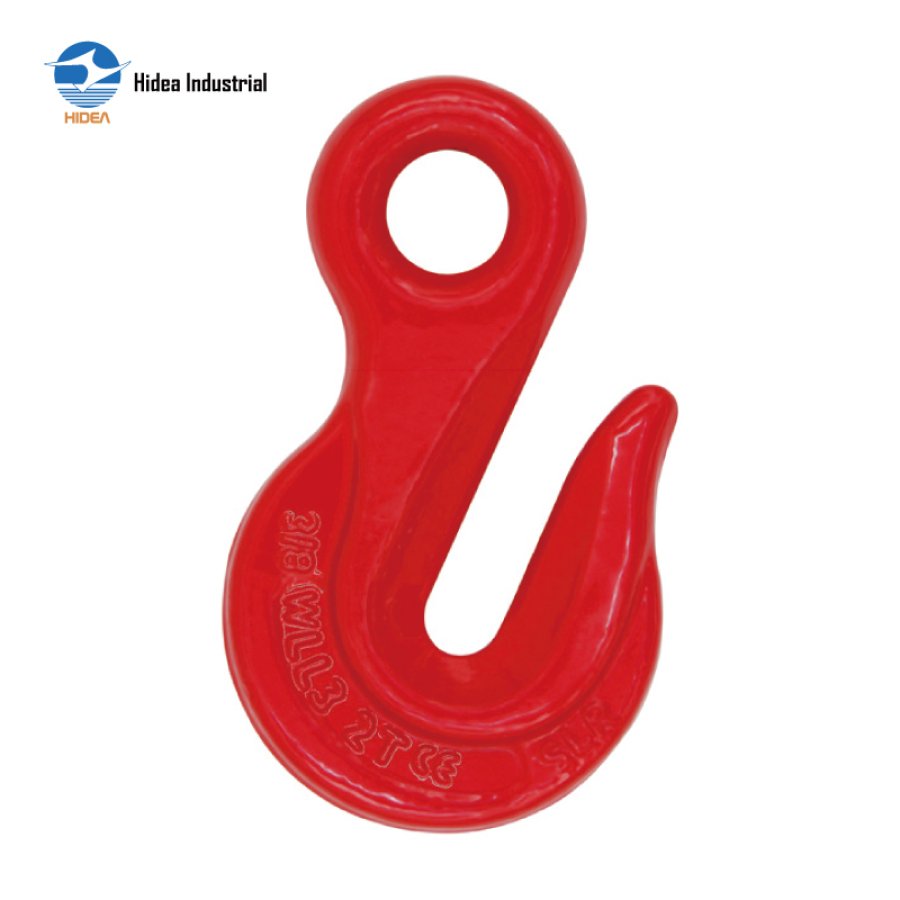

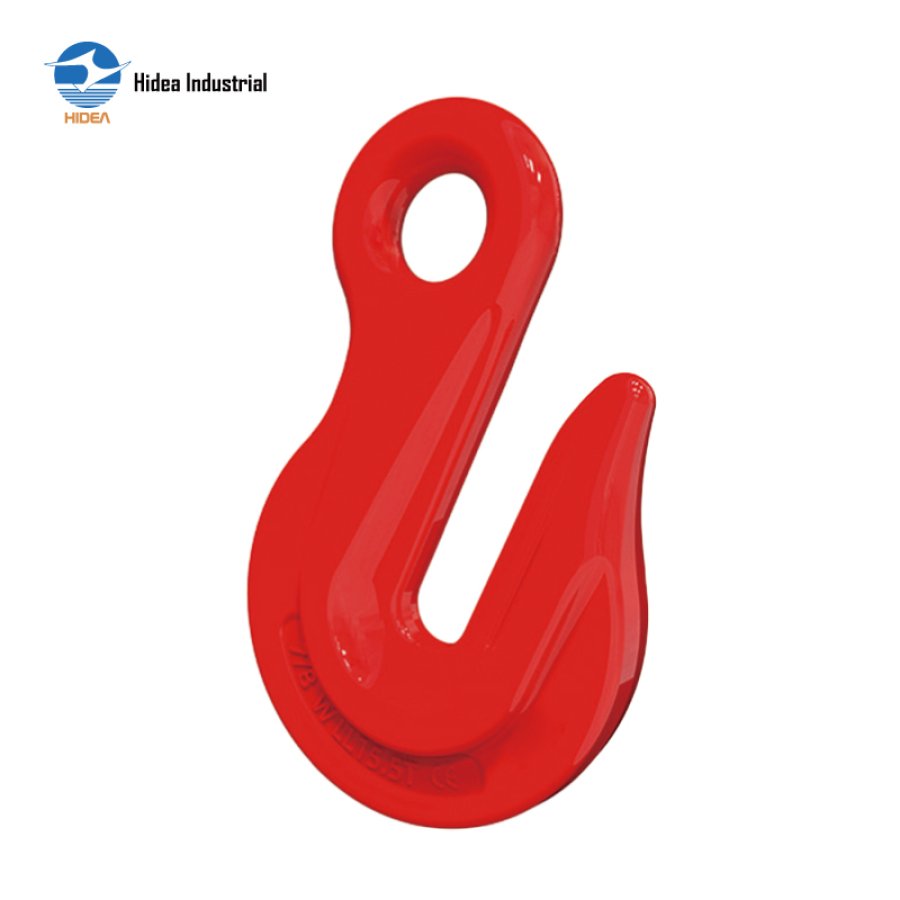

G80 US TYPE EYE GRAB HOOK

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

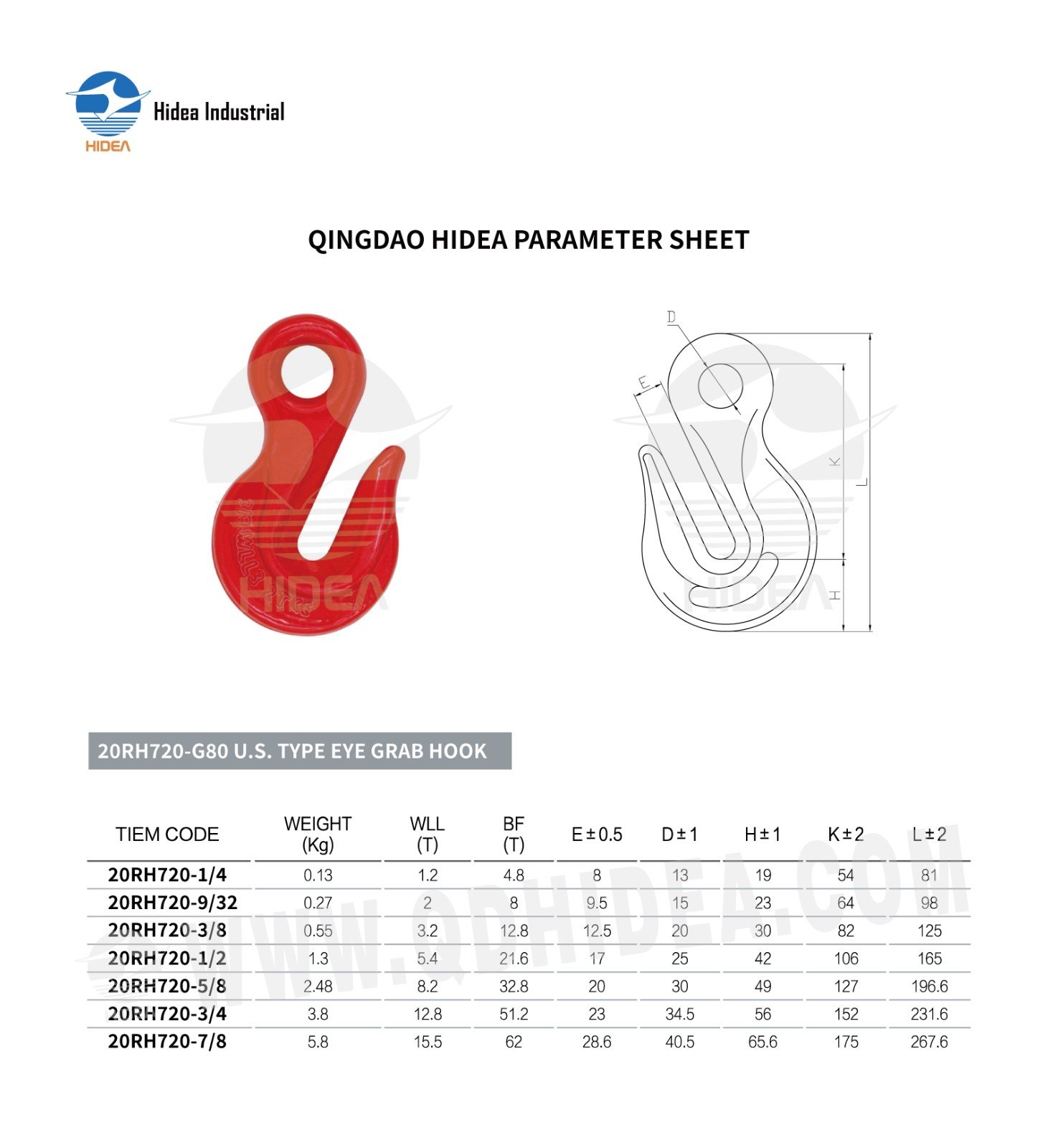

QINGDAO HIDEA PARAMETER SHEET FOR

20RH720-G80 U.S.TYPE EYE GRAB HOOK

TIEM CODE	WEIGHT (Kg)	WLL (T)	BF (T)	E±0.5	D±1	H±1	K±2	L±2
20RH720-1/4	0.13	1.2	4.8	8	13	19	54	81
20RH720-9/32	0.27	2	8	9.5	15	23	64	98
20RH720-3/8	0.55	3.2	12.8	12.5	20	30	82	125
20RH720-1/2	1.3	5.4	21.6	17	25	42	106	165
20RH720-5/8	2.48	8.2	32.8	20	30	49	127	196.6
20RH720-3/4	3.8	12.8	51.2	23	34.5	56	152	231.6
20RH720-7/8	5.8	15.5	62	28.6	40.5	65.6	175	267.6
