HIDEA Stainless Steel Oblong Pad Eye – AISI 304/316 Construction for Marine and Corrosive Environments

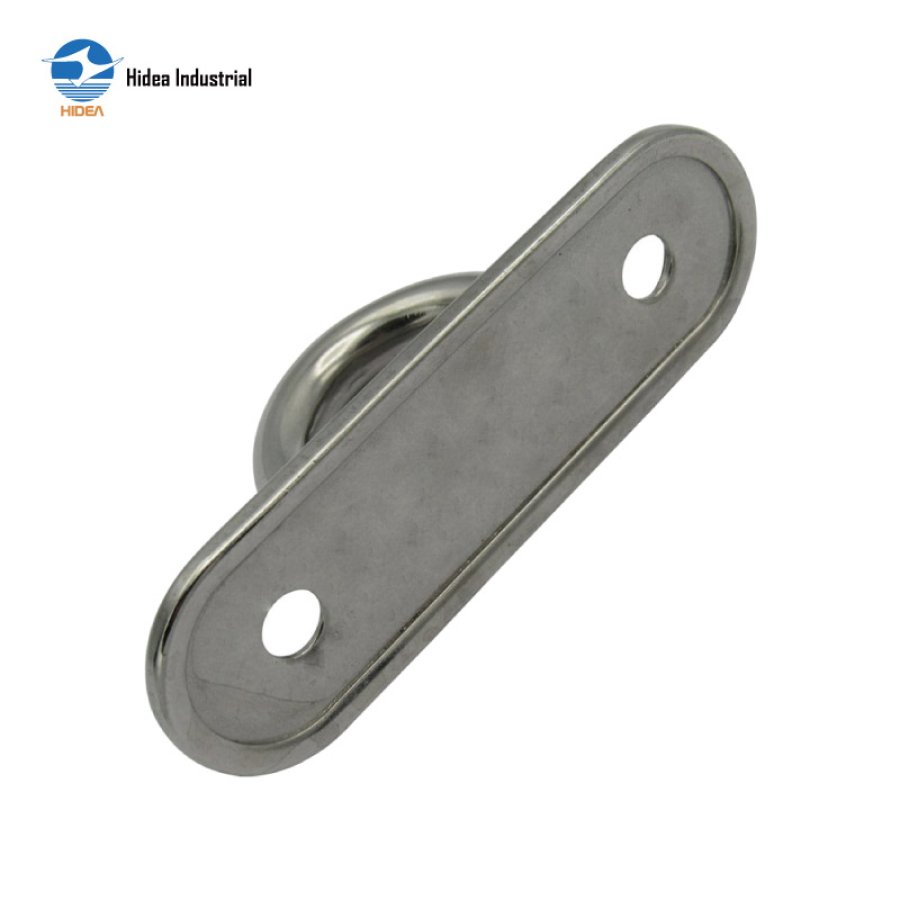

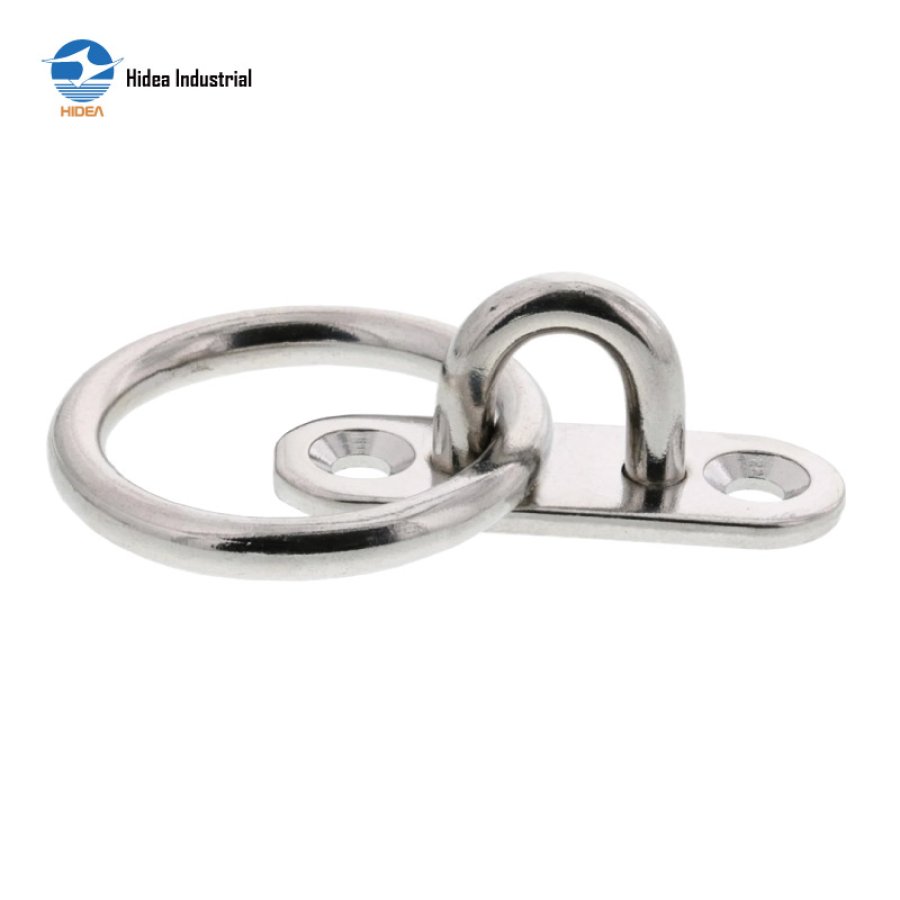

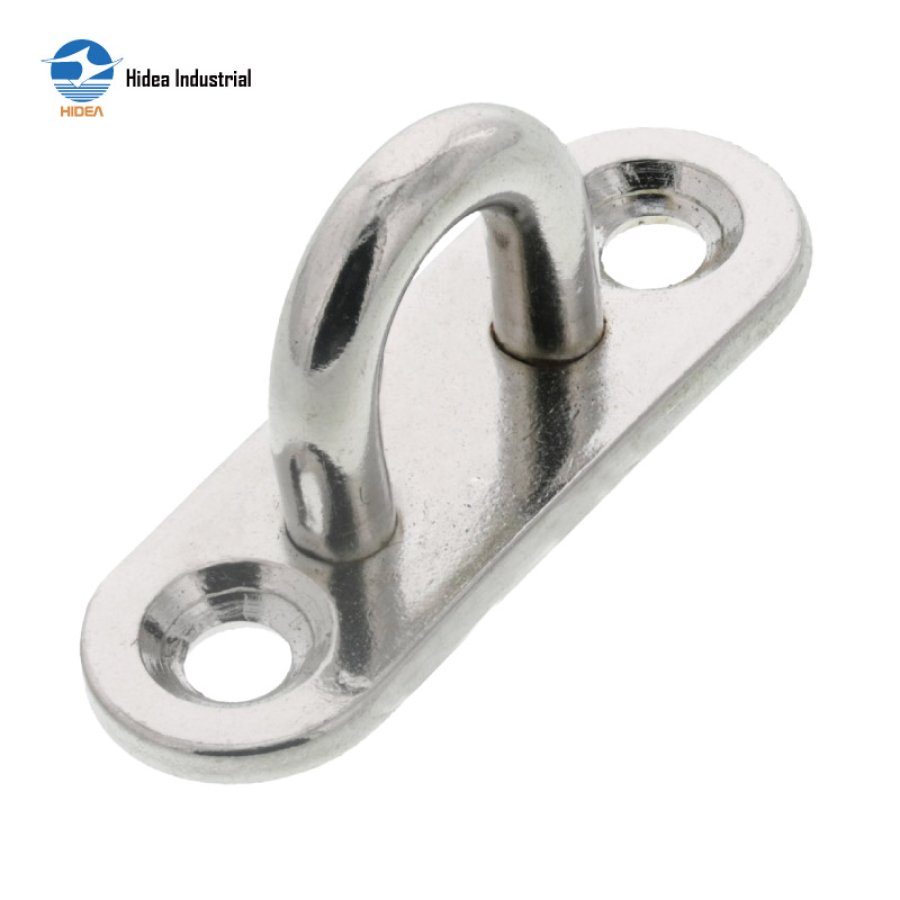

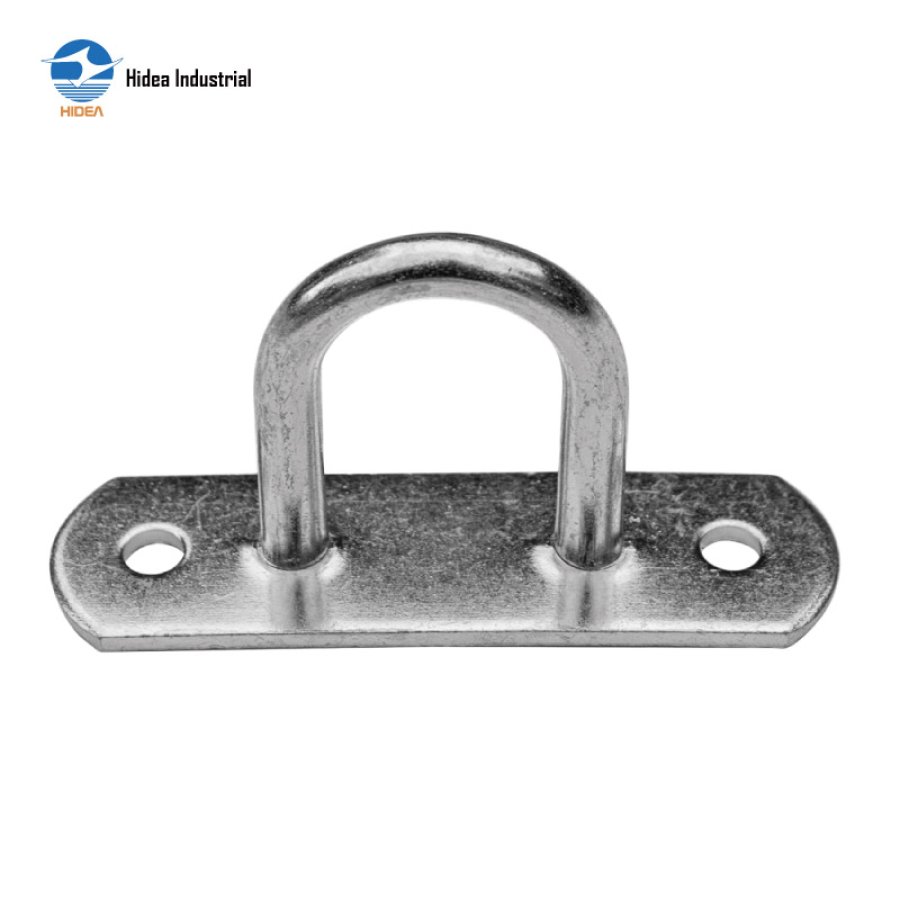

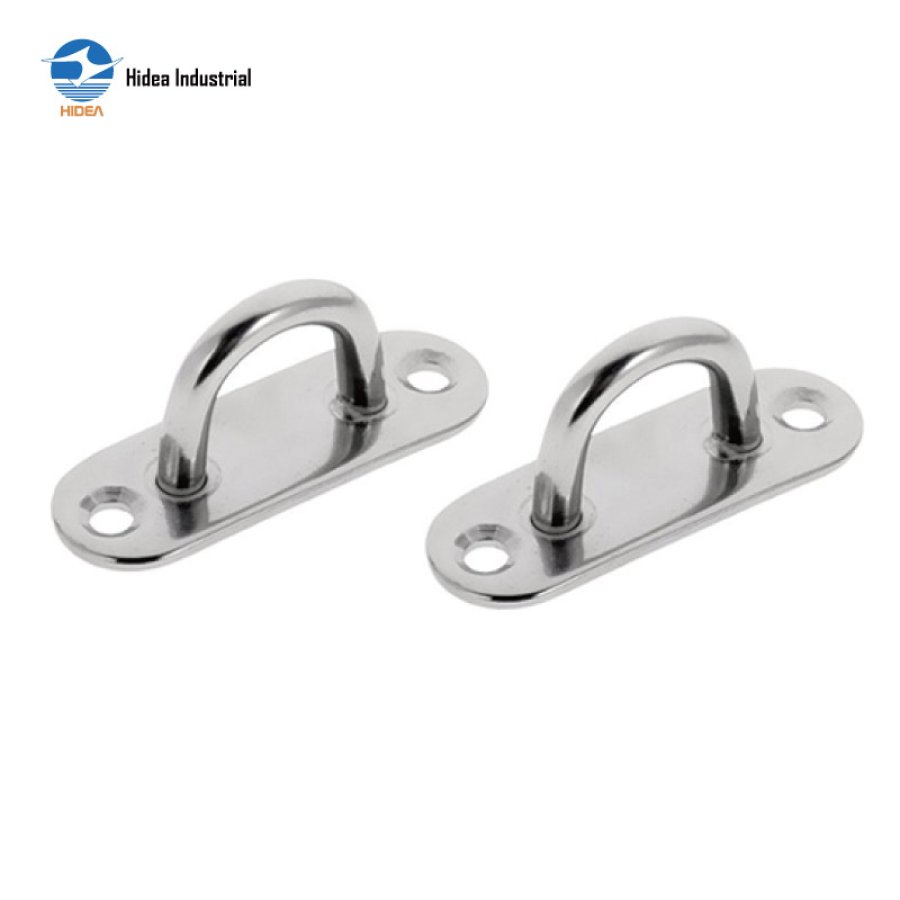

OBLONG PAD EYE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

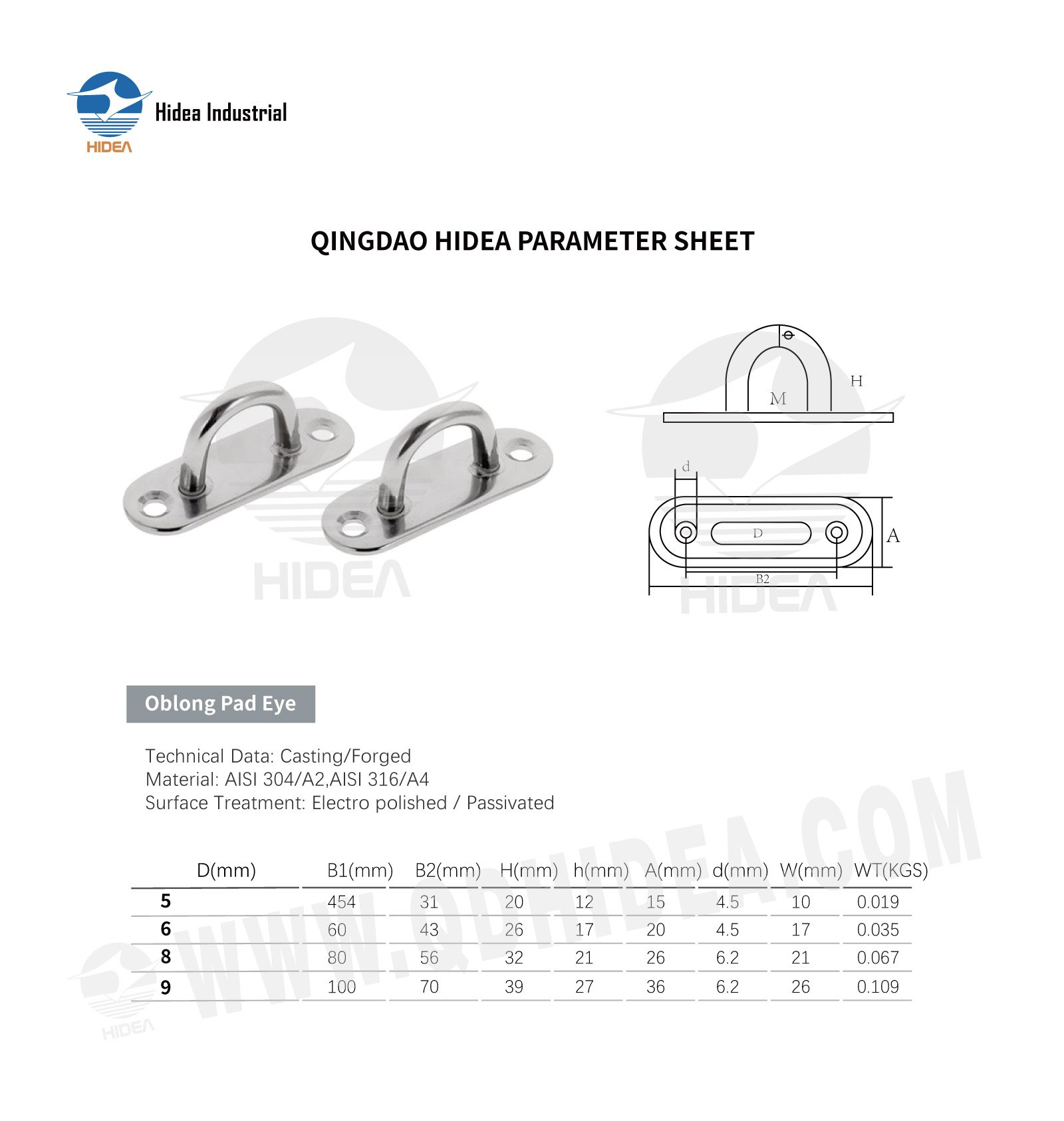

QINGDAO HIDEA PARAMETER SHEET FOR

Oblong Pad Eye

D(mm)	B1(mm)	B2(mm)	H(mm)	h(mm)	A(mm)	d(mm)	W(mm)	WT(KGS)
5	454	31	20	12	15	4.5	10	0.019
6	60	43	26	17	20	4.5	17	0.035
8	80	56	32	21	26	6.2	21	0.067
9	100	70	39	27	36	6.2	26	0.109
