Hidea G80 Clevis Chain Clutch with Pin: Essential for Industrial Chain Systems

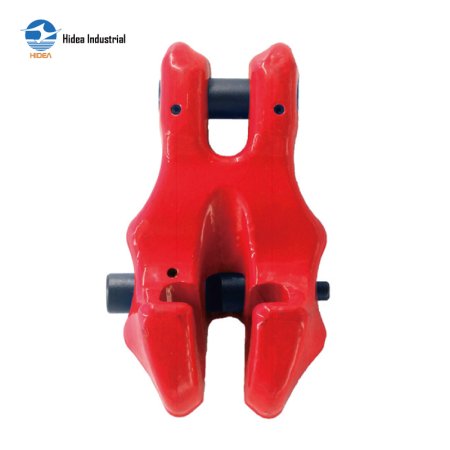

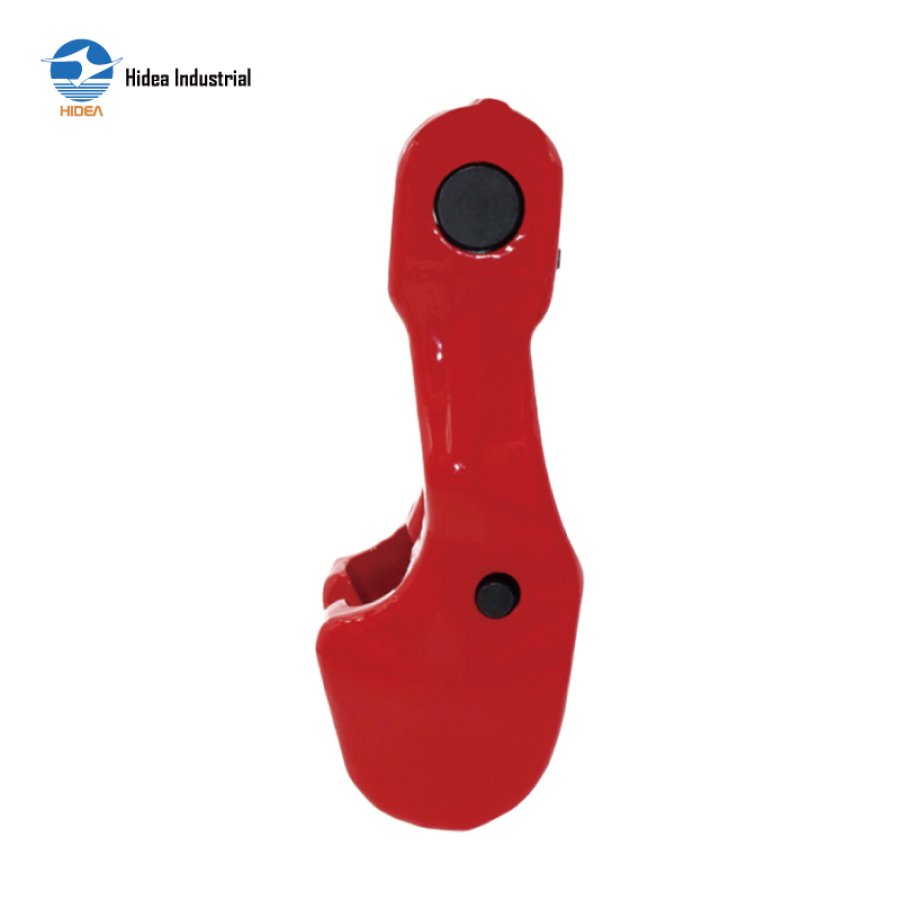

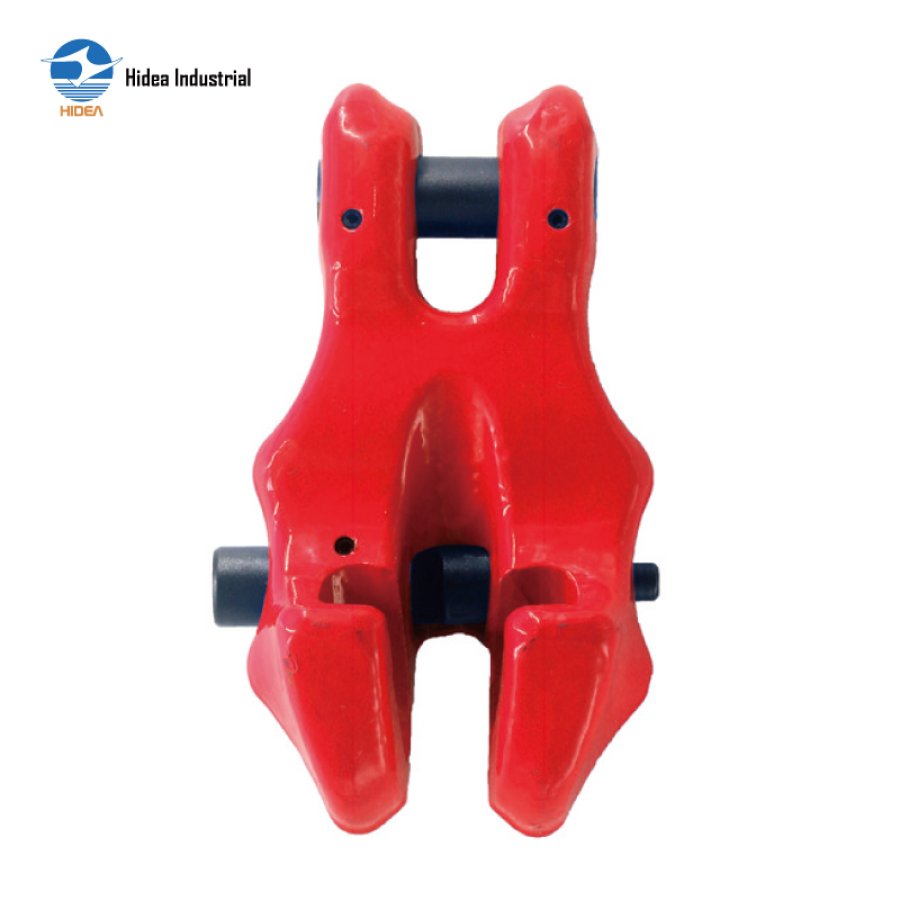

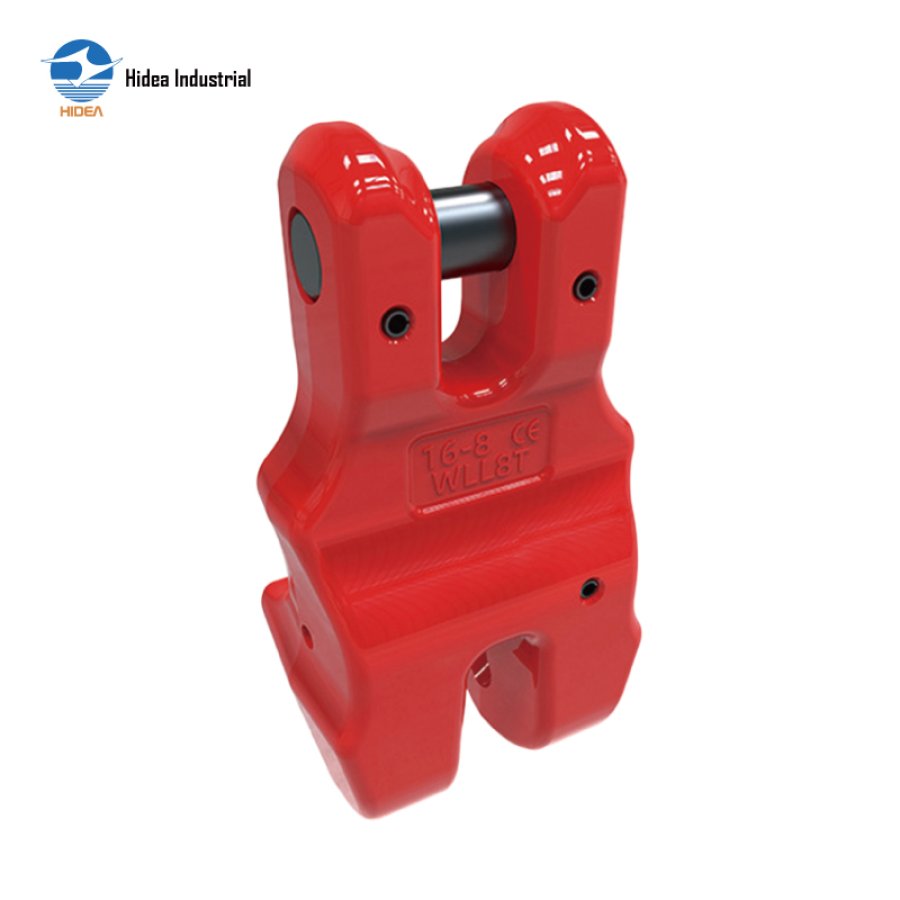

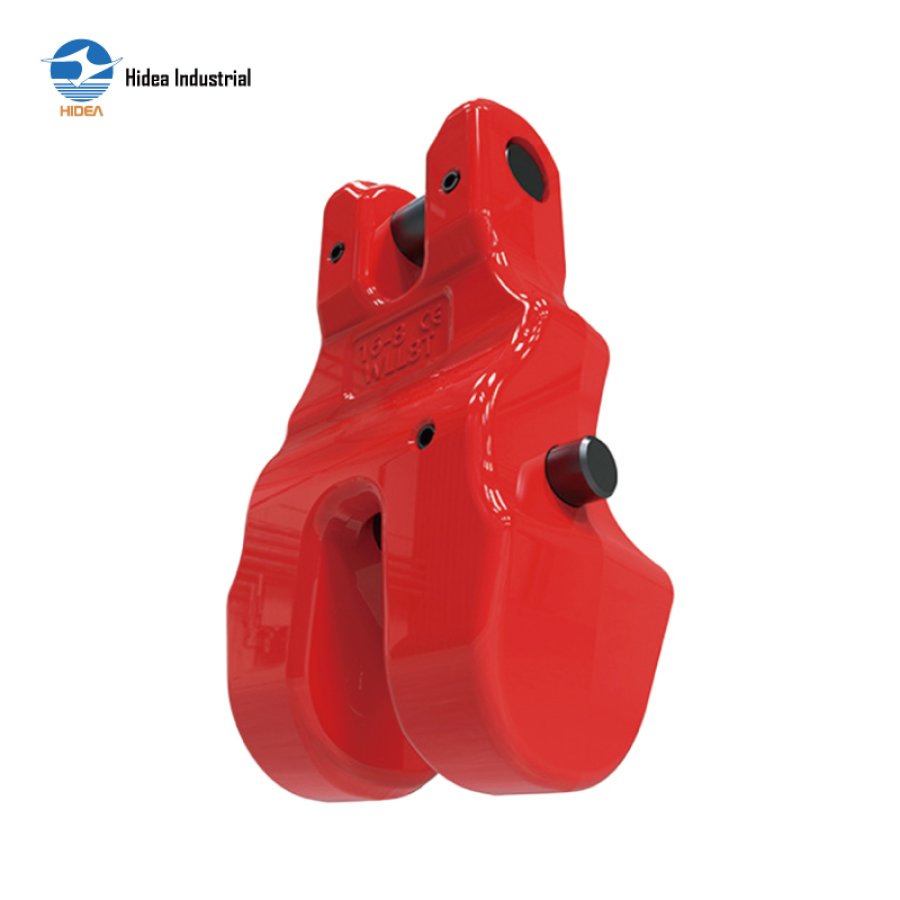

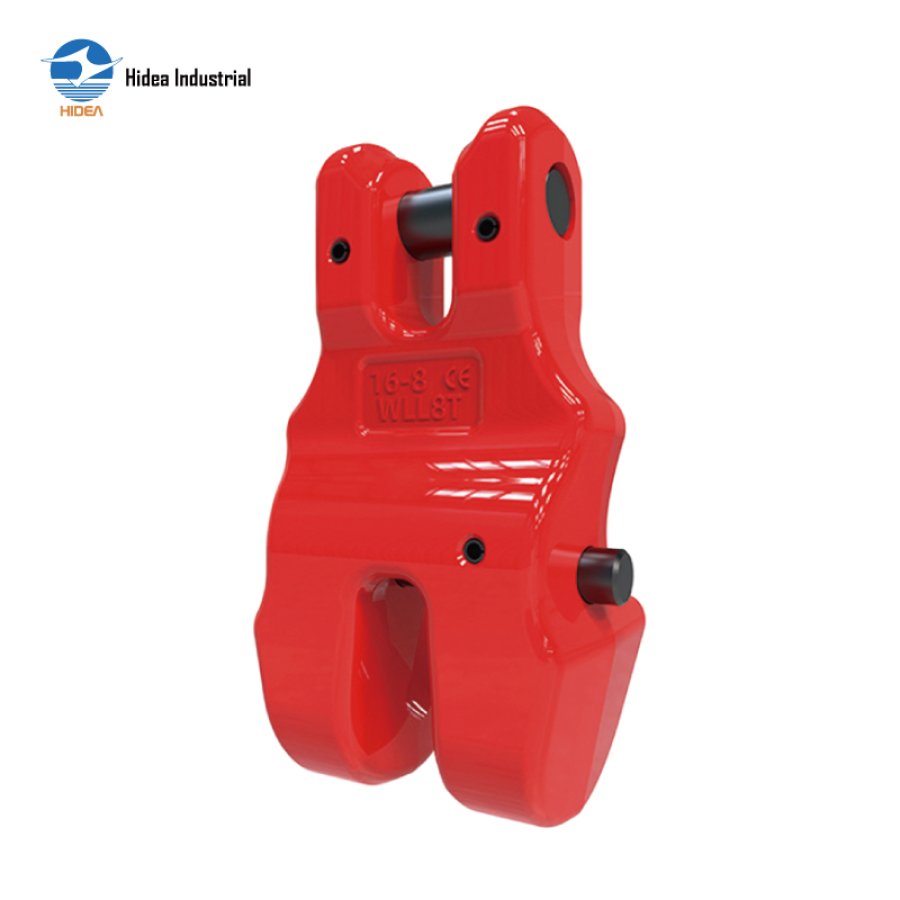

G80 CLEVIS CHAIN CLUTCH WITH SAFETY PIN

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
100% magnaflux crack detection
All load pins are 100% individually inspected and tested

Inquire Now

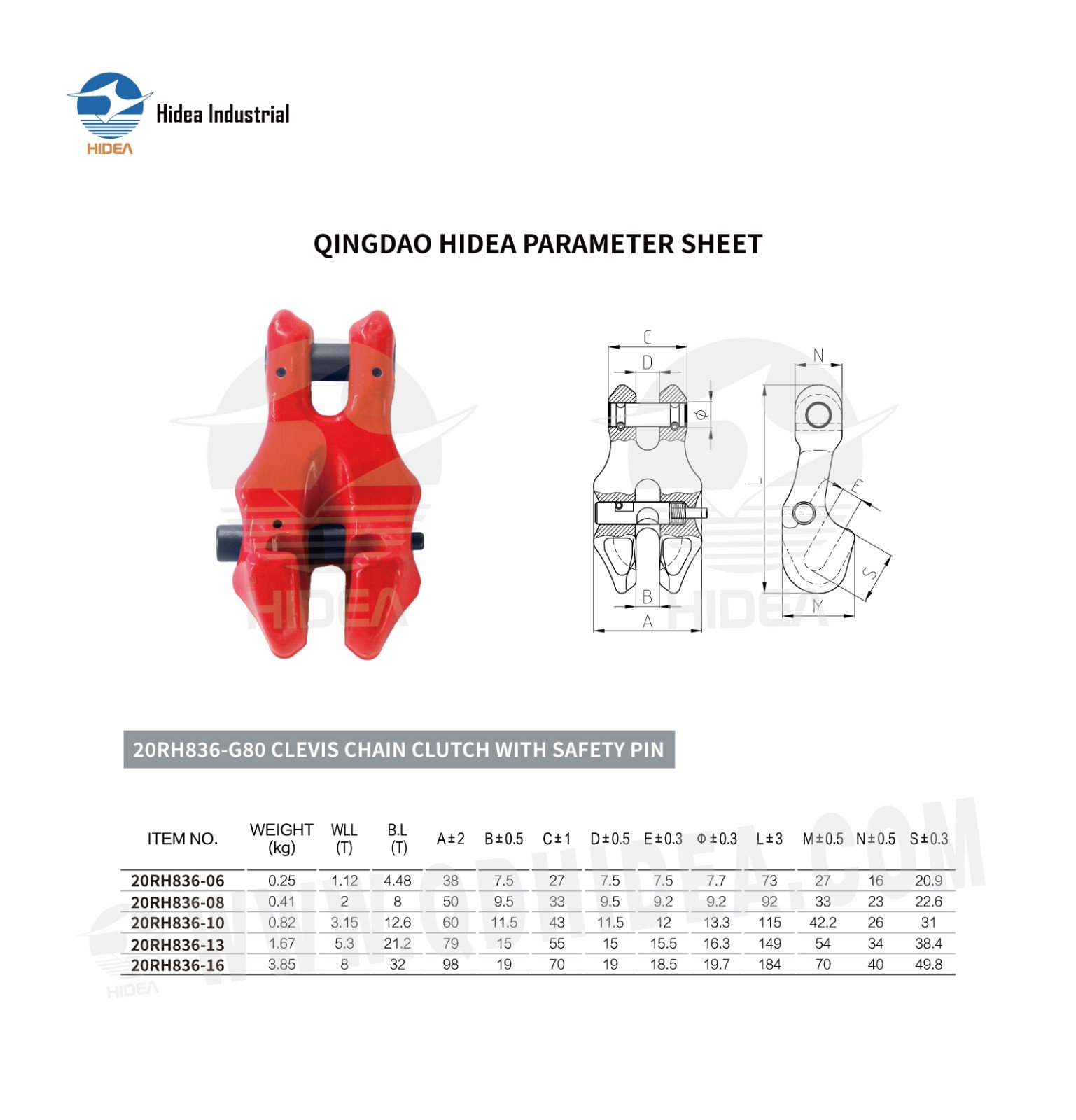

QINGDAO HIDEA PARAMETER SHEET FOR

20RH836-G80 CLEVIS CHAIN CLUTCH WITH SAFETY PIN

ITEM NO.

WEIGHT (kg)

WLL (T)

B.L (T)

A±2

B±0.5

C±1

D±0.5

E±0.3

Ф±0.3

L±3

M±0.5

N±0.5

S±0.3

20RH836-06

0.25

1.12

4.48

38

7.5

27

7.5

7.5

7.7

73

27

16

20.9

20RH836-08

0.41

2

8

50

9.5

33

9.5

9.2

9.2

92

33

23

22.6

20RH836-10

0.82

3.15

12.6

60

11.5

43

11.5

12

12

115

42.2

26

31

20RH836-13

1.67

5.3

21.2

79

15

55

15

15.5

15.5

149

54

34

38.4

20RH836-16

3.85

8

32

98

19

70

19

18.5

18.5

184

70

40

49.8
