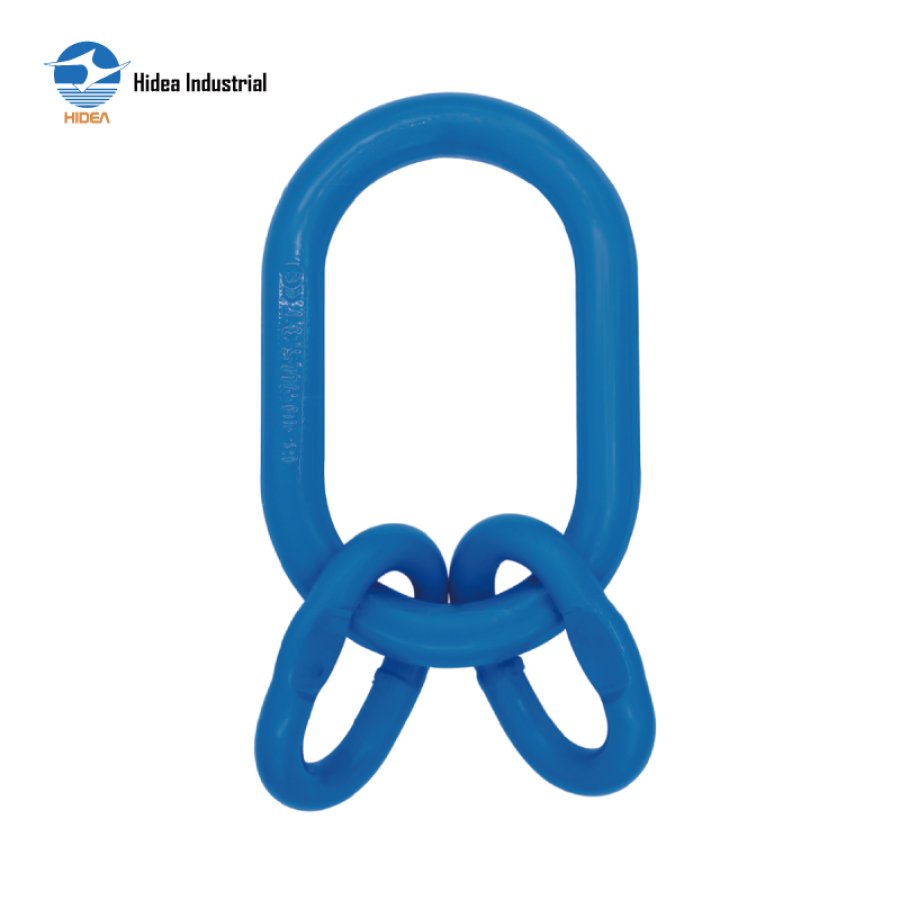

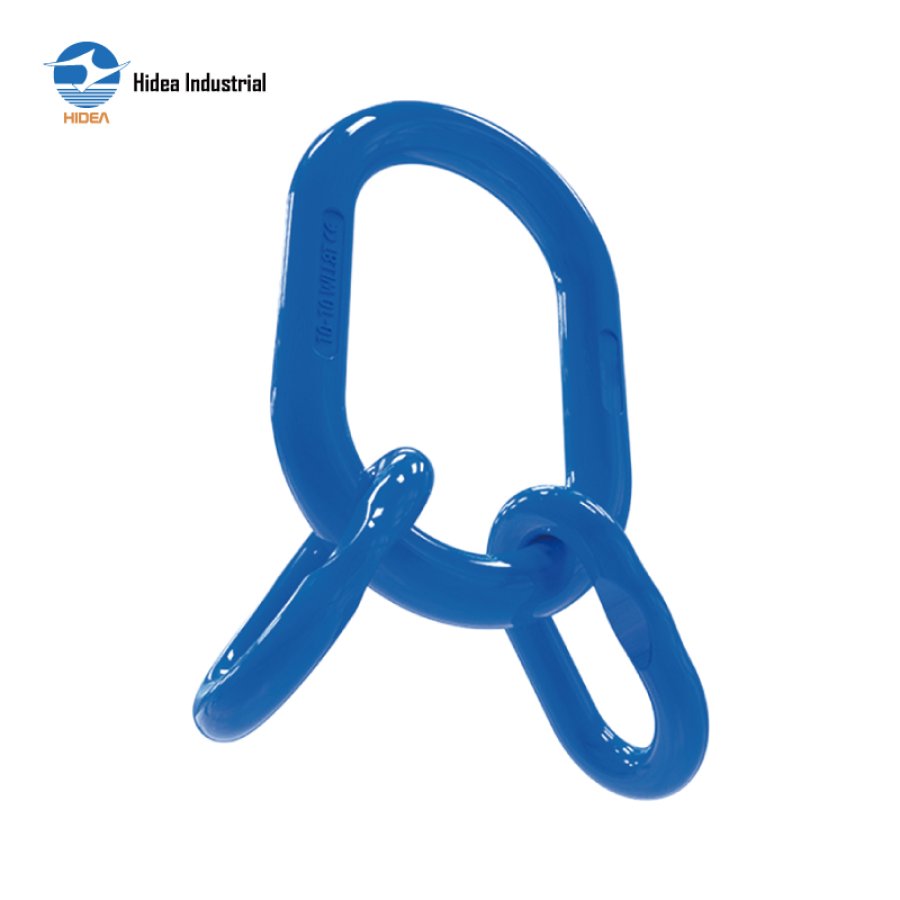

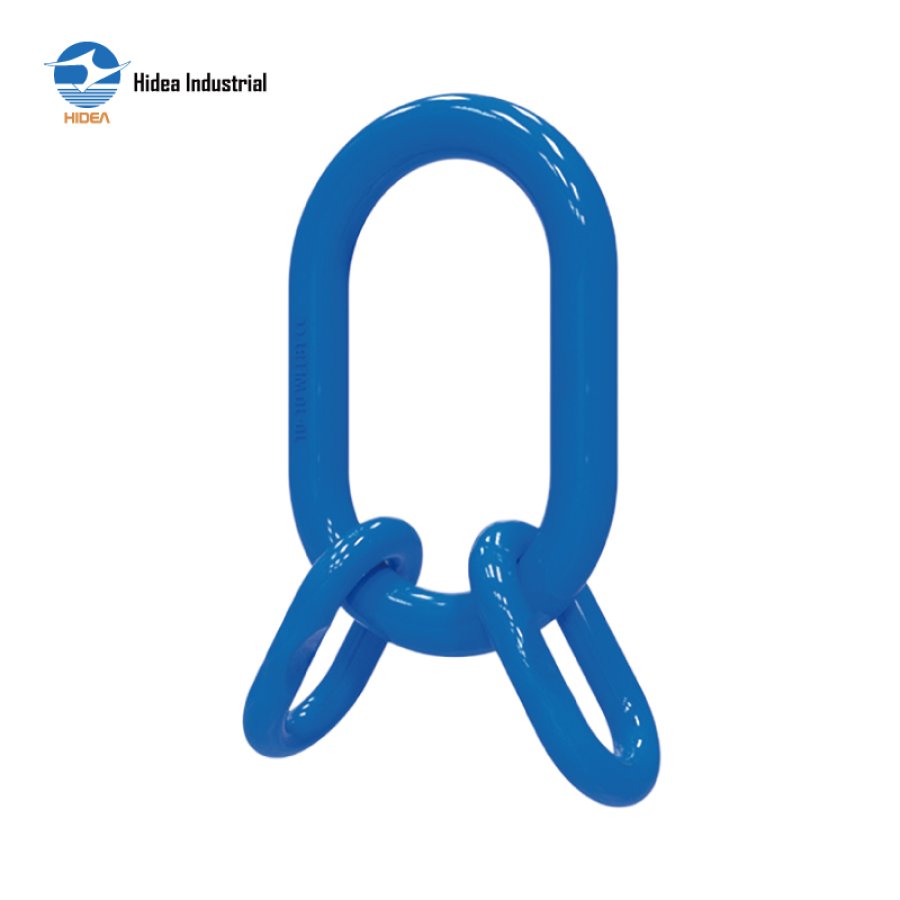

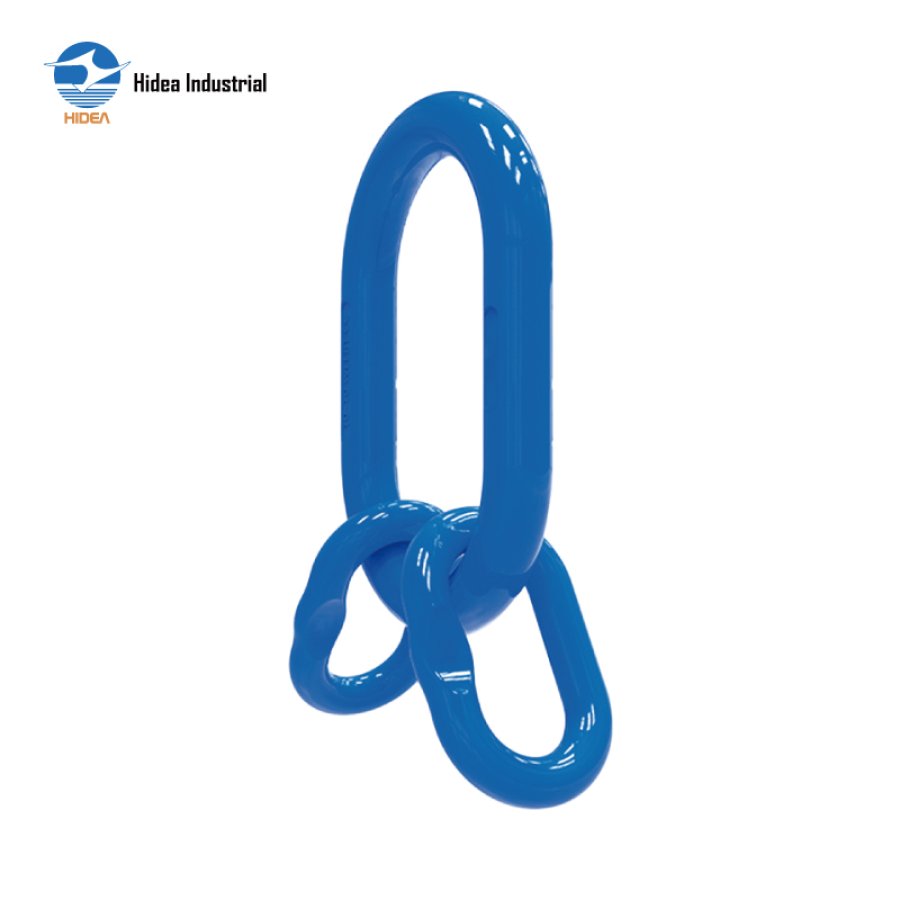

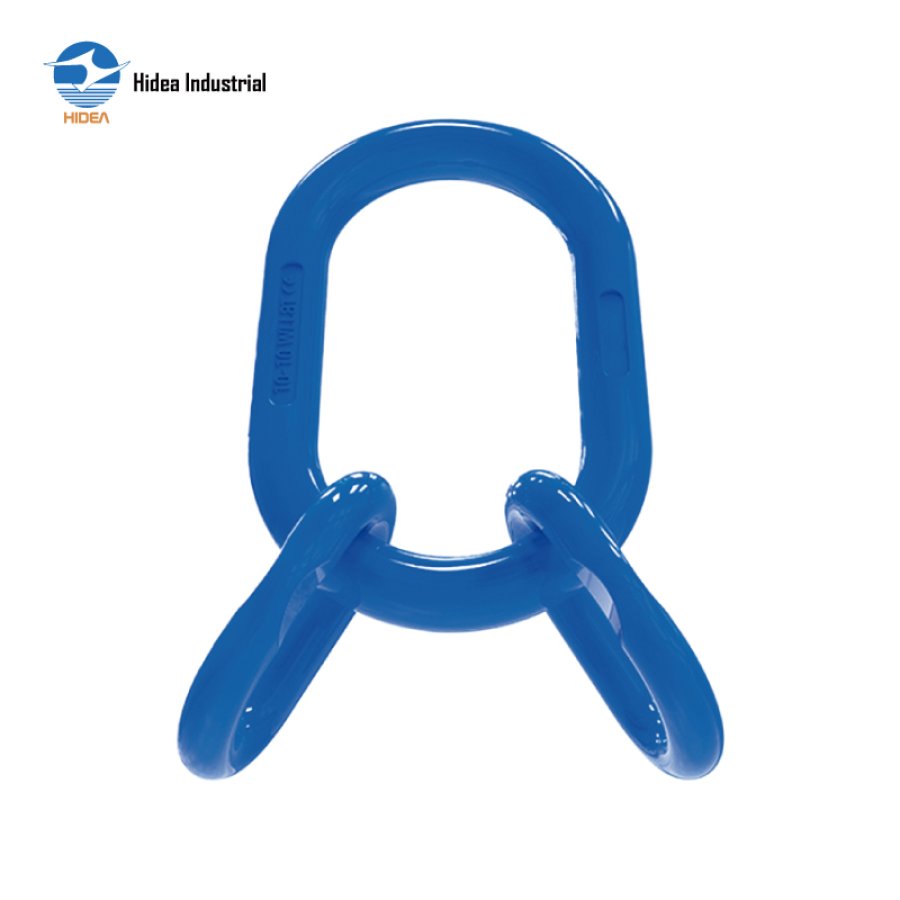

Hidea Grade 100 Master Link Assembly for Secure Lifting

G100 MASTER LINK ASSEMBLY

Super alloy steel-Quenched and Tempered
Suitable for G100 chain
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder coating
Colour code: Blue RAL5015
All sizes: Main link: forged, Sub link: welded
According to EN1677-4

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH2101-G100 MASTER LINK ASSEMBLY

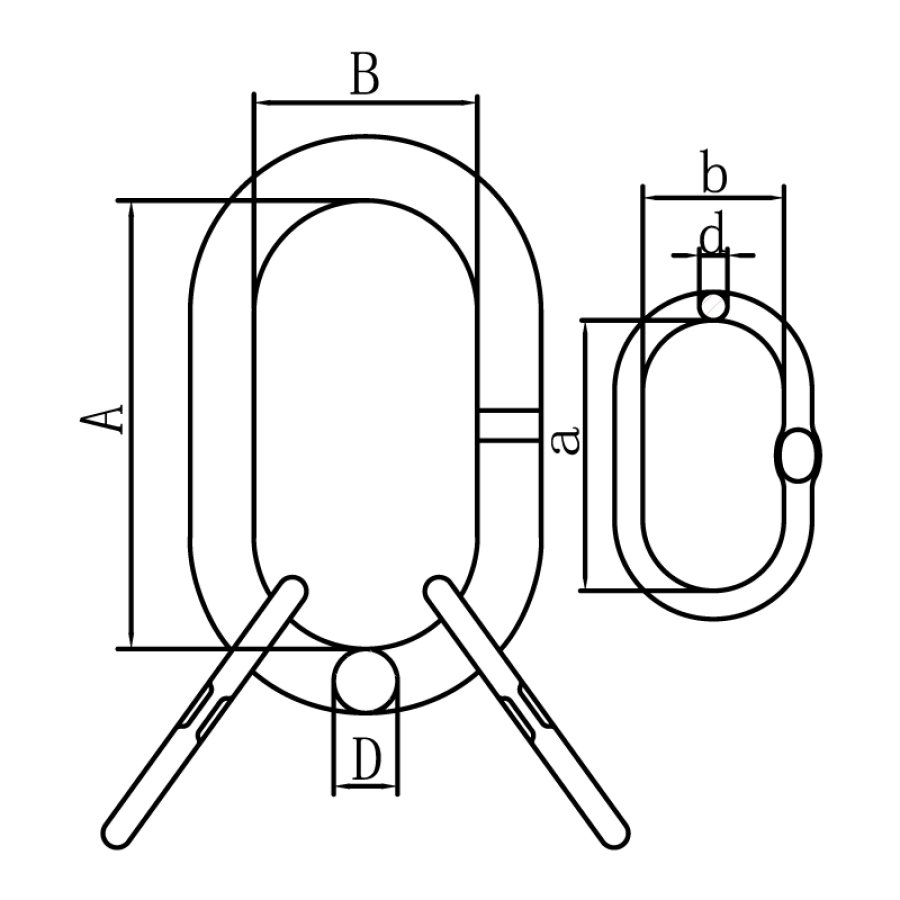

ITEM CODE	G100 CHAIN	WEIGHT	WLL	DIMENSION(MM)
ITEM CODE	FOR 3/4 LEGS SLING	(KG)	(T)	A	B	D	a	b	d
20RH2101-06	6MM	1.3	3	135	75	19	54	25	13
20RH2101-08	8MM	2.33	5.3	160	90	23	70	34	16.5
20RH2101-10	10MM	3.7	8	180	100	27	85	40	19
20RH2101-13	13MM	6.5	14	200	110	33	115	50	23
20RH2101-16	16MM	10.1	21.2	260	140	36	140	65	27
20RH2101-20	19/20MM	22.8	33.6	350	190	50	180	90	33
20RH2101-22	22MM	26	39.9	350	190	50	180	100	36
