HIDEA Stainless Steel Toggle Bolts – Highly Polished for Smooth and Secure Installations

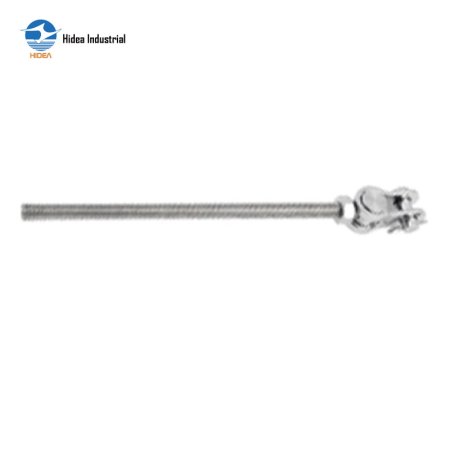

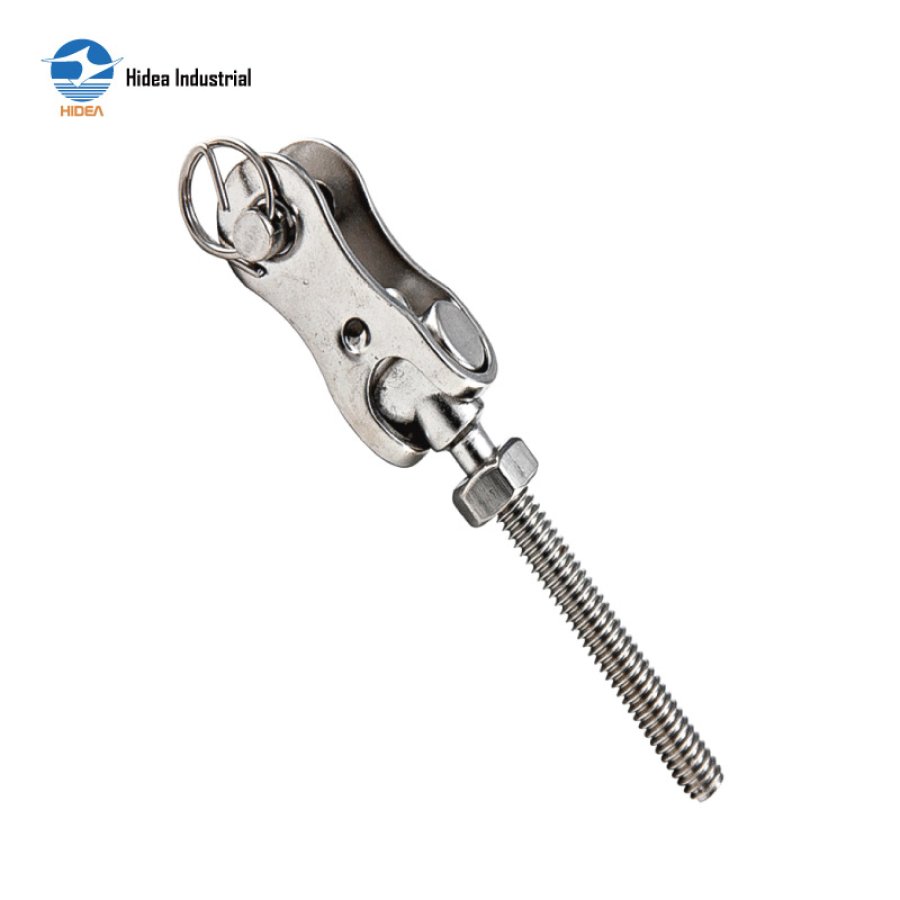

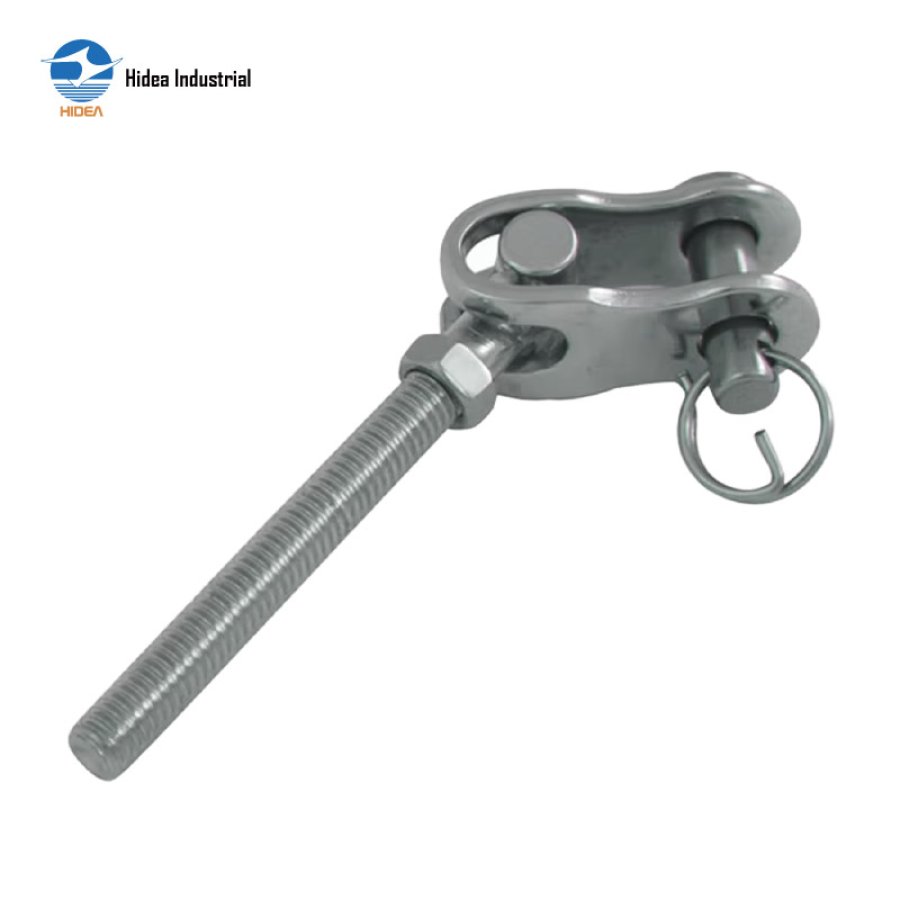

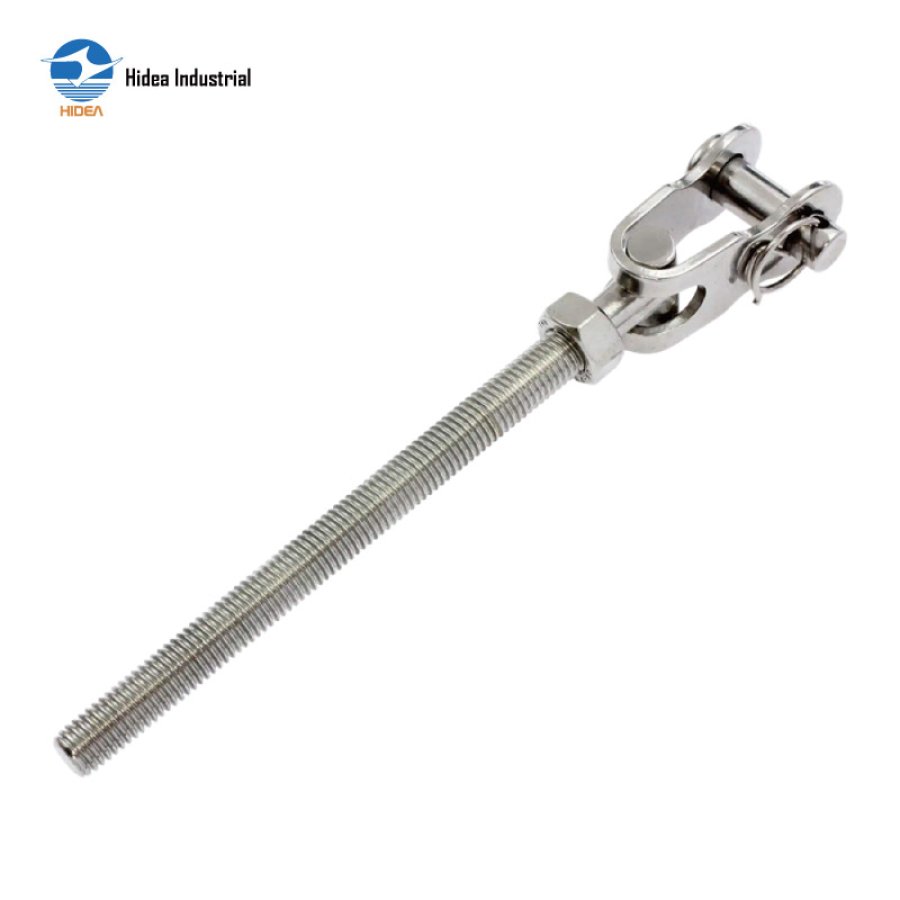

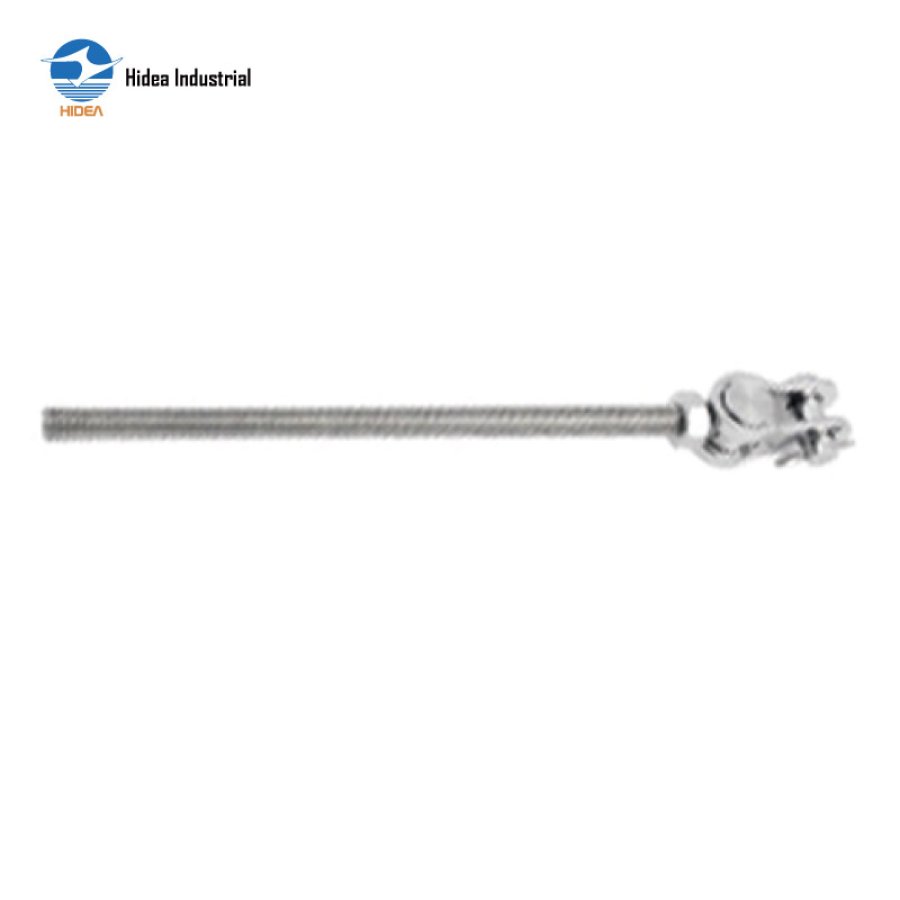

TOGGLE BOLT

Material: SS304/SS316
Length: Customized

Inquire Now

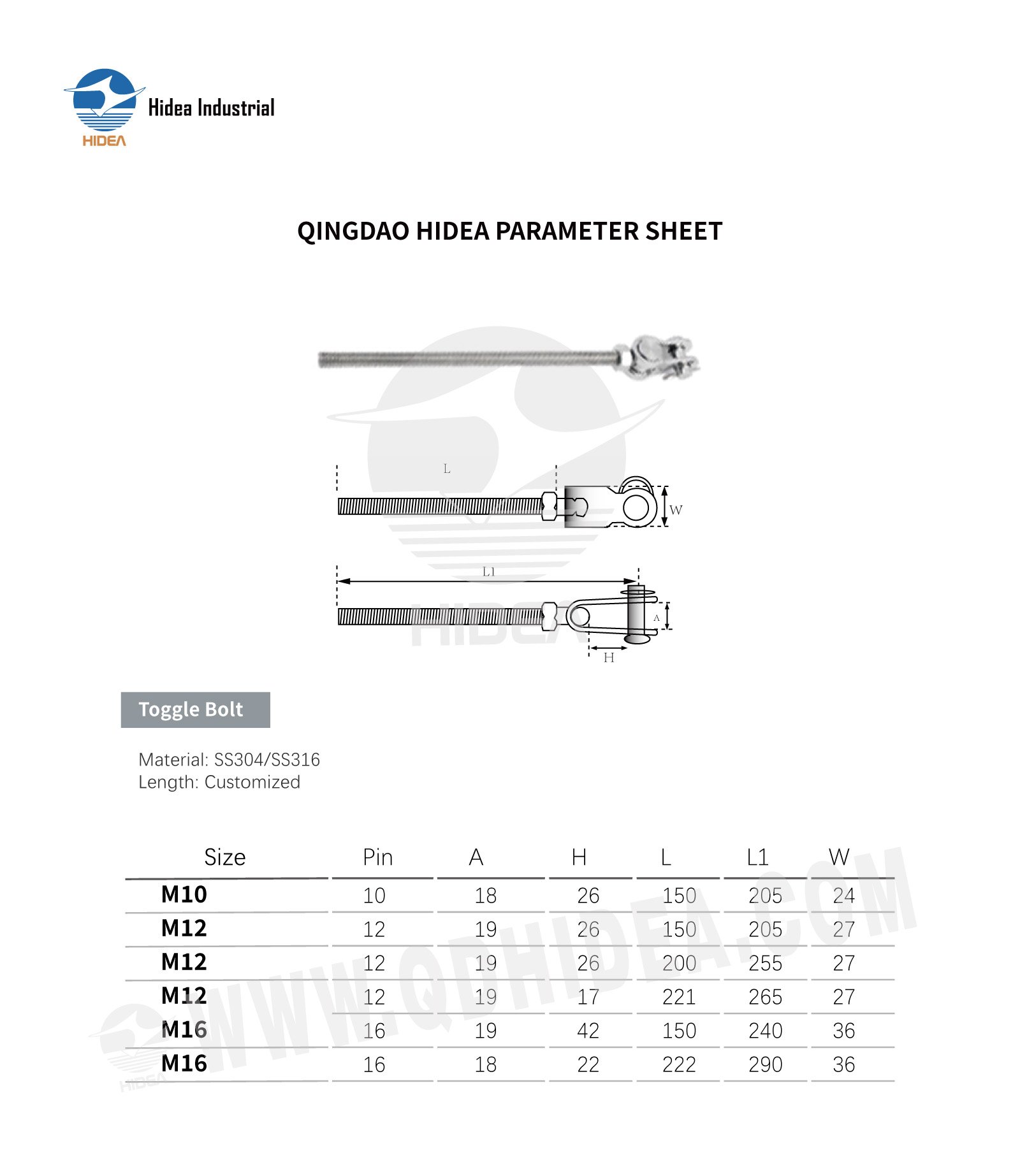

QINGDAO HIDEA PARAMETER SHEET FOR

Toggle Bolt

Size	Pin	A	H	L	L1	W
M10	10	18	26	150	205	24
M12	12	19	26	150	205	27
M12	12	19	26	200	255	27
M12	12	19	17	221	265	27
M16	16	19	42	150	240	36
M16	16	18	22	222	290	36
