HIDEA DIN 5685 Link Chain – Built for Strength, Durability, and Industrial Excellence

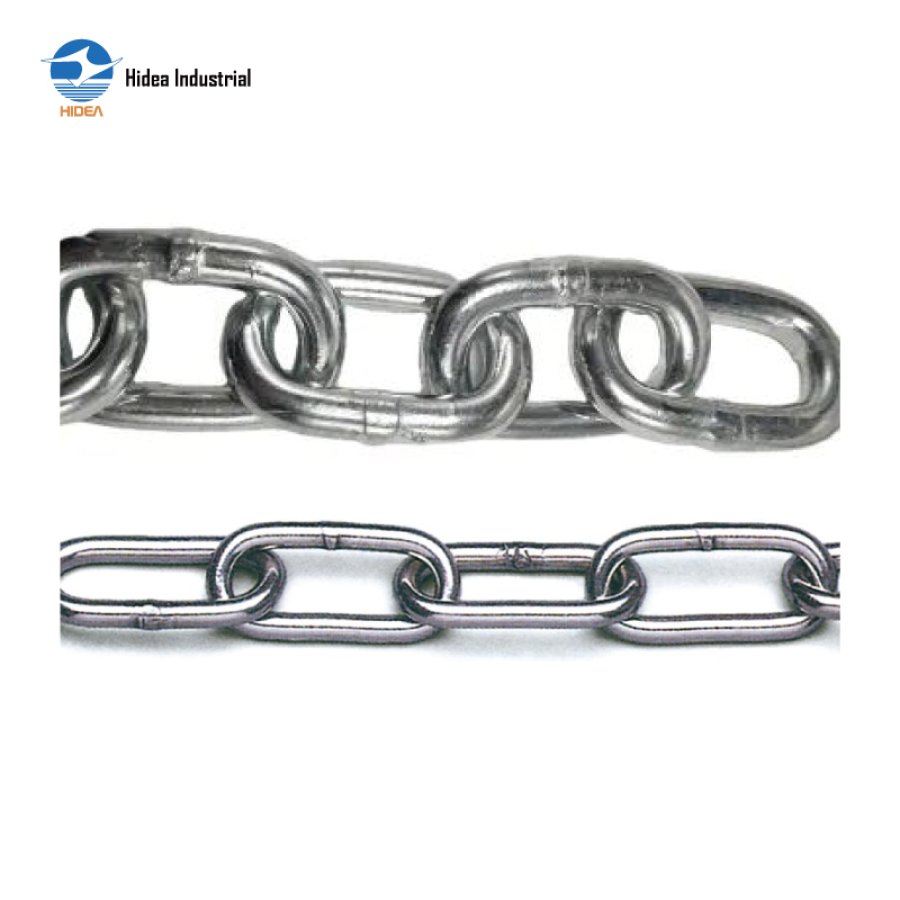

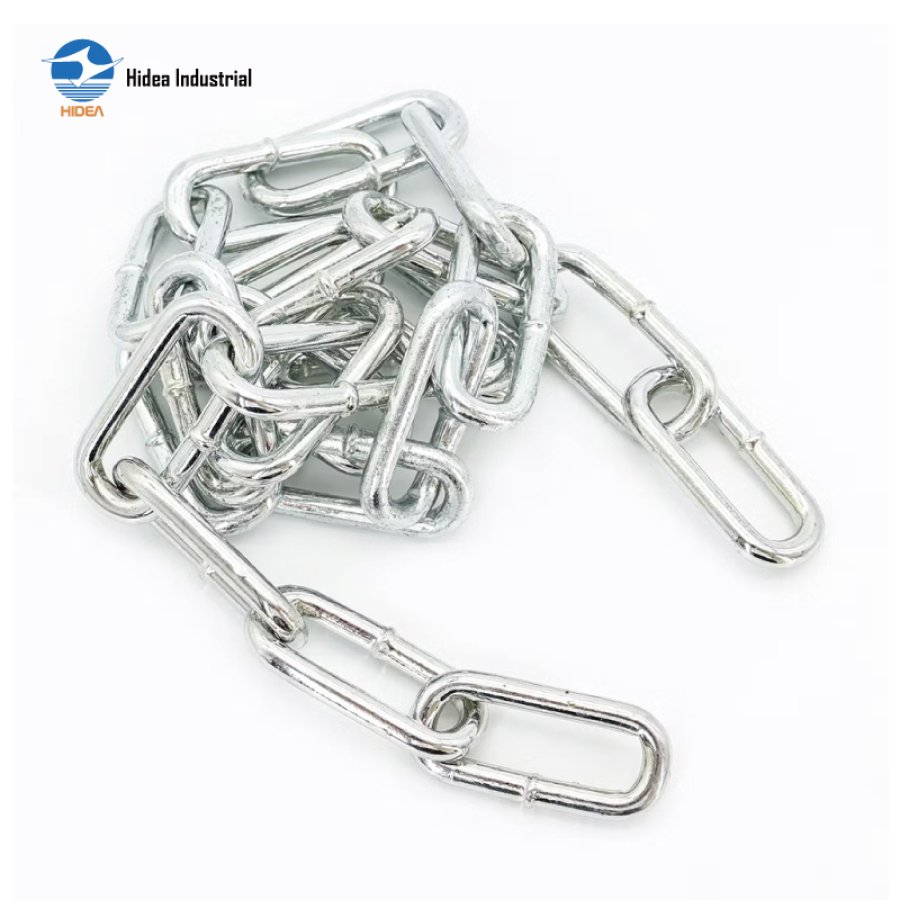

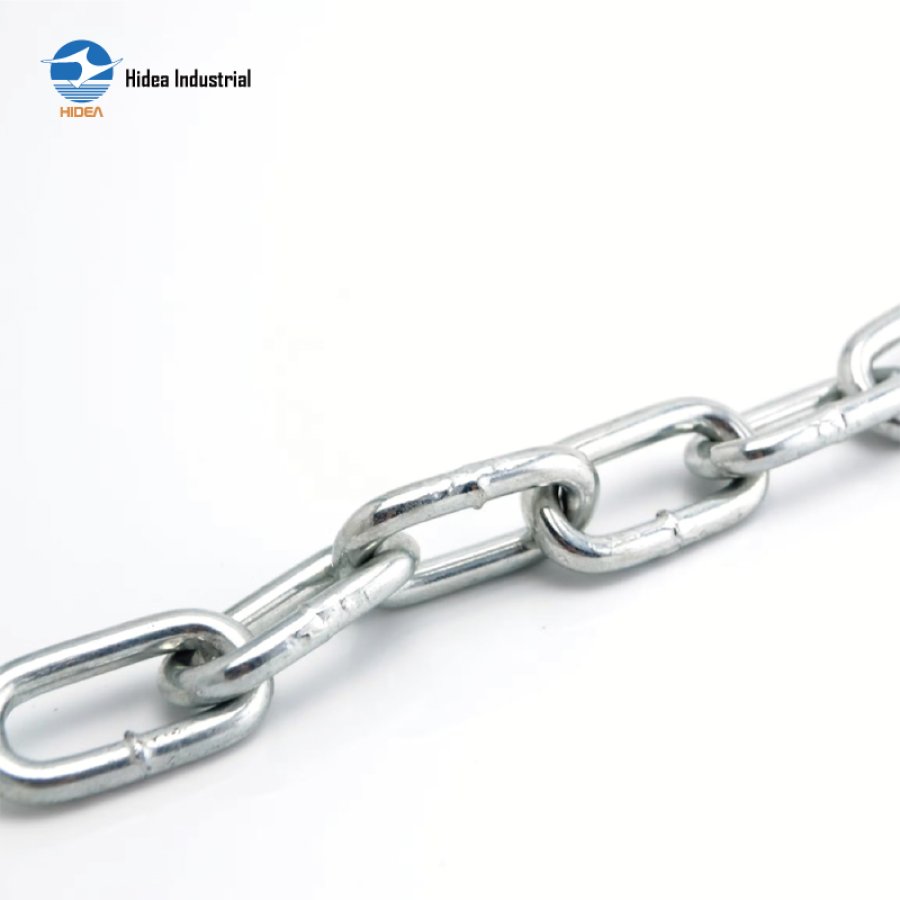

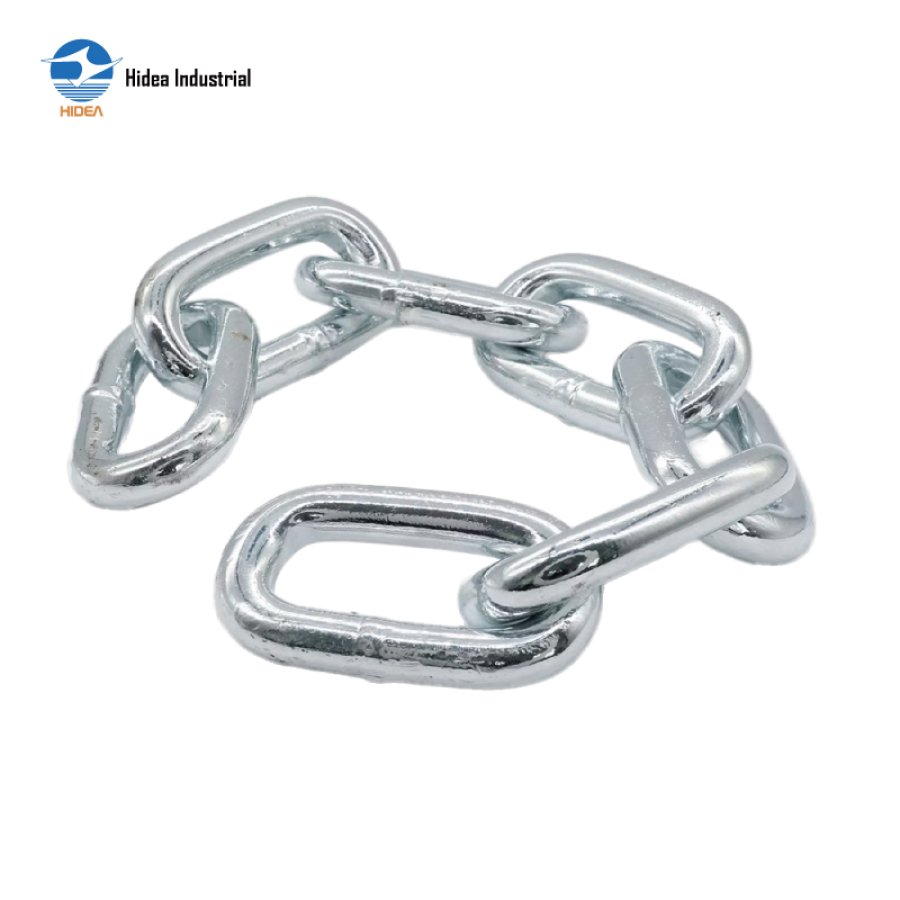

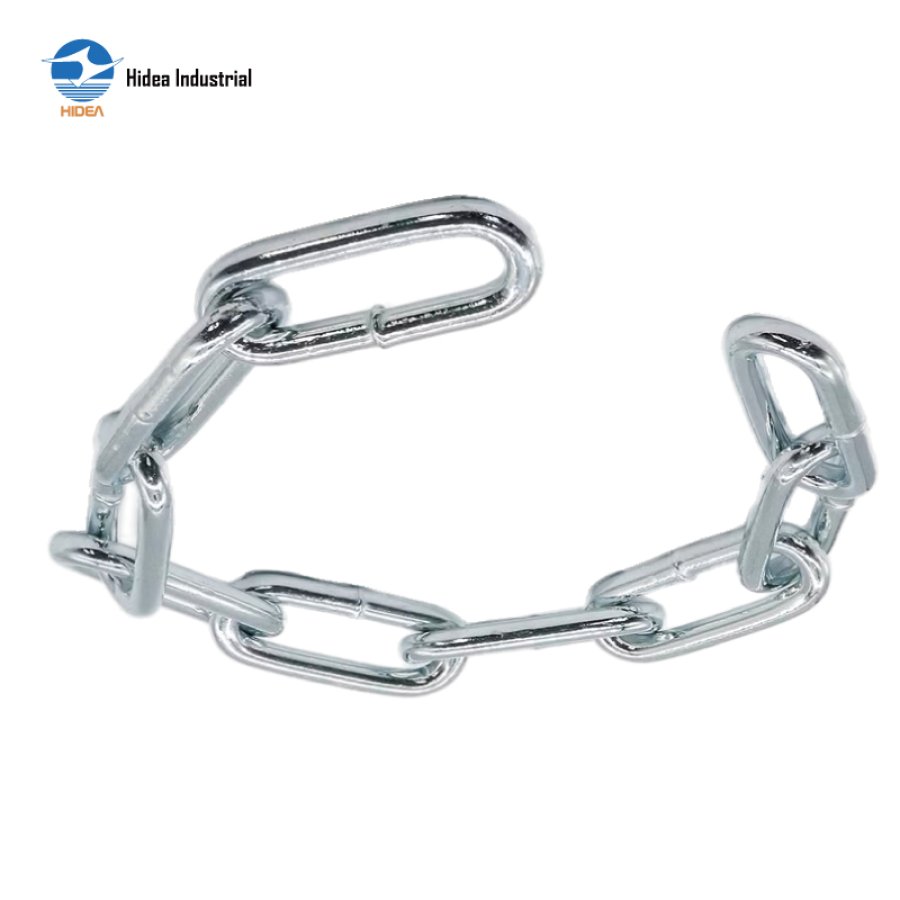

DIN5685A/C SHORT/ LONG LINK CHAIN

Material: Carbon Steel Mild Steel
Surface Treatment: Powder Coated, Electro OR Hot Dip galvanized or as requested
Din5685A / Din5685C Short / Long Link Chain German Type

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC128 Din5685A/Din5685C Short/Long Link Chain

Size	Inside Length	Outside Width	Inside Width	Proof Load		Breaking Load	Working Load	Weight	Type of Link
mm	mm	mm	mm	kg		kg	kg	kg/m
2	12	8	4	500		1250	250	0.07	A
	22							0.06	C
2.5	14	10	5	750		2000	375	0.11	A
	24							0.10	C
3	16	12	6	1120		2800	560	0.17	A
	26							0.15	C
3.5	18	14	7	1500		3850	750	0.23	A
	28							0.20	C
4	19	16	8	2000		5000	1000	0.30	A
	32							0.27	C
4.5	20	18	9	2500		6300	1250	0.33	A
	34							0.35	A
5	21	20	10	3150		7750	1575	0.50	C
	35							0.43	A
5.5	23	22	11	3800		9500	1900	0.61	C
	39							0.52	A
6	24	24	12	4500		11500	2250	0.73	C
	42							0.63	A
6.5	26	26	13	5400		13500	2700	0.86	C
	46							0.74	A
7	28	28	14	6000		15000	3000	1.00	C
	49							0.86	A
8	32	32	16	8000		20000	4000	1.30	A
	52							1.10	C
8.5	34	34	17	9000		22500	4500	1.49	A
	56							1.25	C
9	36	36	36	10000		25000	5000	1.65	A
	59							1.41	C
10	40	40	20	12500		31000	6250	2.05	A
	65							1.75	C
11	44	44	22	15000		38000	7500	2.50	A
	72							2.11	C
12	48	48	24	18000		45000	9000	2.90	A
	78							2.55	C
13	52	52	26	21200		53000	10600	3.45	A
								2.95	C
