Reliable Lifting with Hidea Clevis Slip Hook and Latch

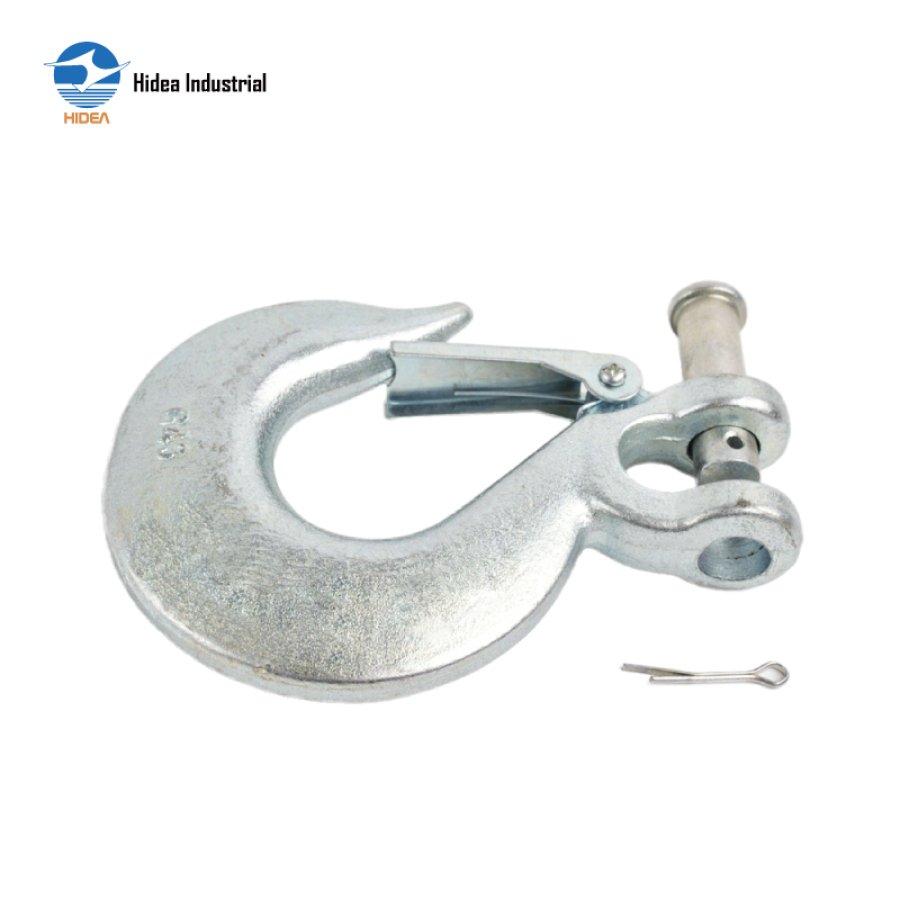

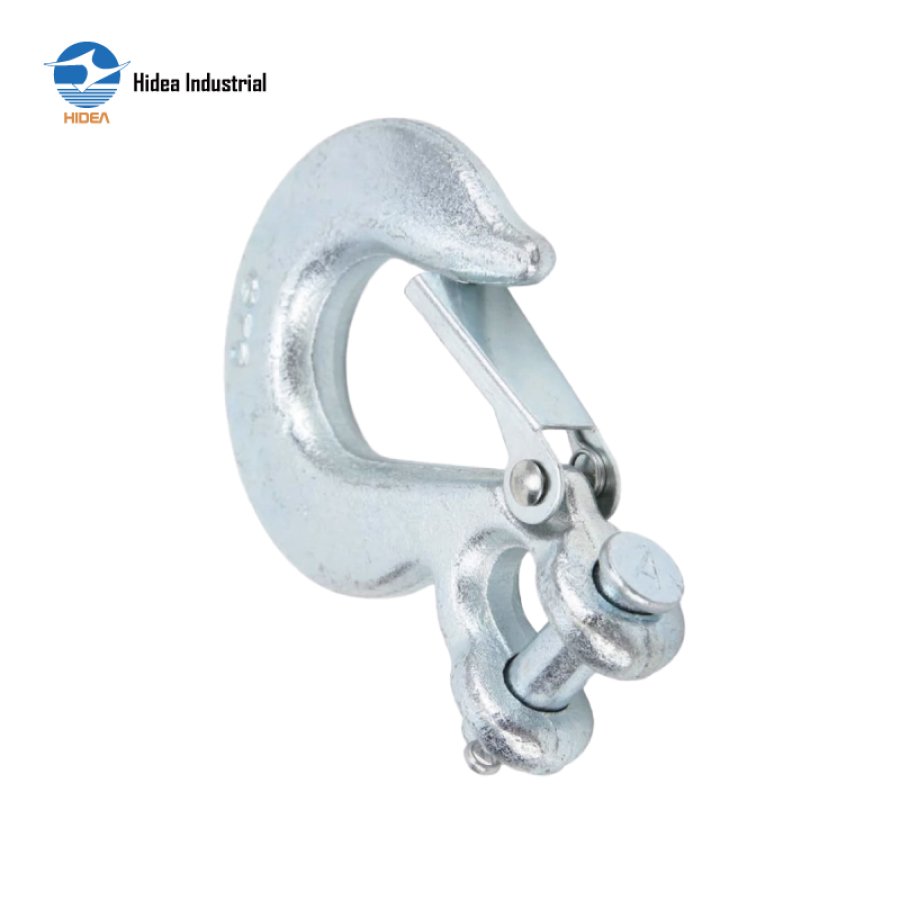

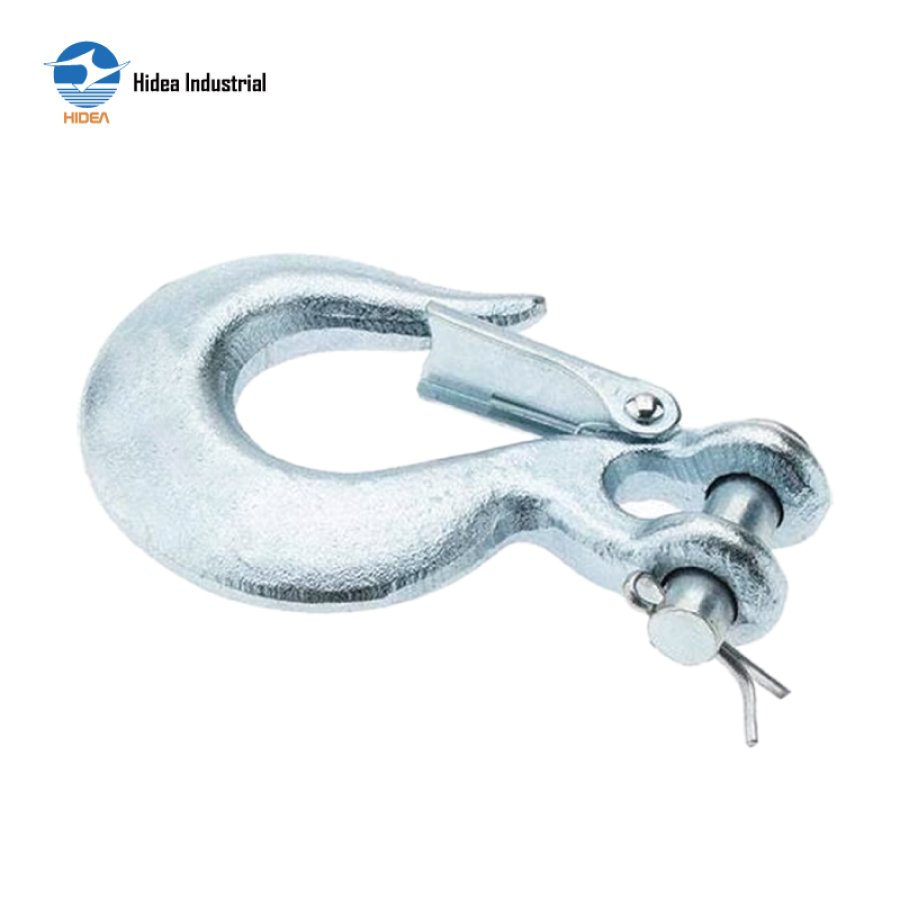

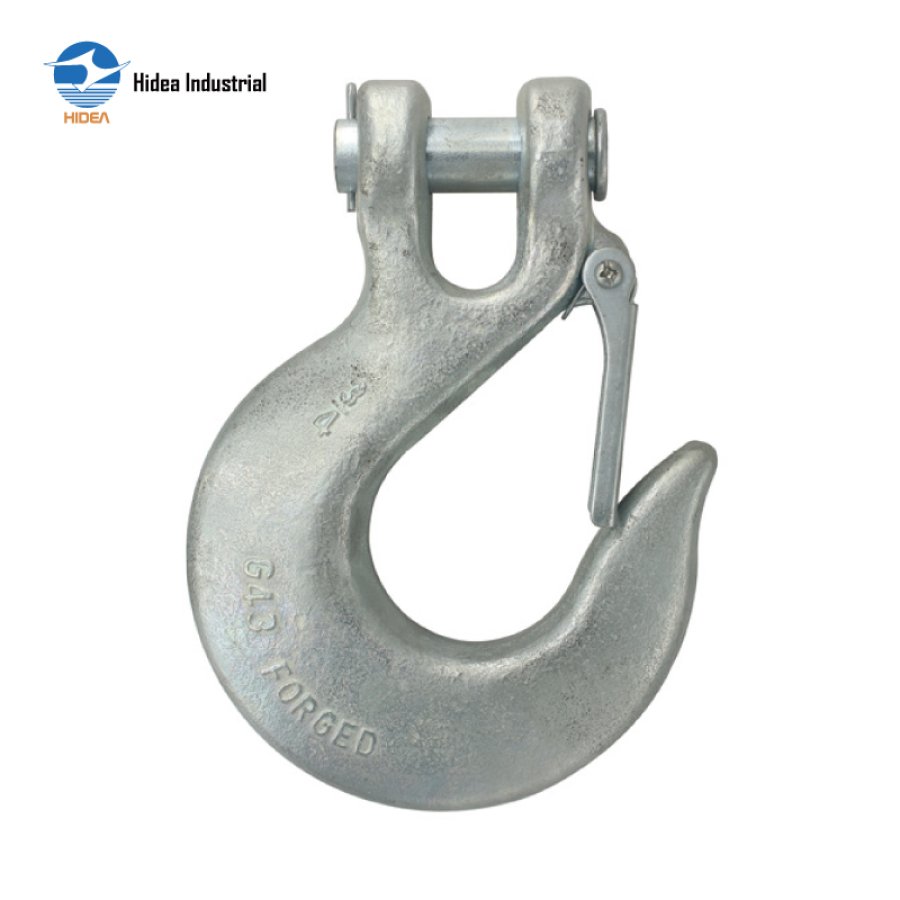

G43/G70 CLEVIS SLIP HOOK H331/A331 WITH LATCH

Material: supper alloy steel/carbon steel rated G70/G43
Drop forged, quenched & tempered
Breakage test & magnaflux crack detection
Safety factor 4:1 & certificates available
Surface electro galvanized (EG) OR powder coated OR as requested

Inquire Now

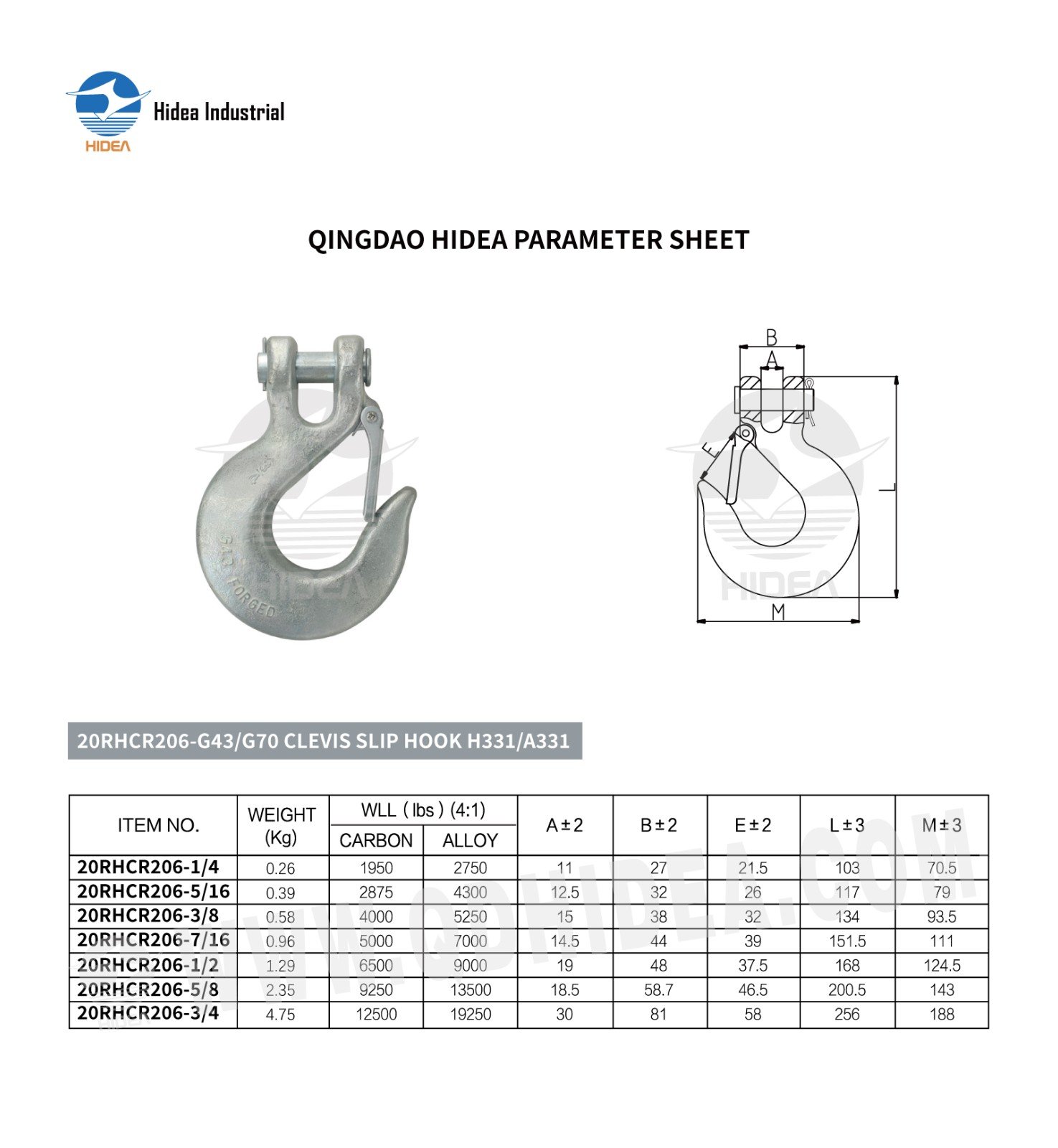

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR206-G43/G70 CLEVIS SLIP HOOK H331/A331

ITEM NO.	WEIGHT (Kg)	WLL(Ibs)(4:1)		A±2	B±2	E±2	L±3	M±3
		CARBON	ALLOY
20RHCR206-1/4	0.26	1950	2750	11	27	21.5	103	70.5
20RHCR206-5/16	0.39	2875	4300	12.5	32	26	117	79
20RHCR206-3/8	0.58	4000	5250	15	38	32	134	93.5
20RHCR206-7/16	0.96	5000	7000	14.5	44	39	151.5	111
20RHCR206-1/2	1.29	6500	9000	19	48	37.5	168	124.5
20RHCR206-5/8	2.35	9250	13500	18.5	58.7	46.5	200.5	143
20RHCR206-3/4	4.75	12500	19250	30	81	58	256	188
