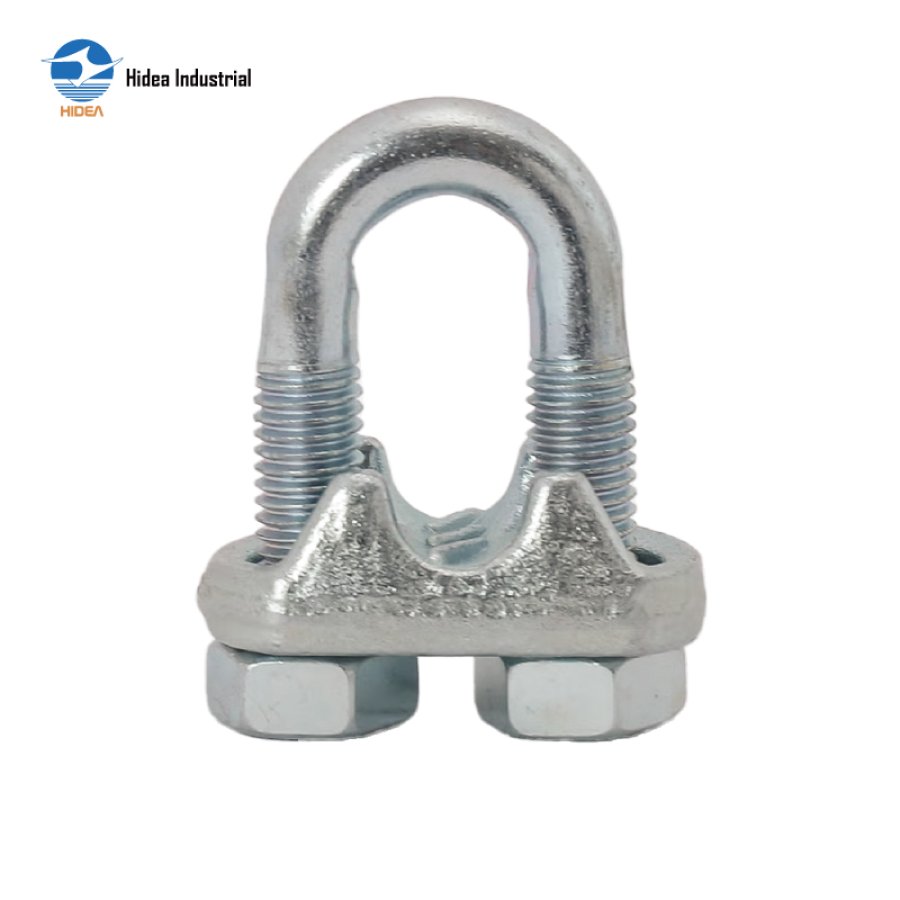

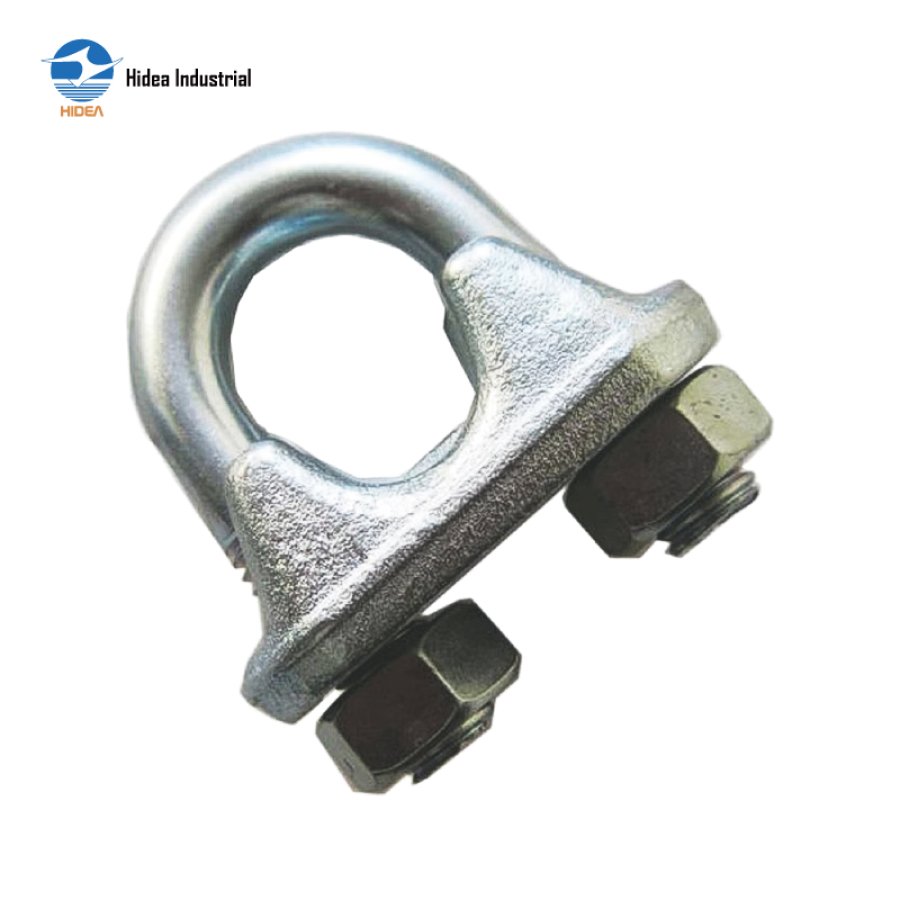

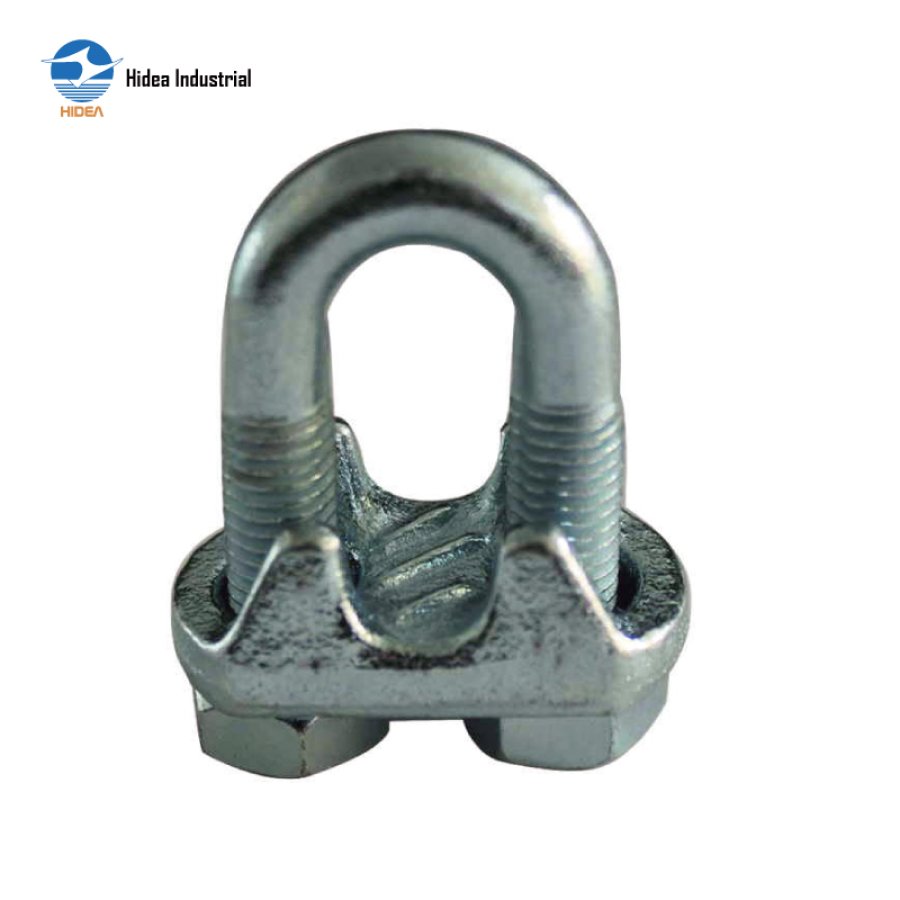

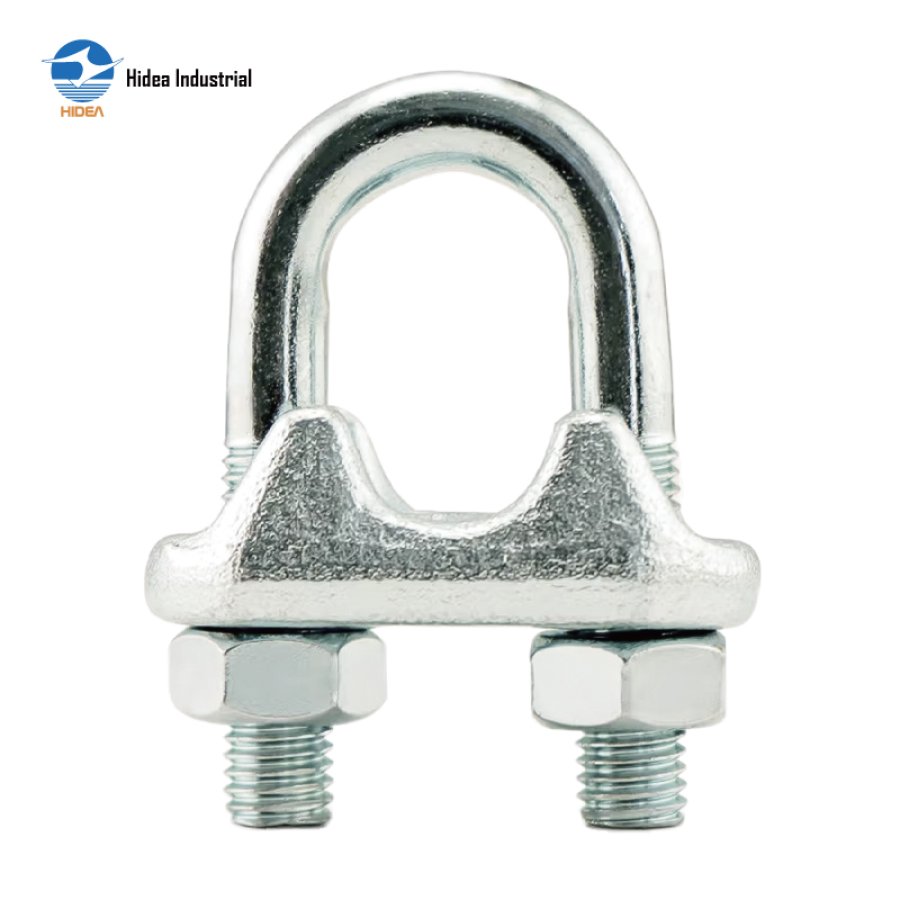

Heavy Duty HIDEA Italy Type Forged Wire Rope Clips for Industrial Use

ITALY TYPE WIRE ROPE CLIPS

High Tensile Carbon Steel
Drop Forged, quenched & tempered
Surface Hot Dip Galvanized OR as requested
Heavy Duty forged Wire Rope Clips Italian Type

Inquire Now

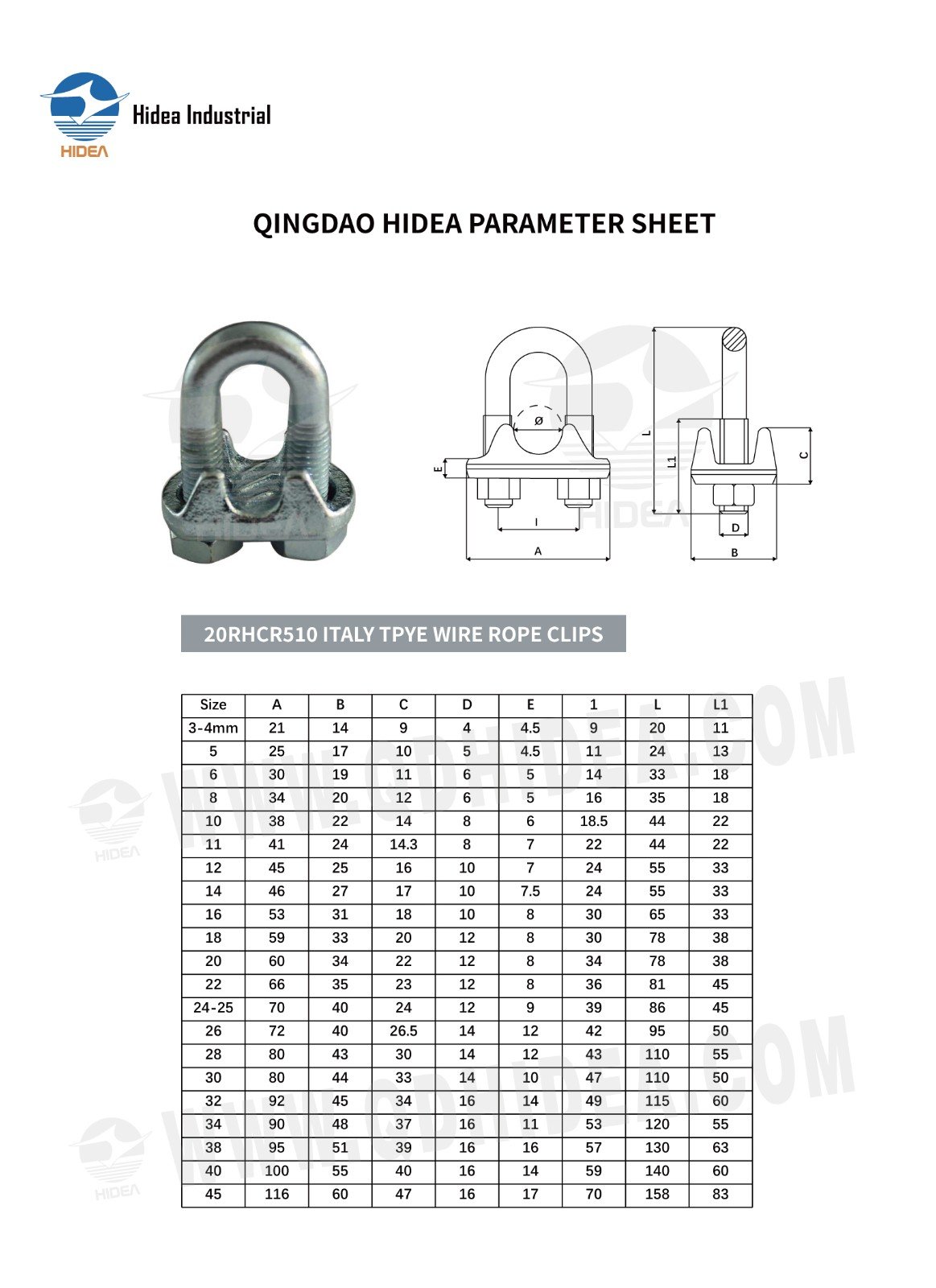

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR510 ITALY TPYE WIRE ROPE CLIPS

Size	A	B	C	D	E	1	L	L1
3-4mm	21	14	9	4	4.5	9	20	11
5	25	17	10	5	4.5	11	24	13
6	30	19	11	6	5	14	33	18
8	34	20	12	6	5	16	35	18
10	38	22	14	8	6	18.5	44	22
11	41	24	14.3	8	7	22	44	22
12	45	25	16	10	7	24	55	33
14	46	27	17	10	7.5	24	55	33
16	53	31	18	10	8	30	65	33
18	59	33	20	12	8	30	78	38
20	60	34	22	12	8	34	78	38
22	66	35	23	12	8	36	81	45
24-25	70	40	24	12	9	39	86	45
26	72	40	26.5	14	12	42	95	50
28	80	43	30	14	12	43	110	55
30	80	44	33	14	10	47	110	50
32	92	45	34	16	14	49	115	60
34	90	48	37	16	11	53	120	55
38	95	51	39	16	16	57	130	63
40	100	55	40	16	14	59	140	60
45	116	60	47	16	17	70	158	83
