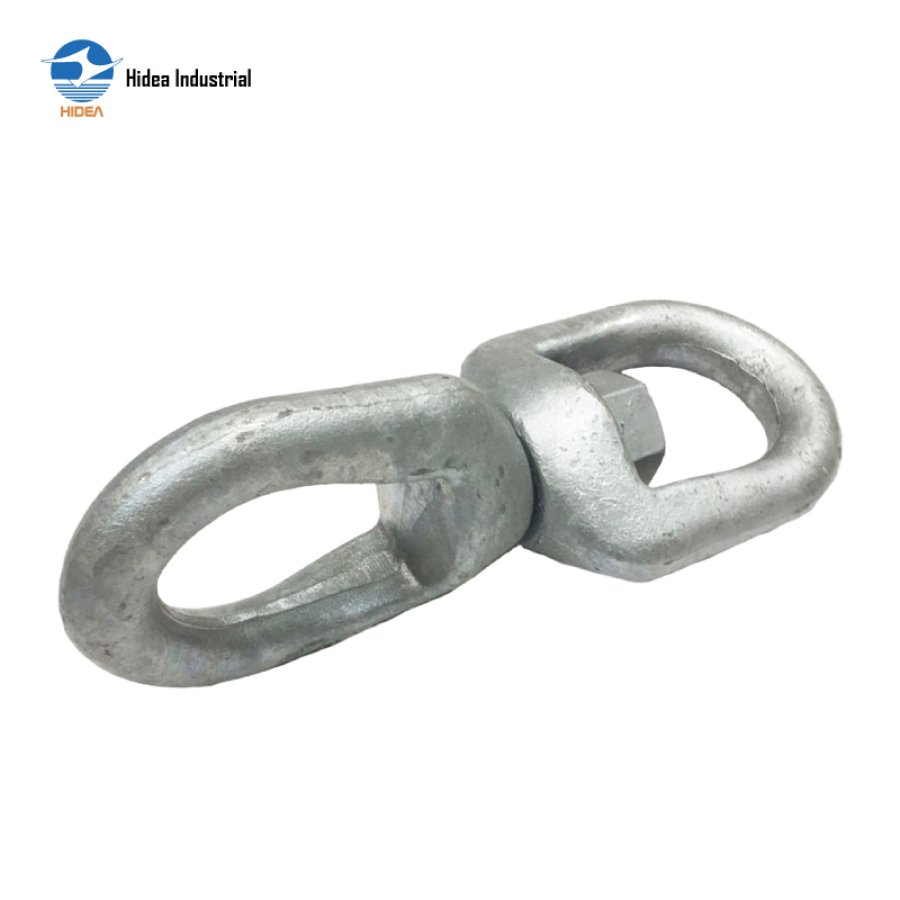

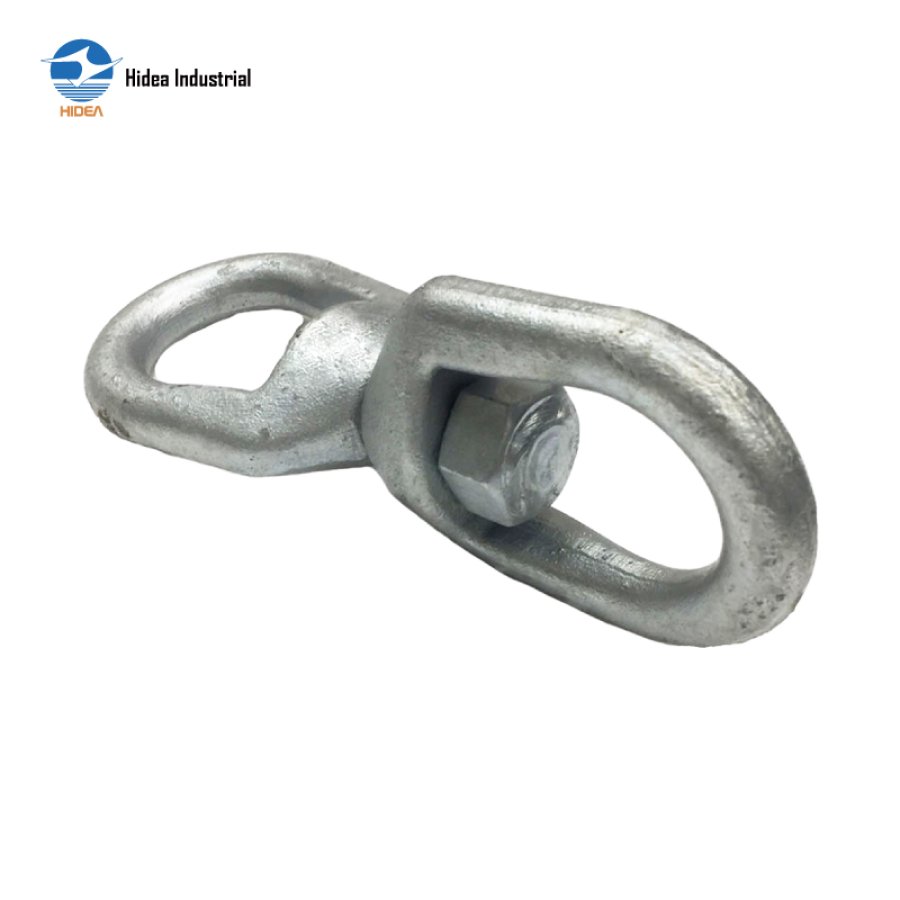

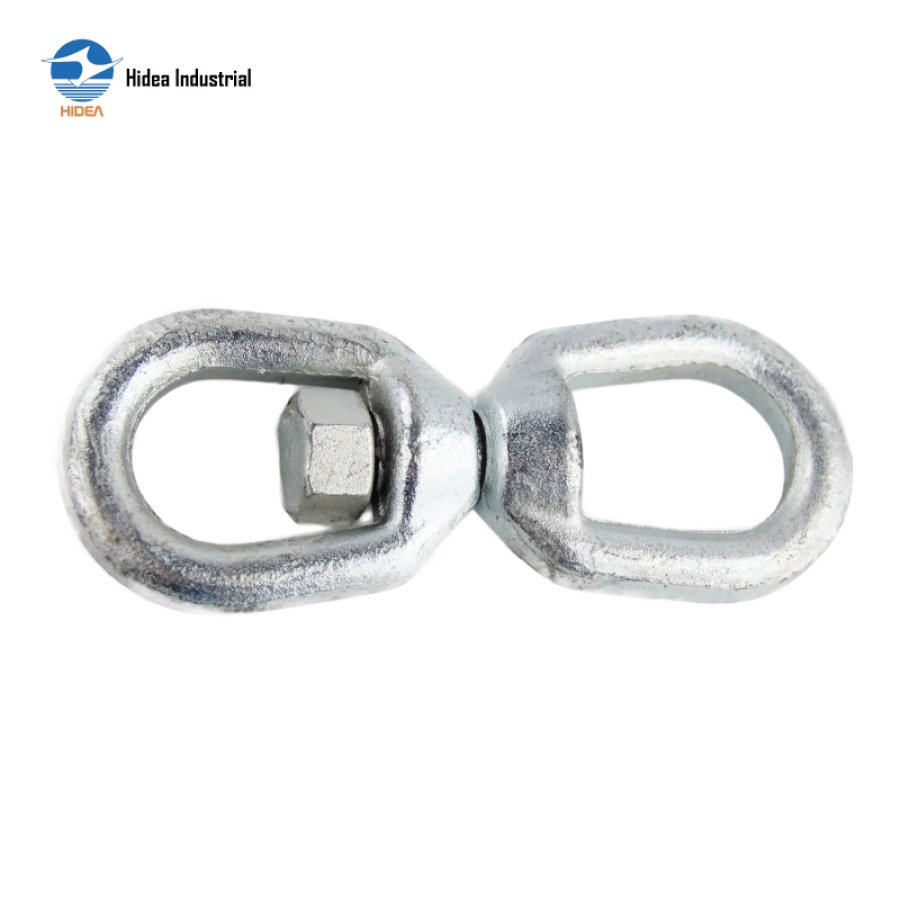

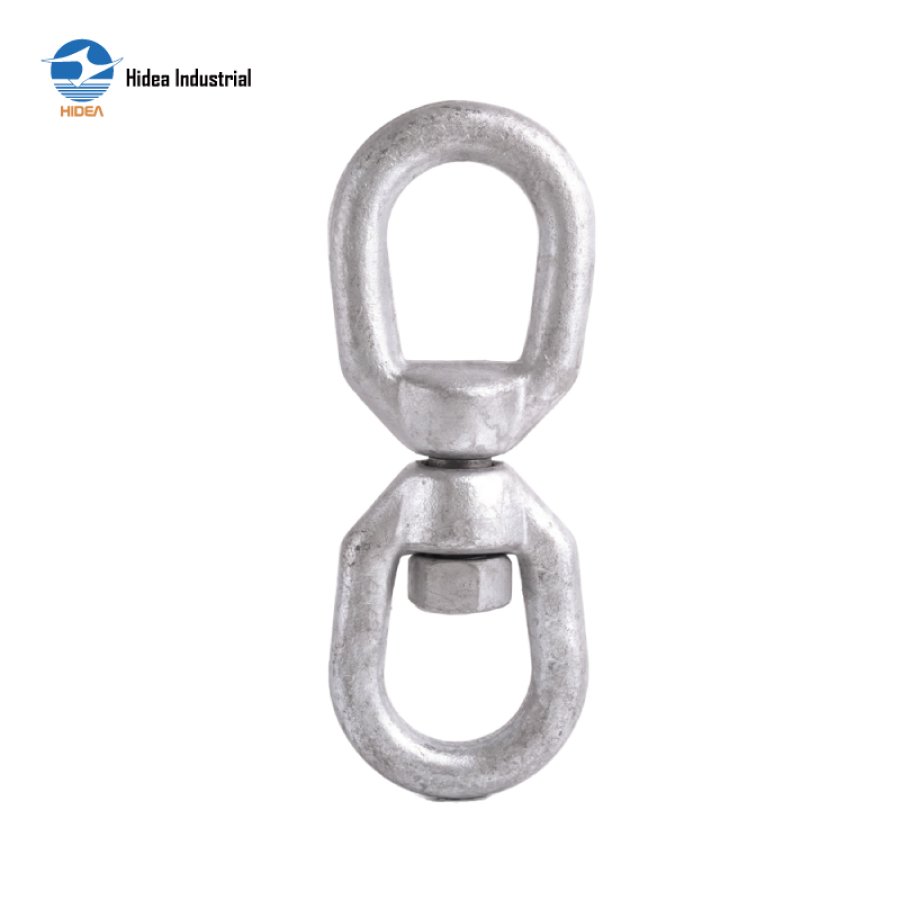

Hidea Eye & Eye Forged Regular Chain Swivel – Perfect for Marine & Industrial Use

REGULAR SWIVELS G-402

High tensile carbon steel
Forged, quenched & tempered
Proof tested & certificate available
Surface hot dip galvanized, Electro Galv. / zinc plated OR as requested
G-402 Regular Swivels, meets the performance requirements of Federal Specification RR-C-271F, Type VII, Class 2

Inquire Now

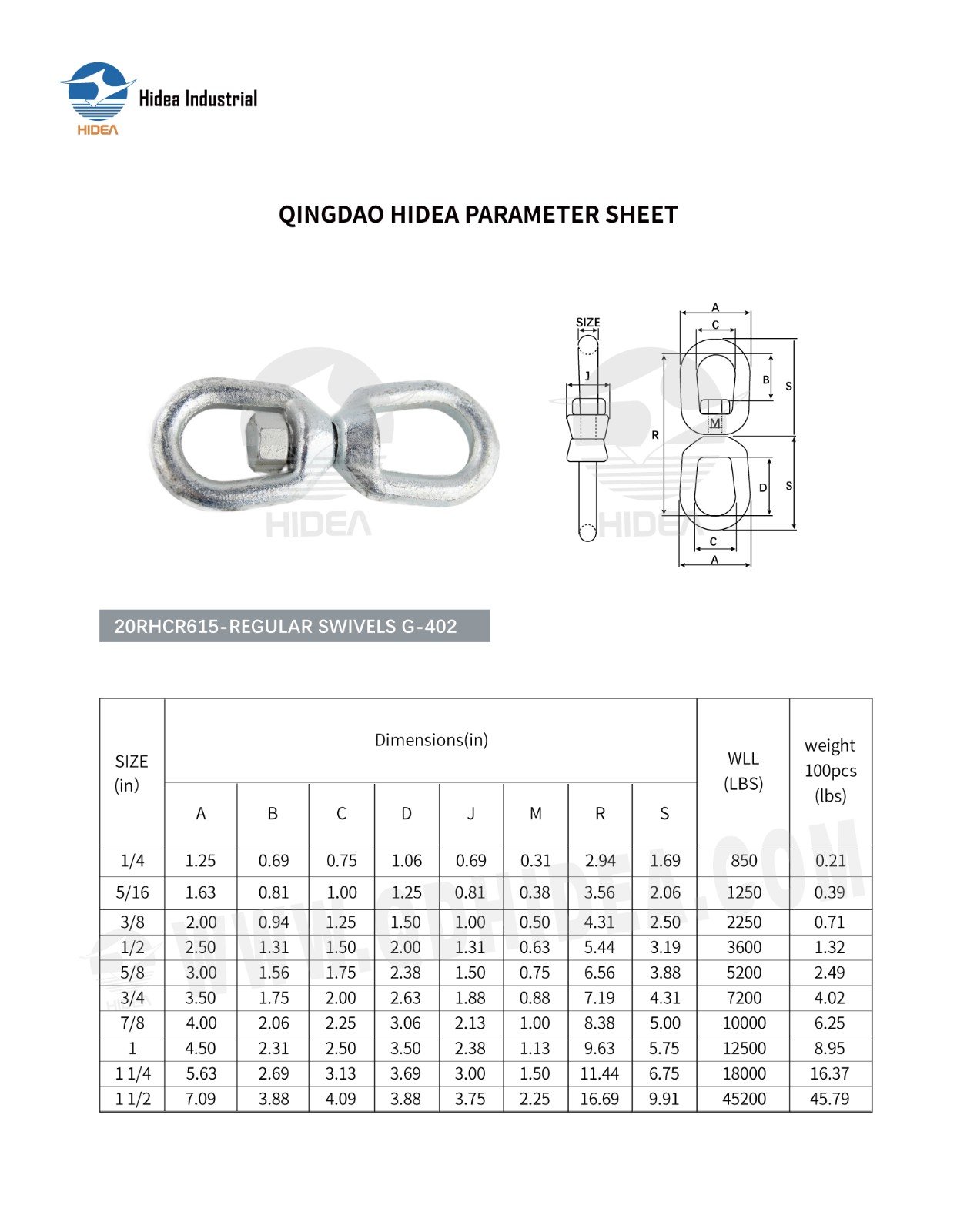

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR615-REGULAR SWIVELS G-402

SIZE (in)	Dimensions(in)								WLL (LBS)	weight 100pcs (lbs)
SIZE (in)	A	B	C	D	J	M	R	S	WLL (LBS)	weight 100pcs (lbs)
1/4	1.25	0.69	0.75	1.06	0.69	0.31	2.94	1.69	850	0.21
5/16	1.63	0.81	1.00	1.25	0.81	0.38	3.56	2.06	1250	0.39
3/8	2.00	0.94	1.25	1.50	1.00	0.50	4.31	2.50	2250	0.71
1/2	2.50	1.31	1.50	2.00	1.31	0.63	5.44	3.19	3600	1.32
5/8	3.00	1.56	1.75	2.38	1.50	0.75	6.56	3.88	5200	2.49
3/4	3.50	1.75	2.00	2.63	1.88	0.88	7.19	4.31	7200	4.02
7/8	4.00	2.06	2.25	3.06	2.13	1.00	8.38	5.00	10000	6.25
1	450	2.31	2.50	3.50	2.38	1.13	9.63	5.75	12500	8.95
11/4	5.63	2.69	3.13	3.69	3.00	1.50	11.44	6.75	18000	16.37
11/2	7.09	3.88	4.09	3.88	3.75	2.25	16.69	9.91	45200	45.79
