Hidea JIS Chain Shackle SB Type: Trusted for Safe and Efficient Chain Rigging

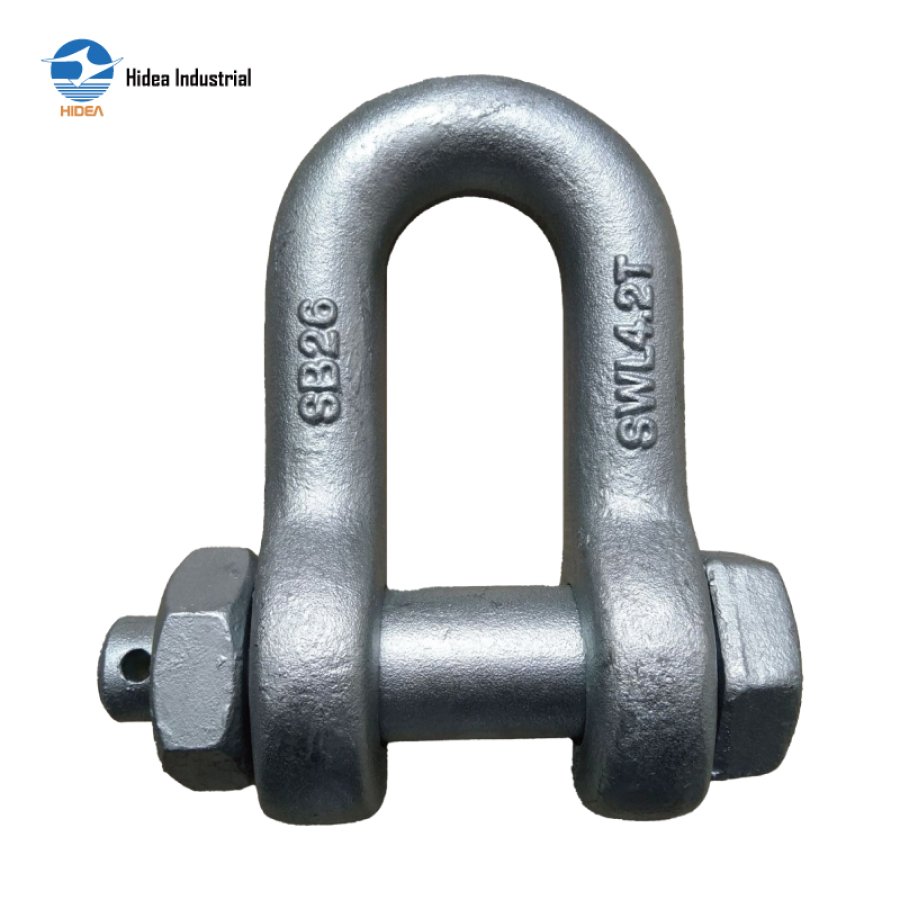

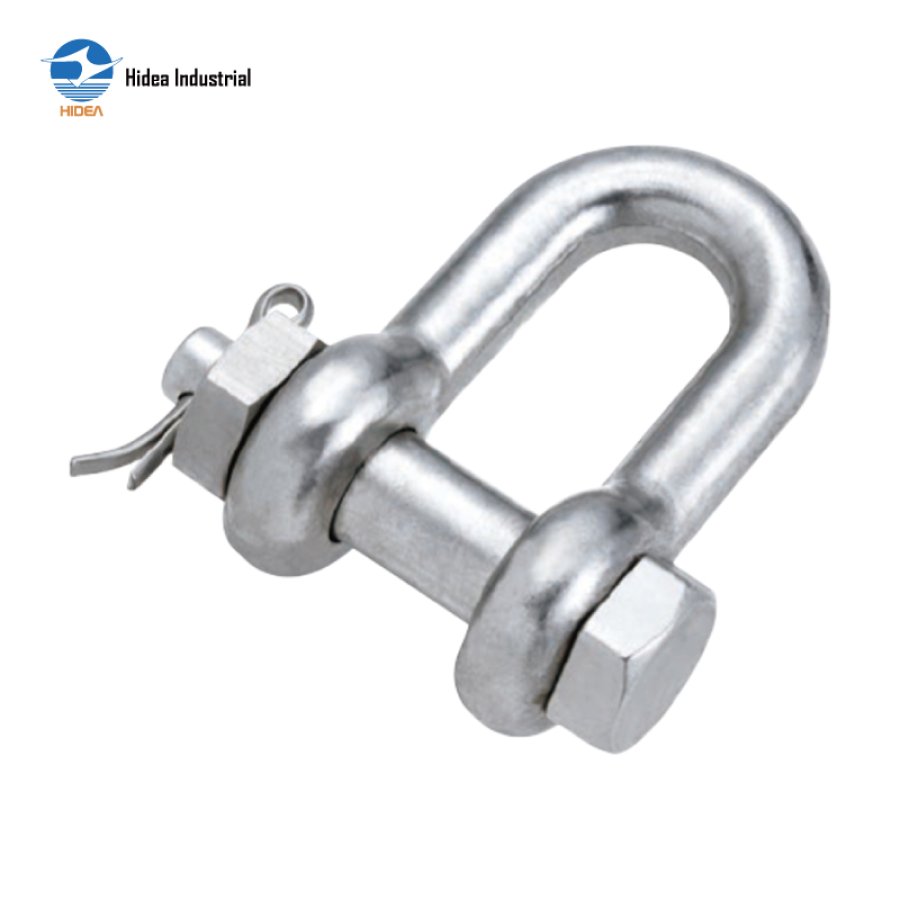

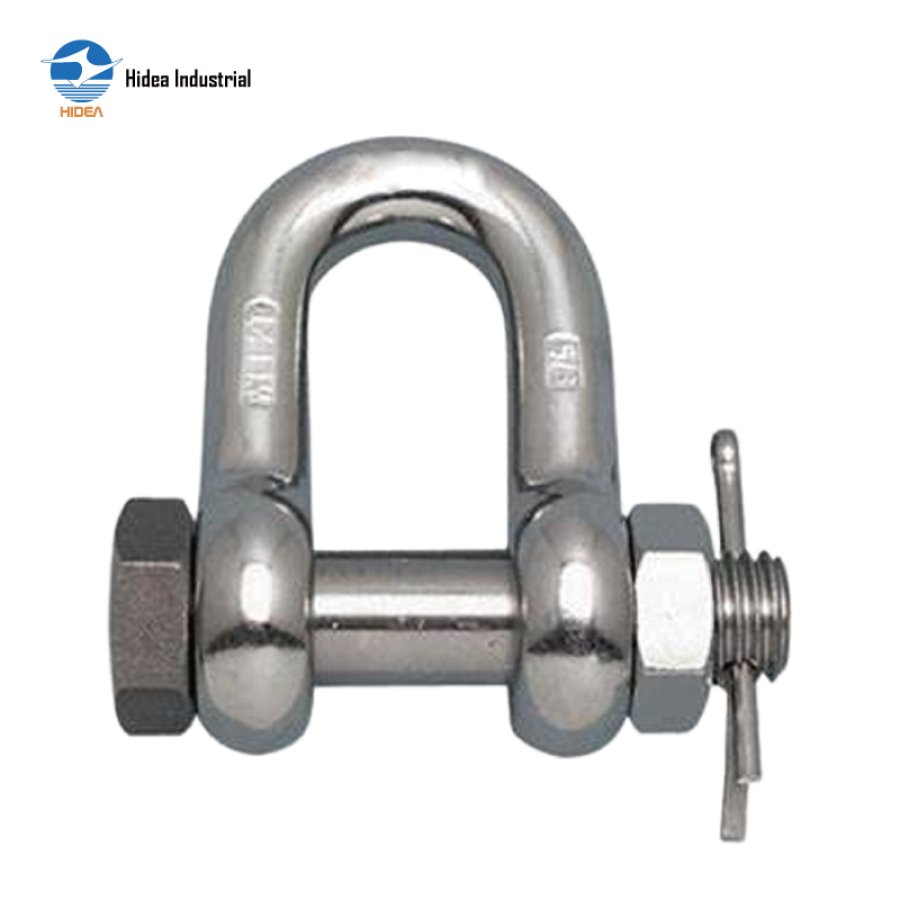

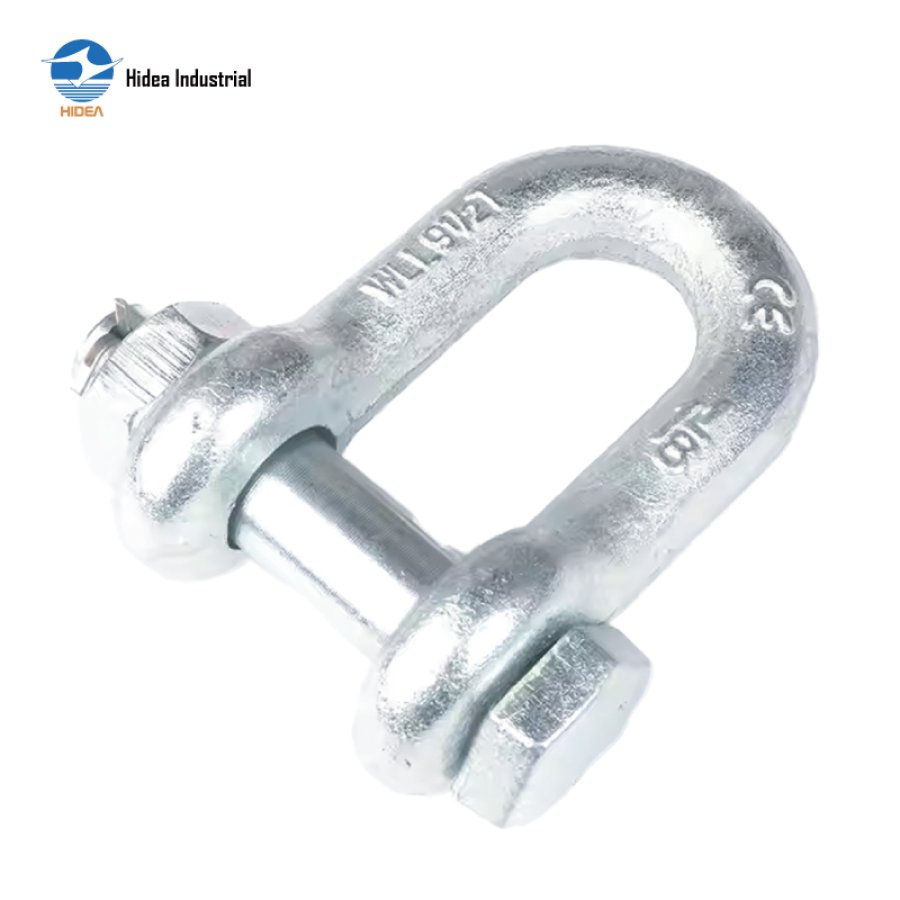

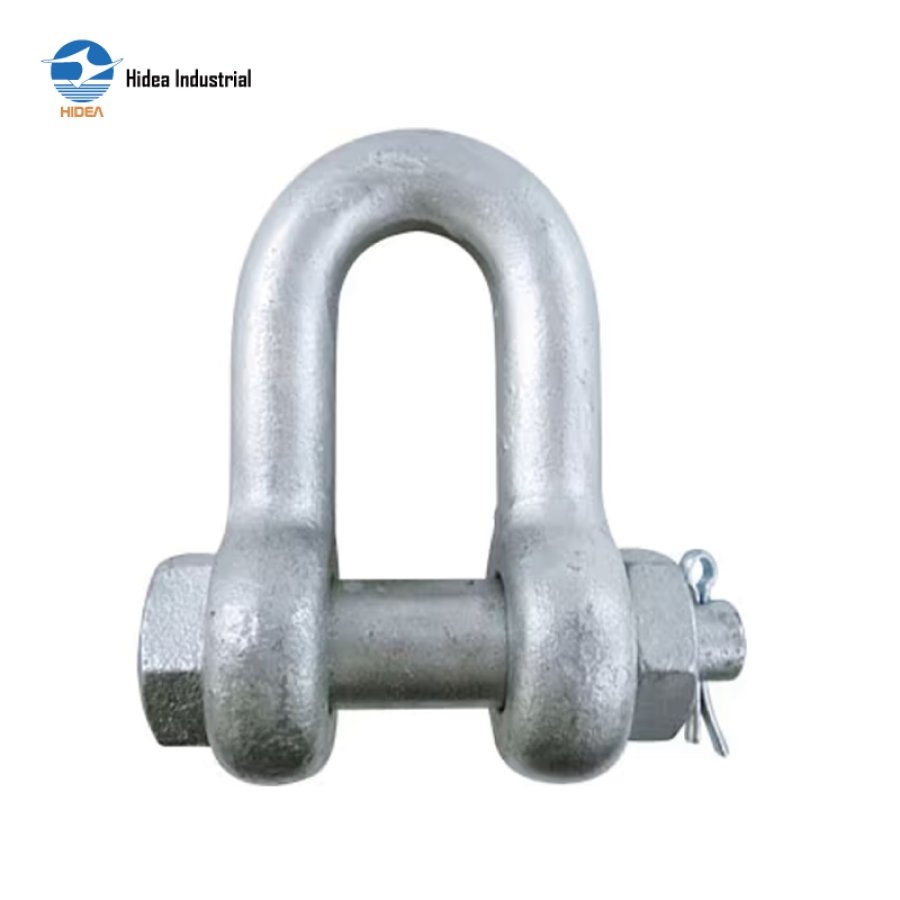

JIS CHAIN SHACKLE TYPE SB

Material: body AND pin carbon steel
Drop forged, quenched & tempered
Safety factor 4:1 & certificates available
Surface hot dip galvanized (H.D.G)
Standard JIS SB

Inquire Now

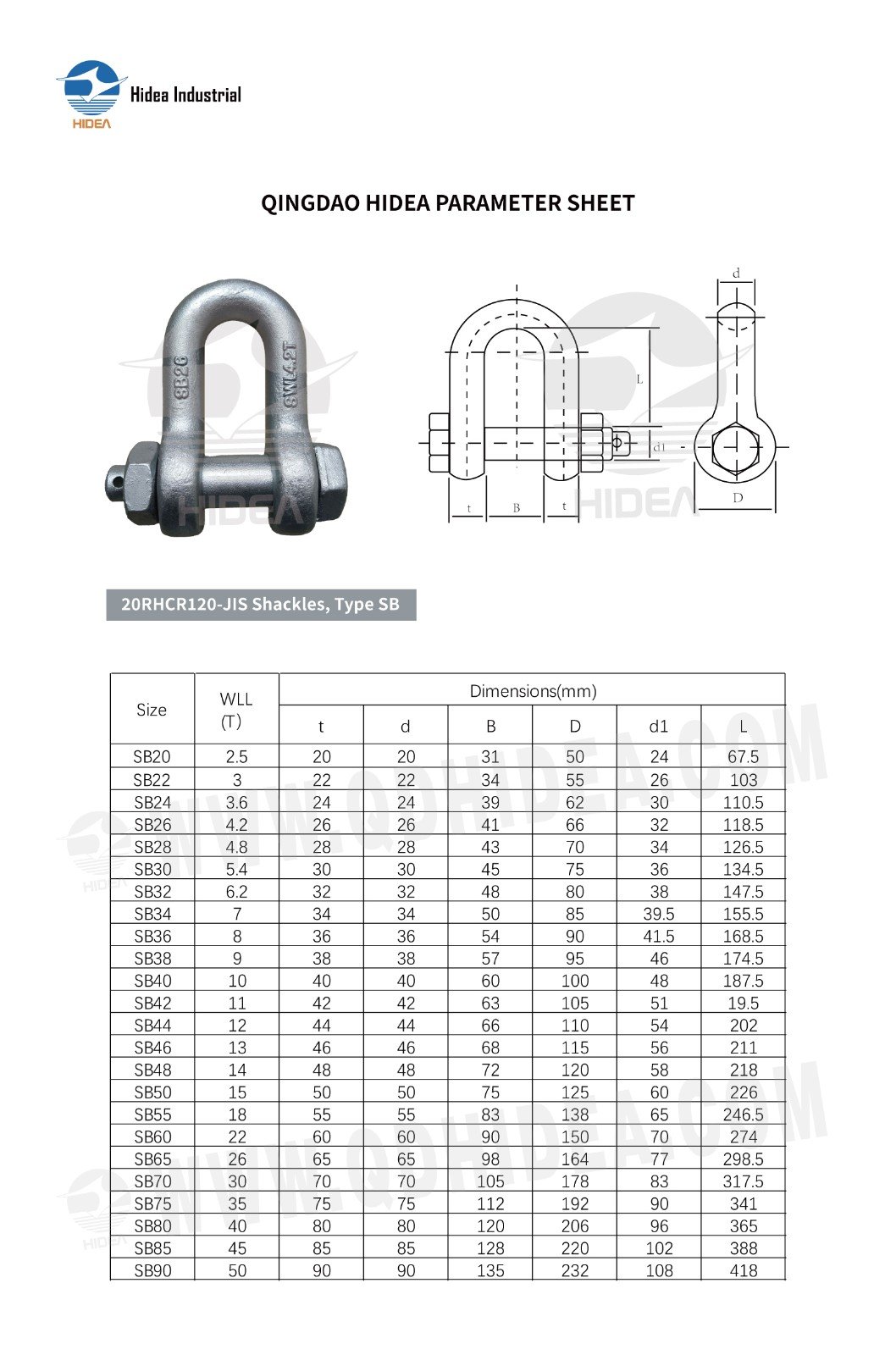

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR120-JIS Shackles,Type SB

Size	WLL (T)	Dimensions(mm)
Size	WLL (T)	t	d	B	D	d1	L
SB20	2.5	20	20	31	50	24	67.5
SB22	3	22	22	34	55	26	103
SB24	3.6	24	24	39	62	30	110.5
SB26	4.2	26	26	41	66	32	118.5
SB28	4.8	28	28	43	70	34	126.5
SB30	5.4	30	30	45	75	36	134.5
SB32	6.2	32	32	48	80	38	147.5
SB34	7	34	34	50	85	39.5	155.5
SB36	8	36	36	54	90	41.5	168.5
SB38	9	38	38	57	95	46	174.5
SB40	10	40	40	60	100	48	187.5
SB42	11	42	42	63	105	51	19.5
SB44	12	44	44	66	110	54	202
SB46	13	46	46	68	115	56	211
SB48	14	48	48	72	120	58	218
SB50	15	50	50	75	125	60	226
SB55	18	55	55	83	138	65	246.5
SB60	22	60	60	90	150	70	274
SB65	26	65	65	98	164	77	298.5
SB70	30	70	70	105	178	83	317.5
SB75	35	75	75	112	192	90	341
SB80	40	80	80	120	206	96	365
SB85	45	85	85	128	220	102	388
SB90	50	90	90	135	232	108	418
