Control Cable for Vehicles & Electric Windows

CONTROL CABLE FOR VEHICLES & ELECTRIC WINDOWS

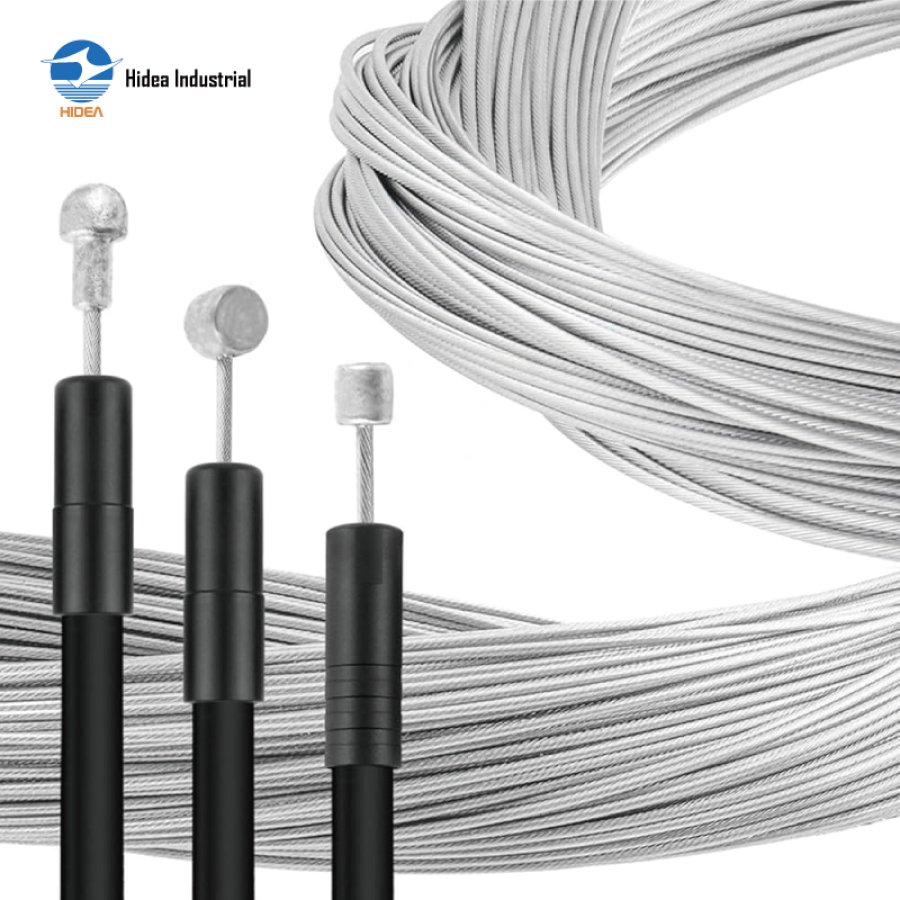

Control Cable for Vehicle OR Electric Windows such as Cars, Motocycles OR even Bicycles, OR Electric Windows Regulator Systems

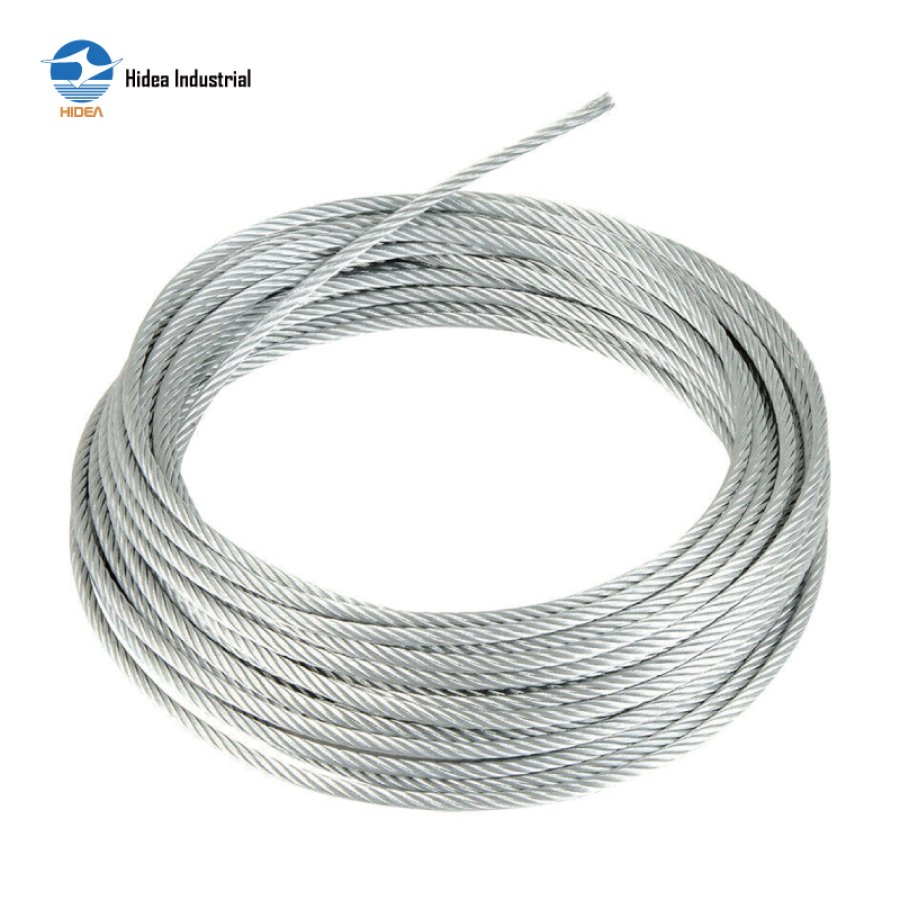

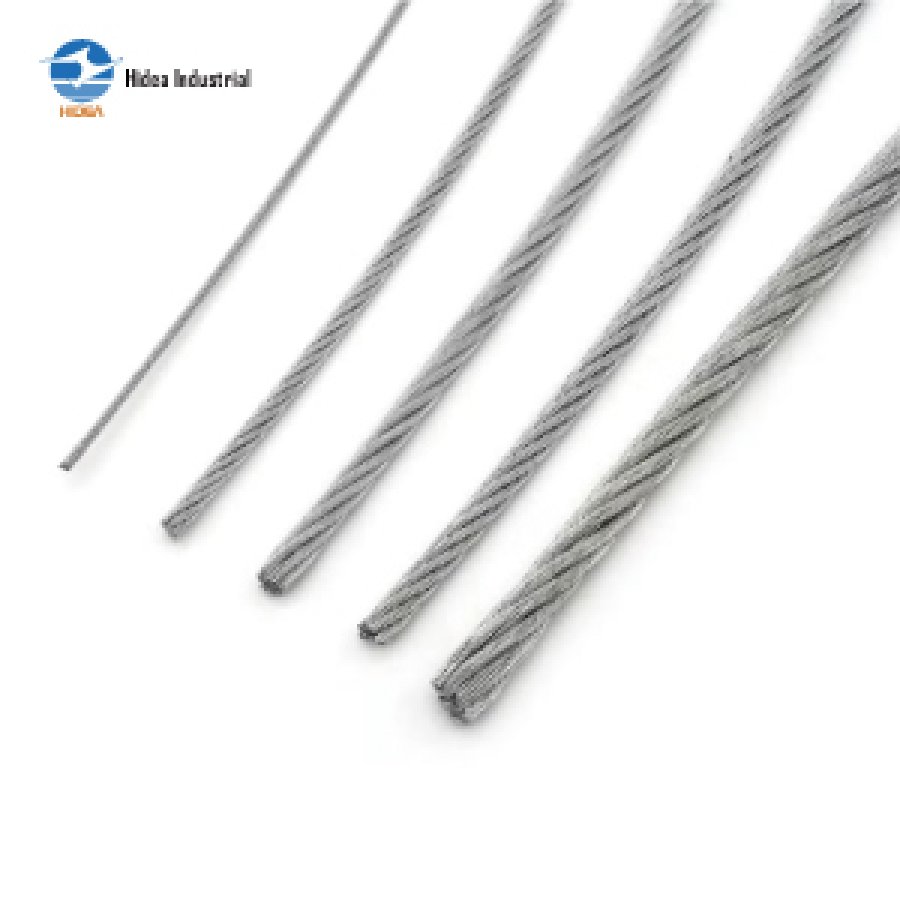

Materail High Carbon Steel Cable Galvanized OR AISI 304 / AISI 316 / AISI 316L

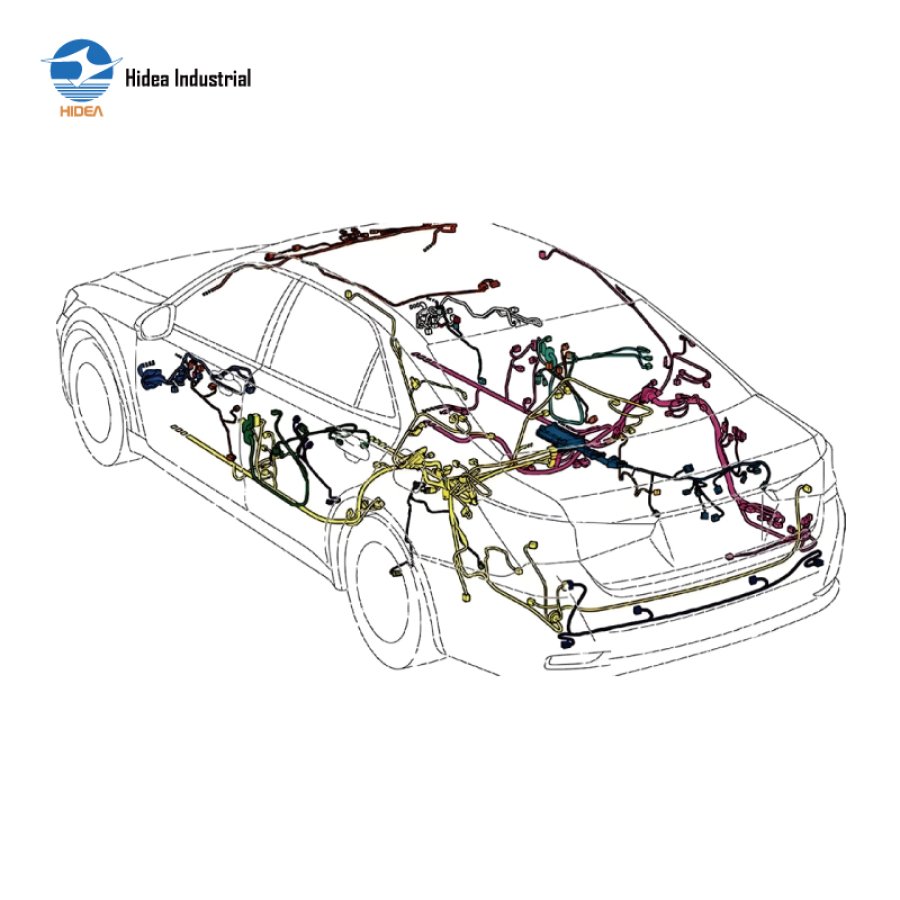

Application Cases: The vehicles (such as Cars, Motocycles OR even Bicycles) breaking system, gear, window, rear mirror, gas pedal etc., and also applied to the vehicle control system of machinery and electronic devices.

QINGDAO HIDEA PARAMETER SHEET FOR

CONTROL CABLE FOR VEHICLES &ELECTRIC WINDOWS

High Carbon Steel Cable Galvanized OR AISI 304/AISI 316/AISI 316L

CONTROL CABLE FOR VEHICLES

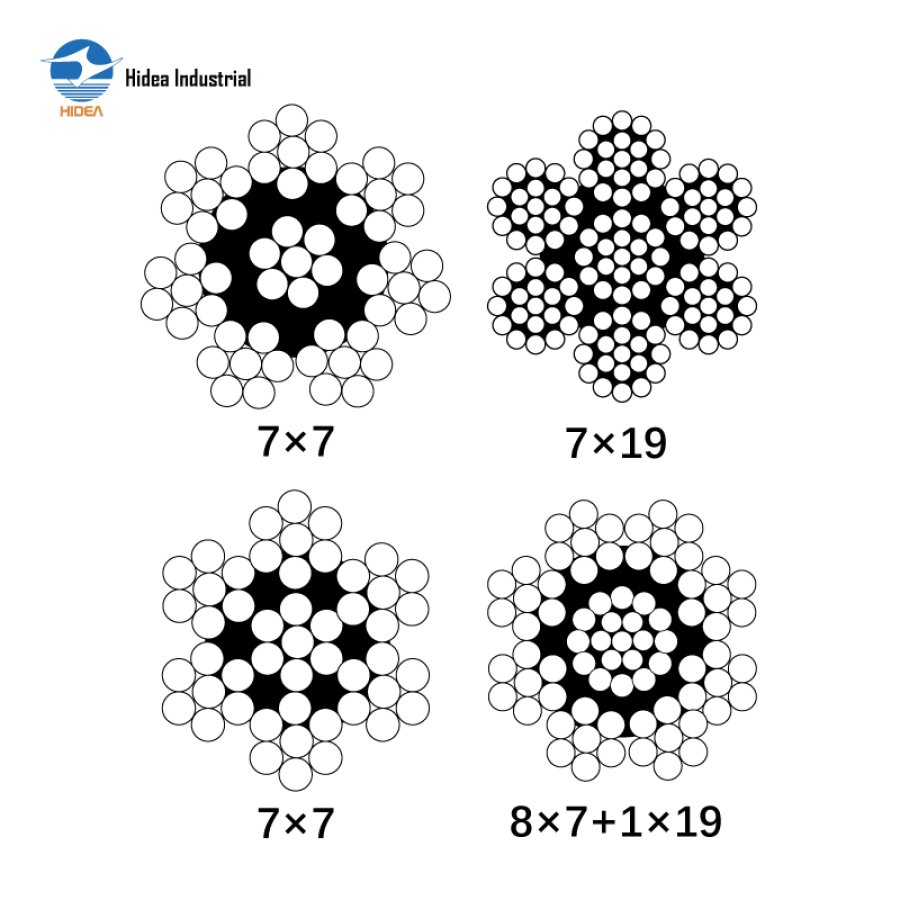

Construction	Diameter mm		Min.Breaking Load(Kg)					Approx.Weight (Kg/100m)
			Galvanized	SUS 316		SUS 304
7×7	0.80		55	45		50		0.27
	1.00		85	65		75		0.42
	1.20		120	96		108		0.61
	1.50		180	150		170		0.95
	1.60		220	170		190		1.08
	1.80		260	216		245		1.34
	2.00		310	260		290		1.65
	2.50		480	400		460		2.57
	3.00		700	585		660		3.71
	3.50		920	796		900		5.05
	4.00		1200	1014		1150		6.60
	5.00		1870	1620		1800		10.00
	6.00		2700	2300		2500		14.40
7×19	1.50		200	130		160		0.95
	1.60		230	150		180		1.08
	2.00		360	231		280		1.68
	2.50		560	390		435		2.63
	3.00		810	565		625		3.78
	3.50		1100	750		830		5.28
	4.00		1275	970		1100		6.71
	5.00		2100	1520		1700		10.50
	6.00		2950	2200		2450		15.20
ELECTRIC WINDOW REGULATOR CABLE
Construction		Diameter mm			Min.Breaking Load(Kg)		Approx.Weight (Kg/100m)
7×7		1.5			200		0.95
		1.8			280		1.34
		2.0			350		1.65

Construction		Diameter mm			Min.Breaking Load(Kg)		Approx.Weight (Kg/100m)
8×7+1×19		1.5			180		0.95
		18			260		1.34
		2.0			310		1.65
