Hidea CRD Cargo Transport Trolley: Built for Heavy-Duty Transport and Durability

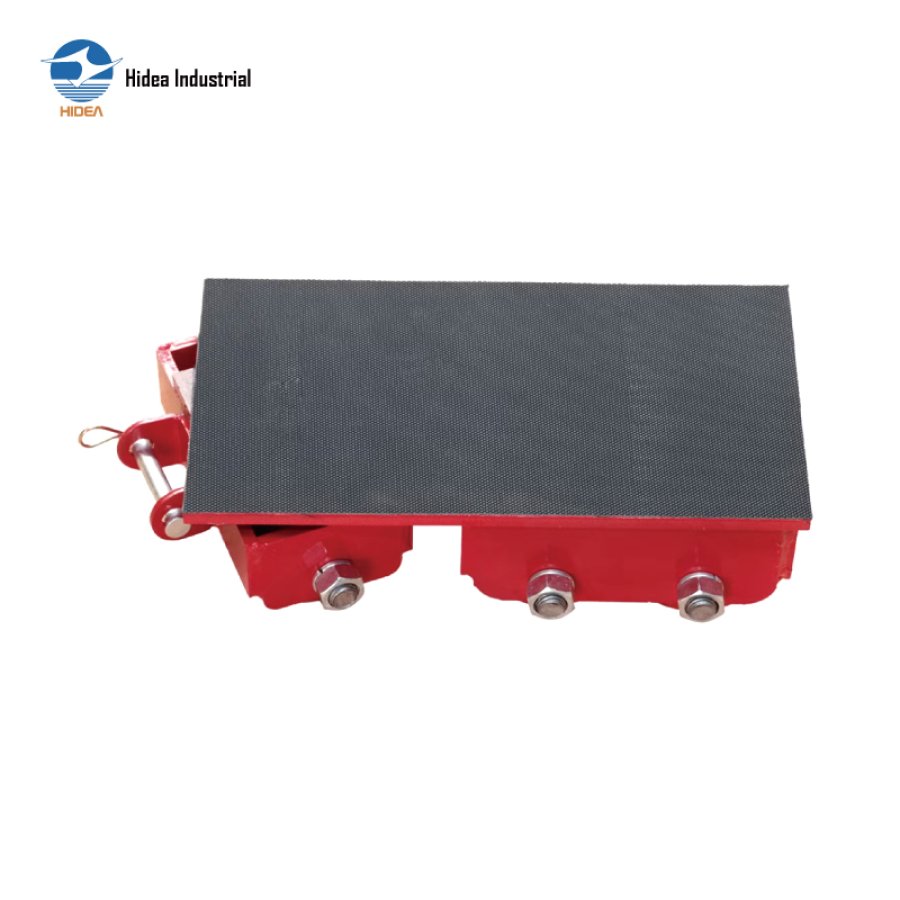

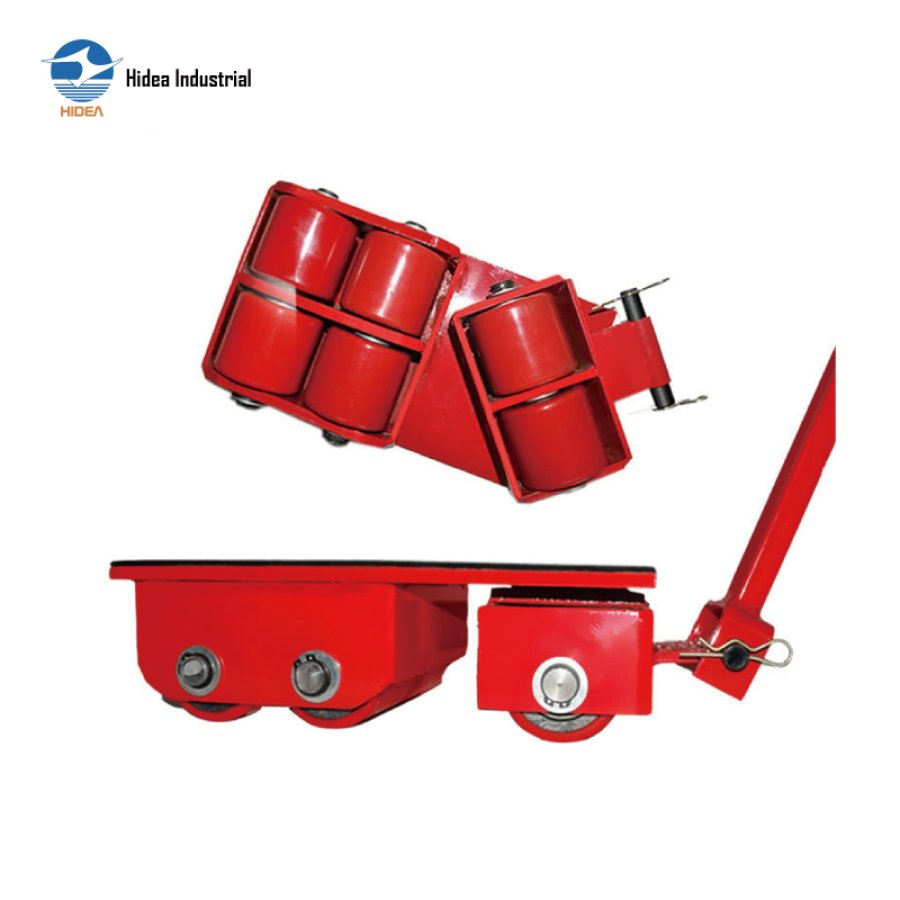

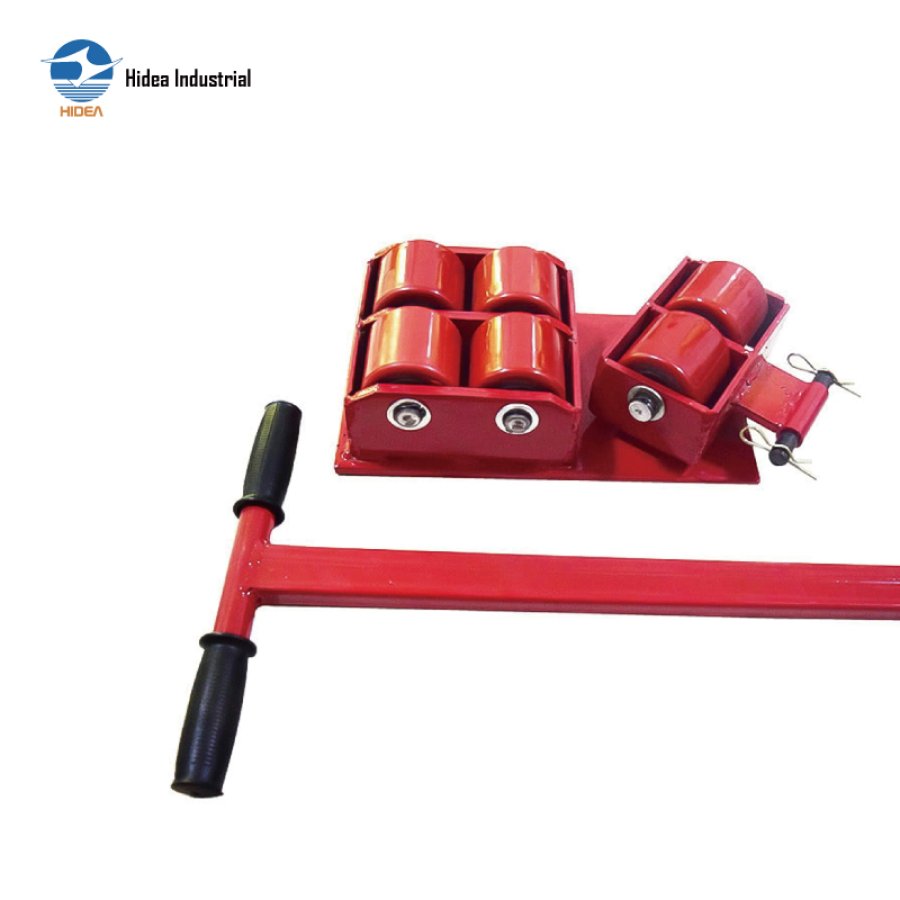

CRD CARGO SKATE TROLLEY 180 DEGREES STEERABLE HEAVY DUTY TYPE

CRD floor tanks steerable & turnable heavy duty type are made of high quality steel and heavily constructed with less wheels to carry heavy loads; the max capacity can be from 14 tons to 60 tons or more

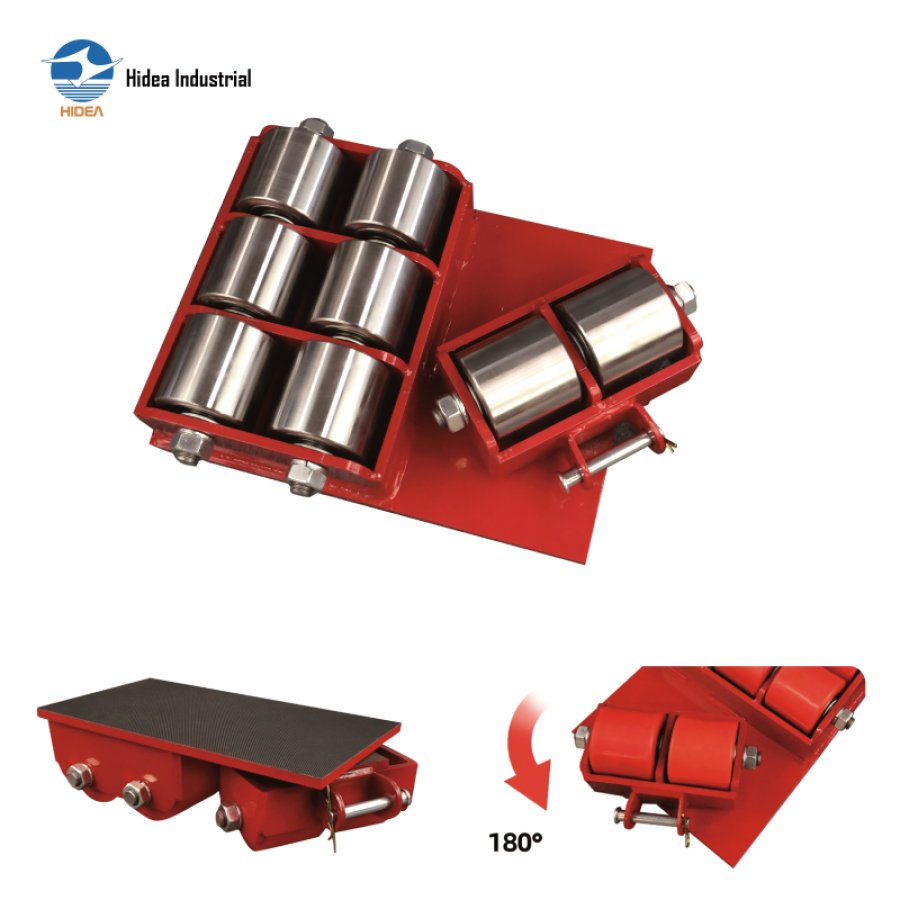

The CRD floor tanks is a heavy duty steerable type, with steering mechanism built in, it can be steered within a 180 degree direction adjustment during running
Floor tanks also known as Heavy Duty Dolly, Skate Roller Mover, Cargo Trolley

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

CRD FLOOR TANKS 180 DEGREES STEERABLE HEAVY DUTY TYPE

MODEL	CRD-6T	CRD-8T	CRD-12T	CRD-18T	CRD-24T	CRD-30T
Dimensions(Length× width×height)	300×215×107	390×215×107	390×310×107	390×310×107	500×380×110	660×460×107
Maximum oad(T)	14.2	19.2	24.8	28.1	44.5	61
Normal load(T)	4	6	8	12	16	20
Number of wheels	4	6	8	11	16	20
Product weight(Kg)	21	27	36	56	82	100
Wheel size	80×70	80×70	80×70	80×70	80×70	80×70

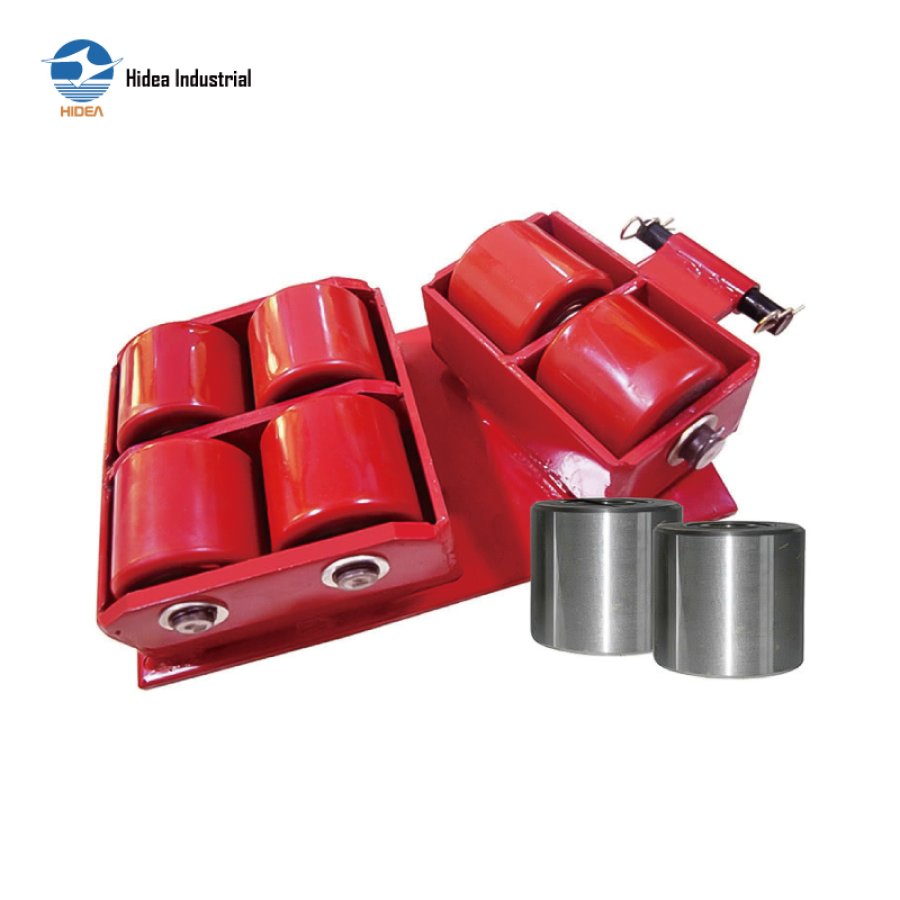

Wheel material	Steel,Nylon or PU
