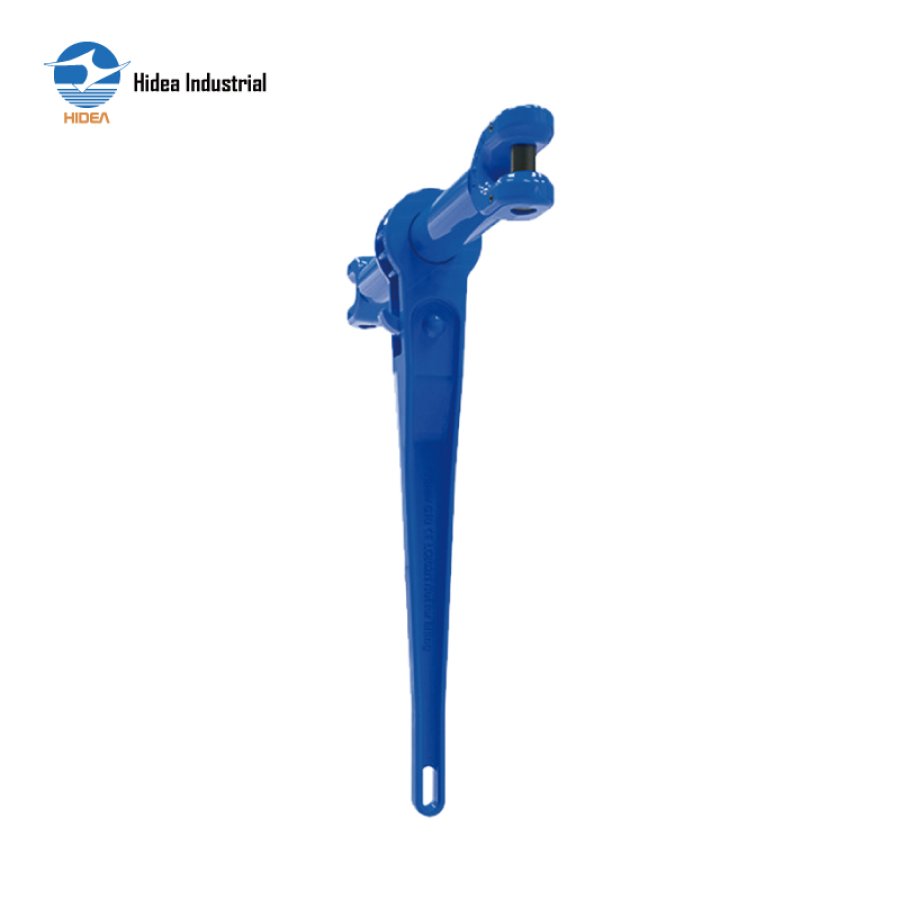

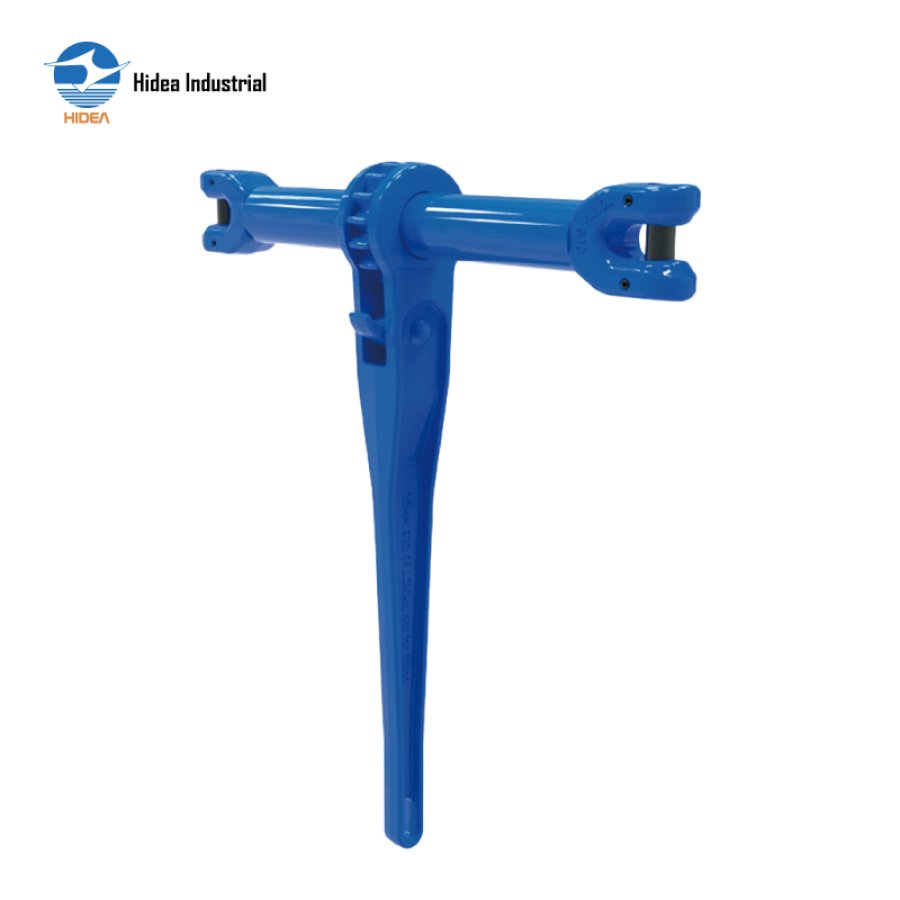

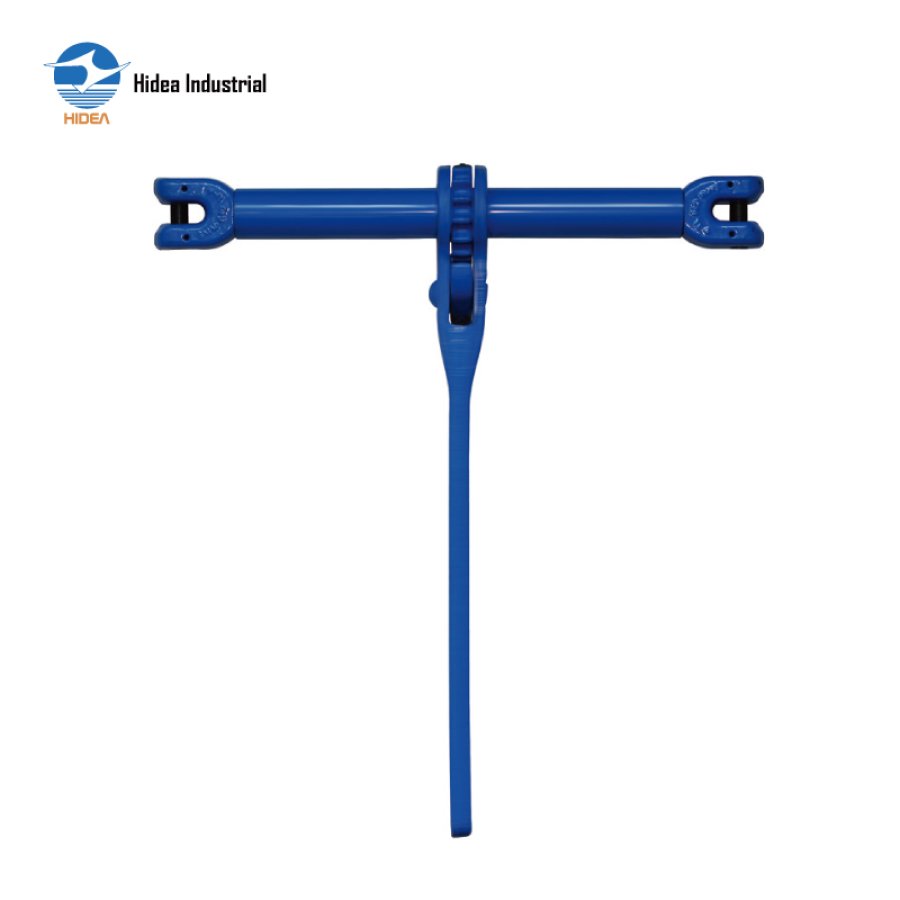

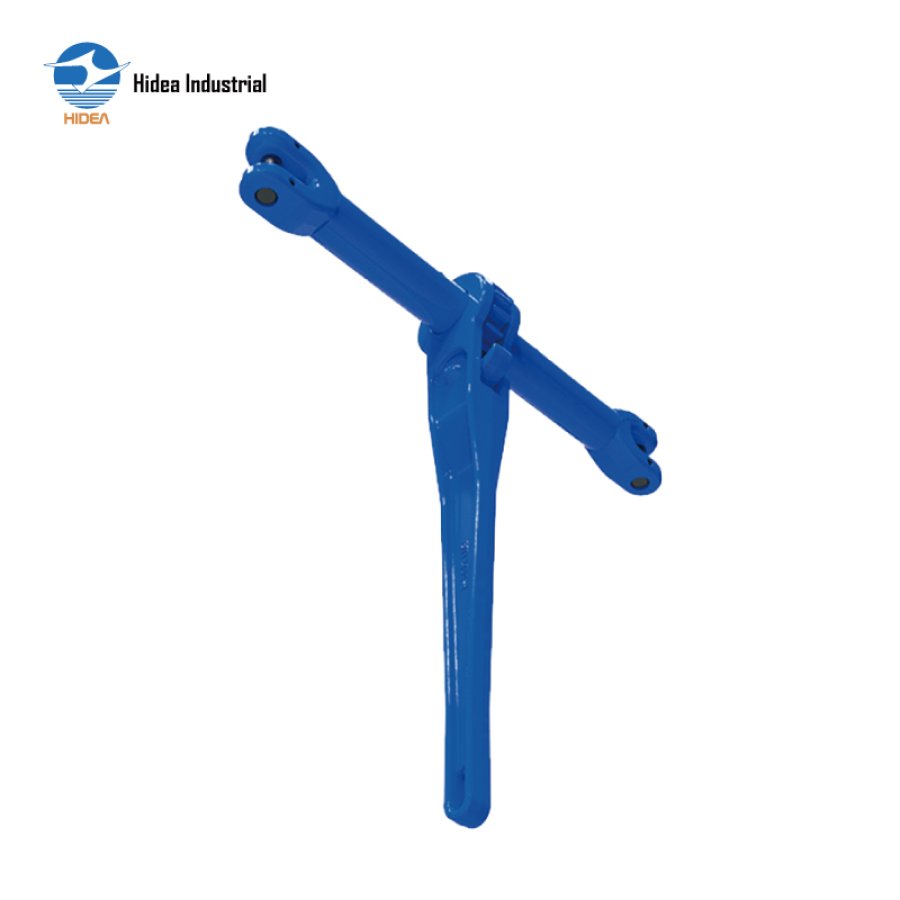

Hidea Grade 100 Clevis Ratchet Chain Binder for Heavy-Duty Load Securing

G100 CLEVIS TYPE RATCHET BINDER

Forged super alloy steel- Quenched and Tempered
100% magnaflux crack detection
Breakage test
Surface finish: powder coating
Color code: Red RAL3020/Yellow RAL1003
Electro galvanizing

Inquire Now

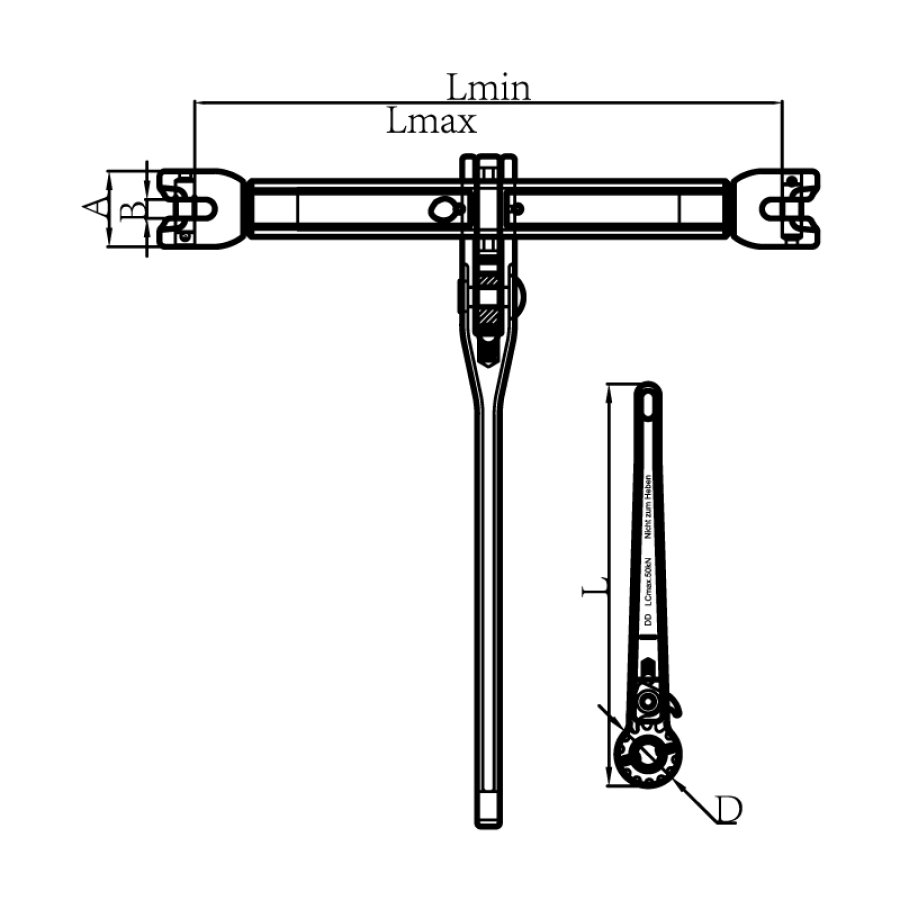

QINGDAO HIDEA PARAMETER SHEET FOR

20RH2301-G100 CLEVIS TYPE RATCHET BINDER

ITEM CODE	WEIGHT	LC	BF	A±1	B±0.5	L±3	D±1	Lmin±4	Lmax±4
ITEM CODE	(KG)	(KN)	(KN)	A±1	B±0.5	L±3	D±1	Lmin±4	Lmax±4
20RH2301-08	3.5	50	100	40	10	383	56	312	472
20RH2301-10	5.5	80	160	49	13	390	65	337	497
20RH2301-13	7.1	134	268	64	16	392.5	69	347	507
