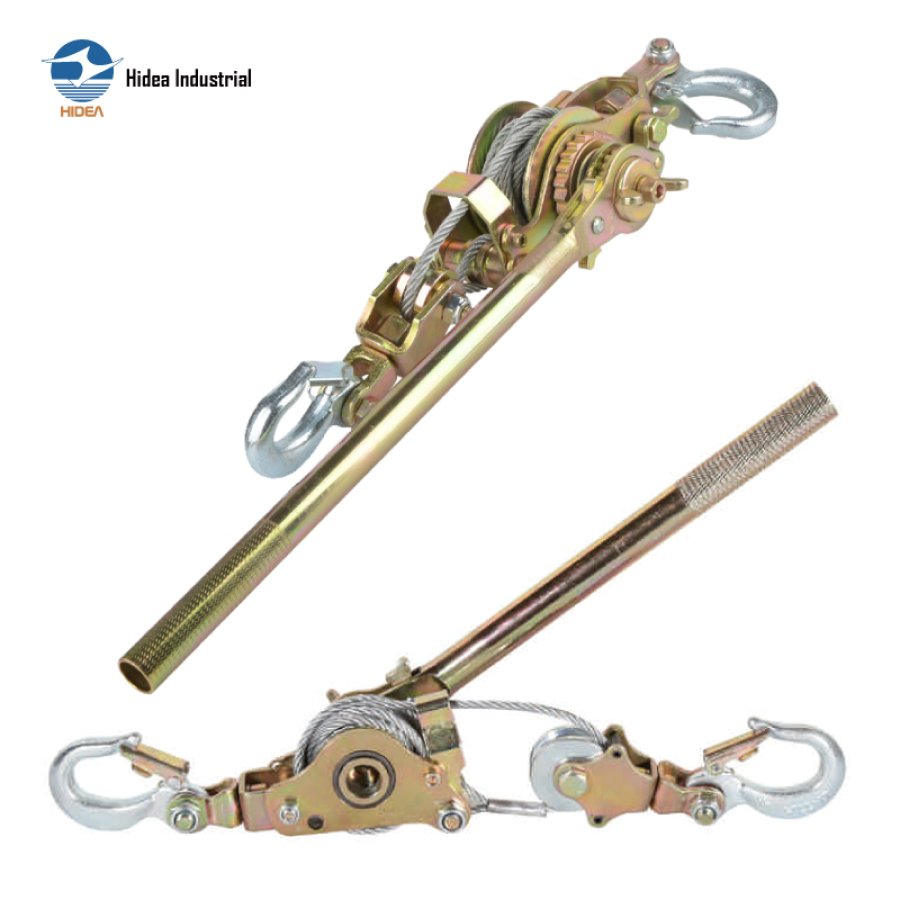

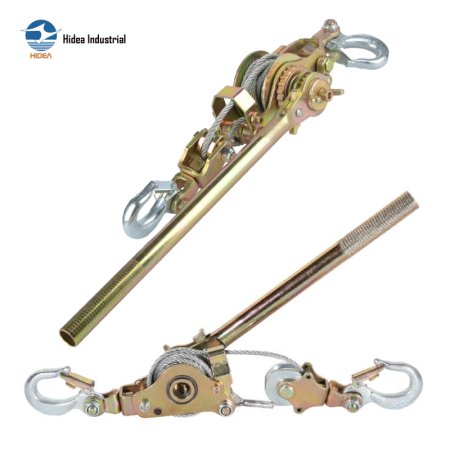

The JIS / Japanese Type ratchet hand puller with cable, also known as hand cable puller, ratchet hand lever puller or geared cable puller, can be used widely in cases of construction, landscaping, warehousing and manufacturing, cargo binding and handling, vehicle towing & recovery, telecommunications cables towing and agricultural activities tensioning etc.

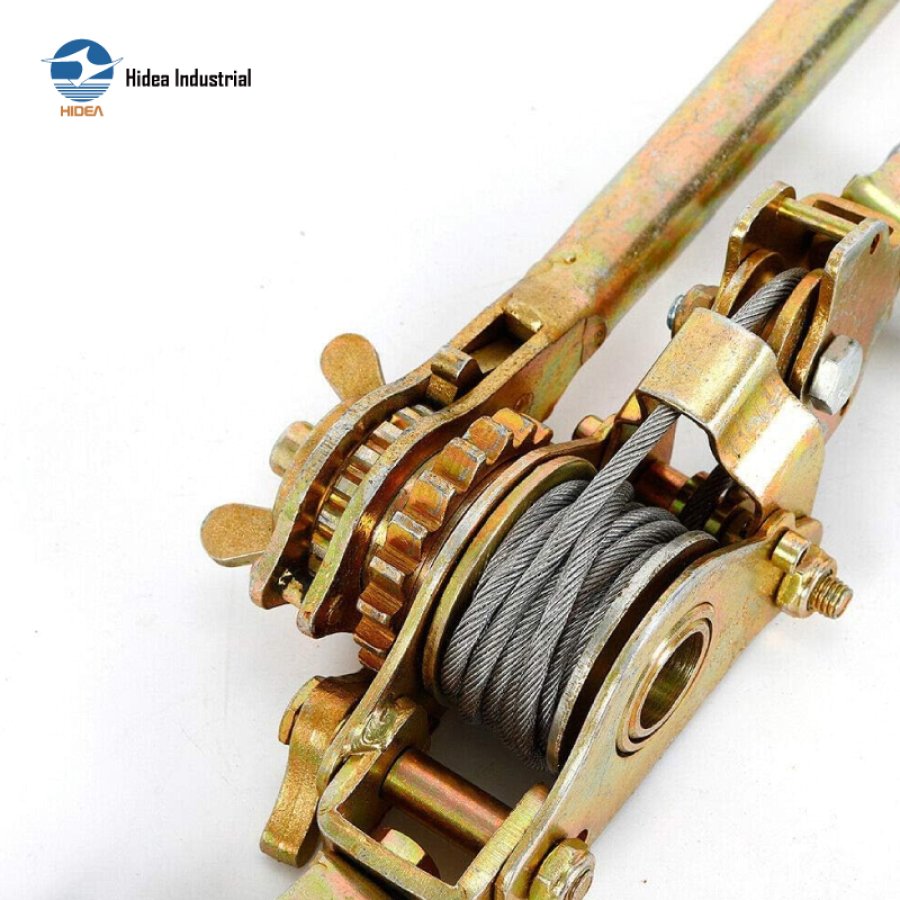

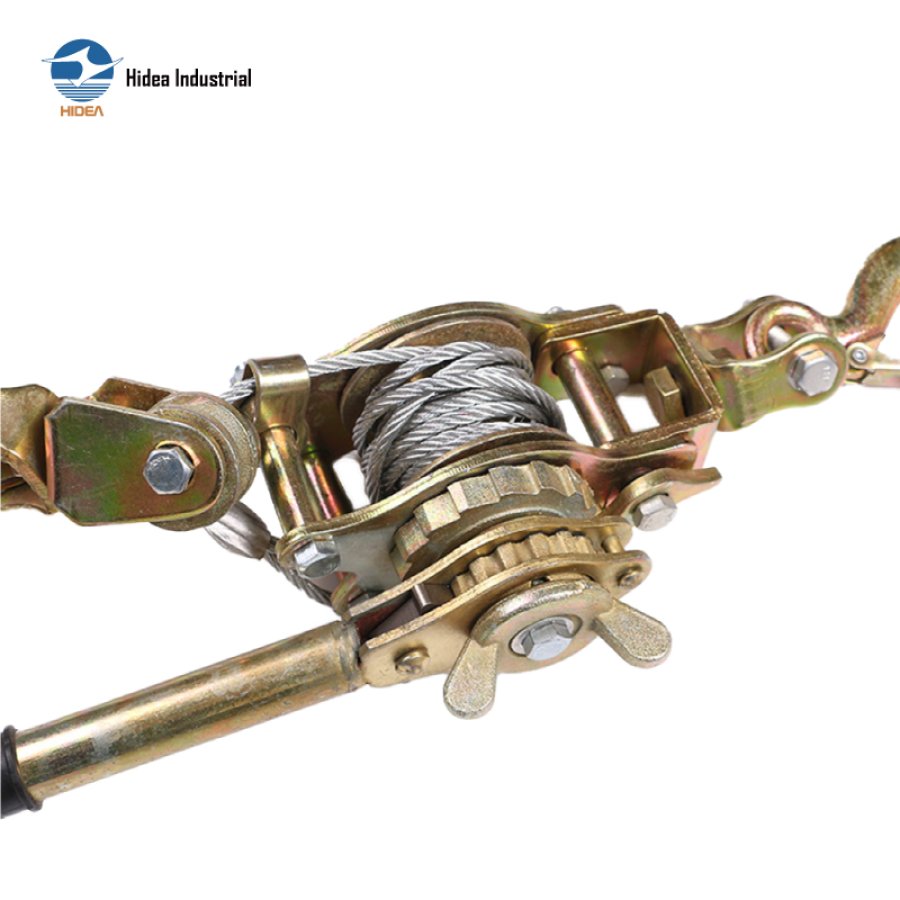

The ratchet hand pullers are manufactured from high quality carbon steel and die forged, the ratchet parts properly hardened for breaking strength from 1T up to 4T

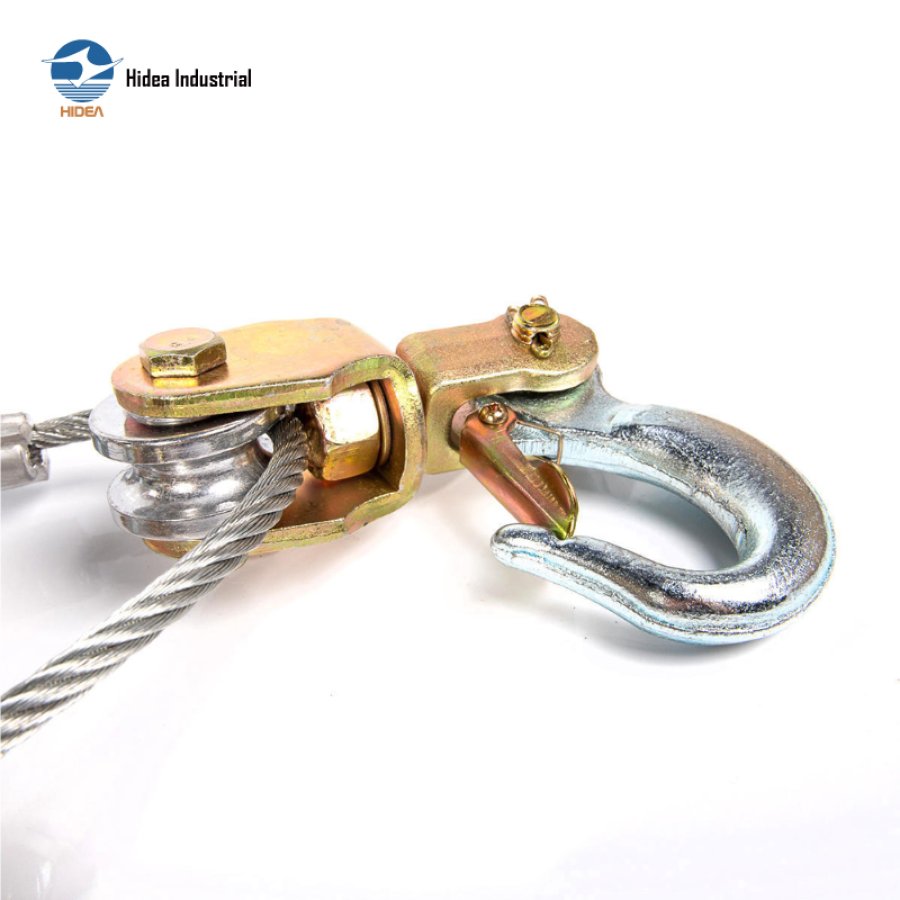

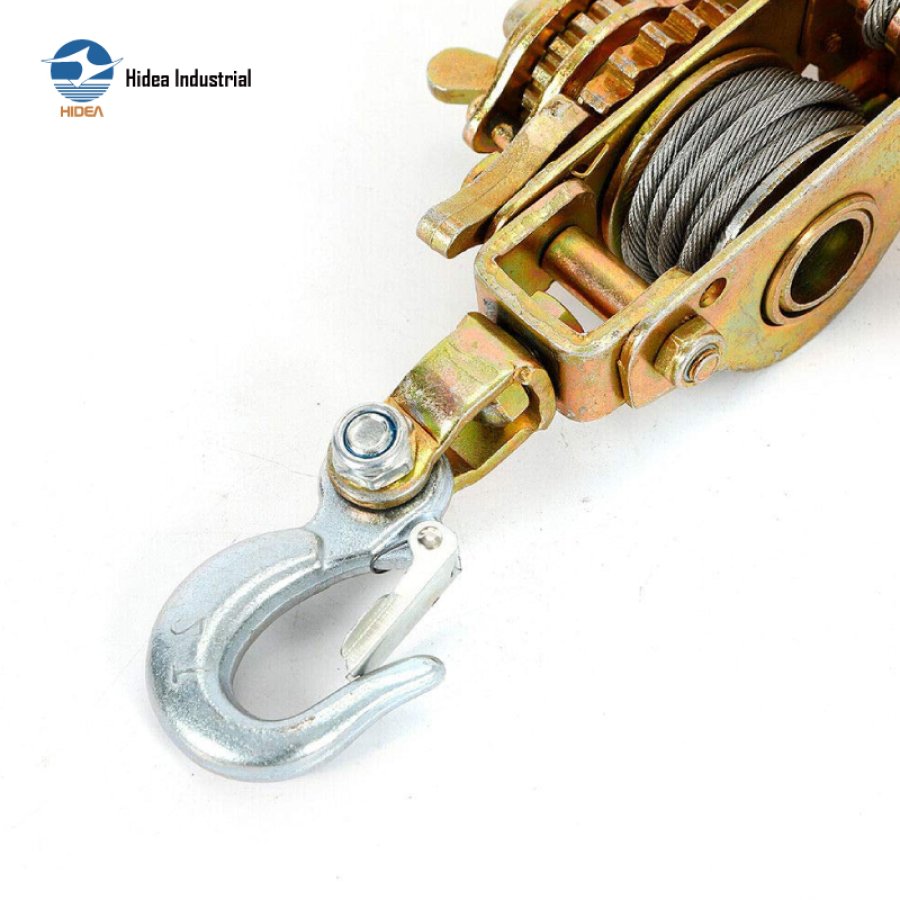

The pullers are equipped with anti-twist wire cables to match the rated capacities respectively; and with forged alloy steel hooks, 2 or 3 hook available; steel tube lever handles are knurled for anti-slippery purpose
The hand pullers meeting standards of and in conformity with JIS, ASME B30.21, OSHA 29 CFR 1910.184 & EN 13157

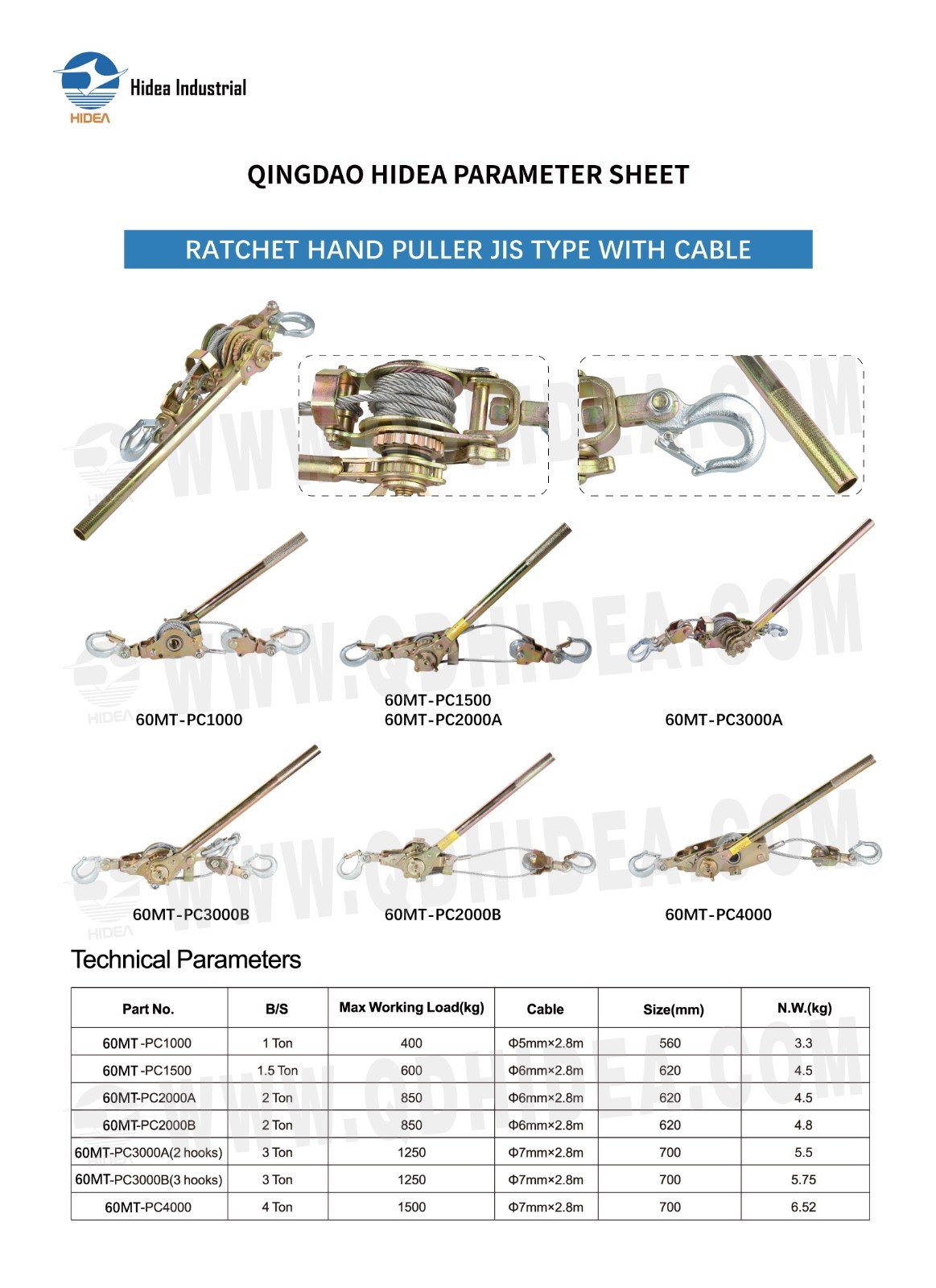

QINGDAO HIDEA PARAMETER SHEET FOR
RATCHET HAND PULLER JIS TYPE WITH CABLE
| Part No. | B/S | Max Working Load(kg) | Cable | Size(mm) | N.W. (kg) | |||
| 60MT-PC1000 | 1 Ton | 400 | φ5mm×2.8m | 560 | 3.3 | |||
| 60MT-PC1500 | 1.5 Ton | 600 | φ6mm×2.8m | 620 | 4.5 | |||
| 60MT-PC2000A | 2 Ton | 850 | φ6mm×2.8m | 620 | 4.5 | |||
| 60MT-PC2000B | 2 Ton | 850 | φ6mm×2.8m | 620 | 4.8 | |||
| 60MT-PC3000A(2 hooks) | 3 Ton | 1250 | φ7mm×2.8m | 700 | 5.5 | |||
| 60MT-PC3000B(3 hooks) | 3 Ton | 1250 | φ7mm×2.8m | 700 | 5.75 | |||
| 60MT-PC4000 | 4 Ton | 1500 | φ7mm×2.8m | 700 | 6.52 | |||
