Hidea G80 Chain-Rope Connector for Construction and Industrial Lifting

G80 CHAIN-ROPE CONNECTOR

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Breakage test
100% magnaflux crack detection
Can be Rotated under Non-load Conditions

Inquire Now

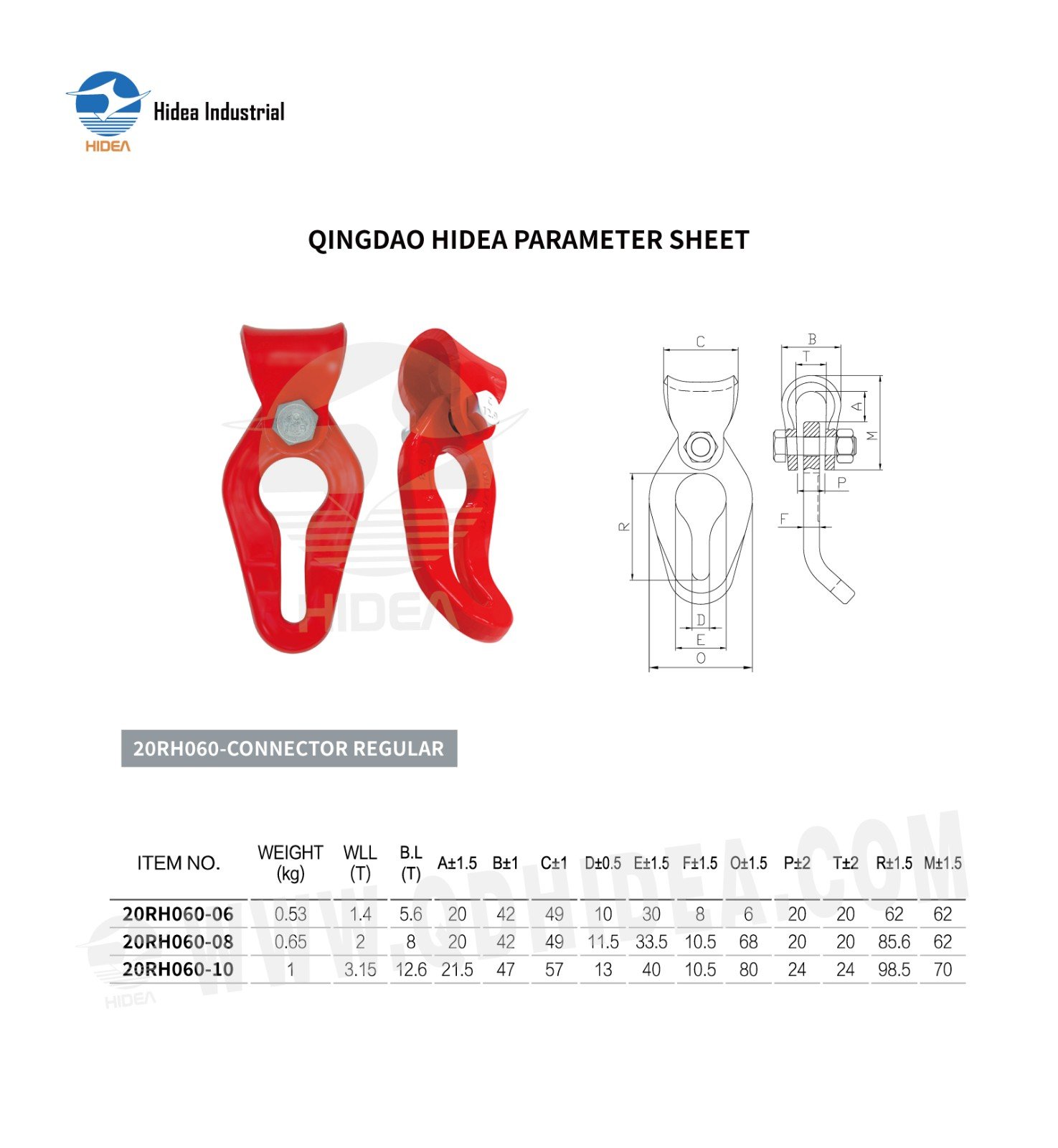

QINGDAO HIDEA PARAMETER SHEET FOR

20RH060-CONNECTOR REGULAR

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±1.5	B±1	C±1	D±0.5	E±1.5	F±1.5	O±1.5	P±2	T±2	R±1.5	M±1.5

20RH060-06	0.53	1.4	5.6	20	42	49	10	30	8	6	20	20	62	62
20RH060-08	0.65	2	8	20	42	49	11.5	33.5	10.5	68	20	20	85.6	62
20RH060-10	1	3.15	12.6	21.5	47	57	13	40	10.5	80	24	24	98.5	70
