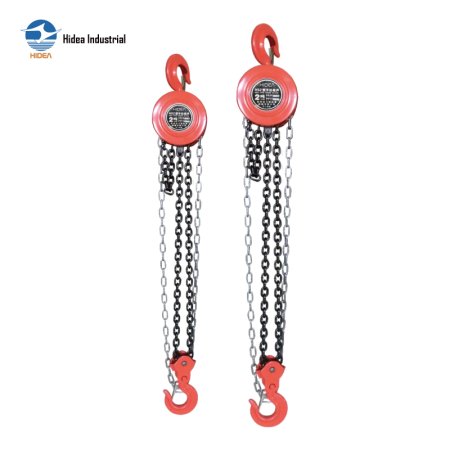

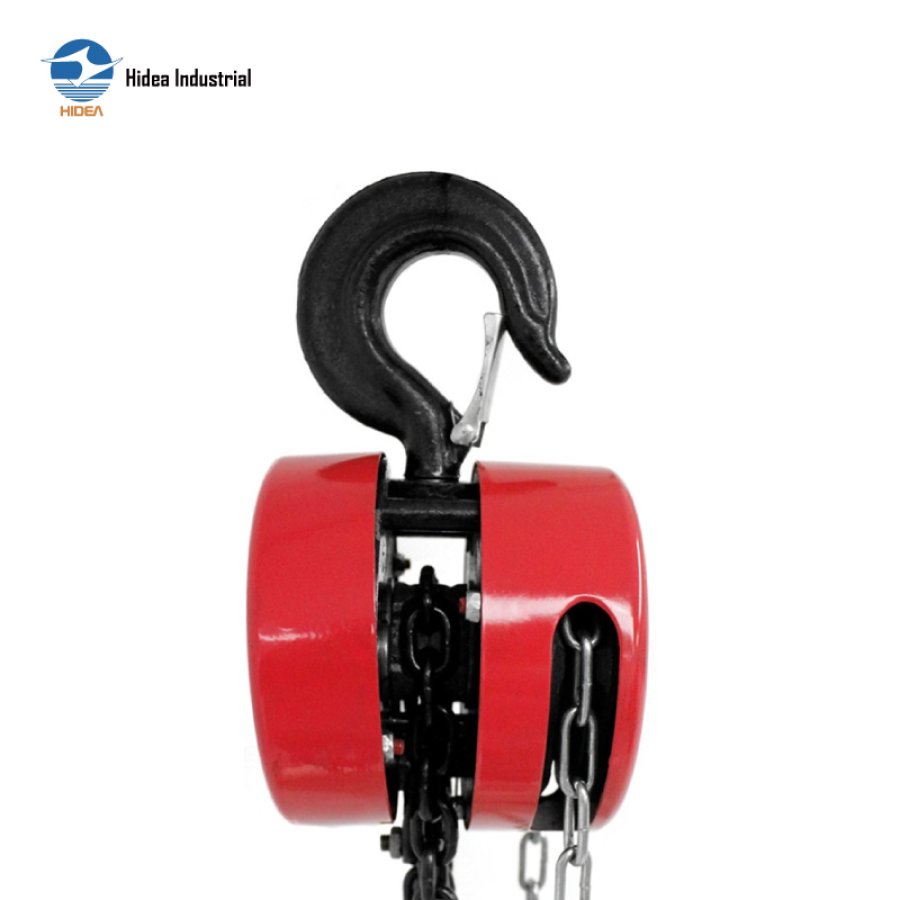

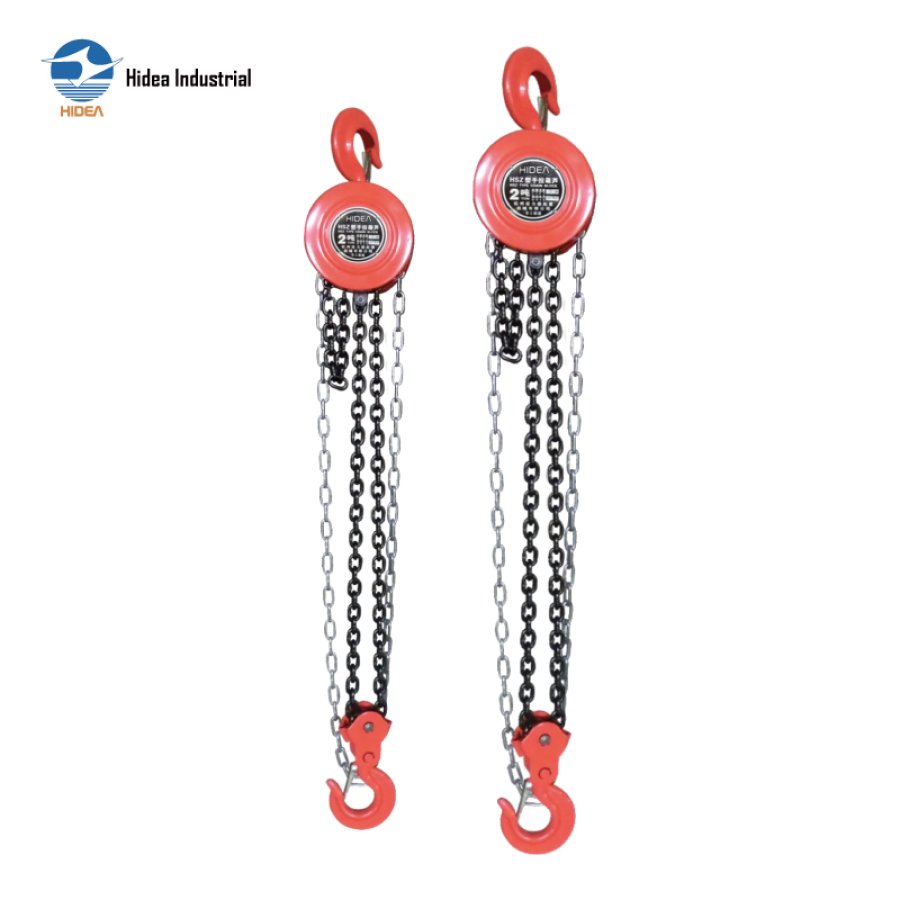

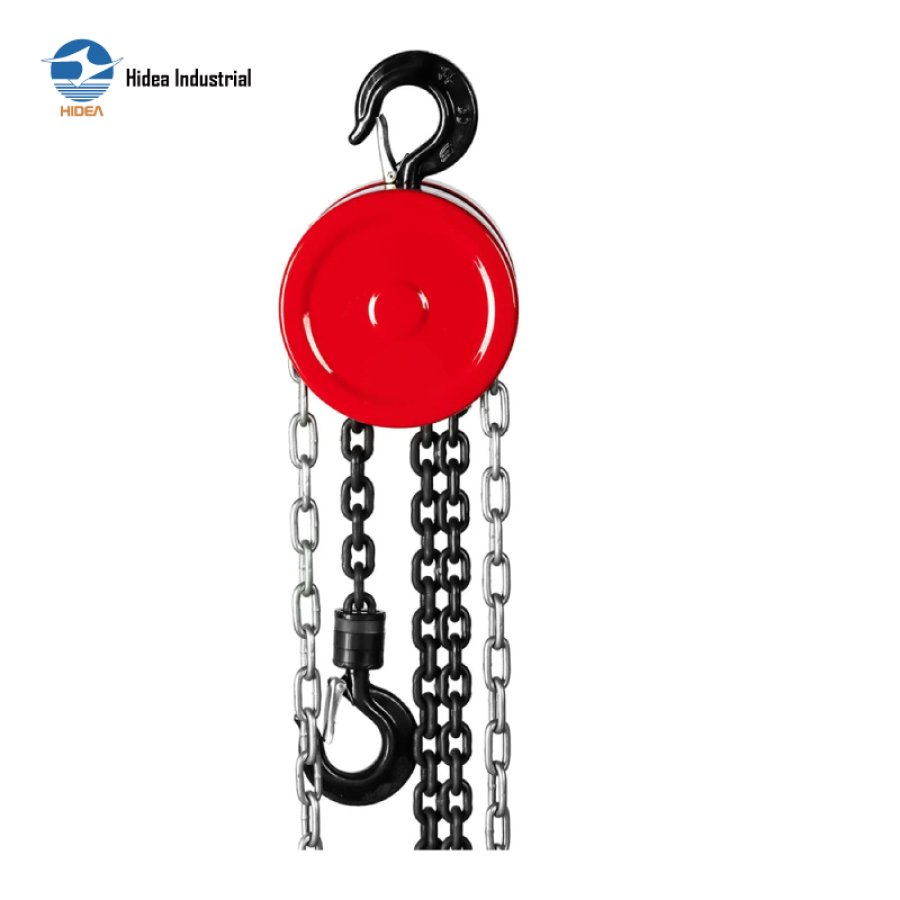

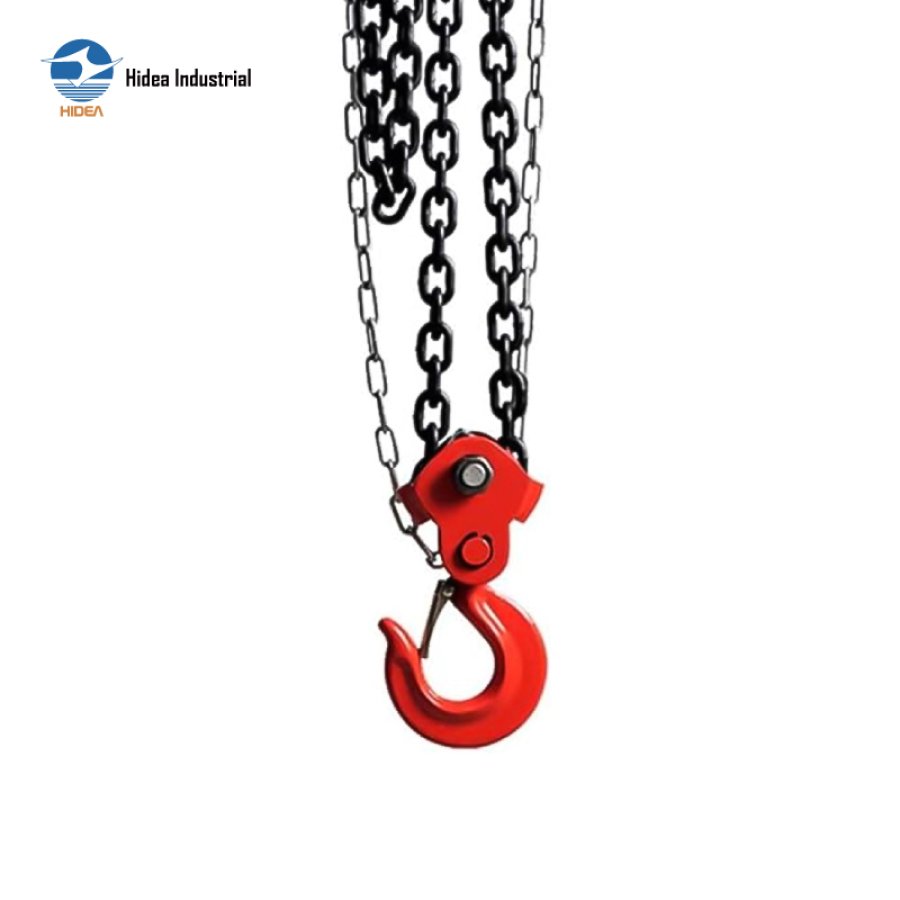

HSZ type chain block hoist is a widely used manual hoisting machinery which is easy to use and carry
HSZ type chain block hoist can be used in factory, mine, agriculture & power industry, construction site, wharf and dock to install machineries, lifting or loading and unloading cargoes or material, and typically to be used in the open air and where without power supply
Symmetry arrayed two-stage gear driven structure applied to the HSZ hoist for greater mobility, compact design & light weight
The HSZ chain hoists meeting standards ASME B30.16, ANSI/ASME HST-5 and EN14901

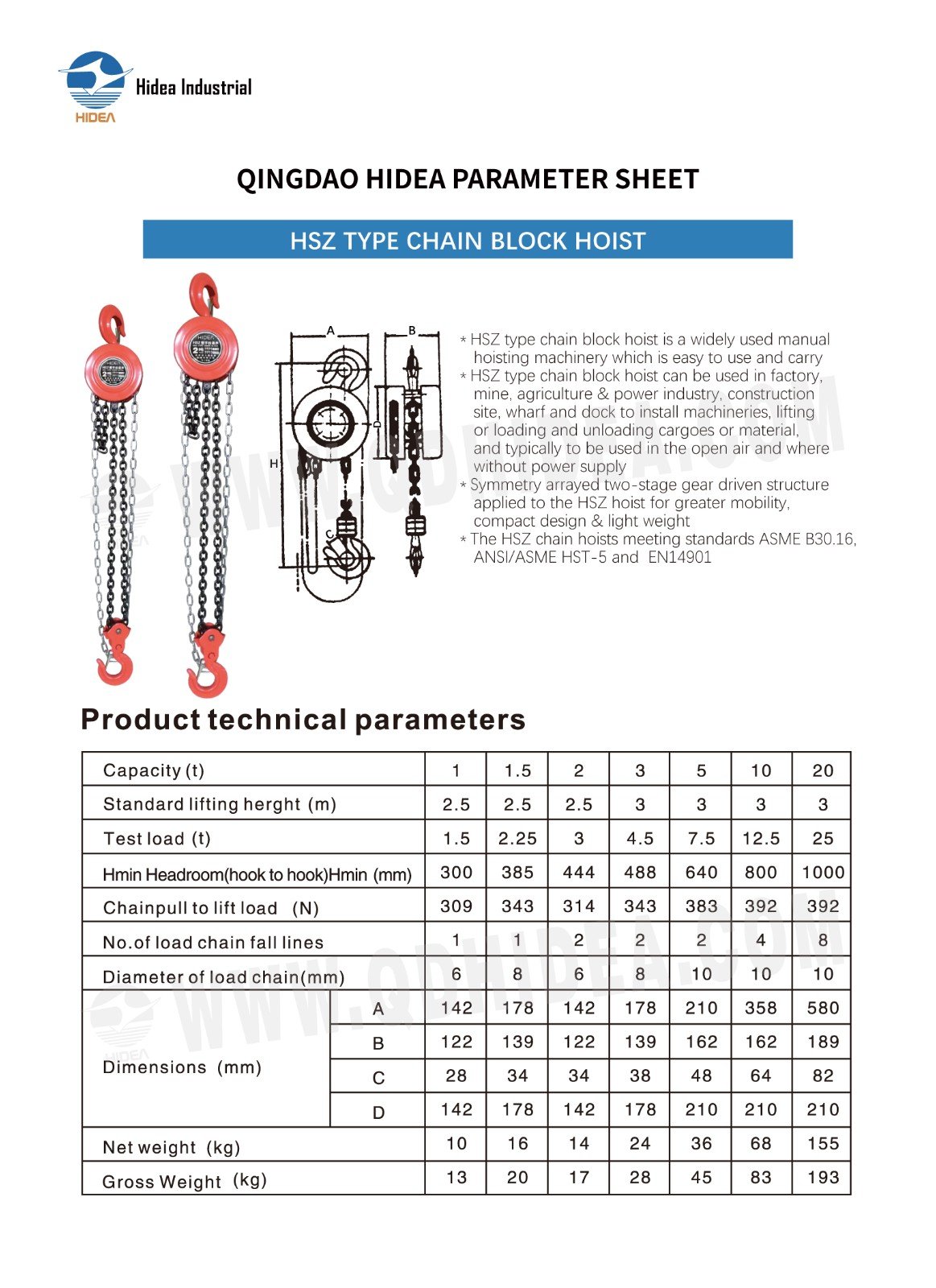

QINGDAO HIDEA PARAMETER SHEET FOR
HSZ TYPE CHAIN BLOCK HOIST
| Capacity(t) | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | ||
| Standard lifting herght (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | ||
| Test load (t) | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | ||
Hmin Headroom(hook to hook)Hmin (mm) | 300 | 385 | 444 | 488 | 640 | 800 | 1000 | ||
| Chainpull to lift load(N) | 309 | 343 | 314 | 343 | 383 | 392 | 392 | ||
| No.of load chain fall lines | 1 | 1 | 2 | 2 | 2 | 4 | 8 | ||
Diameter of load chain(mm) | 6 | 8 | 6 | 8 | 10 | 10 | 10 | ||
| Dimensions(mm) | A | 142 | 178 | 142 | 178 | 210 | 358 | 580 | |
| B | 122 | 139 | 122 | 139 | 162 | 162 | 189 | ||
| C | 28 | 34 | 34 | 38 | 48 | 64 | 82 | ||
| D | 142 | 178 | 142 | 178 | 210 | 210 | 210 | ||
| Net weight(kg) | 10 | 16 | 14 | 24 | 36 | 68 | 155 | ||
| Gross Weight(kg) | 13 | 20 | 17 | 28 | 45 | 83 | 193 | ||
