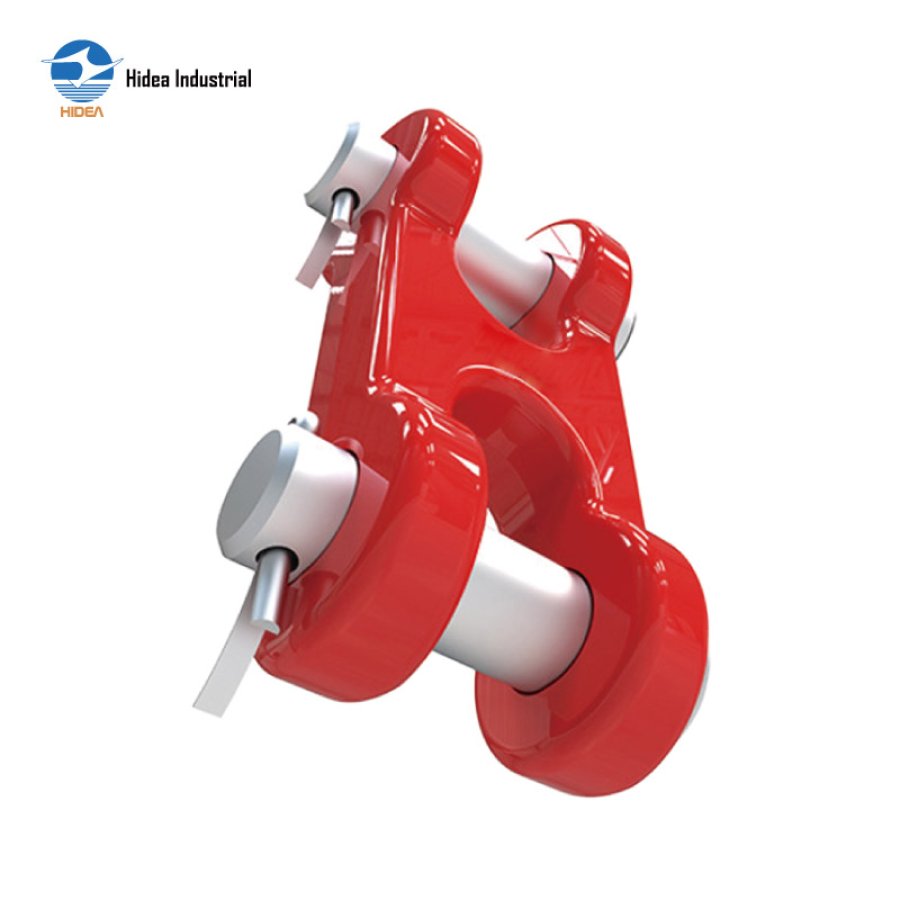

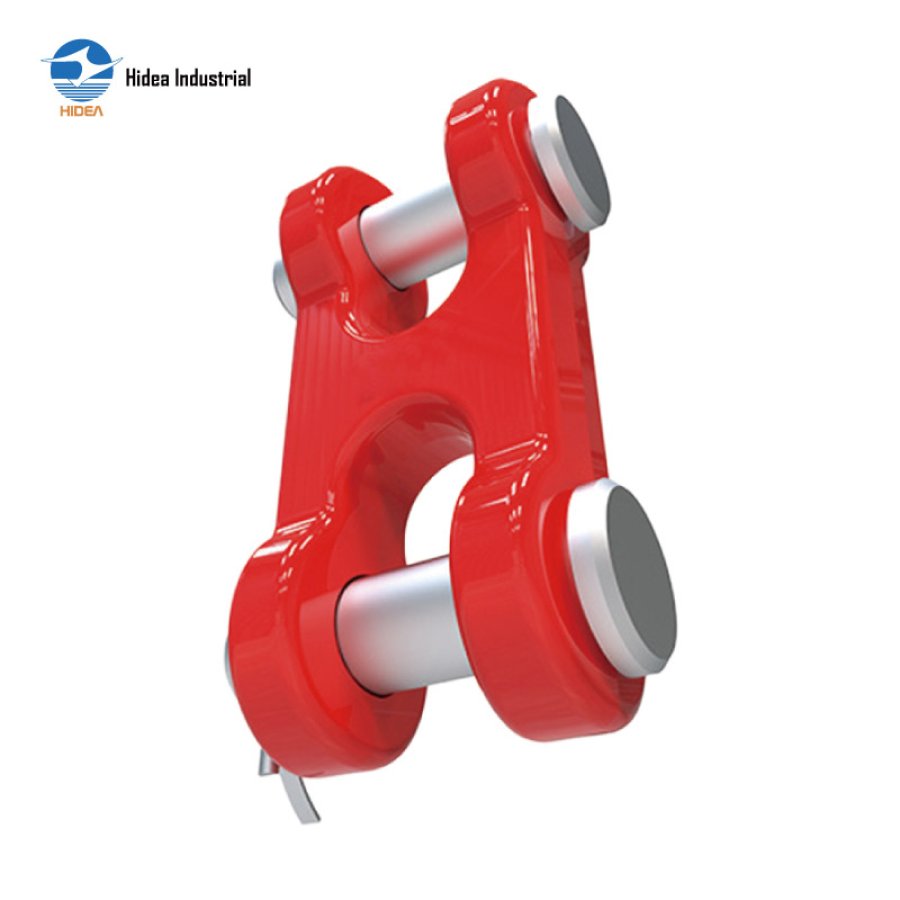

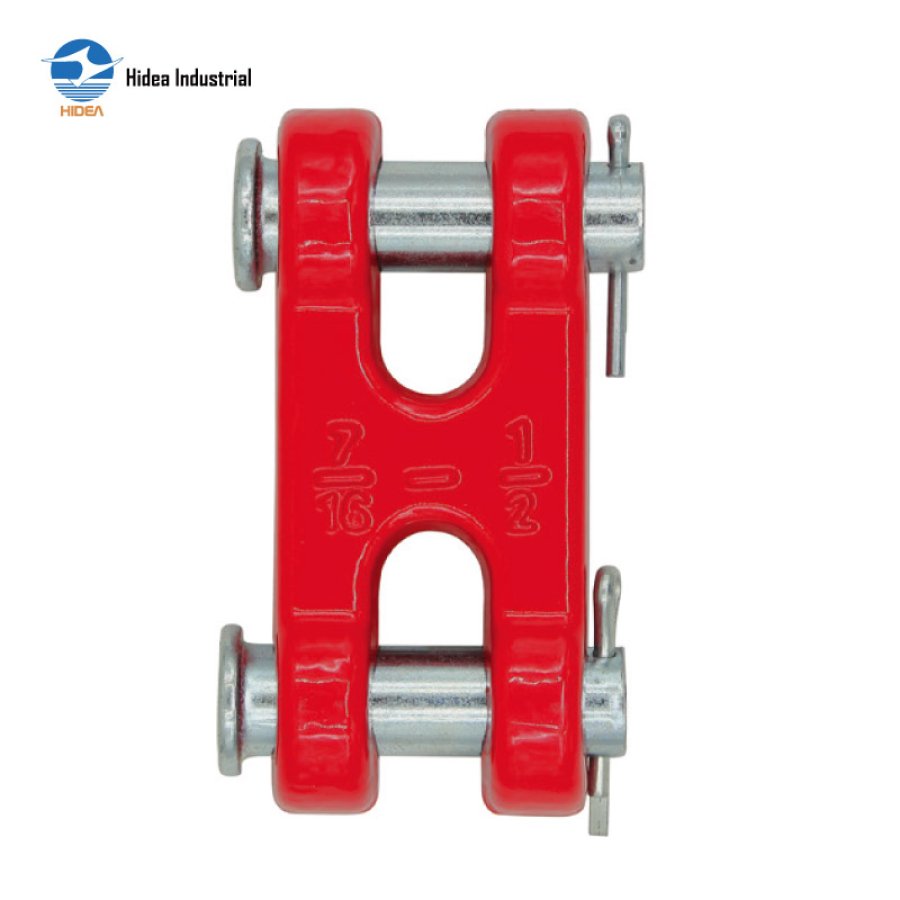

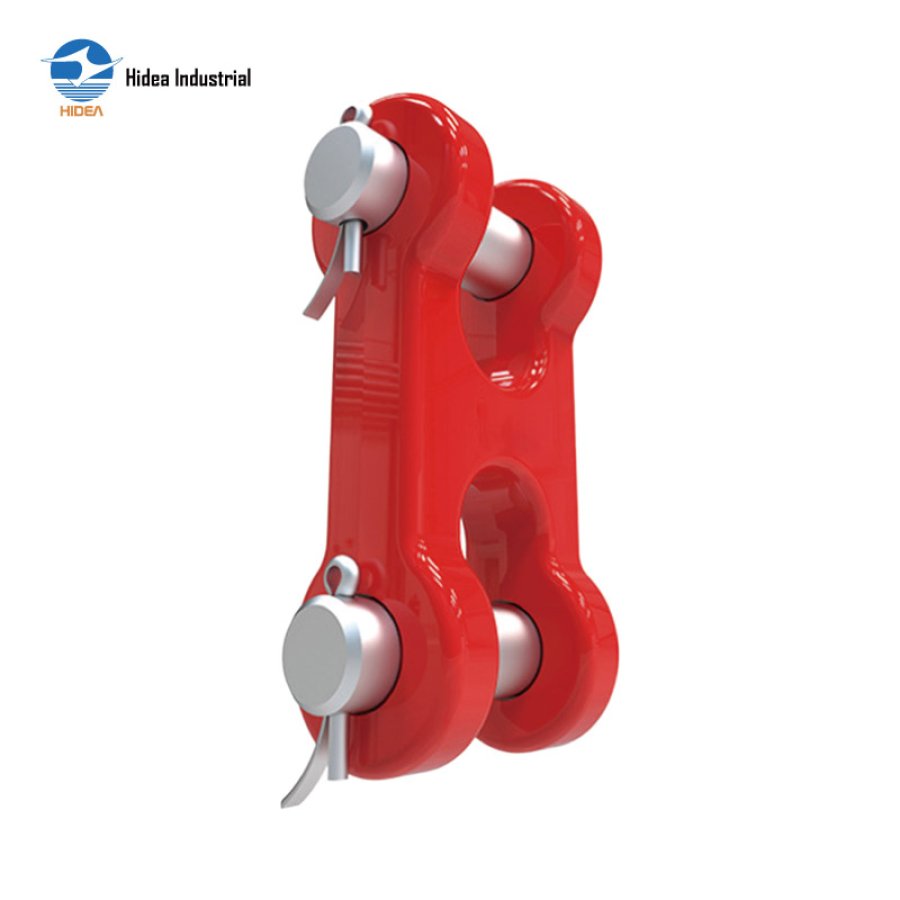

High-Strength Hidea G80 Twin Clevis Chain Connector for Heavy-Duty Hoisting and Load Handling

G80 DOUBLE CLEVIS CHAIN LINK H-LINK Mid Link

Grade 70, only for lashing and pulling
Never to be used for lifting
Forged alloy steel-Quenched and Tempered
Suitable for G70 transport chain
Regular mark: G70 1/4-5/16

Inquire Now

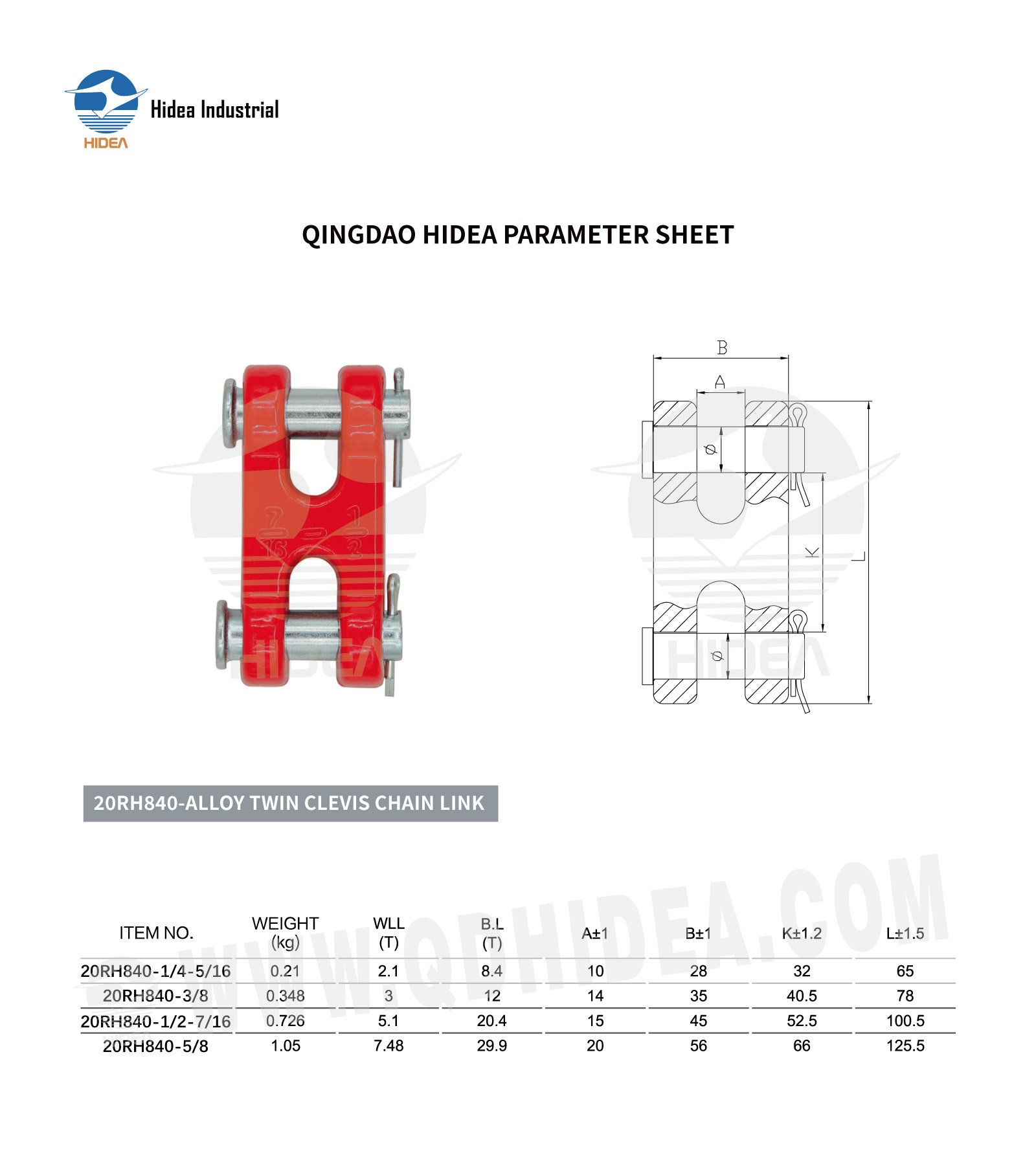

QINGDAO HIDEA PARAMETER SHEET FOR

20RH840-ALLOY TWIN CLEVIS CHAIN LINK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±1	B±1	K±1.2	L±1.5
20RH840-1/4-5/16	0.21	2.1	8.4	10	28	32	65
20RH840-3/8	0.348	3	12	14	35	40.5	78
20RH840-1/2-7/16	0.726	5.1	20.4	15	45	52.5	100.5
20RH840-5/8	1.05	7.48	29.9	20	56	66	125.5
