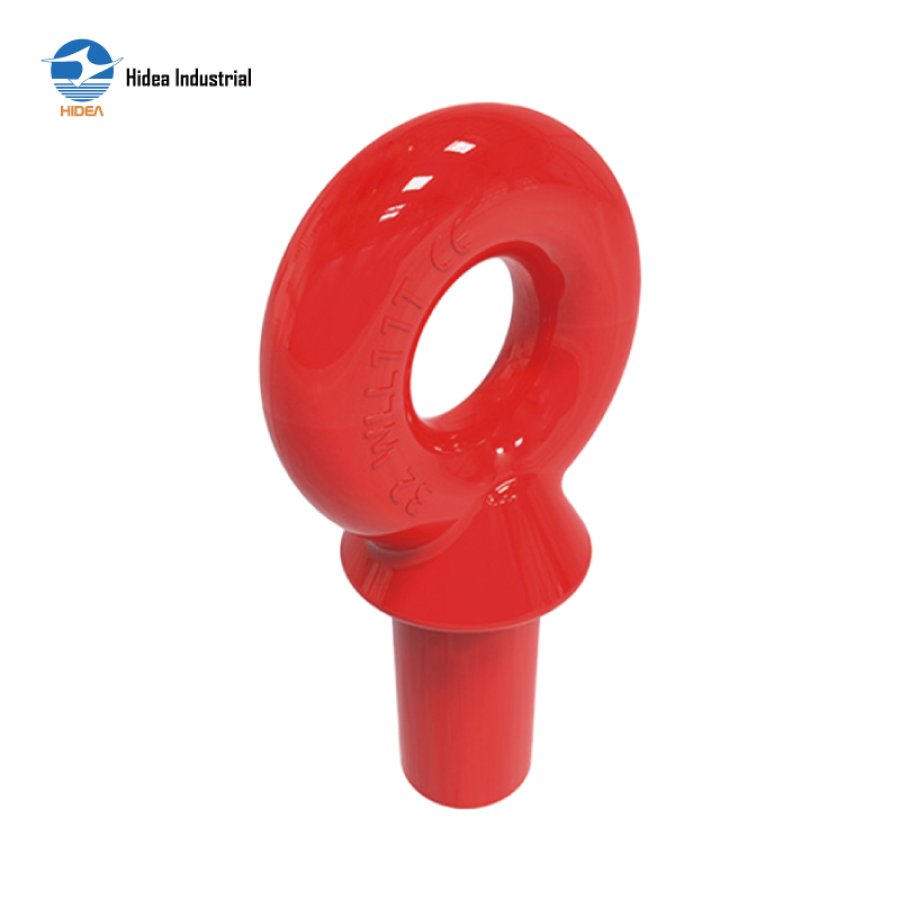

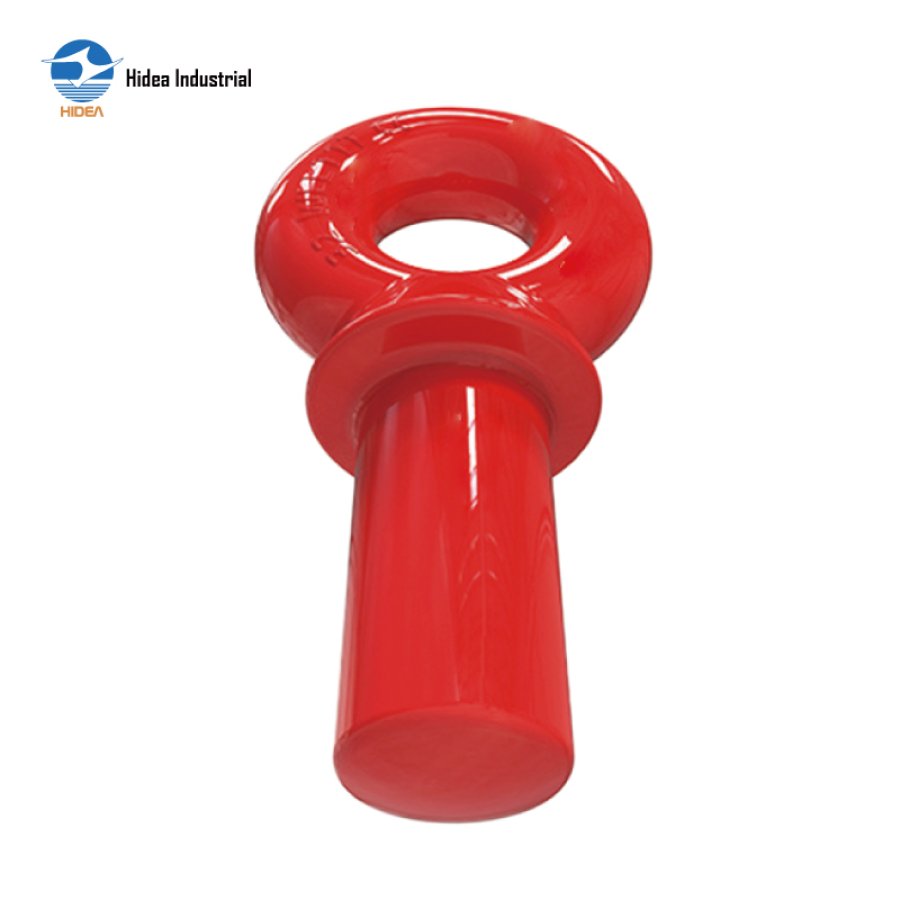

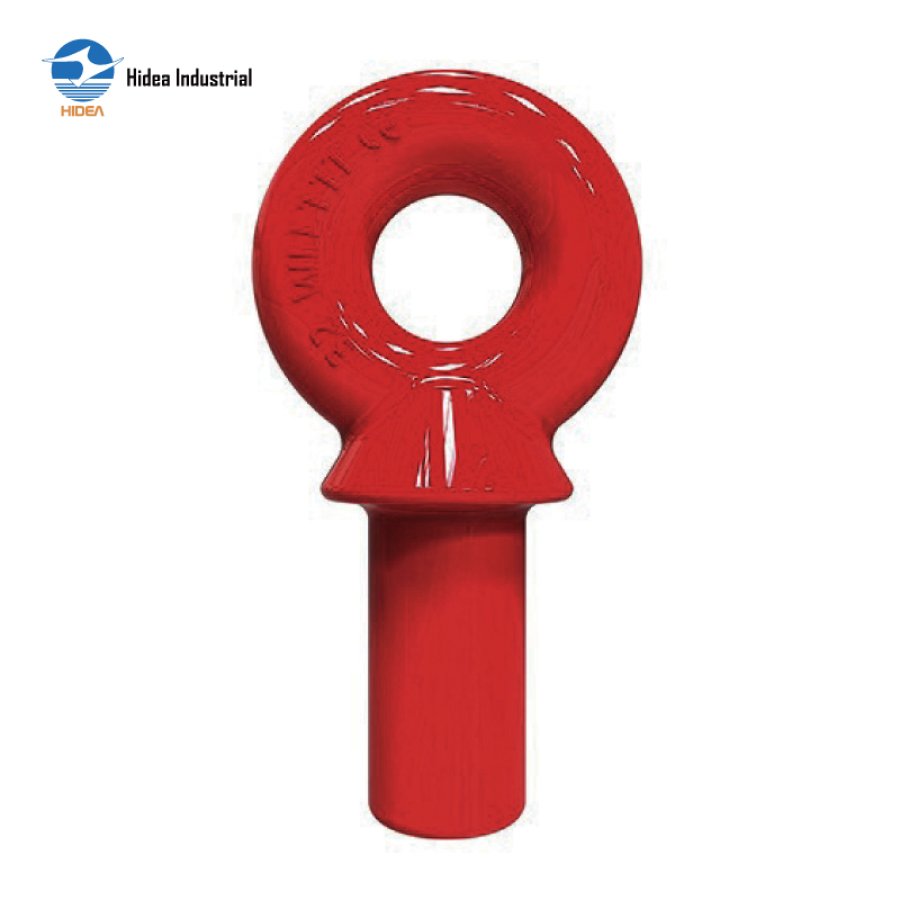

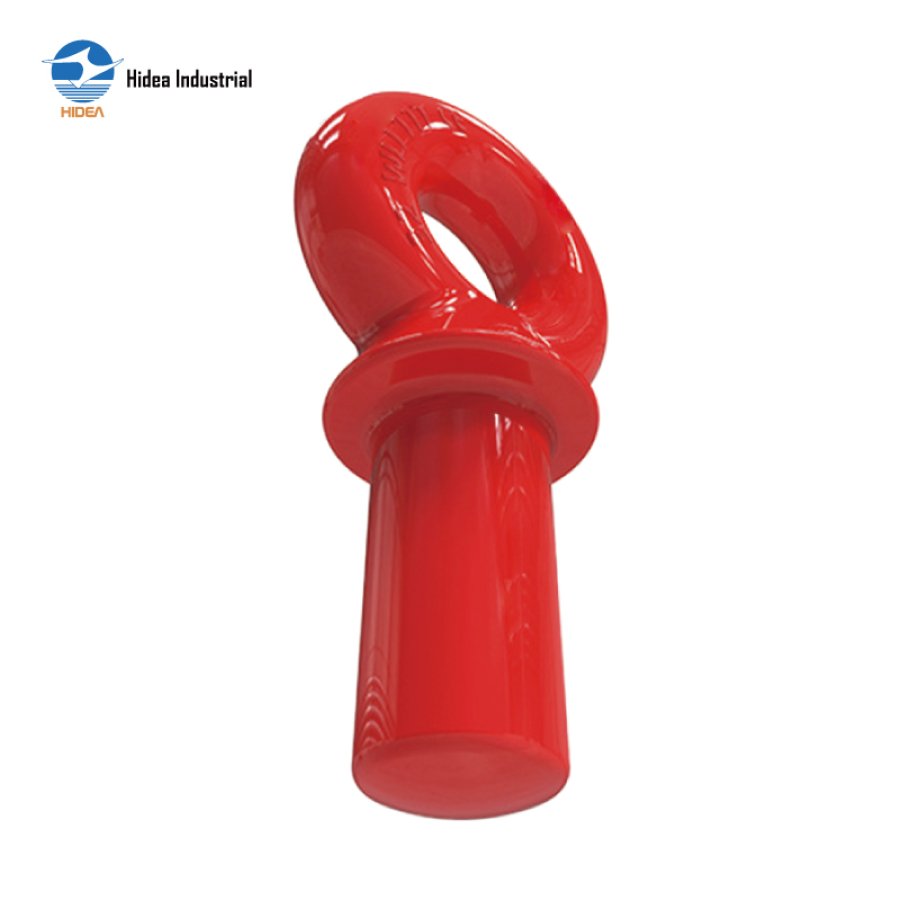

Heavy-Duty Hidea G80 NAV Special Lifting Eye Bolt for Safe Load Handling

G80 NAV SPECIAL LIFTING EYE BOLT

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH442-G80 NAV SPECIAL LIFTING EYE BOLT

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	Ø±1	Ø1±1	A±2	B±1	C±1	D±1.2
20RH244-19	0.8	4	16	27	42	61	19	28	133
20RH244-22	1.2	6	24	29	47	65	22	32	149
20RH244-25	1.65	9	36	33	50	71	25	36	164
20RH244-28	1.7	10	40	37	52	77	28	39	182
20RH244-32	2.99	11	44	40	67	88	32	42	201.5
20RH244-36	4.94	12.5	50	75	69	102	36	48	256.5
20RH244-38	6.31	14	56	80	76	112	38	50	277.5
