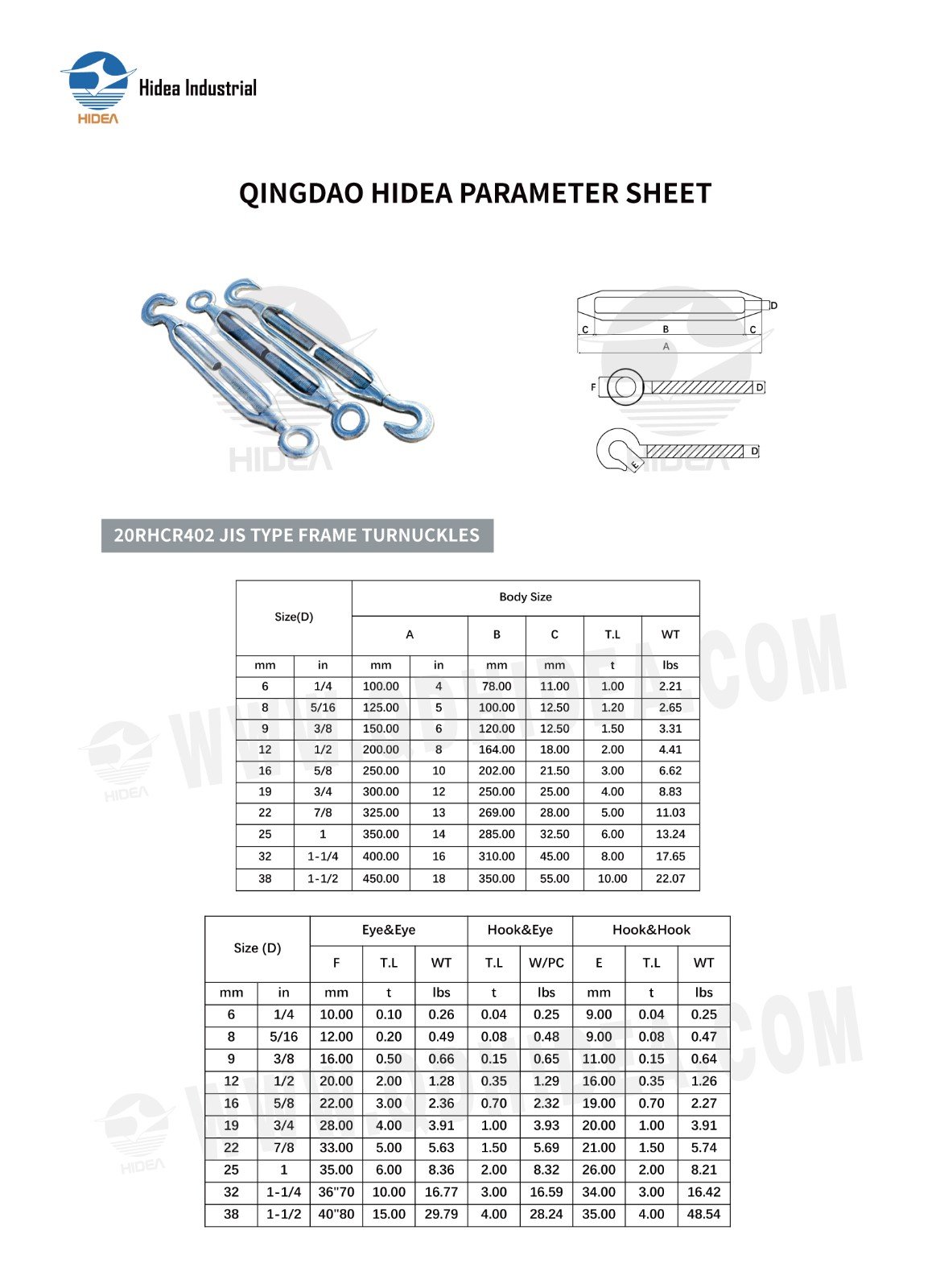

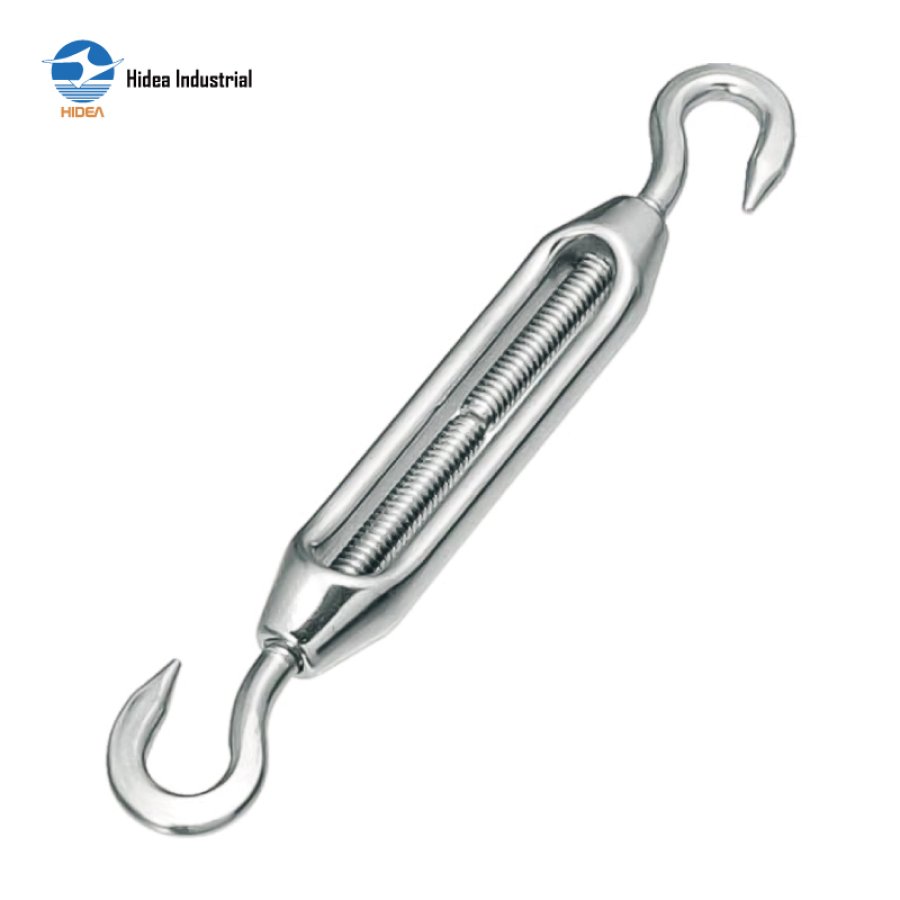

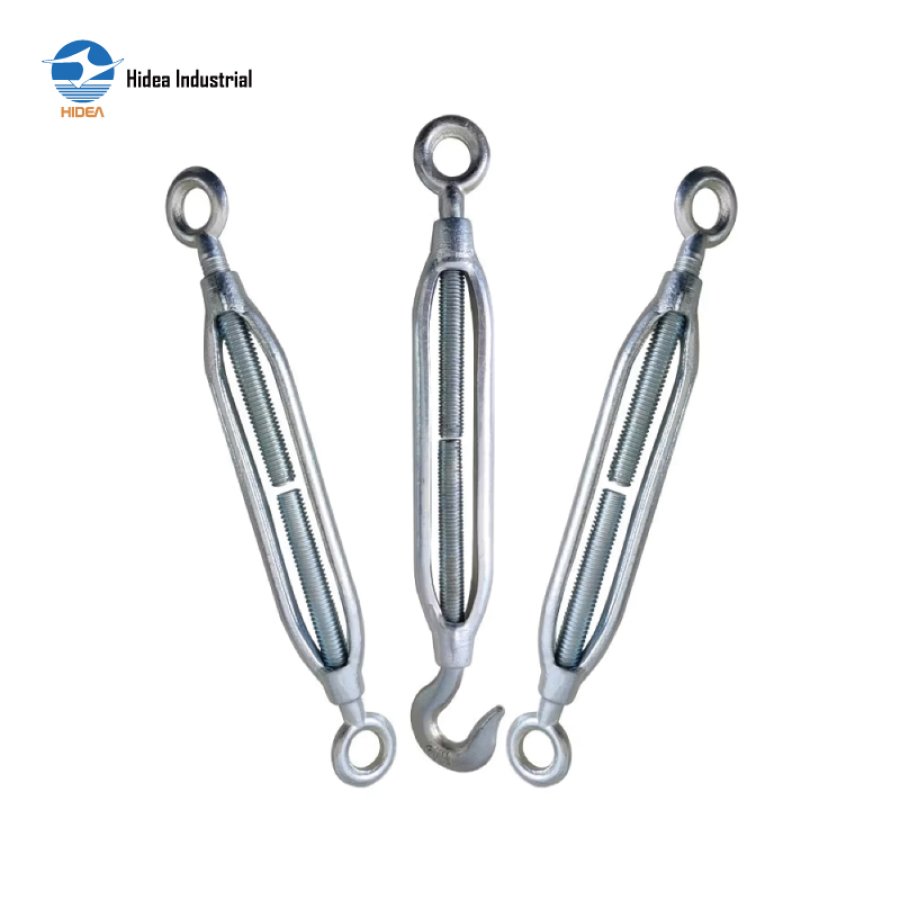

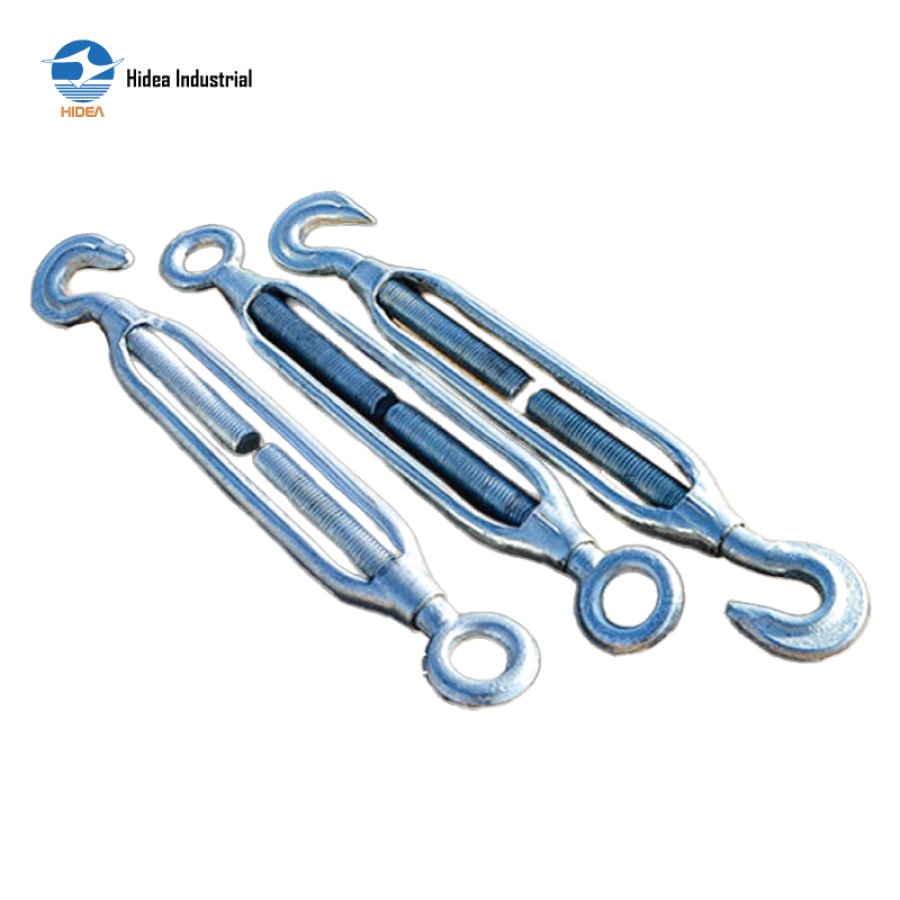

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR402 JIS TYPE FRAME TURNUCKLES

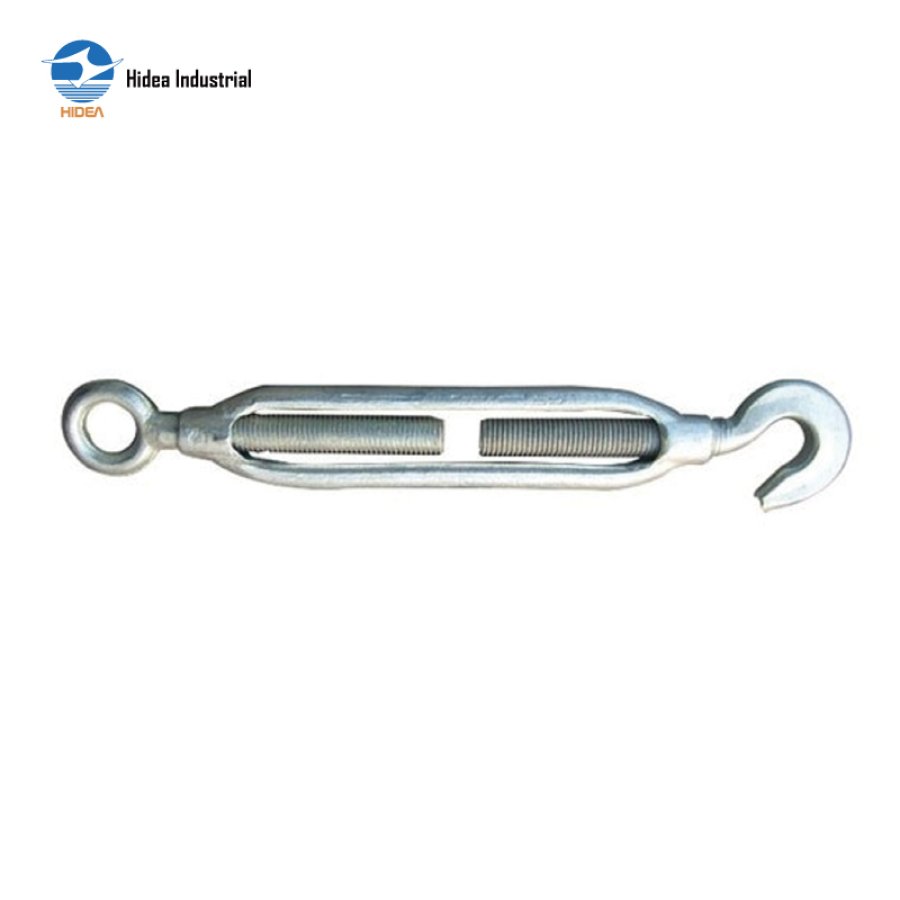

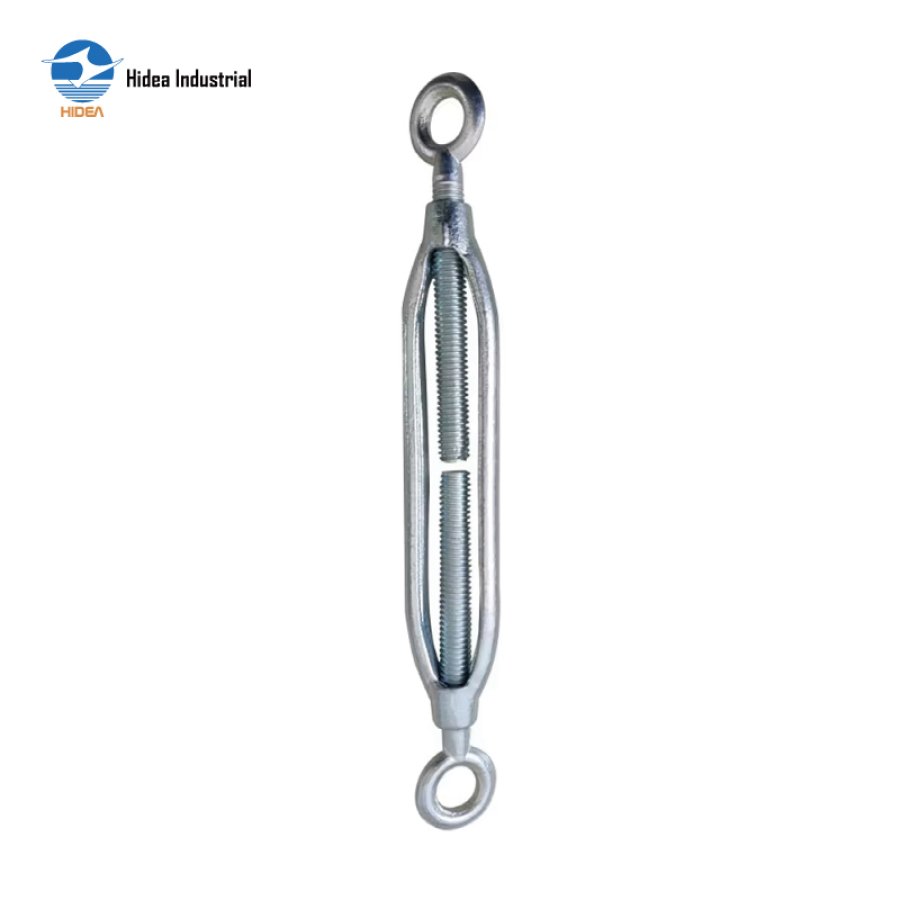

| Size(D) | Body Size | ||||||||||||||
| A | B | C | T.L | WT | |||||||||||
| mm | n | mm | n | mm | mm | t | Ibs | ||||||||
| 6 | 1/4 | 100.00 | 4 | 78.00 | 11.00 | 1.00 | 2.21 | ||||||||
| 8 | 5/16 | 125.00 | 5 | 100.00 | 12.50 | 1.20 | 2.65 | ||||||||
| 9 | 3/8 | 150.00 | 6 | 120.00 | 12.50 | 1.50 | 3.31 | ||||||||
| 12 | 1/2 | 200.00 | 8 | 164.00 | 18.00 | 2.00 | 4.41 | ||||||||
| 16 | 5/8 | 250.00 | 10 | 202.00 | 21.50 | 3.00 | 6.62 | ||||||||
| 19 | 3/4 | 300.00 | 12 | 250.00 | 25.00 | 4.00 | 8.83 | ||||||||
| 22 | 7/8 | 325.00 | 13 | 269.00 | 28.00 | 5.00 | 11.03 | ||||||||
| 25 | 1 | 350.00 | 14 | 285.00 | 32.50 | 6.00 | 13.24 | ||||||||
| 32 | 1-1/4 | 400.00 | 16 | 310.00 | 45.00 | 8.00 | 17.65 | ||||||||
| 38 | 1-1/2 | 450.00 | 18 | 350.00 | 55.00 | 10.00 | 22.07 | ||||||||
| Size(D) | Eye&Eye | Hook&Eye | Hook&Hook | |||||||||||||
| F | T.L | WT | T.L | W/PC | E | T.L | WT | |||||||||
| mm | in | mm | t | Ibs | t | Ibs | mm | t | Ibs | |||||||
| 6 | 1/4 | 10.00 | 0.10 | 0.26 | 0.04 | 0.25 | 9.00 | 0.04 | 0.25 | |||||||
| 8 | 5/16 | 12.00 | 0.20 | 0.49 | 0.08 | 0.48 | 9.00 | 0.08 | 0.47 | |||||||
| 9 | 3/8 | 16.00 | 0.50 | 0.66 | 0.15 | 0.65 | 11.00 | 0.15 | 0.64 | |||||||
| 12 | 1/2 | 20.00 | 2.00 | 1.28 | 0.35 | 1.29 | 16.00 | 0.35 | 1.26 | |||||||
| 16 | 5/8 | 22.00 | 3.00 | 2.36 | 0.70 | 2.32 | 19.00 | 0.70 | 2.27 | |||||||
| 19 | 3/4 | 28.00 | 4.00 | 3.91 | 1.00 | 3.93 | 20.00 | 1.00 | 3.91 | |||||||
| 22 | 7/8 | 33.00 | 5.00 | 5.63 | 1.50 | 5.69 | 21.00 | 1.50 | 5.74 | |||||||
| 25 | 1 | 35.00 | 6.00 | 8.36 | 2.00 | 8.32 | 26.00 | 2.00 | 8.21 | |||||||
| 32 | 1-1/4 | 36"70 | 10.00 | 16.77 | 3.00 | 16.59 | 34.00 | 3.00 | 16.42 | |||||||
| 38 | 1-1/2 | 40"80 | 15.00 | 29.79 | 4.00 | 28.24 | 35.00 | 4.00 | 48.54 | |||||||
