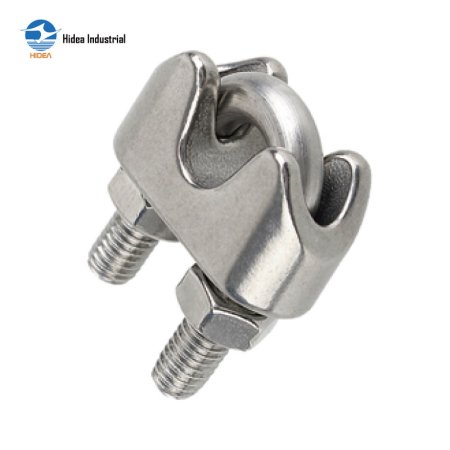

HIDEA DIN 741 Wire Rope Clip for Safe and Durable Wire Rope Connections

DIN741 WIRE ROPE CLIP

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

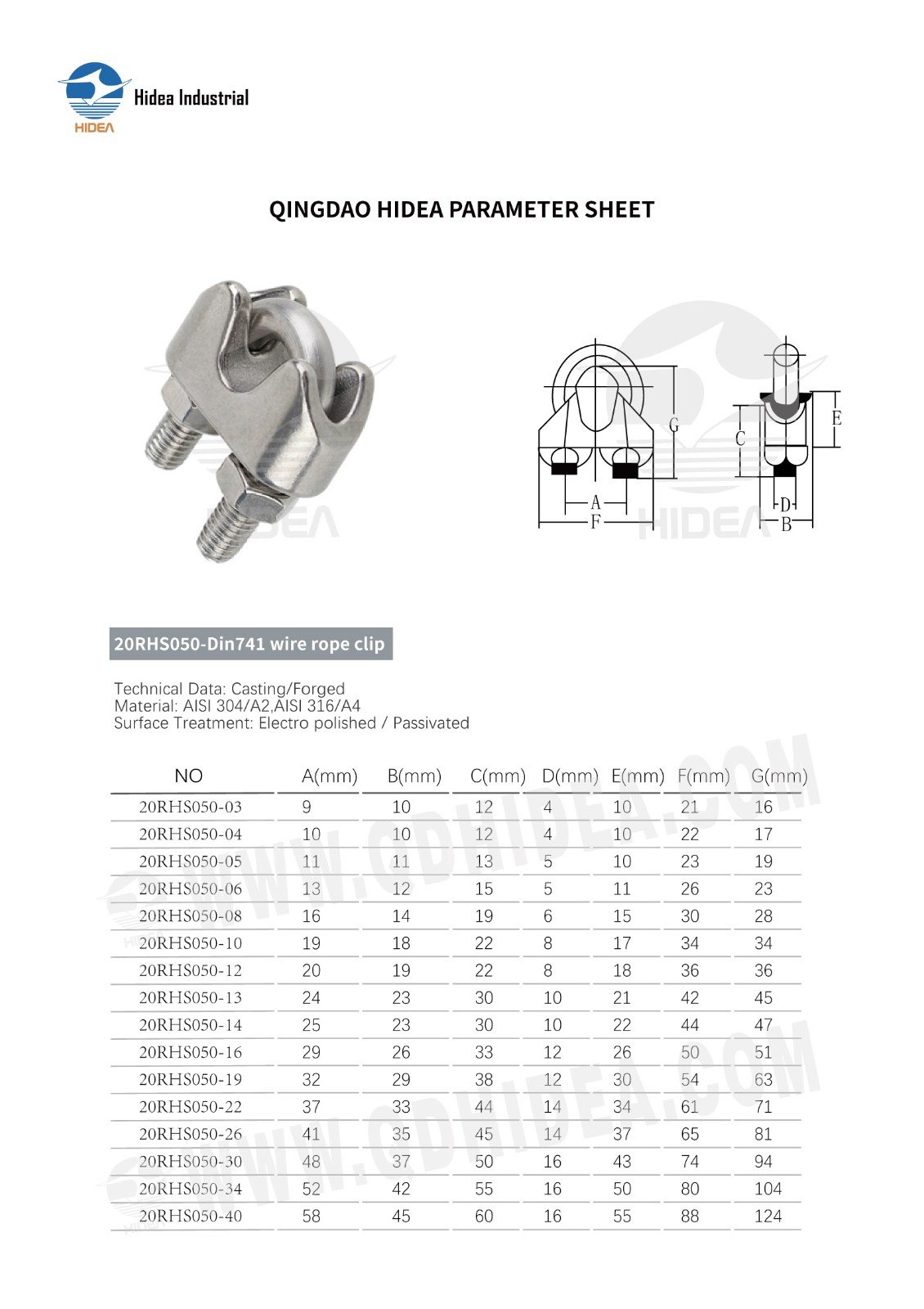

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS050-Din741wire rope clip

NO	A(mm)	B(mm)	C(mm)	D(mm)	E(mm	)F(mm)	G(mm)
20RHS050-03	9	10	12	4	10	21	16
20RHS050-04	10	10	12	4	10	22	17
20RHS050-05	11	11	13	5	10	23	19
20RHS050-06	13	12	15	5	11	26	23
20RHS050-08	16	14	19	6	15	30	28
20RHS050-10	19	18	22	8	17	34	34
20RHS050-12	20	19	22	8	18	36	36
20RHS050-13	24	23	30	10	21	42	45
20RHS050-14	25	23	30	10	22	44	47
20RHS050-16	29	26	33	12	26	50	51
20RHS050-19	32	29	38	12	30	54	63
20RHS050-22	37	33	44	14	34	61	71
20RHS050-26	41	35	45	14	37	65	81
20RHS050-30	48	37	50	16	43	74	94
20RHS050-34	52	42	55	16	50	80	104
20RHS050-40	58	45	60	16	55	88	124
