Hidea DIN1478 Pipe Turnbuckle Body – Engineered for Strength and Flexibility

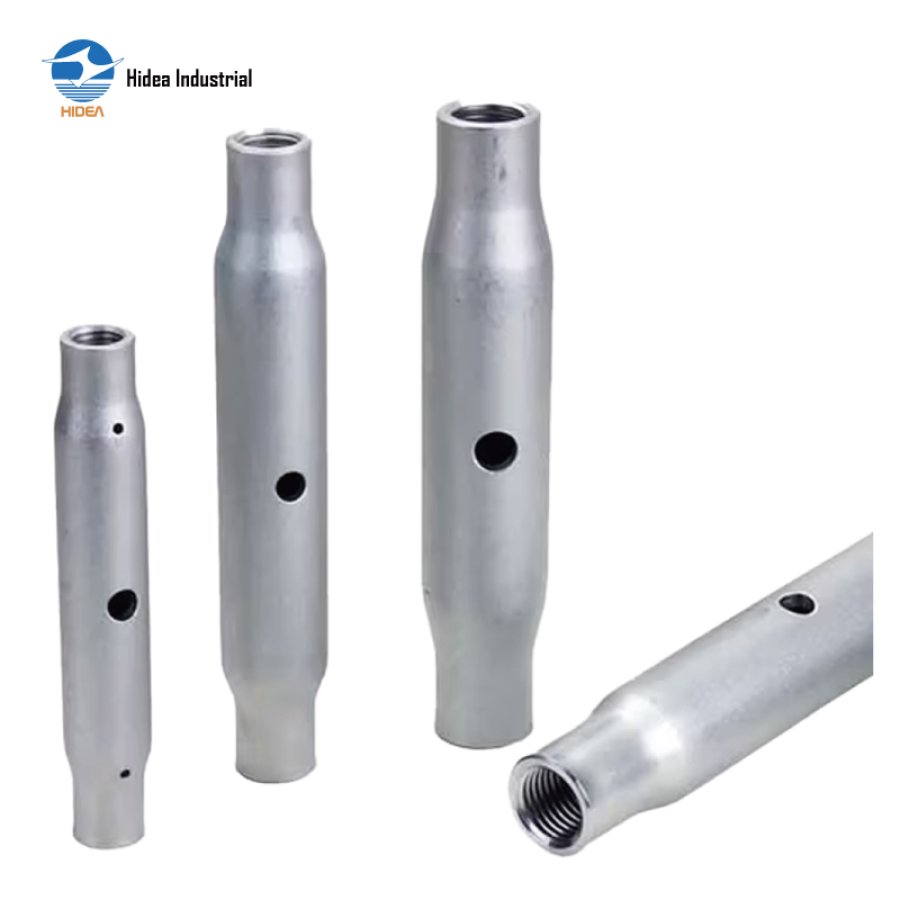

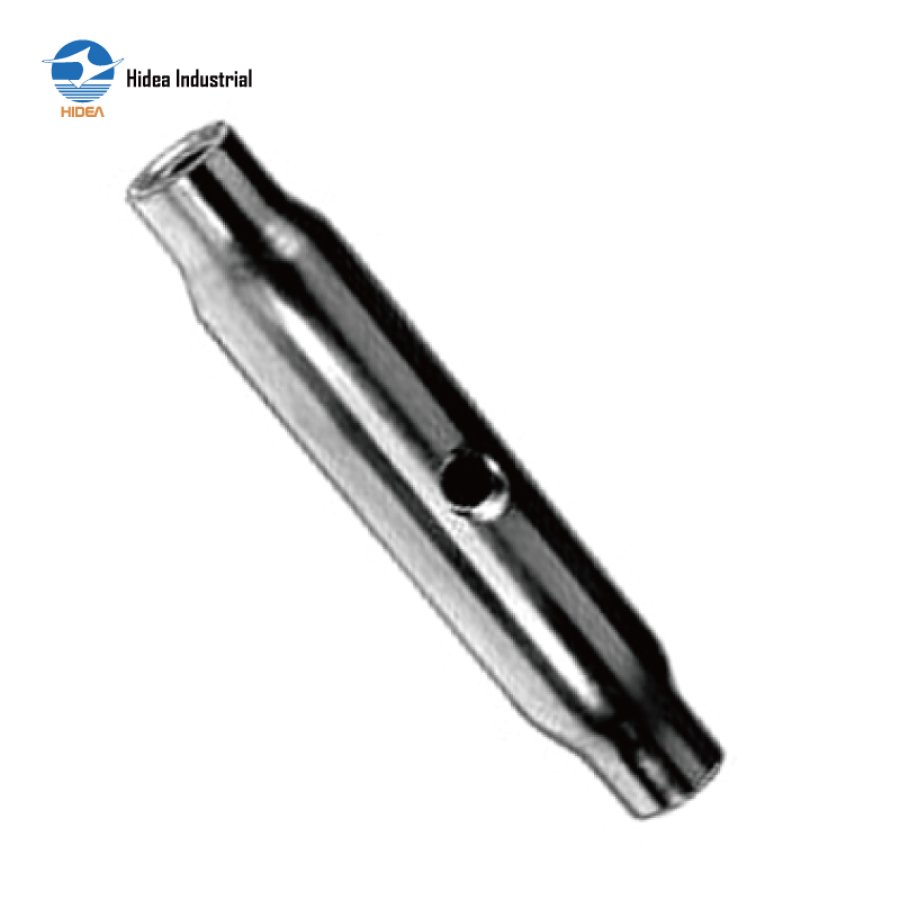

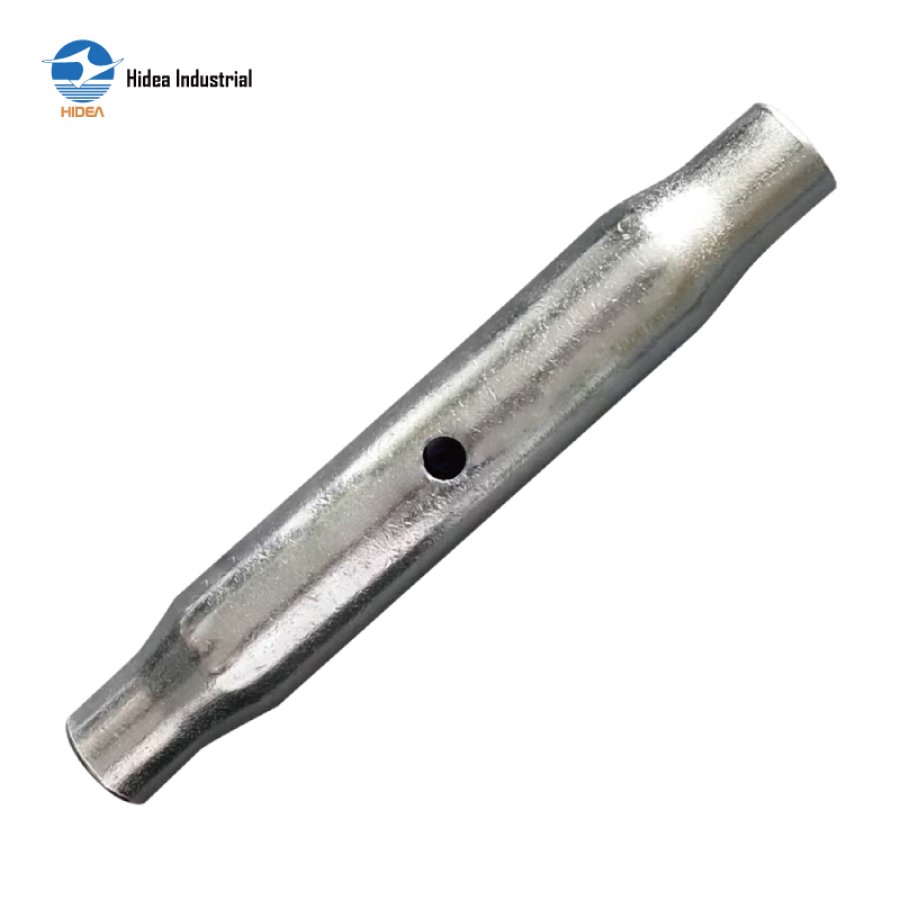

DIN1478 TUBULAR TURNBUCKLE BODY ONLY

Material: High tensile seamless steel tube body
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested

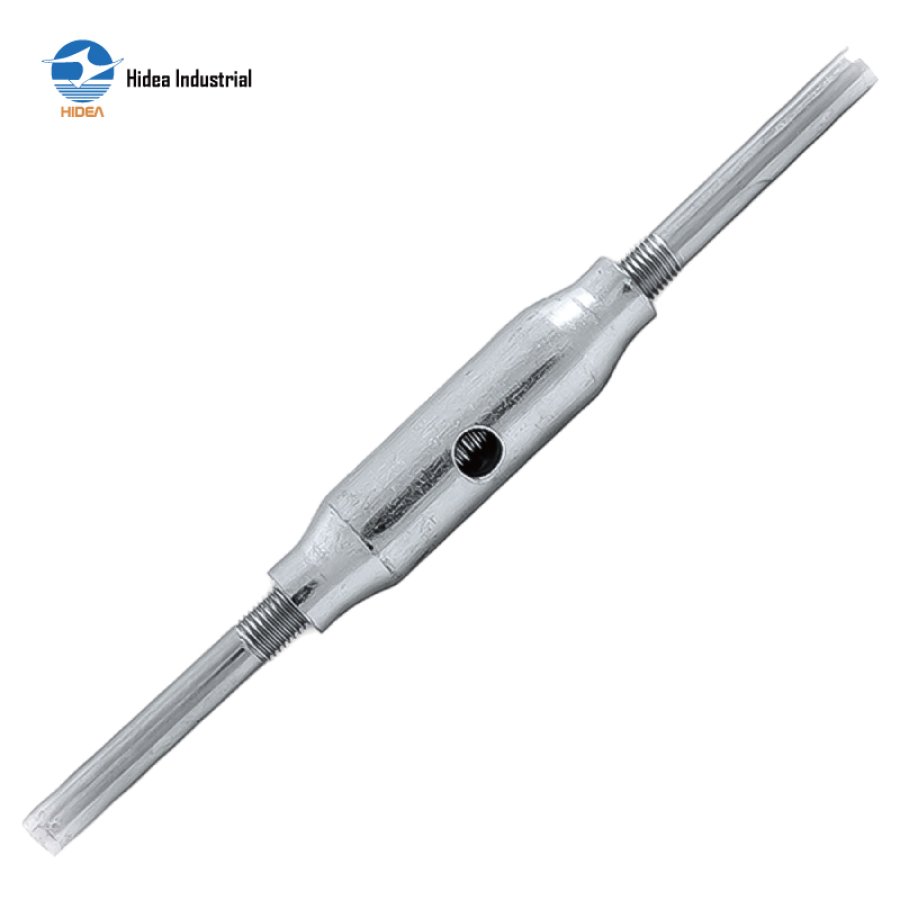

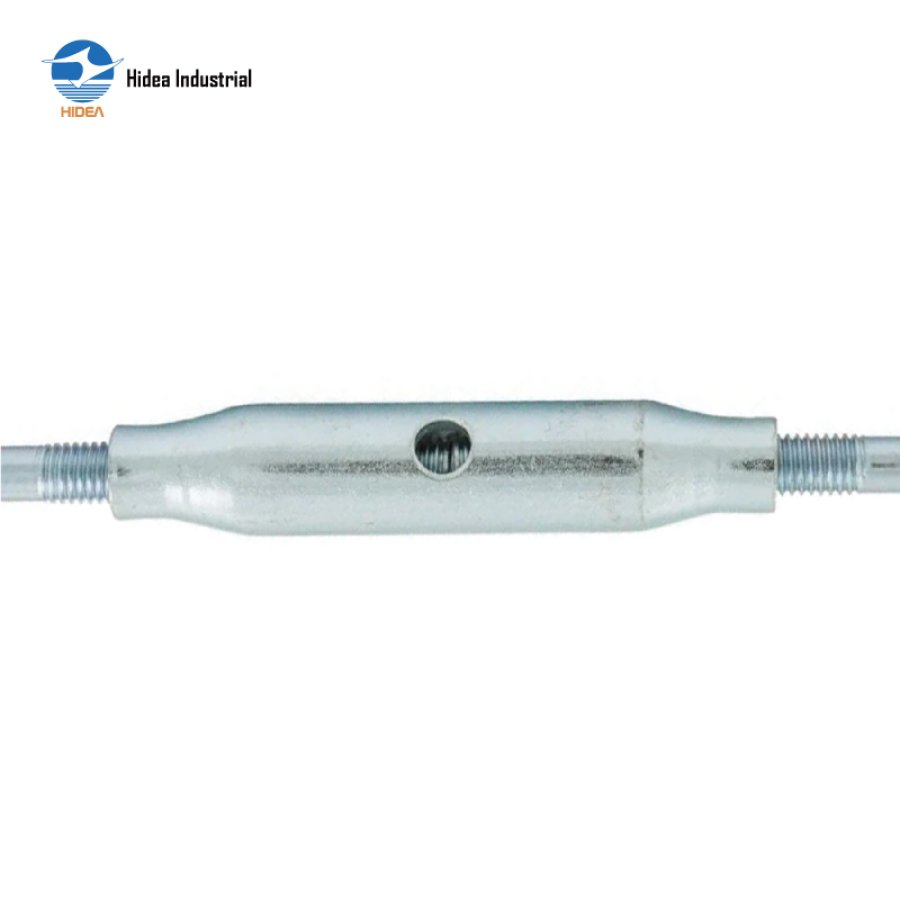

Din1478 tublar rigging screws tublar / pipe turnbuckles body only

Inquire Now

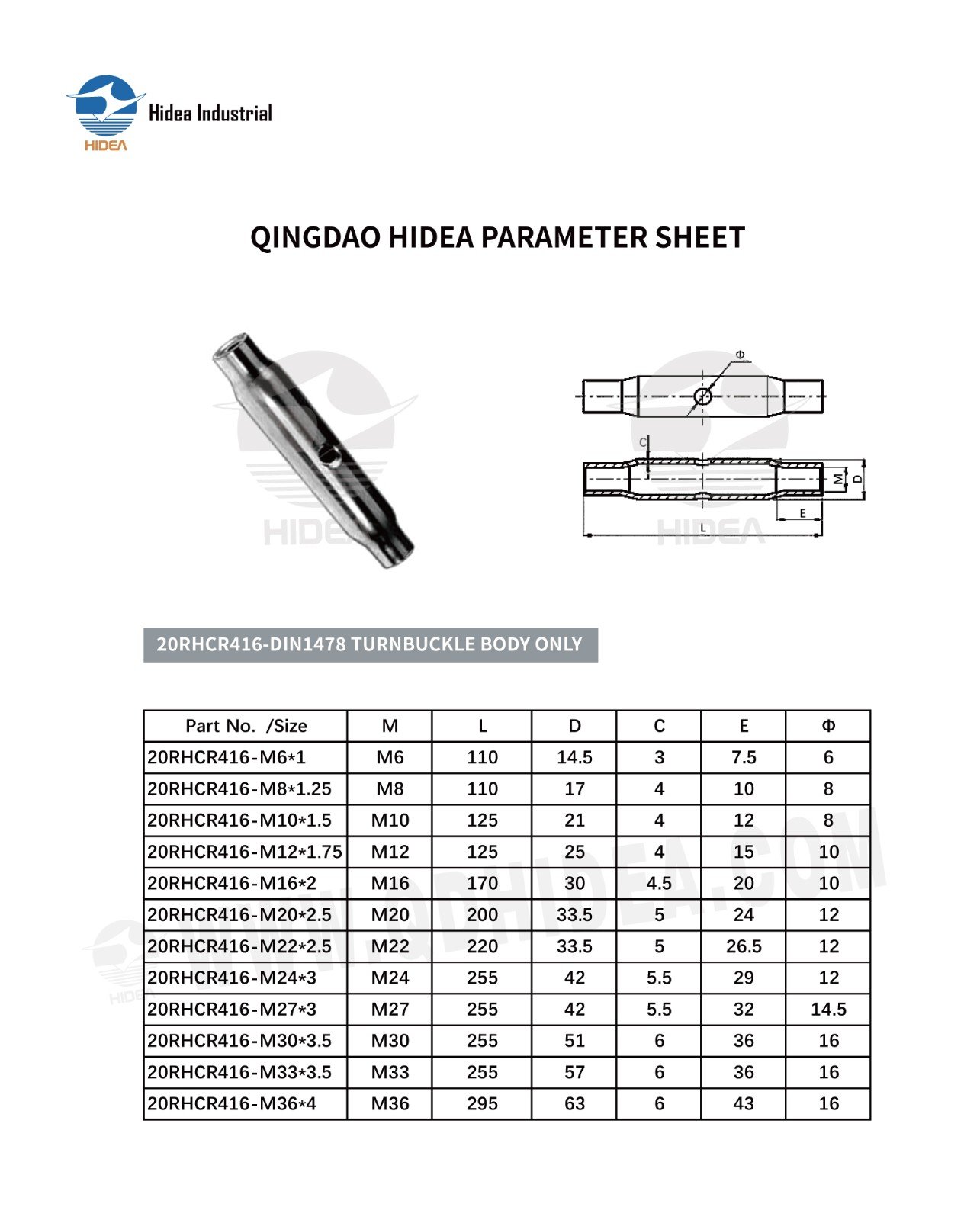

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR416-DIN1478 TURNBUCKLE BODY ONLY

Part No./Size	M	L	D	C	E	Ф
*20RHCR416-M61**	M6	110	14.5	3	7.5	6
*20RHCR416-M81.25**	M8	110	17	4	10	8
*20RHCR416-M101.5**	M10	125	21	4	12	8
*20RHCR416-M121.75**	M12	125	25	4	15	10
*20RHCR416-M162**	M16	170	30	4.5	20	10
*20RHCR416-M202.5**	M20	200	33.5	5	24	12
*20RHCR416-M222.5**	M22	220	33.5	5	26.5	12
*20RHCR416-M243**	M24	255	42	5.5	29	12
*20RHCR416-M273**	M27	255	42	5.5	32	14.5
*20RHCR416-M303.5**	M30	255	51	6	36	16
*20RHCR416-M333.5**	M33	255	57	6	36	16
*20RHCR416-M364**	M36	295	63	6	43	16
