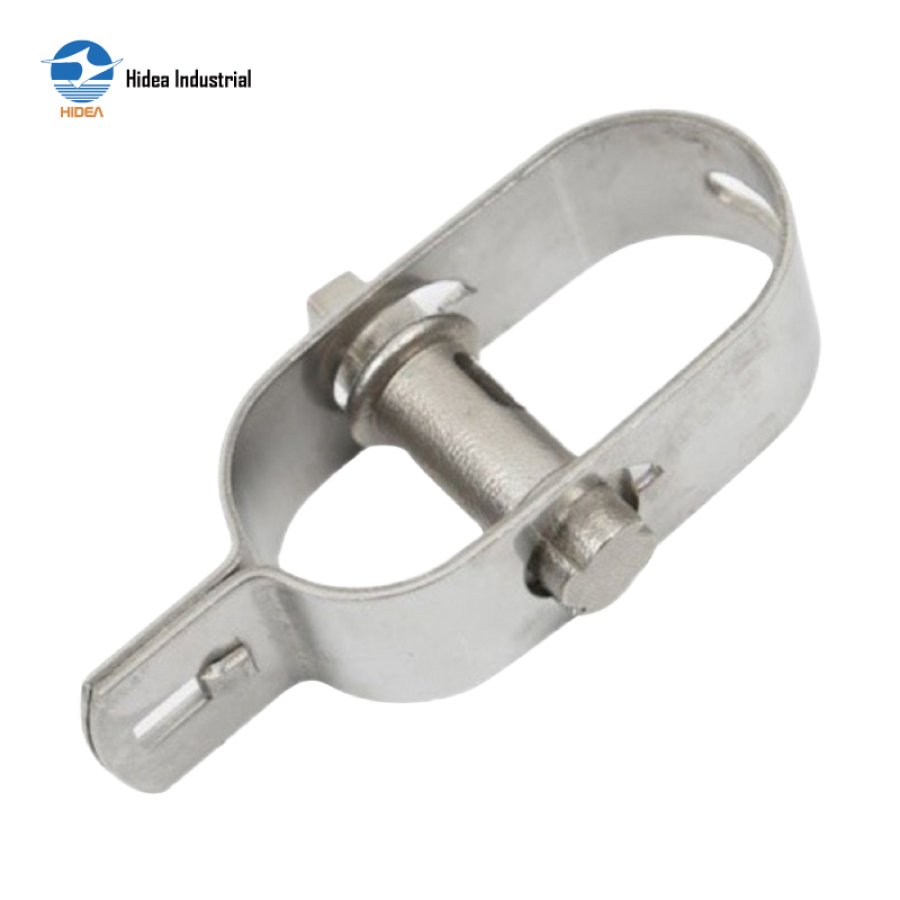

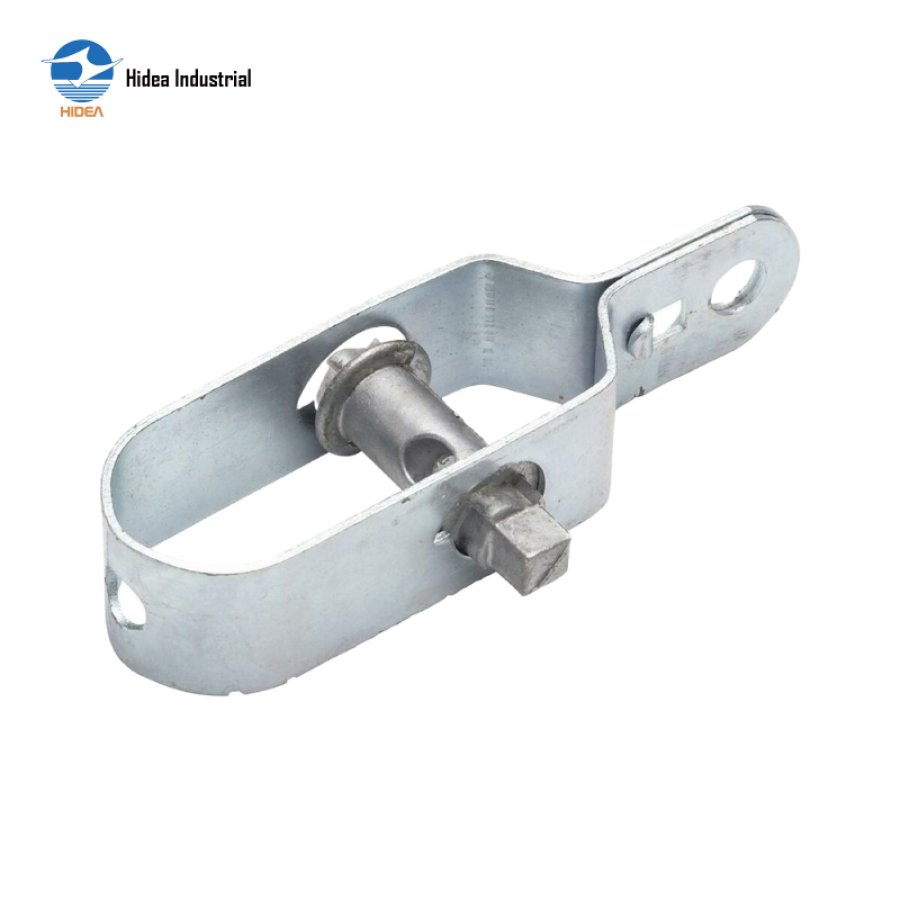

HIDEA Wire Rope Tensioner – Easy to Assemble and Disassemble, Ideal for Wire Rope Tensioning

FRMING, FENCING, GREENHOUSE, GRAPE TRELLIS WIRE GRIP TENSIONERS, WIRE FASTENERS

Material A3 Steel Plate
Stamped & Polished ,quenched & tempered
Surface Electro Galv. / zinc plated OR as requested
Cable & Wire Grip Tensioners, Wire Fasteners For Frming, Fencing, Greenhouse, Grape Trellis

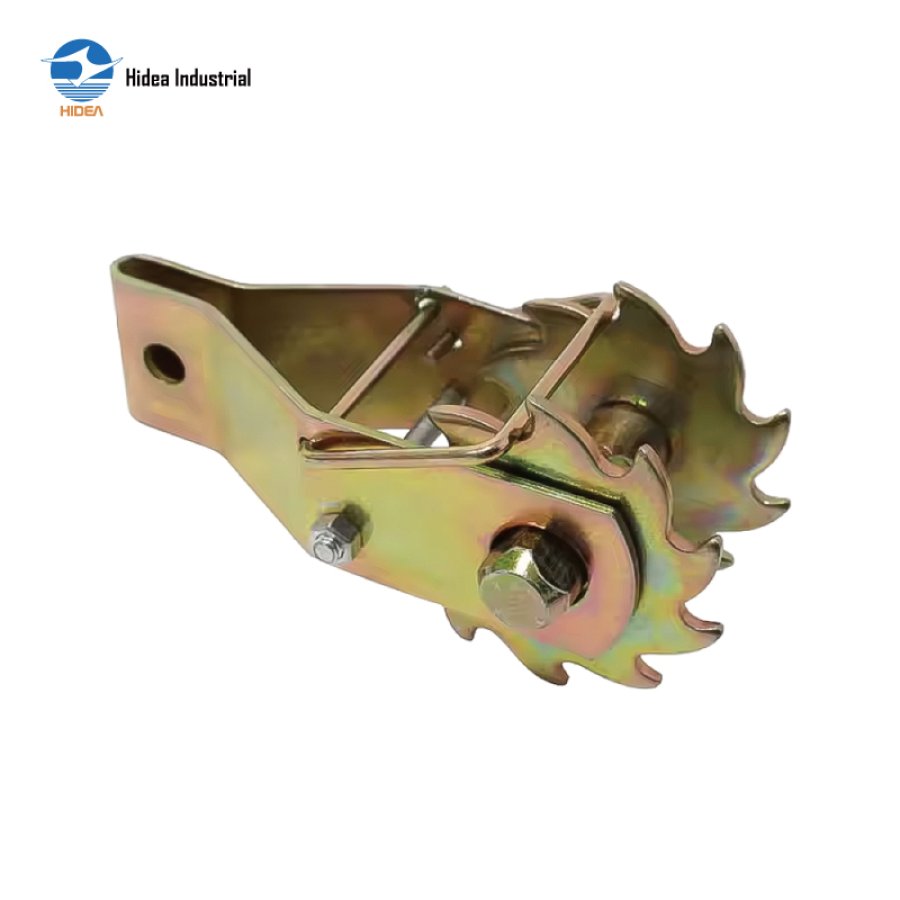

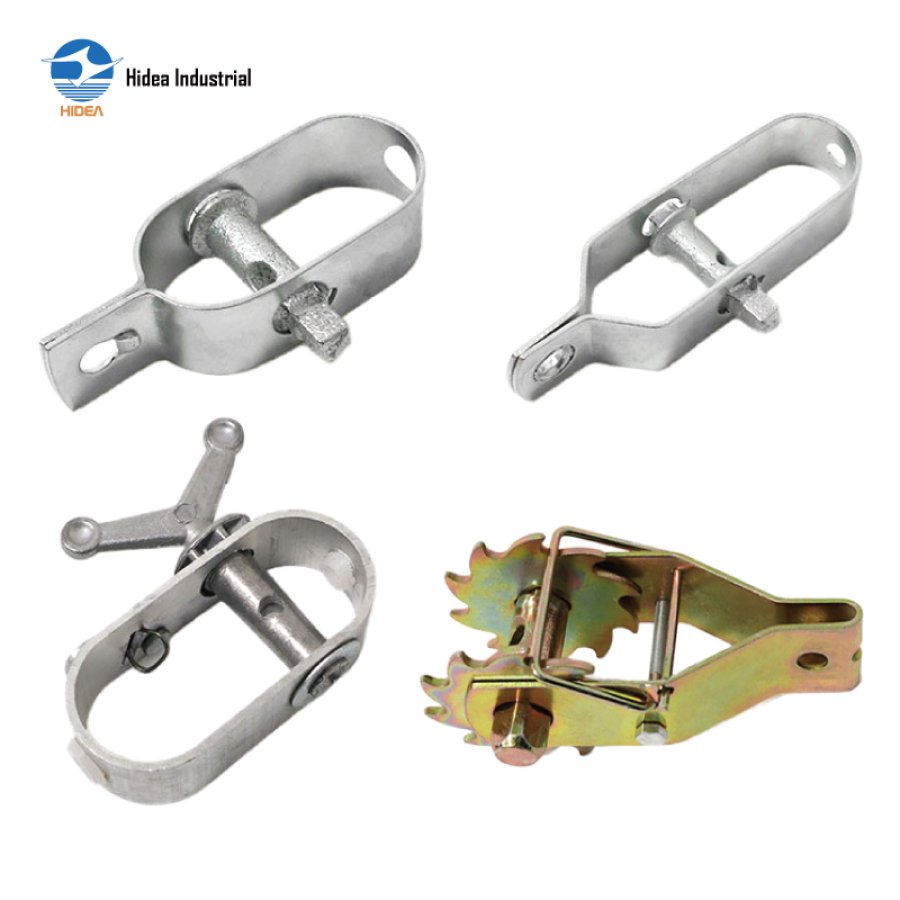

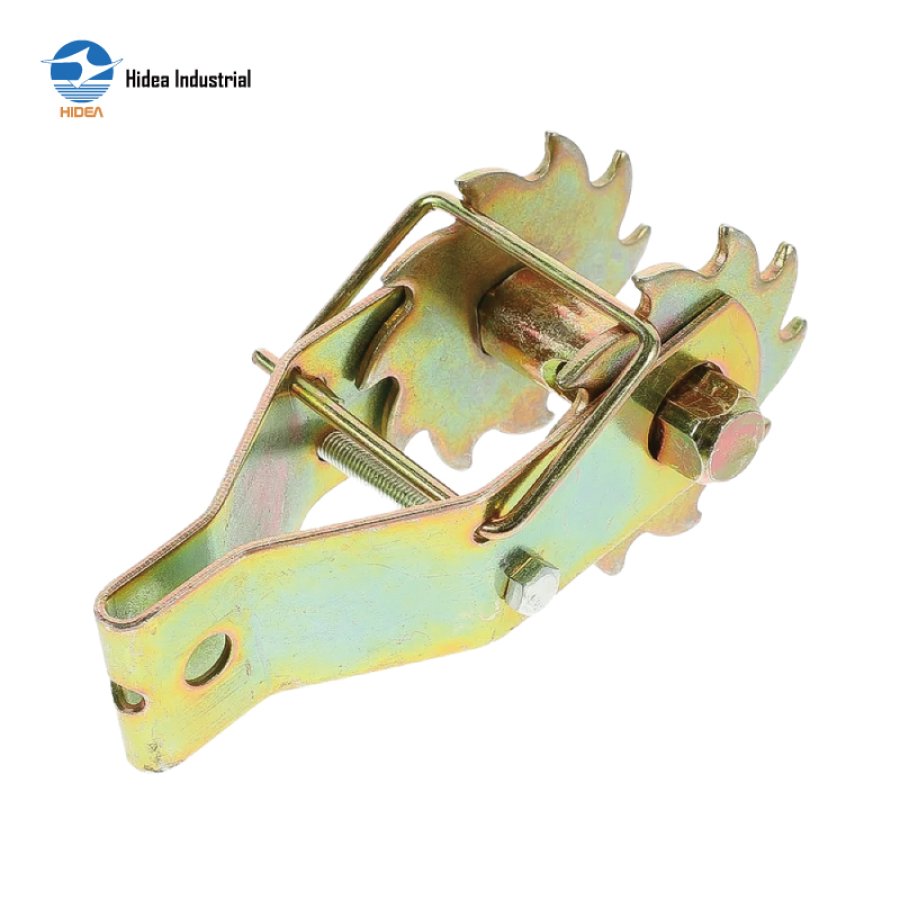

Normal Type / Ratchet Type & Ratchet Knob Types availbale

Inquire Now

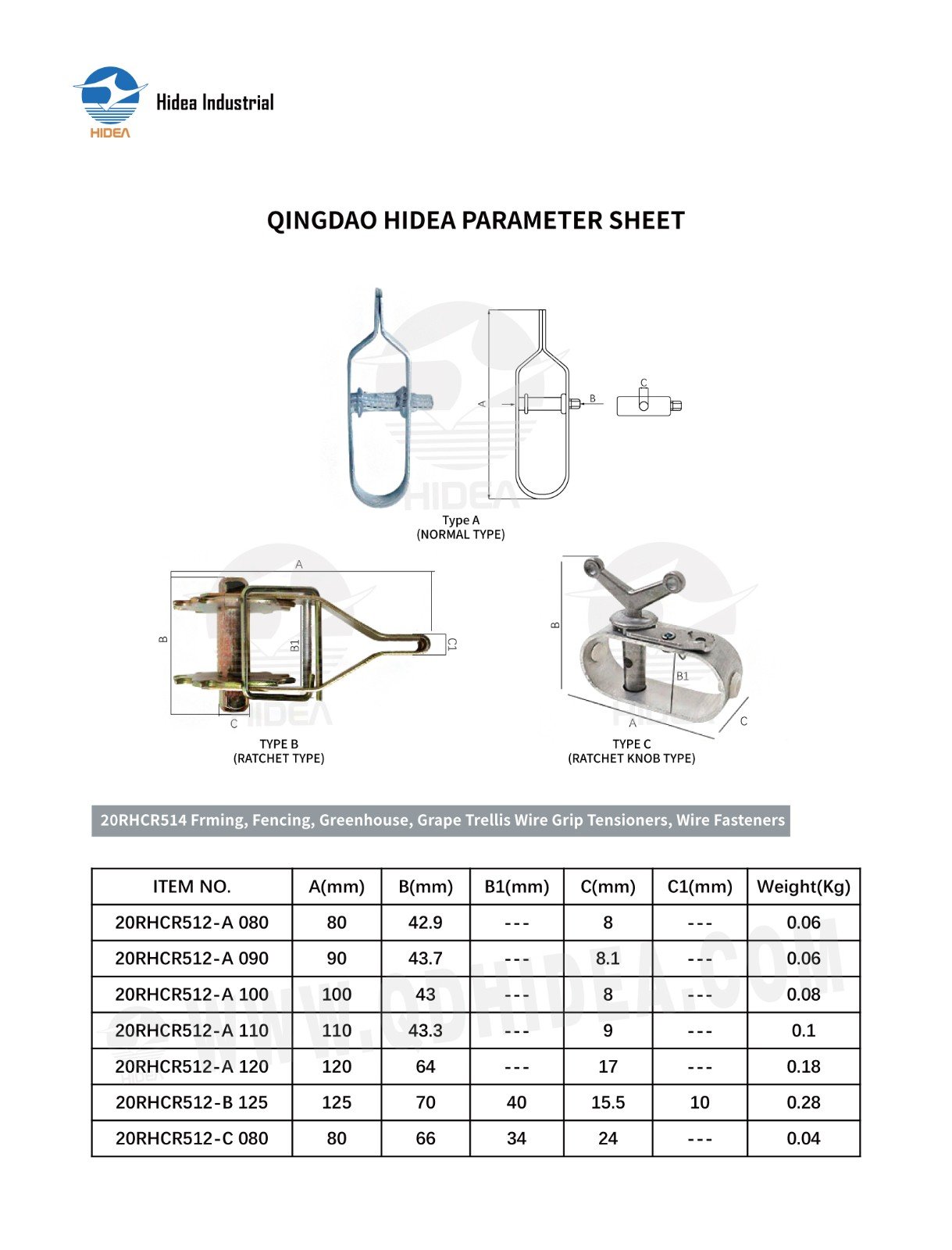

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR514 Frming,Fencing,Greenhouse,Grape Trellis Wire Grip Tensioners,Wire Fasteners

ITEM NO	A(mm)	B(mm)	B1(mm)	C(mm)	C1(mm)	Weight(Kg)
20RHCR512-A 080	80	42.9	--	8	---	0.06
20RHCR512-A 090	90	43.7	---	8.1	---	0.06
20RHCR512-A100	100	43	---	8	---	0.08
20RHCR512-A110	110	43.3	---	9	---	0.1
20RHCR512-A 120	120	64	---	17	---	0.18
20RHCR512-B125	125	70	40	15.5	10	0.28
20RHCR512-C080	80	66	34	24	---	0.04
