Hidea G80 Lifting Eye Screw with Omega Link: Safe, Secure, and Ready for Heavy-Duty Lifting

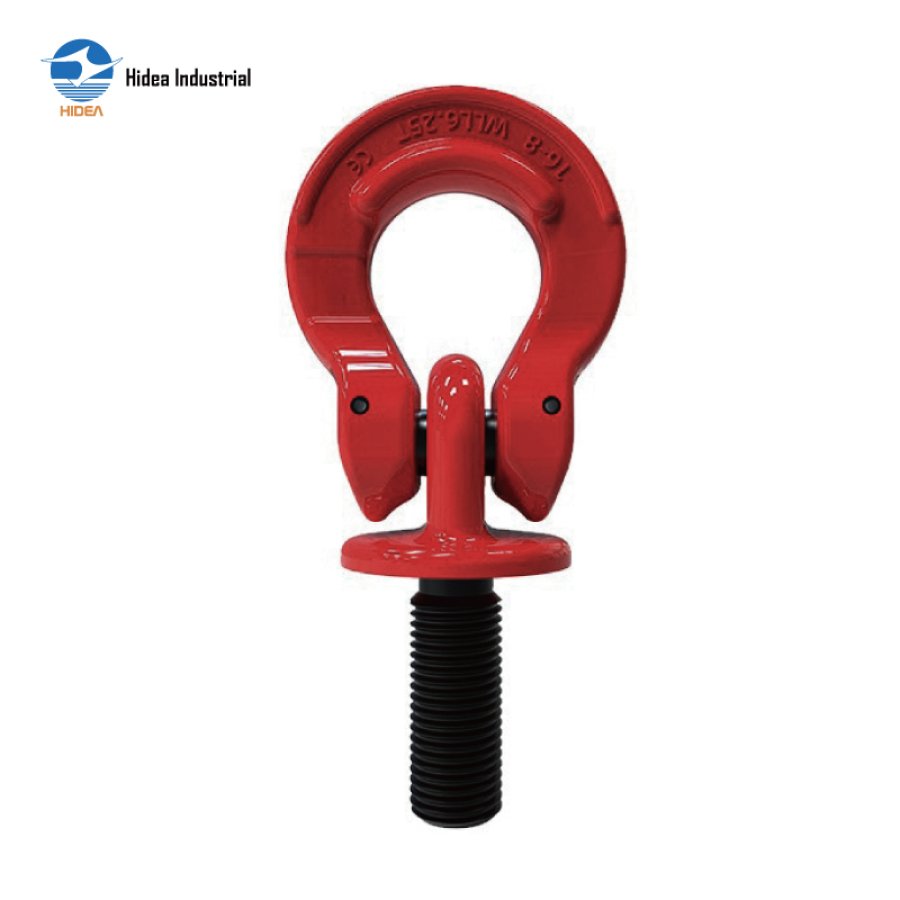

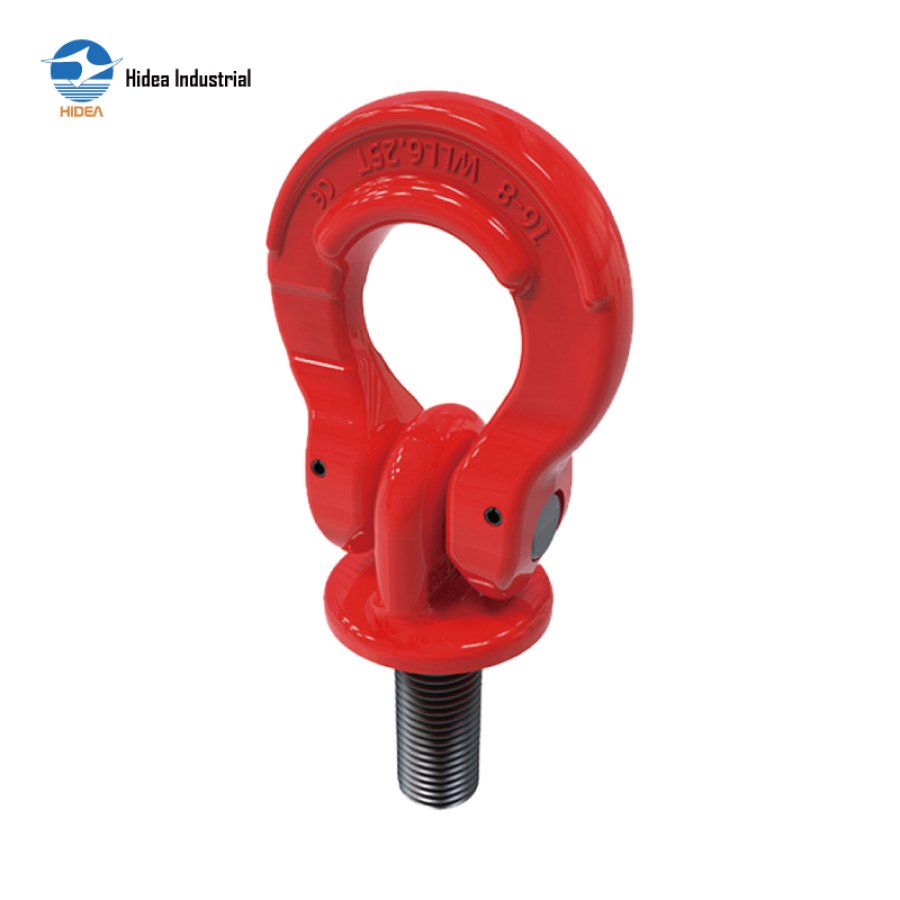

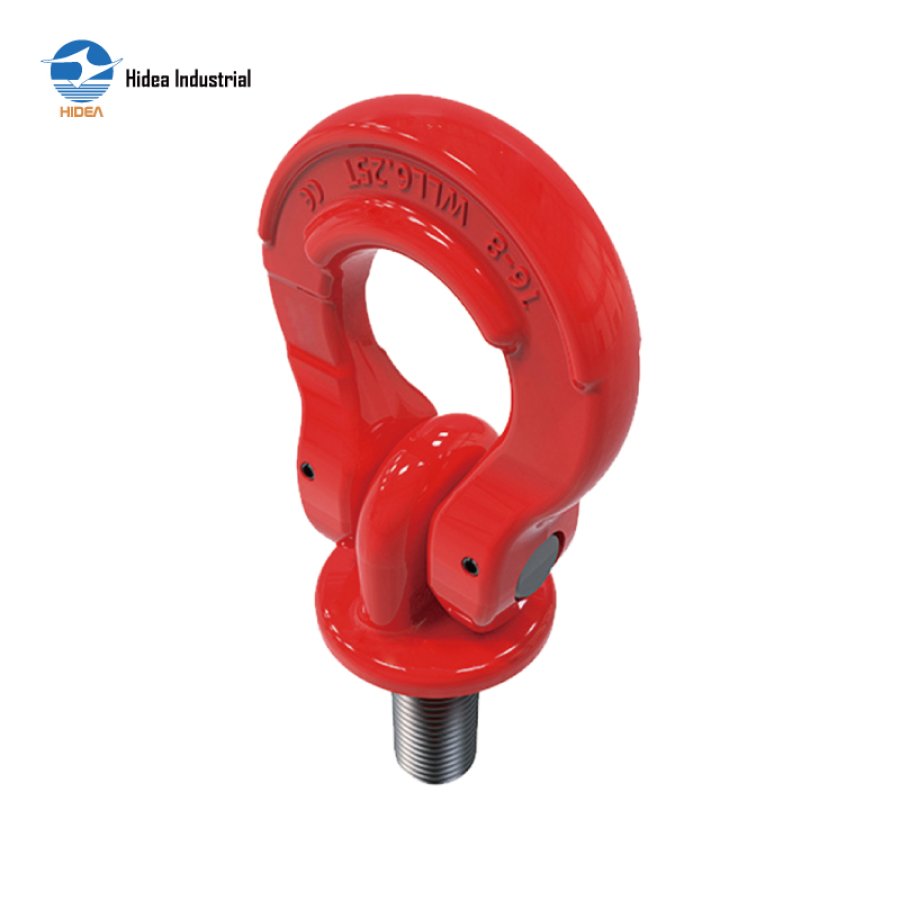

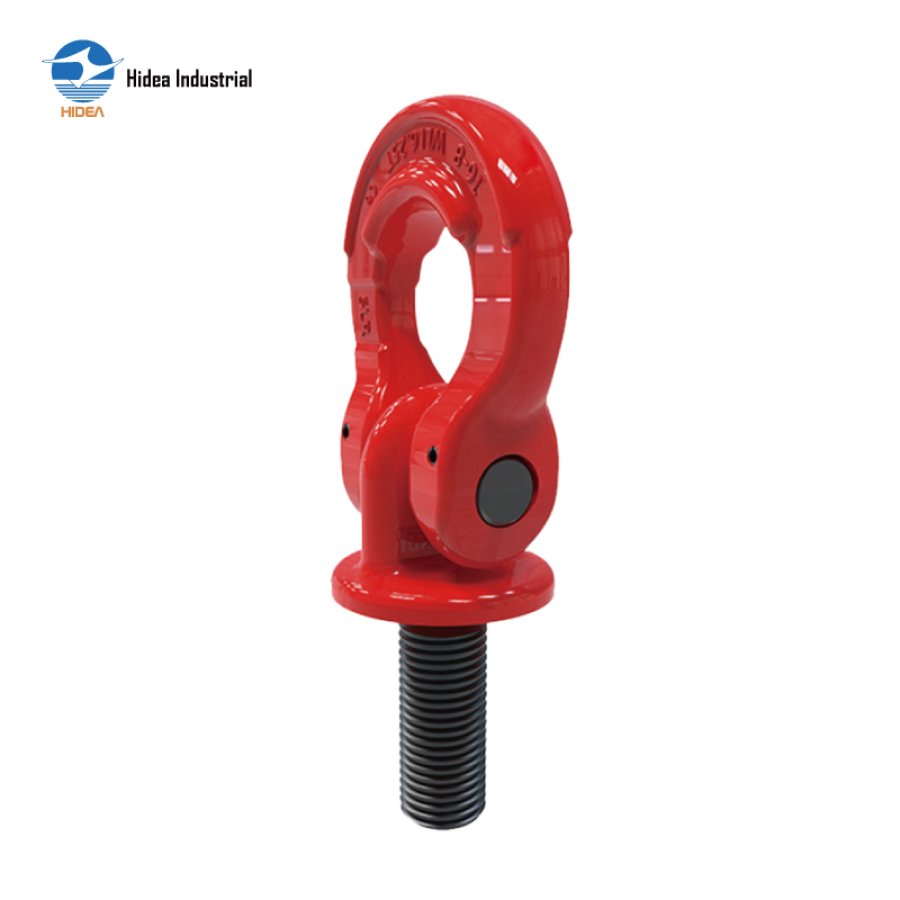

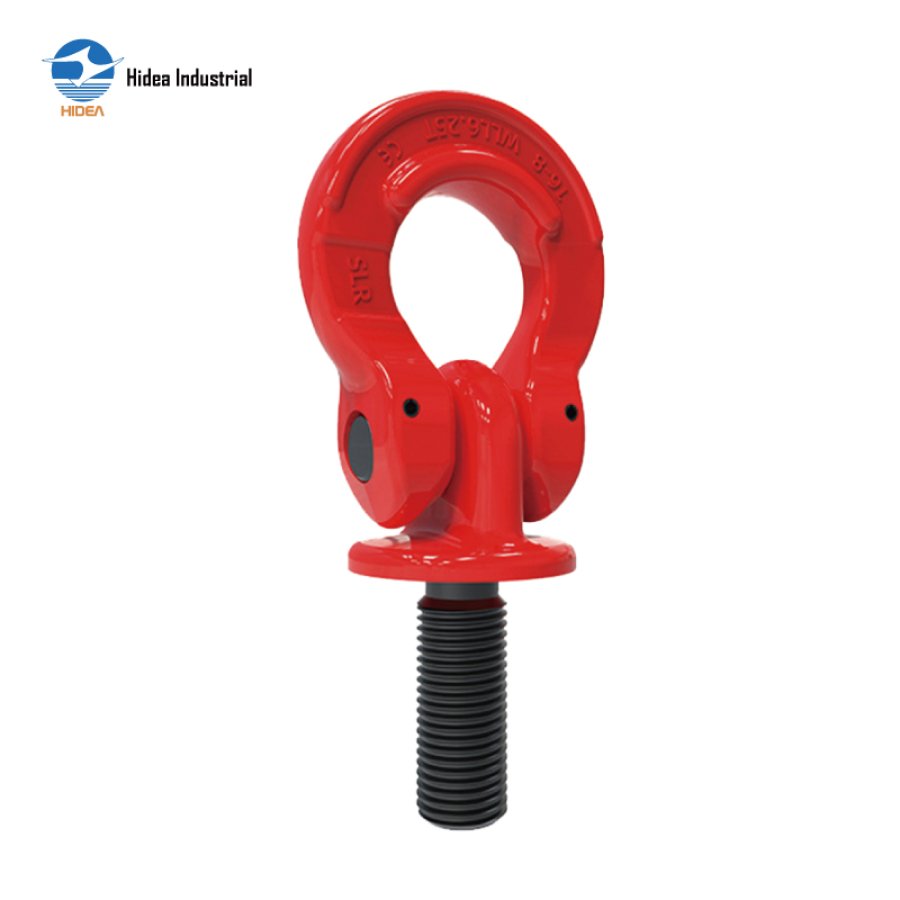

G80 LIFTING EYE SCREW WITH OMEGA LINK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

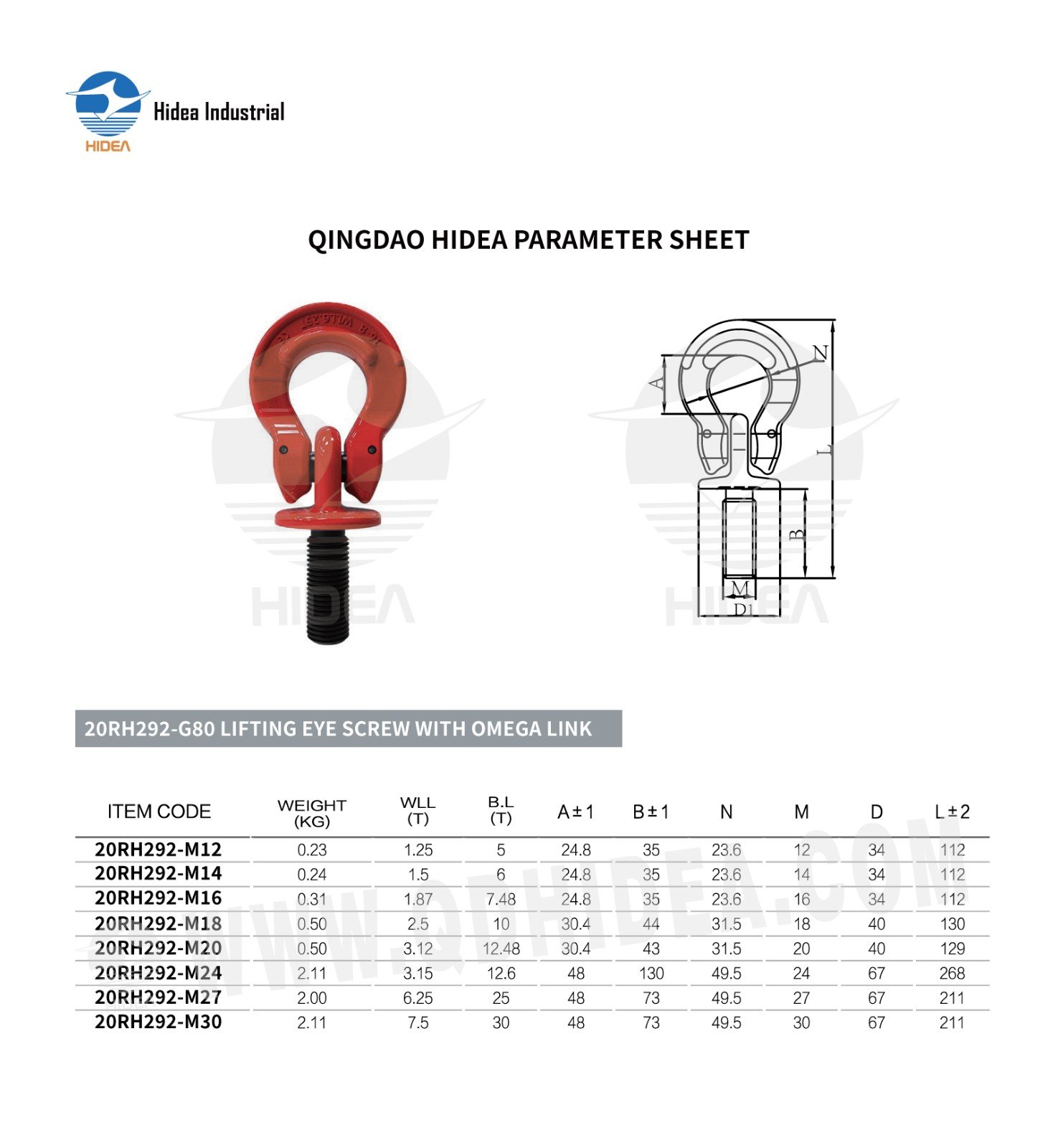

QINGDAO HIDEA PARAMETER SHEET FOR

20RH292-G80 LIFTING EYE SCREW WITH OMEGA LINK

ITEM CODE	WEIGHT (KG)	WLL (T)	B.L (T)	A±1	B±1	N	M	D	L±2
20RH292-M12	0.23	1.25	5	24.8	35	23.6	12	34	112
20RH292-M14	0.24	1.5	6	24.8	35	23.6	14	34	112
20RH292-M16	0.31	1.87	7.48	24.8	35	23.6	16	34	112
20RH292-M18	0.50	2.5	10	30.4	44	31.5	18	40	130
20RH292-M20	0.50	3.12	12.48	30.4	43	31.5	20	40	129
20RH292-M24	2.11	3.15	12.6	48	130	49.5	24	67	268
20RH292-M27	2.00	6.25	25	48	73	49.5	27	67	211
20RH292-M30	2.11	7.5	30	48	73	49.5	30	67	211
