Hidea Wide Mouth Bow Shackle: Perfect for Rigging and Towing

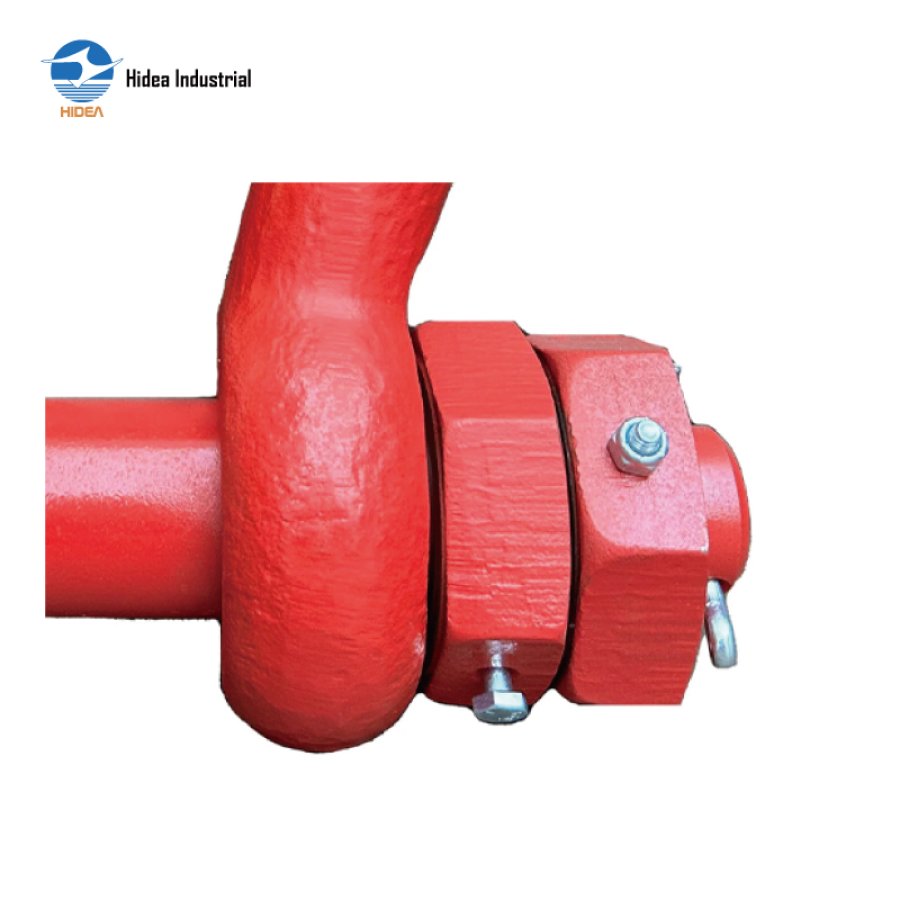

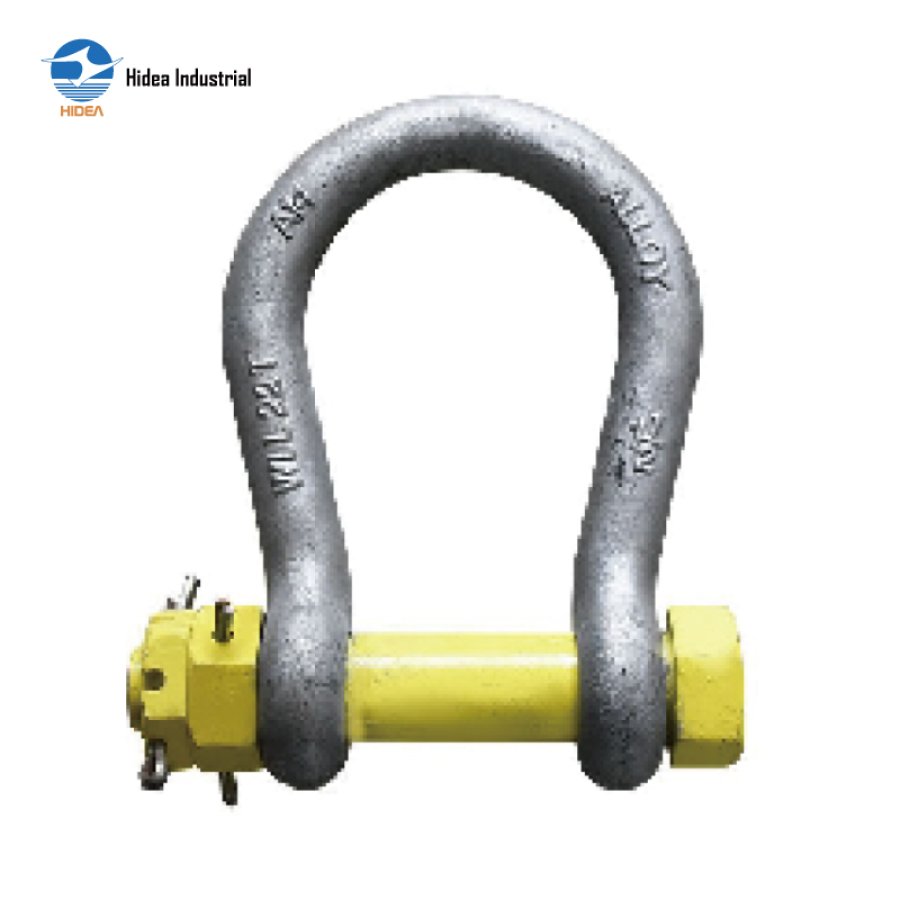

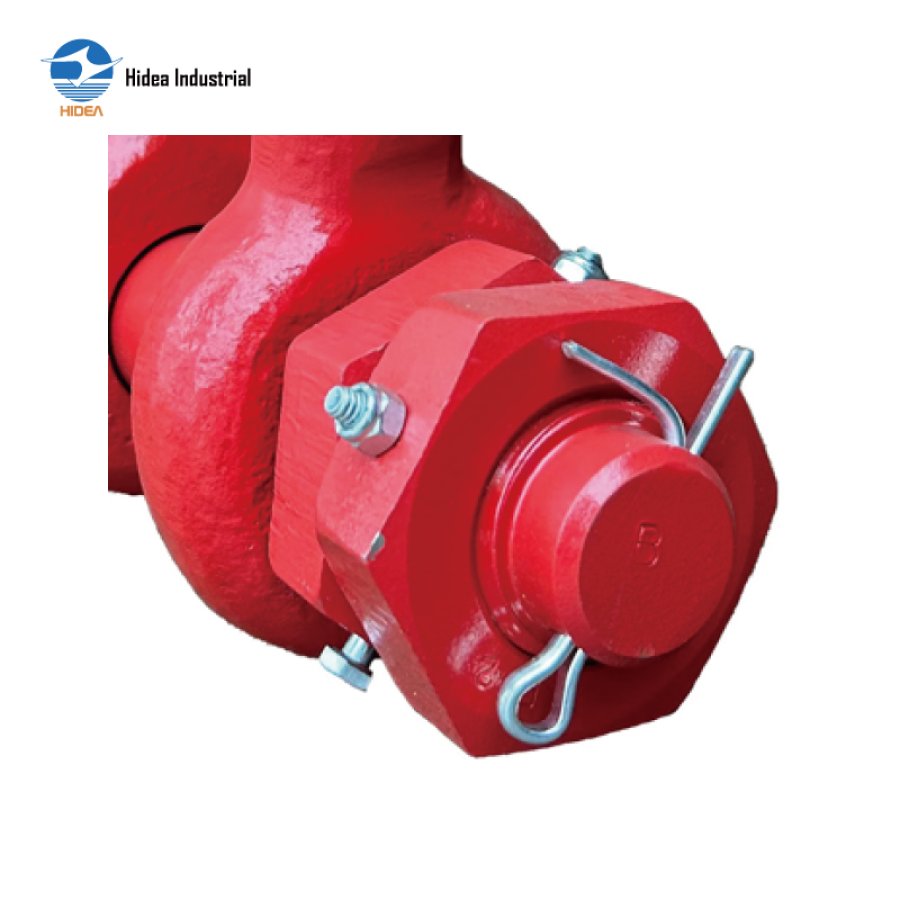

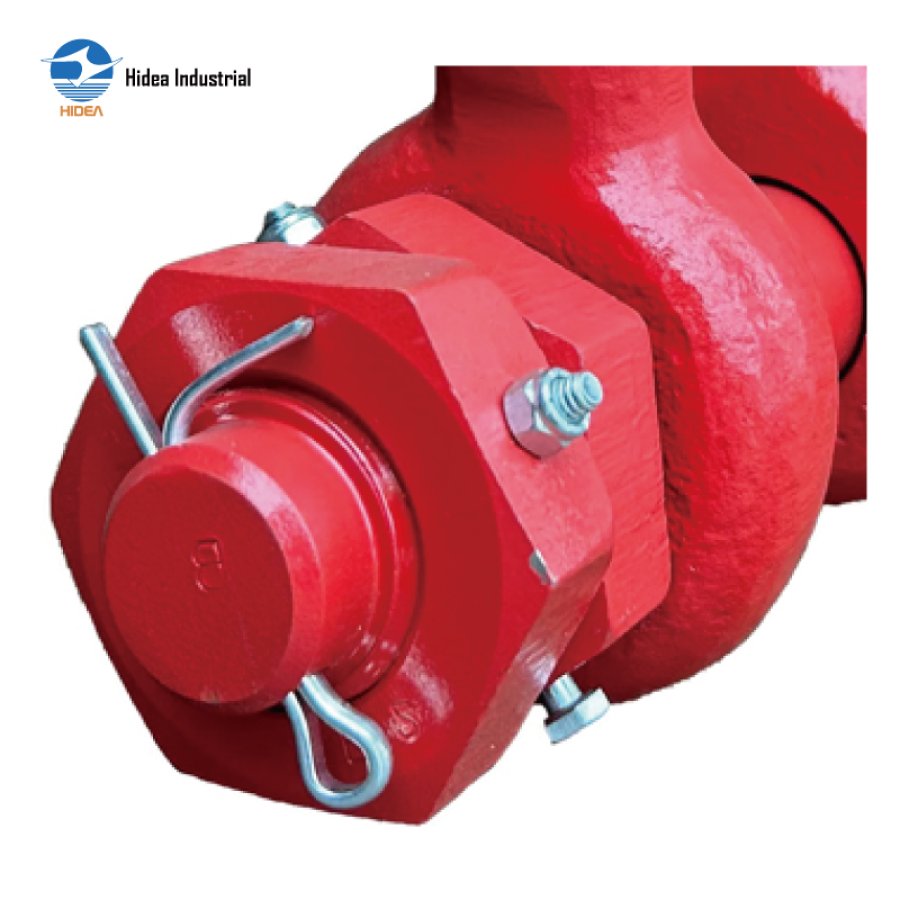

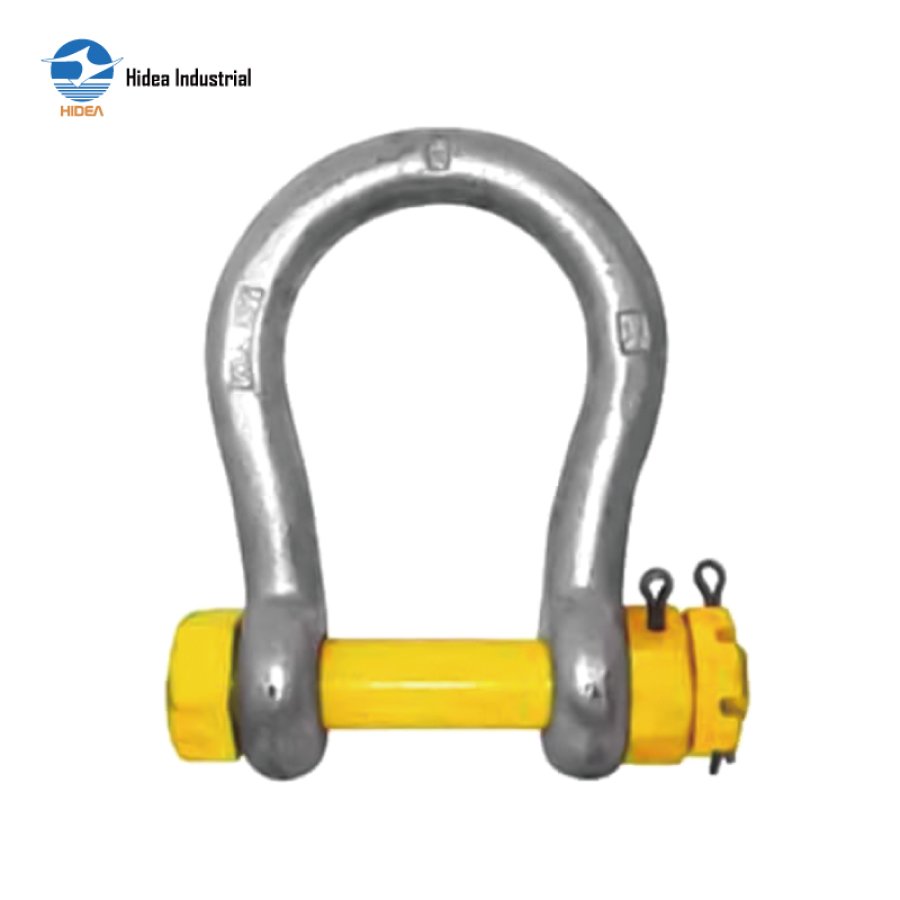

DOUBLE NUTS WIDE MOUTH TOWING SHACKLE

Material: body AND pin carbon steel
Drop forged, quenched &tempered
Safety factor 4:1 & certificates available
Surface hot dip galvanized (H.D.G)

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR115-Double Nuts Wide Mouth Towing Shackles

Size	WLL (T)	Dimensions
Size	WLL (T)	A	B	C	D	E	F
1-1/2"	22	38.1	47.6	216	106.4	95	159
1-3/4"	30	44.5	50.8	247	127	111	175
2"	40	50.8	57	273	146	127	206.5
2-1/2"	55	63.5	70	314	165	152	213
3"	80	76.2	82.6	330	184	171	254
