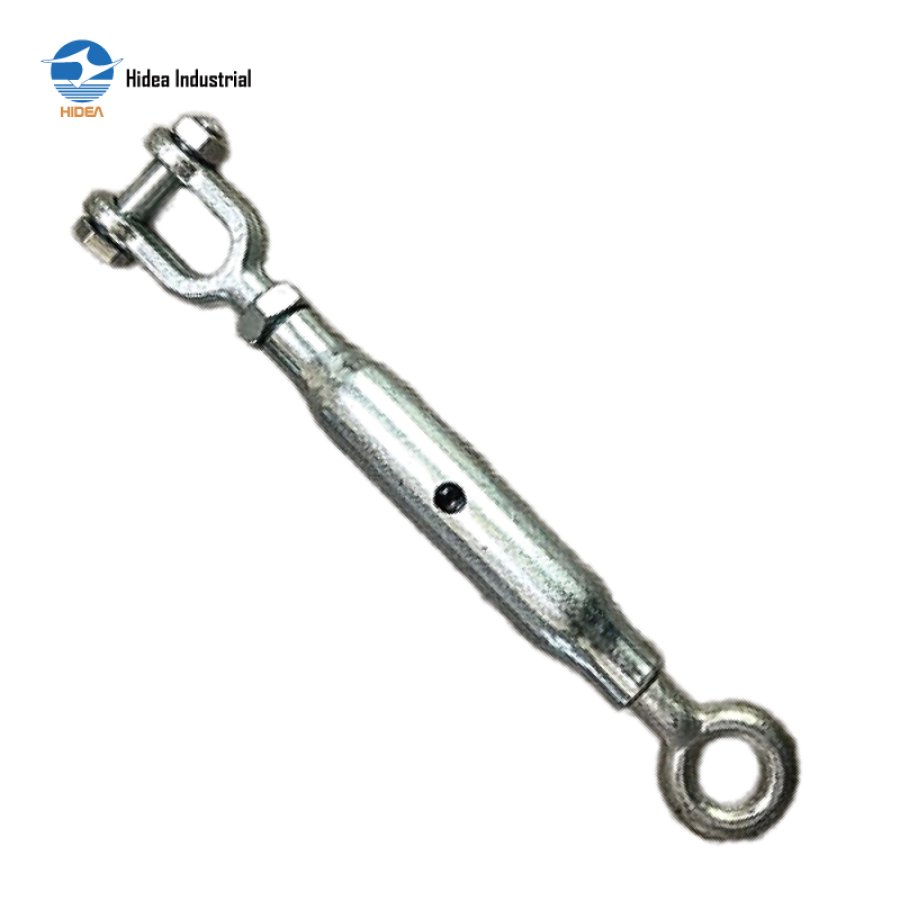

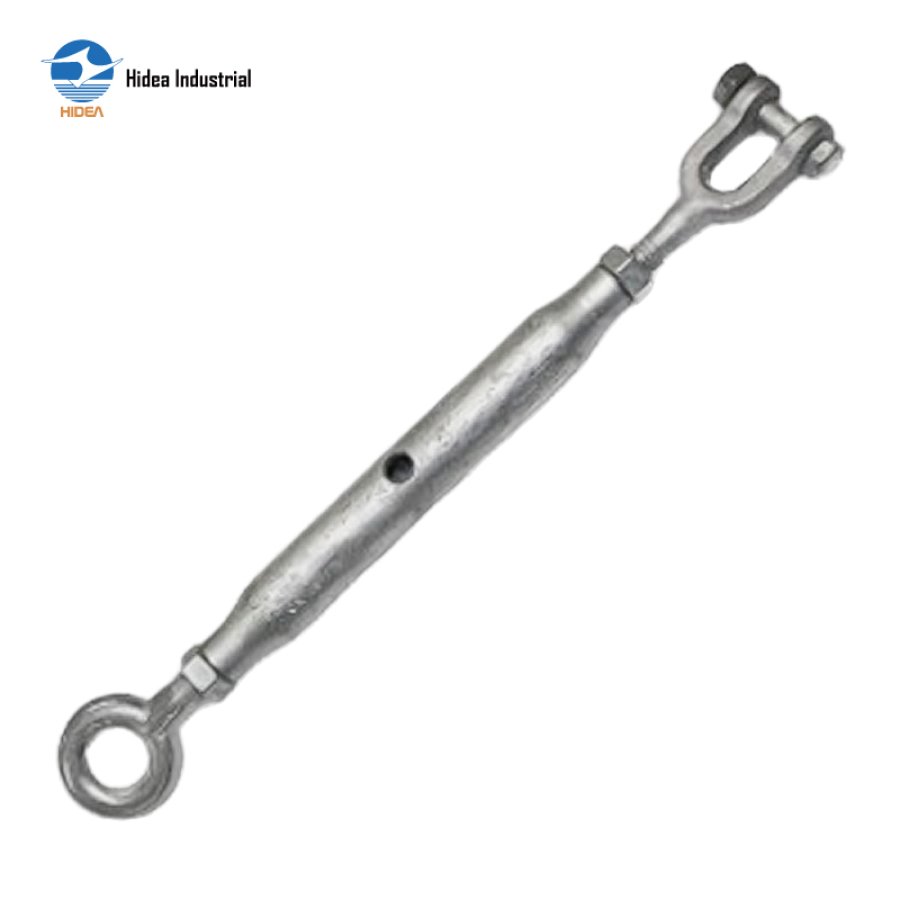

DIN1478 Jaw & Eye Pipe Body Turnbuckle – Ideal for Adjustable Tensioning Solutions

DIN1478 TUBULAR TURNBUCKLE JAW & EYE

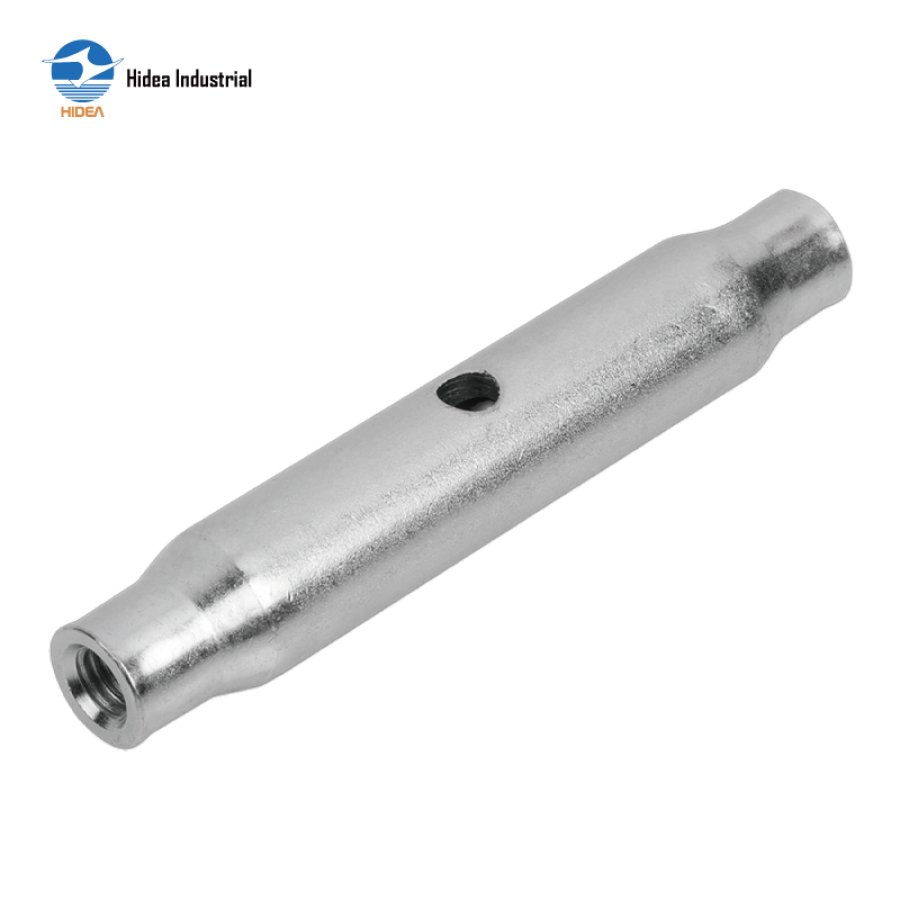

Material: High tensile seamless steel tube body
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1478 tublar rigging screws tublar / pipe turnbuckles jaw & eye type

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR414-DIN1478 TURNBUCKLE JAW&EYE TYPE

Item No.	Size	L(mm)	B(mm)	B1(mm)	C(mm)	D(mm)	E(mm)
20RHCR414-M6	M6	110	74	96	50	10	6
20RHCR414-M8	M8	110	80	109	52	11	8
20RHCR414-M10	M10	125	97	124	60	14	10
20RHCR414-M12	M12	125	106	183	67	17	12
20RHCR414-M16	M16	170	160	194	97	23	16
20RHCR414-M20	M20	200	190	204	116	25	20
20RHCR414-M24	M24	255	210	292	125	34	24
20RHCR414-M30	M30	255	240	300	150	38	30
20RHCR414-M36	M36	295	276	325	160	48	36
