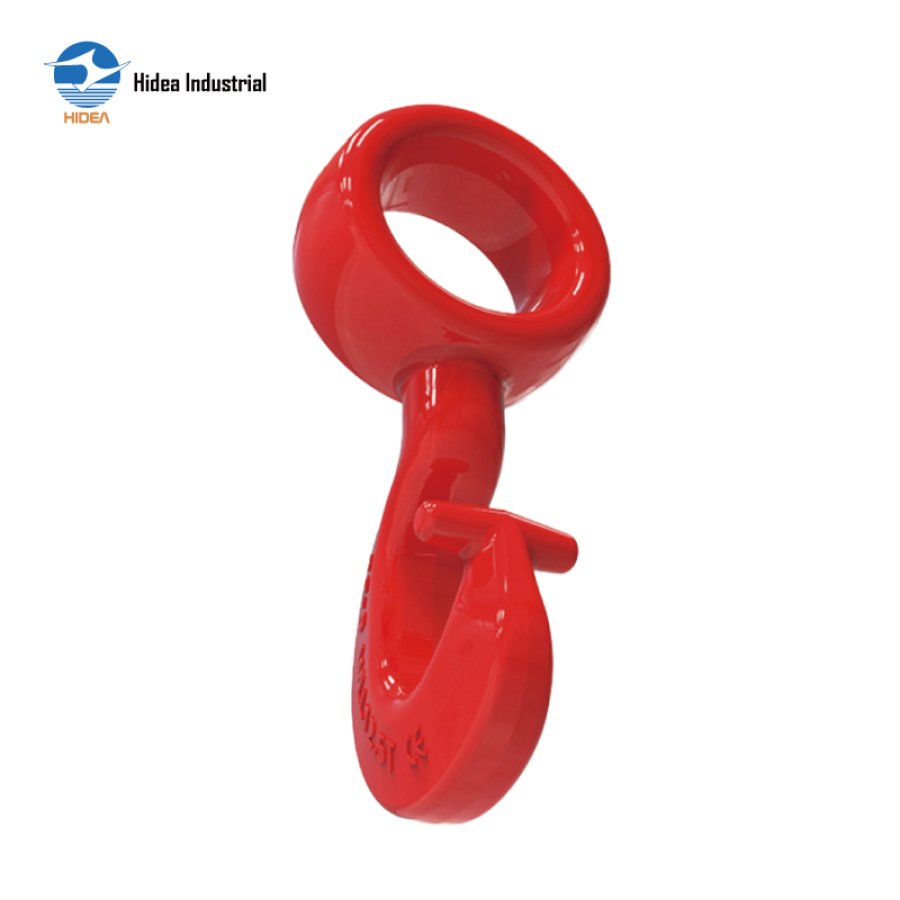

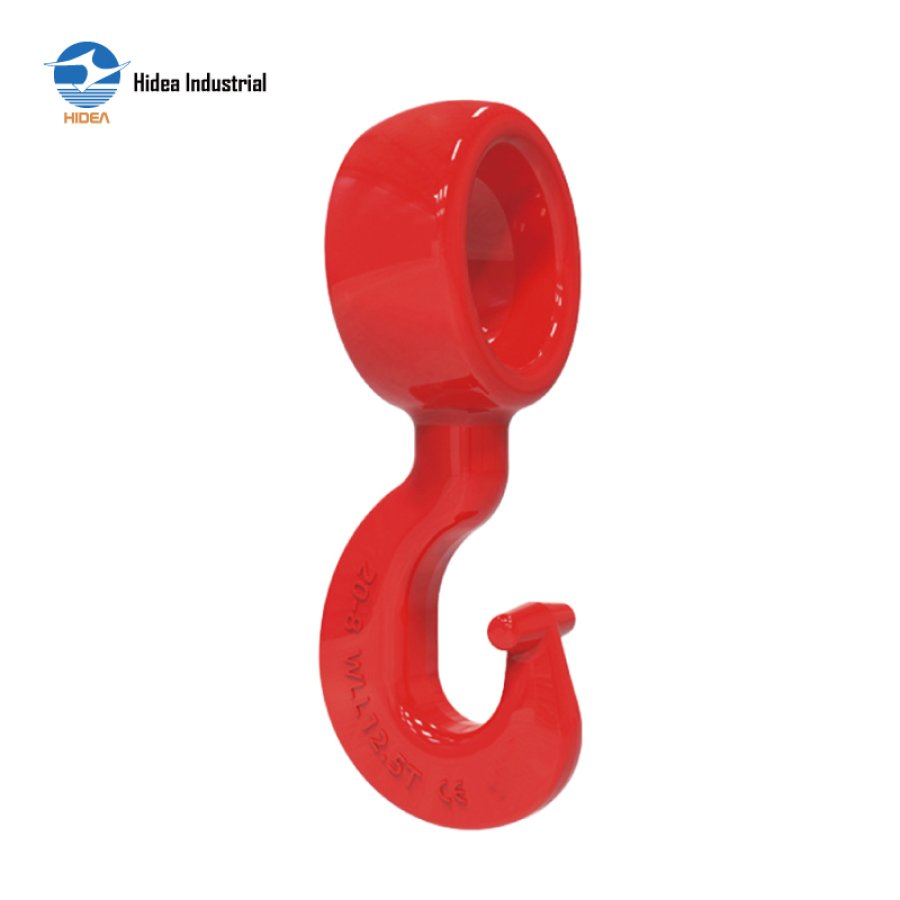

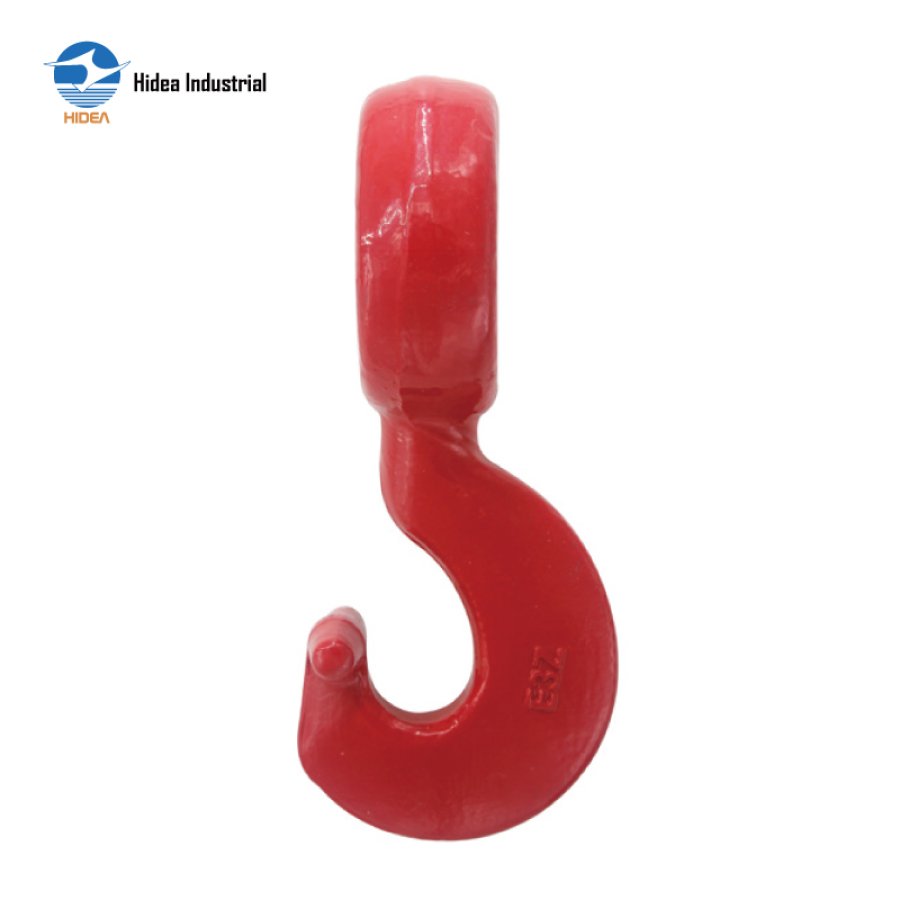

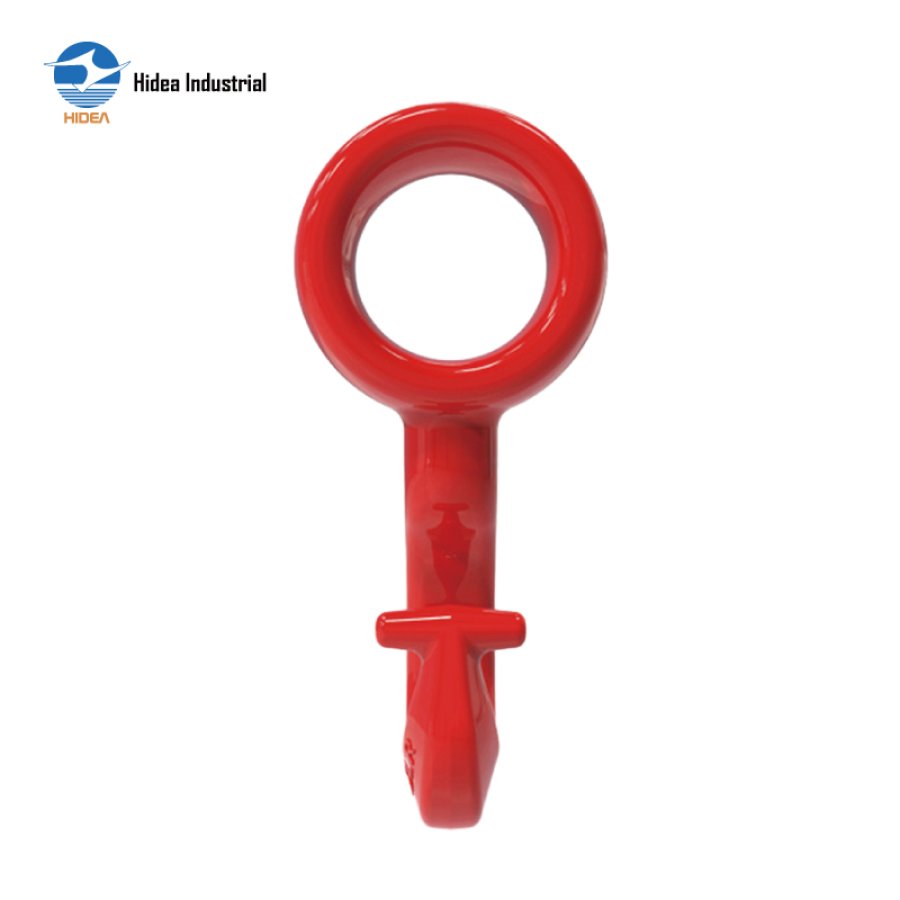

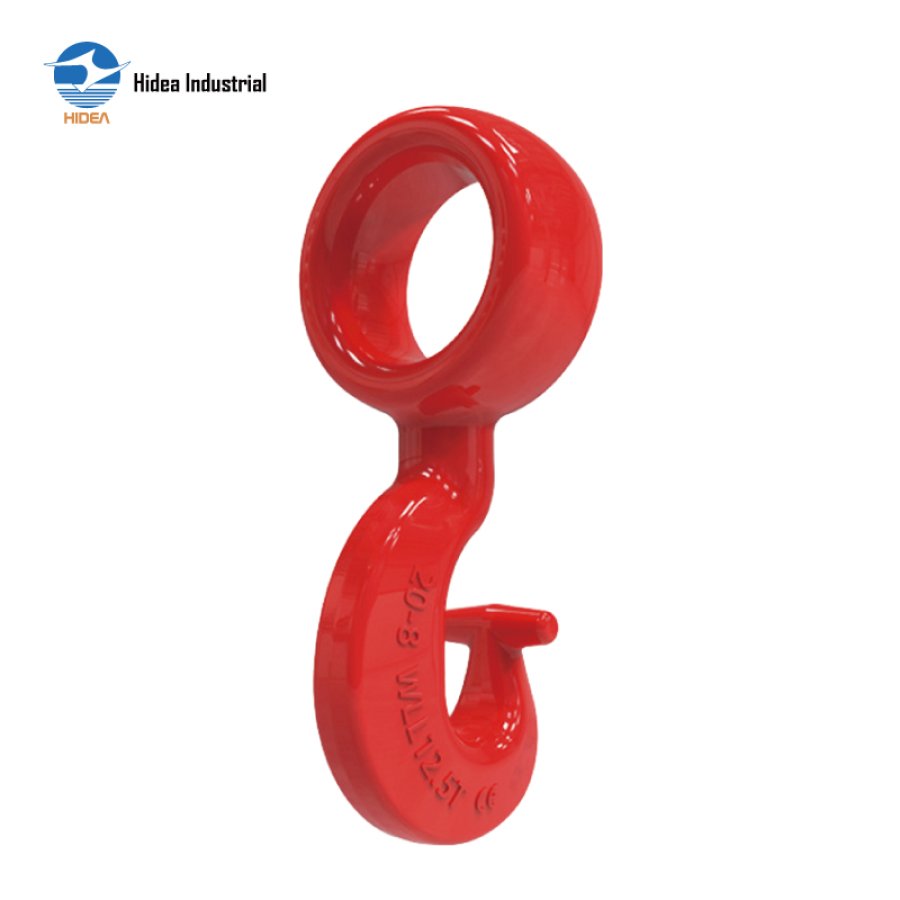

Sturdy and Versatile Hidea G80 Twist Eye Choker Hook

G80 TWIST EYE CHOKE HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

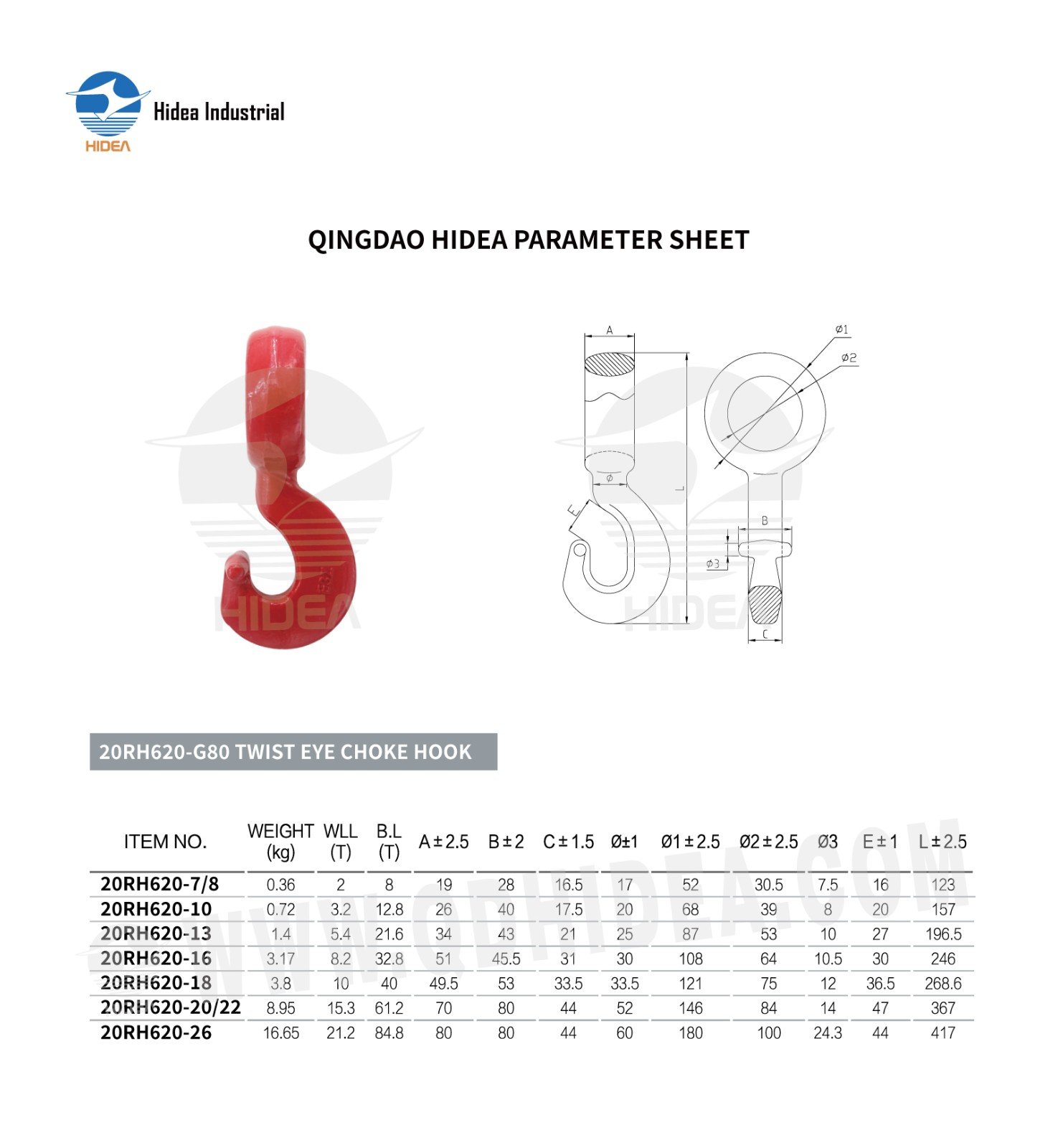

QINGDAO HIDEA PARAMETER SHEET FOR

20RH620-G80 TWIST EYE CHOKE HOOK

ITEM NO.

WEIGHT
(kg)

WLL

(T)

B.L

(T)

A±2.5

B±2

C±1.5

ø±1

ø1±2.5

ø2±2.5

ø3

E±1

L±2.5

20RH620-7/8

0.36

2

8

19

28

16.5

17

52

30.5

7.5

16

123

20RH620-10

0.72

3.2

12.8

26

40

17.5

20

68

39

8

20

157

20RH620-13

1.4

5.4

21.6

34

43

21

25

87

53

10

27

196.5

20RH620-16

3.17

8.2

32.8

51

45.5

31

30

108

64

10.5

30

246

20RH620-18

3.8

10

40

49.5

53

33.5

33.5

121

75

12

36.5

268.6

20RH620-20/22

8.95

15.3

61.2

70

80

44

52

146

84

14

47

367

20RH620-26

16.65

21.2

84.8

80

80

44

60

180

100

24.3

44

417
