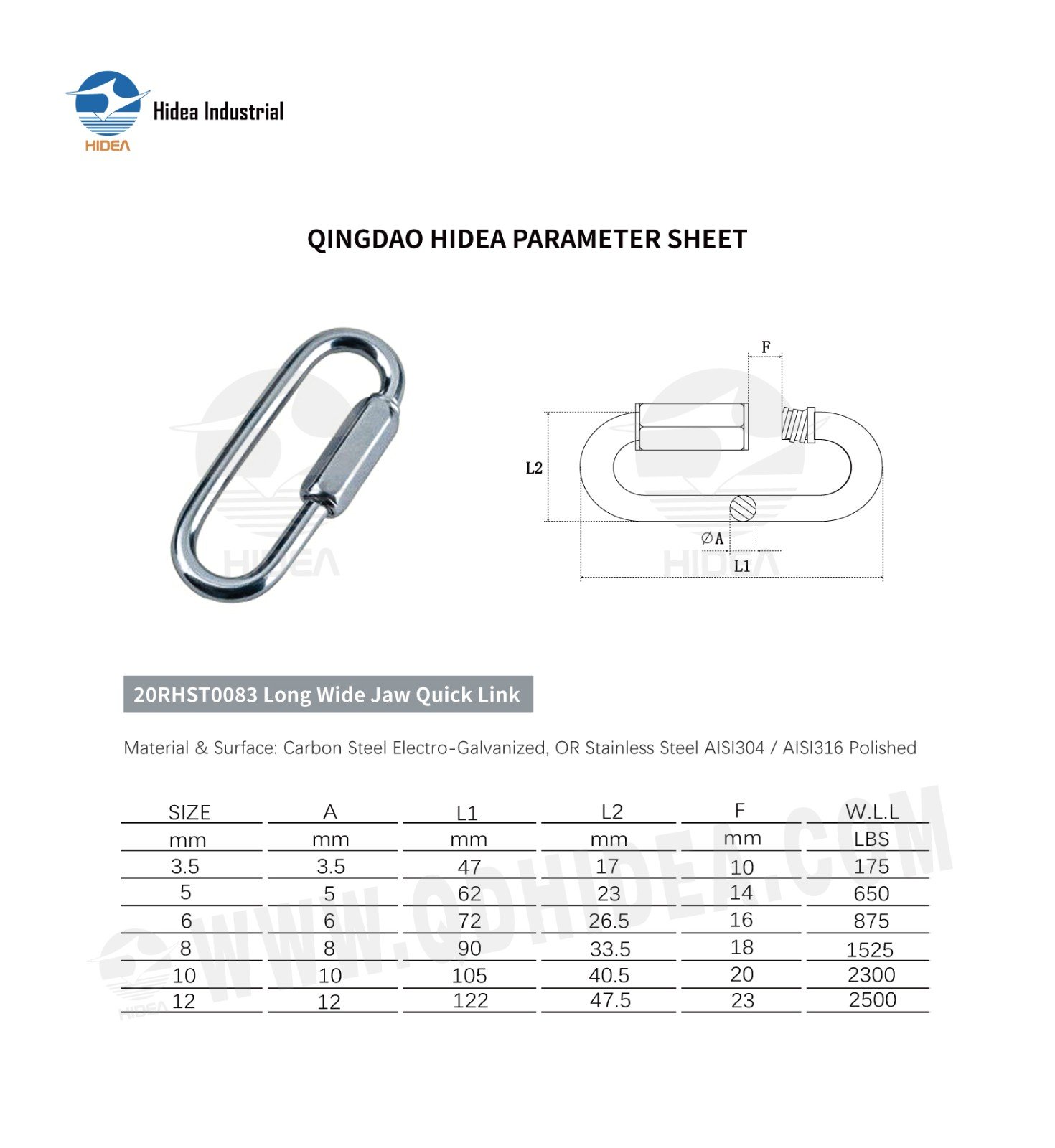

QINGDAO HIDEA PARAMETER SHEET FOR

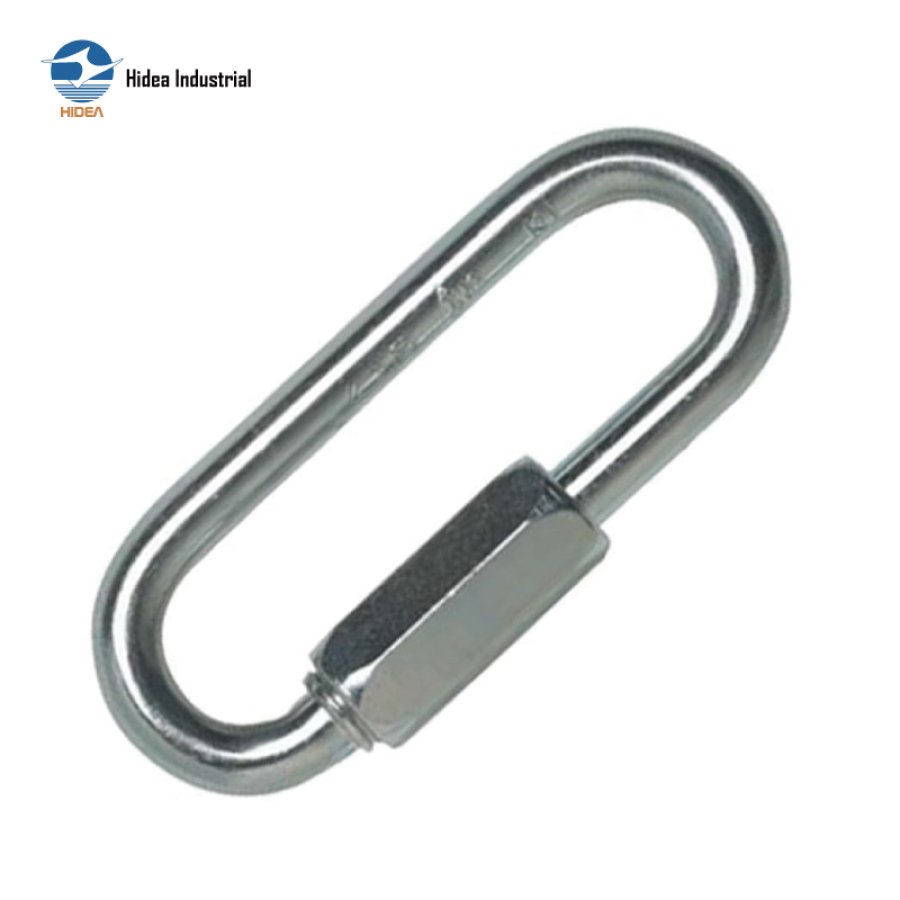

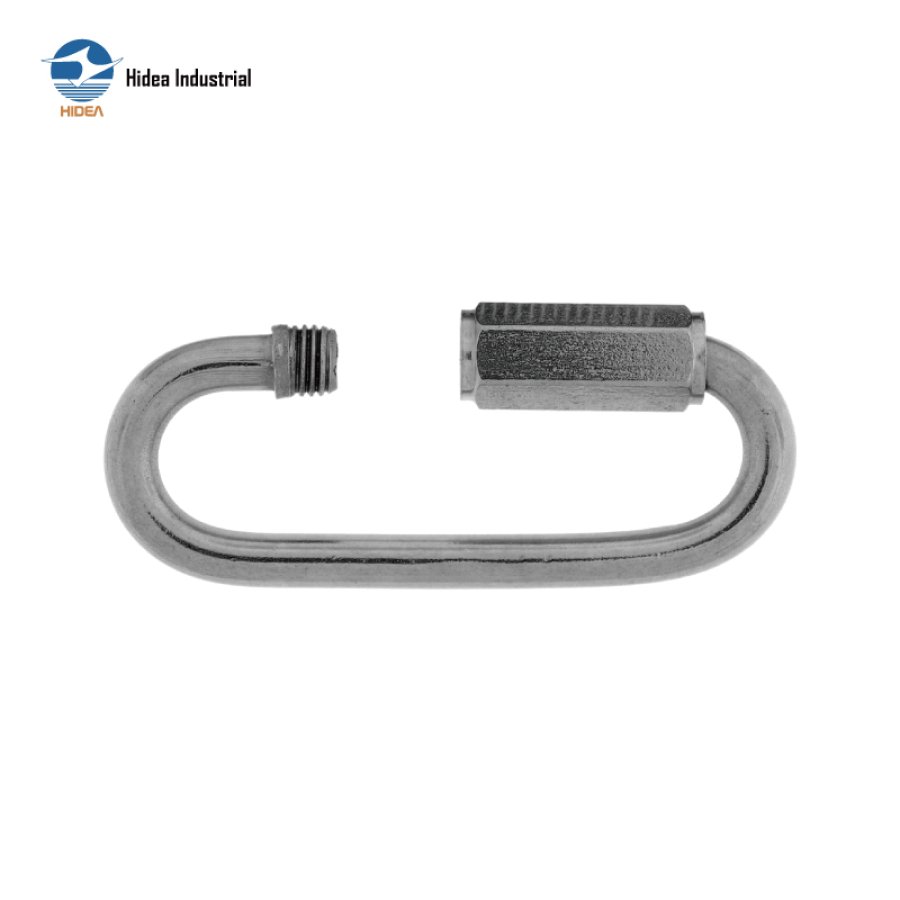

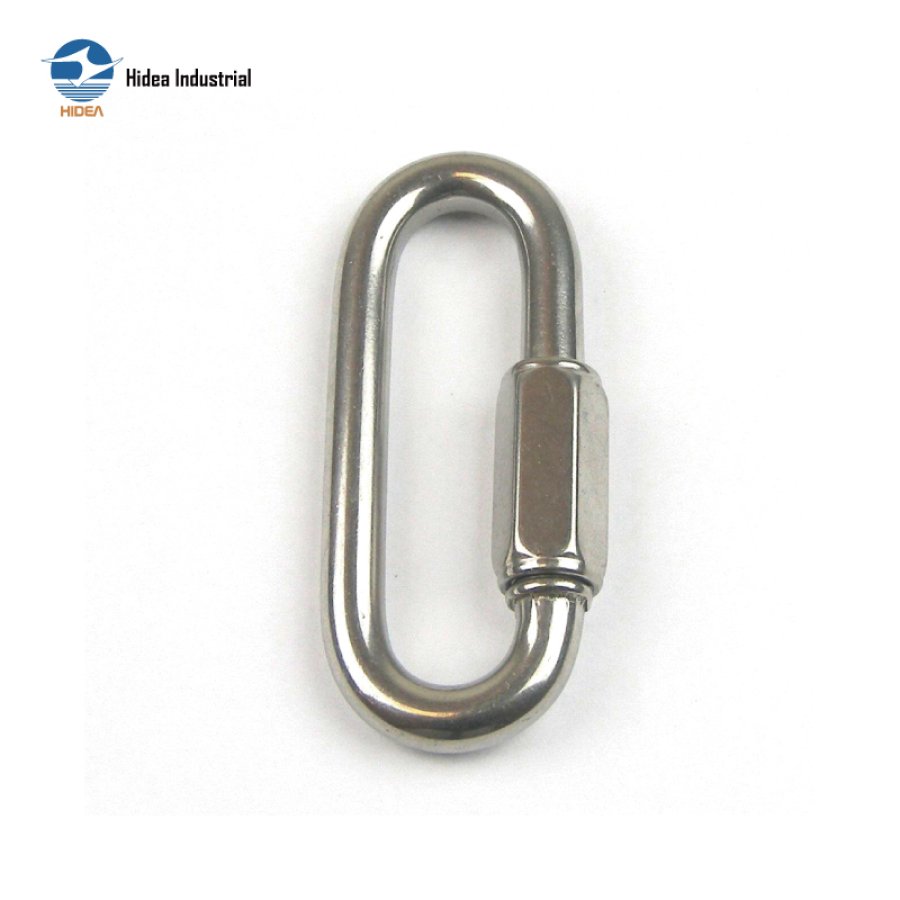

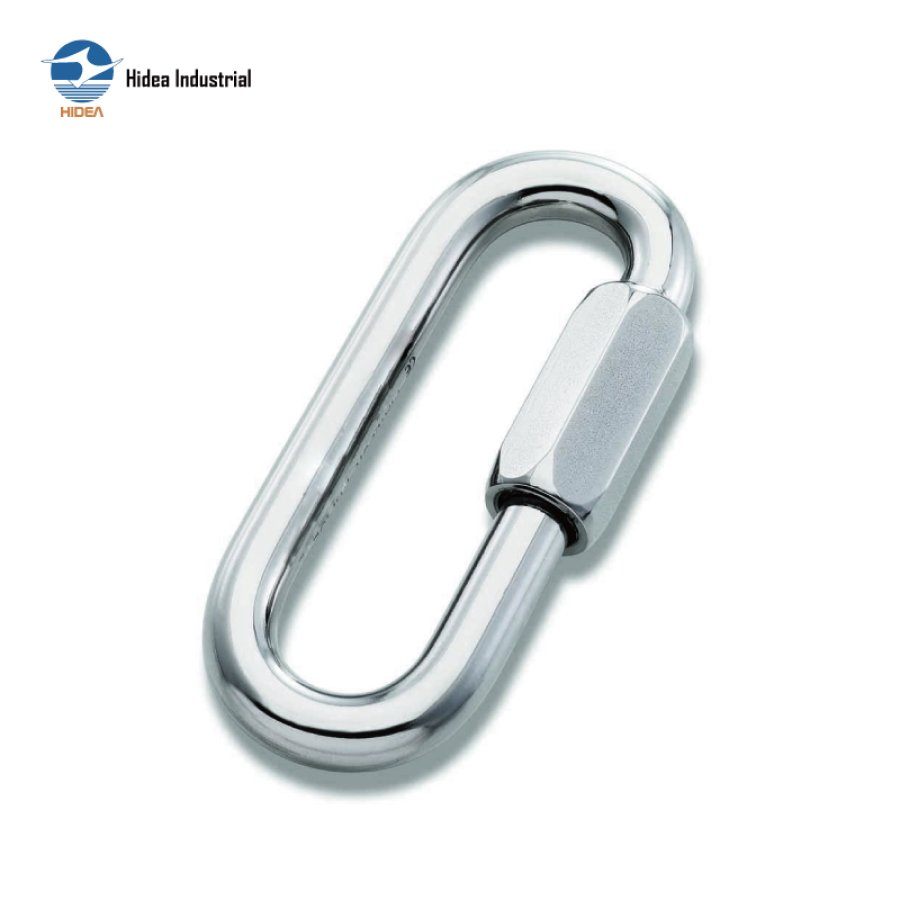

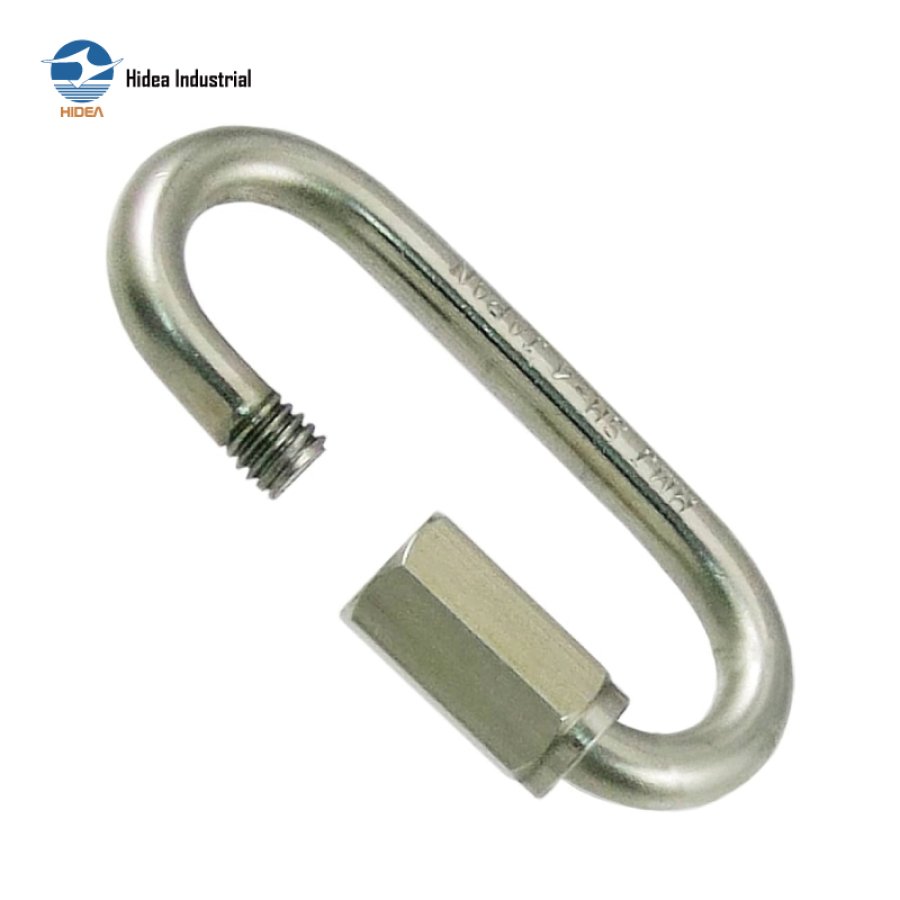

20RHST0083 Long Wide Jaw Quick Link
| SIZE | A | L1 | L2 | F | W.L.L | |
| mm | mm | mm | mm | mm | LBS | |
| 3.5 | 3.5 | 47 | 17 | 10 | 175 | |
| 5 | 5 | 62 | 23 | 14 | 650 | |
| 6 | 6 | 72 | 26.5 | 16 | 875 | |
| 8 | 8 | 90 | 33.5 | 18 | 1525 | |
| 10 | 10 | 105 | 40.5 | 20 | 2300 | |
| 12 | 12 | 122 | 47.5 | 23 | 2500 | |
Inquire Now
-
