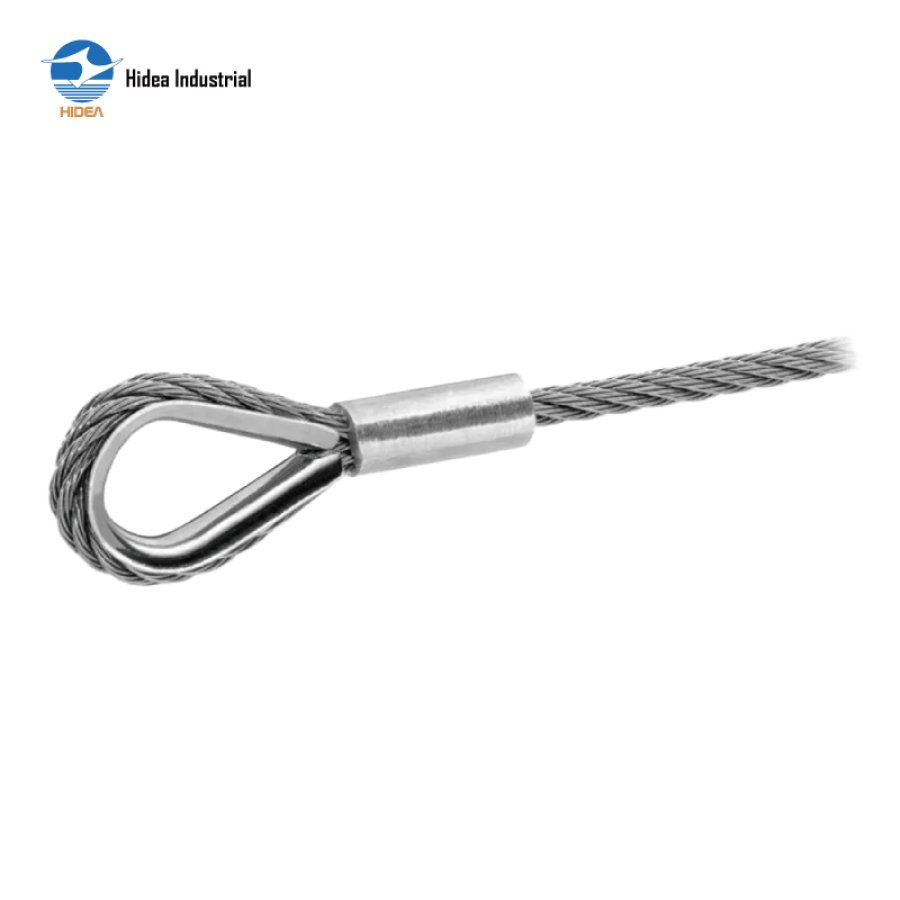

Hidea US Style Heavy Duty Wire Rope Thimbles – Ideal for Secure and Long-Lasting Cable Protection

G414 US TYPE HEAVY DUTY WIRE ROPE THIMBLE

Material Mild Steel Plate
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv., Electro Galv. / Zinc plated OR as requested
Meets the performance requirements of Federal Specification FF-T-276b Type II

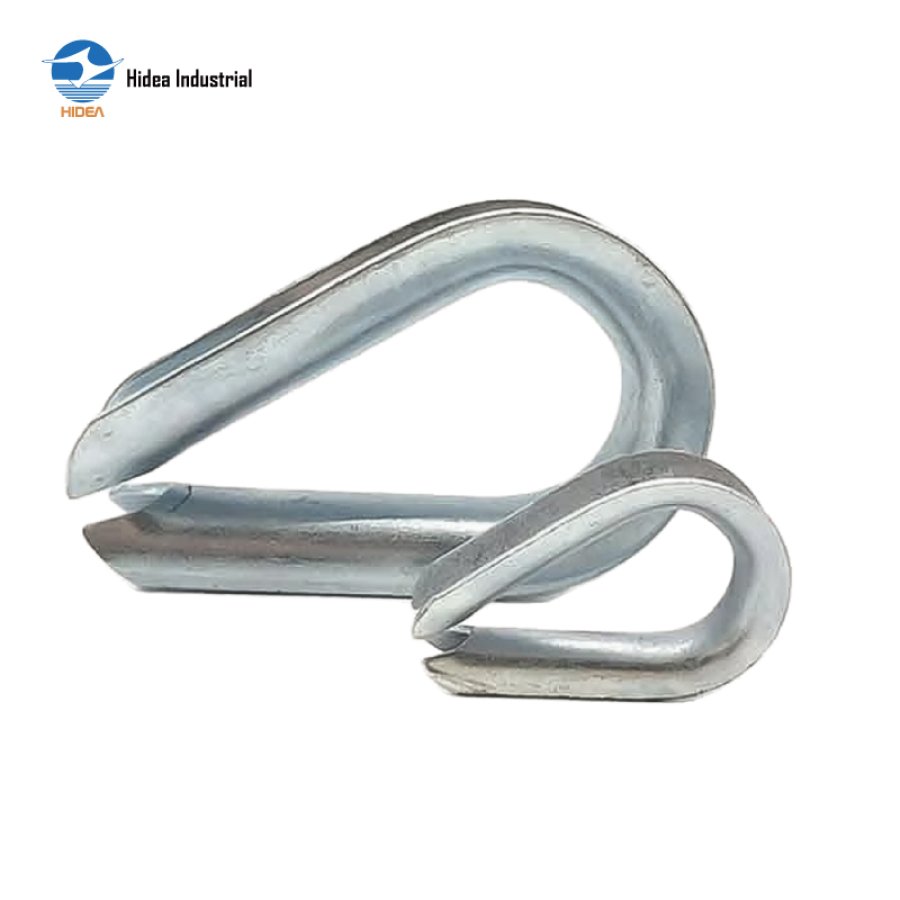

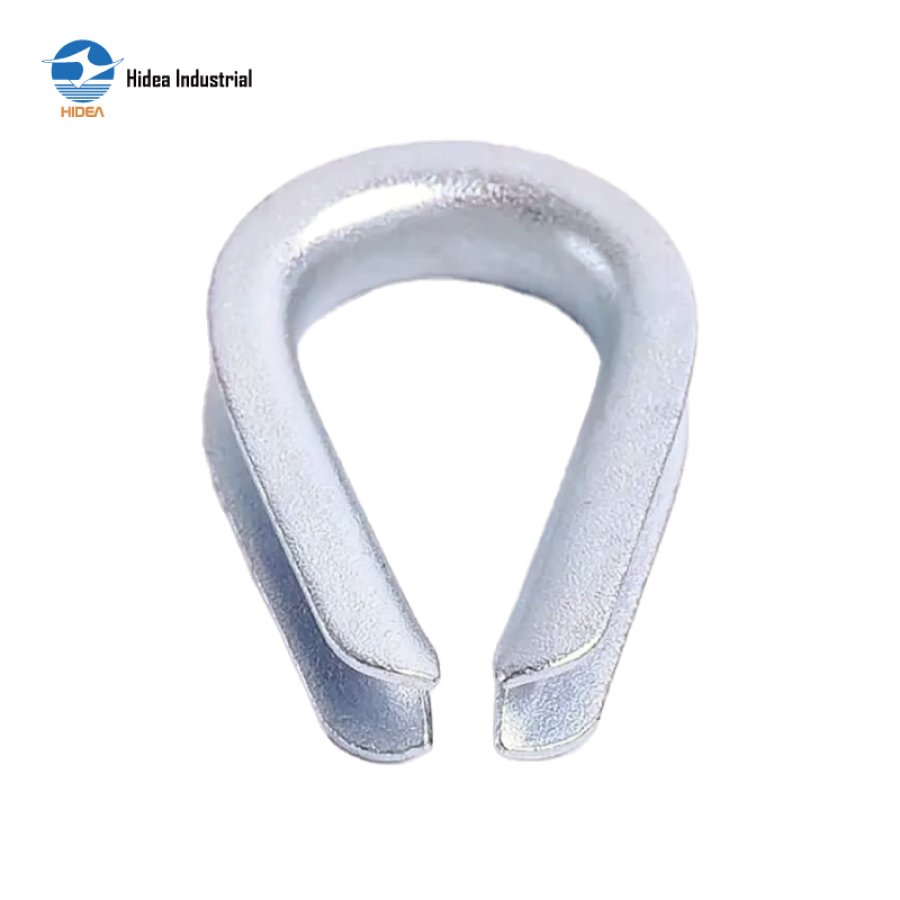

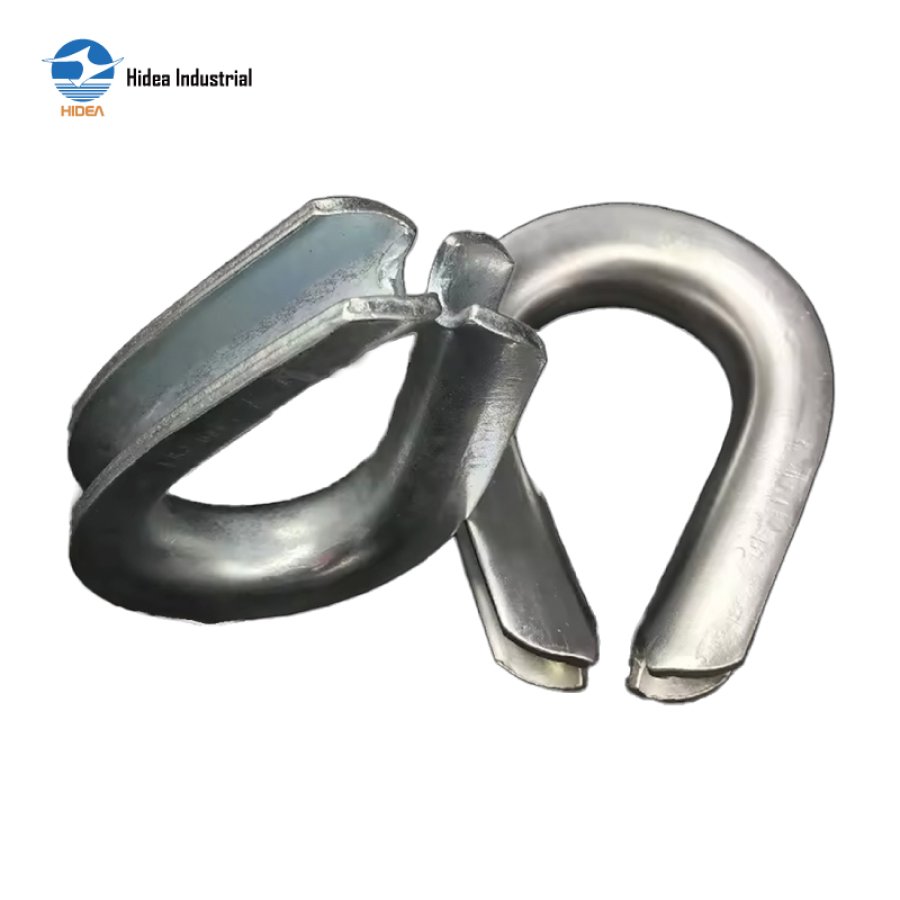

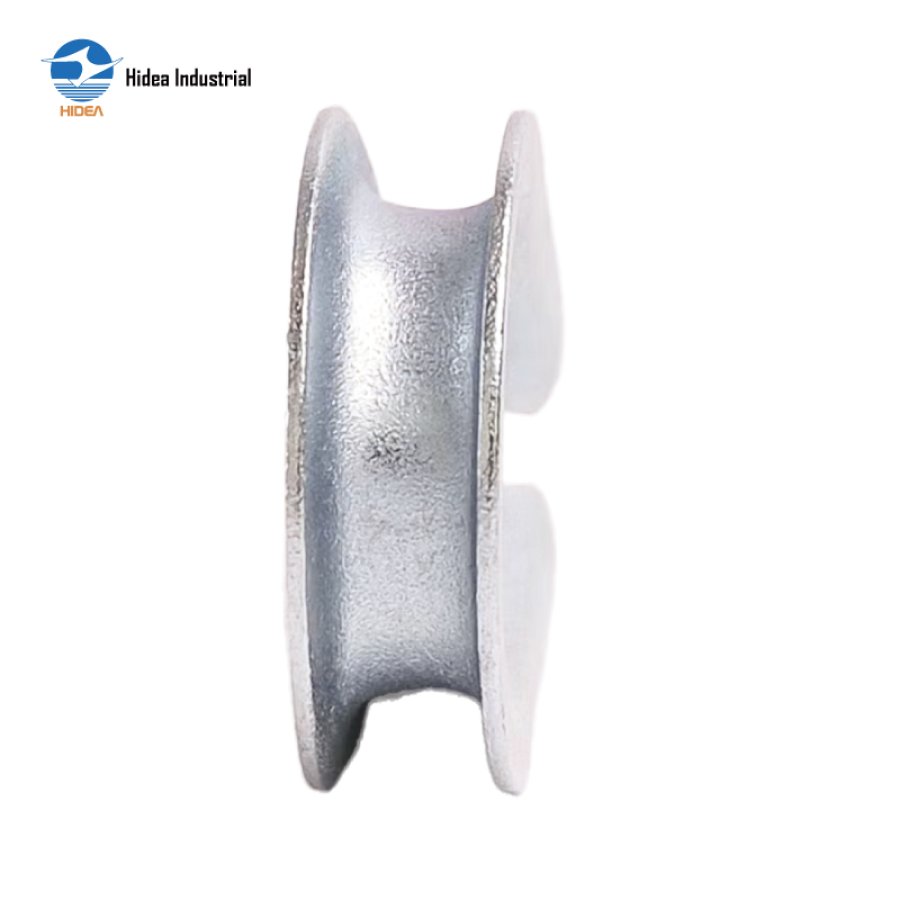

Heavy duty G414 wire rope thimbles US type

Inquire Now

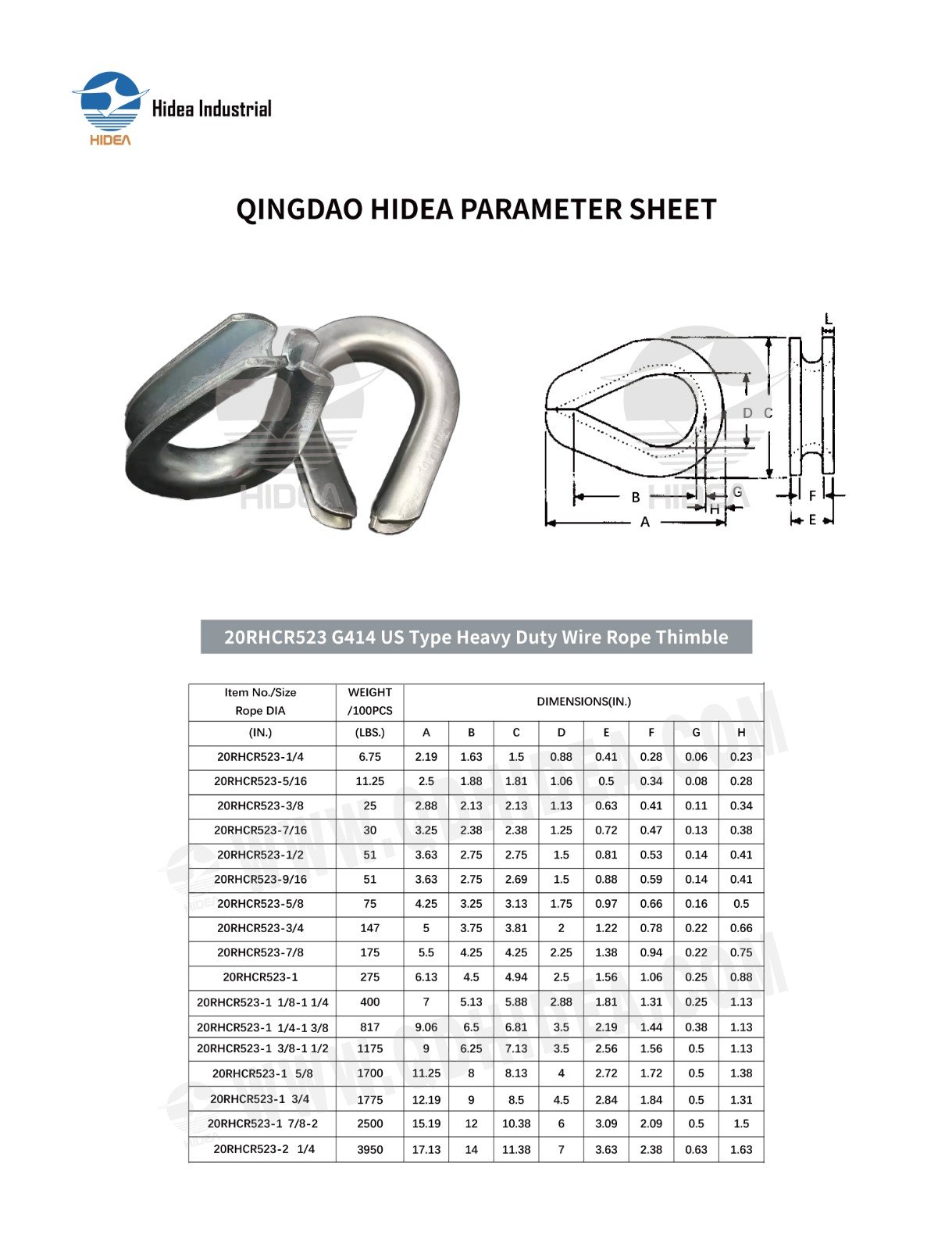

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR523 G414 US Type Heavy Duty Wire Rope Thimble

ltem No./Size Rope DIA	WEIGHT /100PCS	DIMENSIONS(IN.)
(IN.)	(LBS.)	A	B	C	D	E	F	G	H
20RHCR523-1/4	6.75	2.19	1.63	1.5	0.88	0.41	0.28	0.06	0.23
20RHCR523-5/16	11.25	2.5	1.88	1.81	1.06	0.5	0.34	0.08	0.28
20RHCR523-3/8	25	2.88	2.13	2.13	1.13	0.63	0.41	0.11	0.34
20RHCR523-7/16	30	3.25	2.38	2.38	1.25	0.72	0.47	0.13	0.38
20RHCR523-1/2	51	3.63	2.75	2.75	1.5	0.81	0.53	0.14	0.41
20RHCR523-9/16	51	3.63	2.75	2.69	1.5	0.88	0.59	0.14	0.41
20RHCR523-5/8	75	4.25	3.25	3.13	1.75	0.97	0.66	0.16	0.5
20RHCR523-3/4	147	5	3.75	3.81	2	1.22	0.78	0.22	0.66
20RHCR523-7/8	175	5.5	4.25	4.25	2.25	1.38	0.94	0.22	0.75
20RHCR523-1	275	6.13	4.5	4.94	2.5	156	1.06	0.25	0.88
20RHCR523-11/8-11/4	400	7	5.13	5.88	2.88	1.81	1.31	0.25	1.13
20RHCR523-11/4-13/8	817	9.06	6.5	6.81	3.5	2.19	1.44	0.38	1.13
20RHCR523-13/8-11/2	1175	9	6.25	7.13	3.5	2.56	1.56	0.5	1.13
20RHCR523-15/8	1700	11.25	8	8.13	4	2.72	1.72	0.5	1.38
20RHCR523-13/4	1775	12.19	9	8.5	4.5	2.84	1.84	0.5	1.31
20RHCR523-17/8-2	2500	15.19	12	10.38	6	3.09	2.09	0.5	1.5
20RHCR523-21/4	3950	17.13	14	11.38	7	3.63	2.38	0.63	1.63
