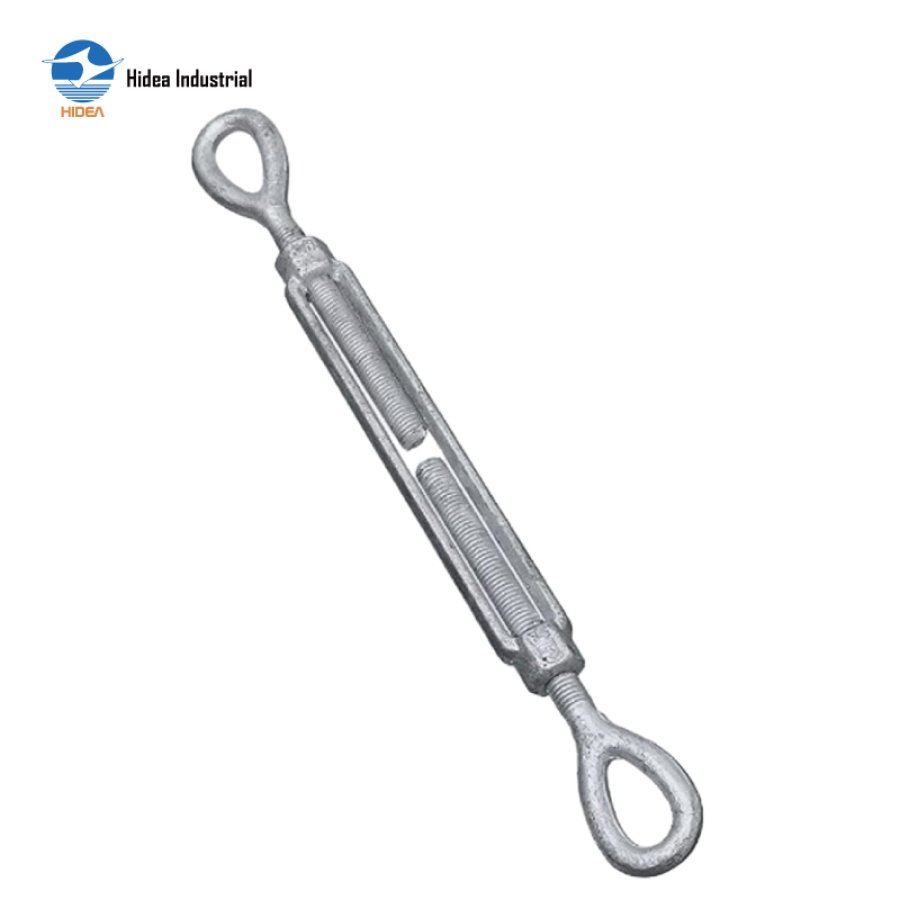

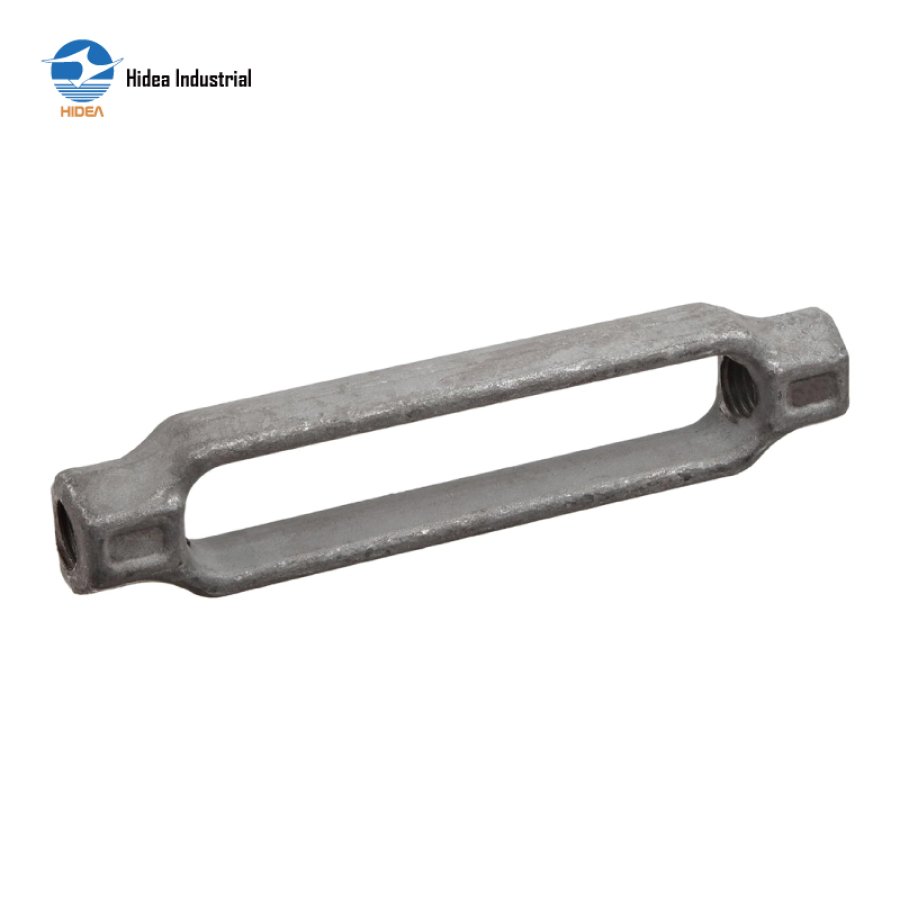

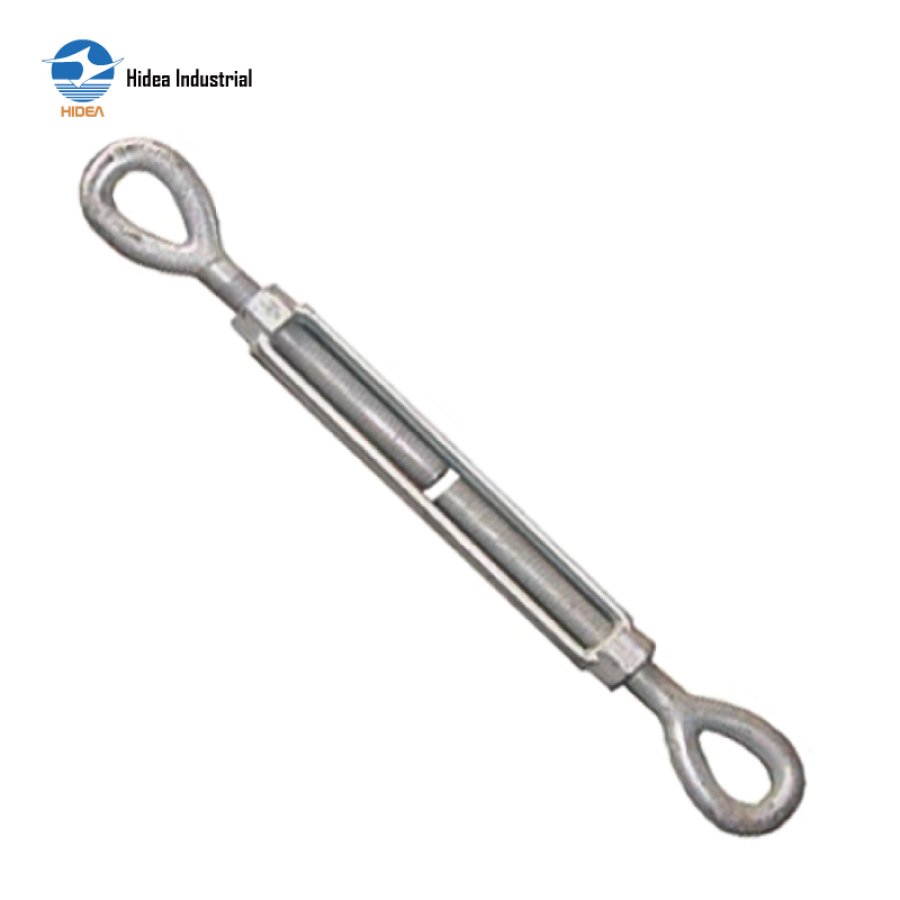

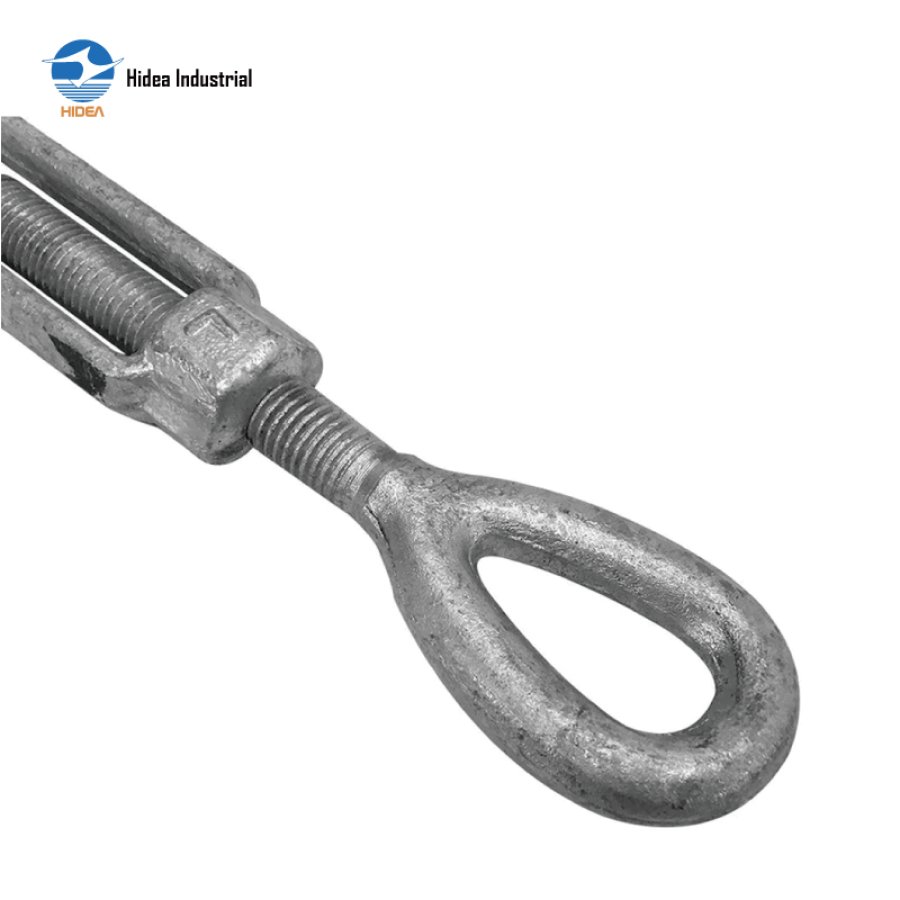

HIDEA US Type Double Eye Turnbuckle

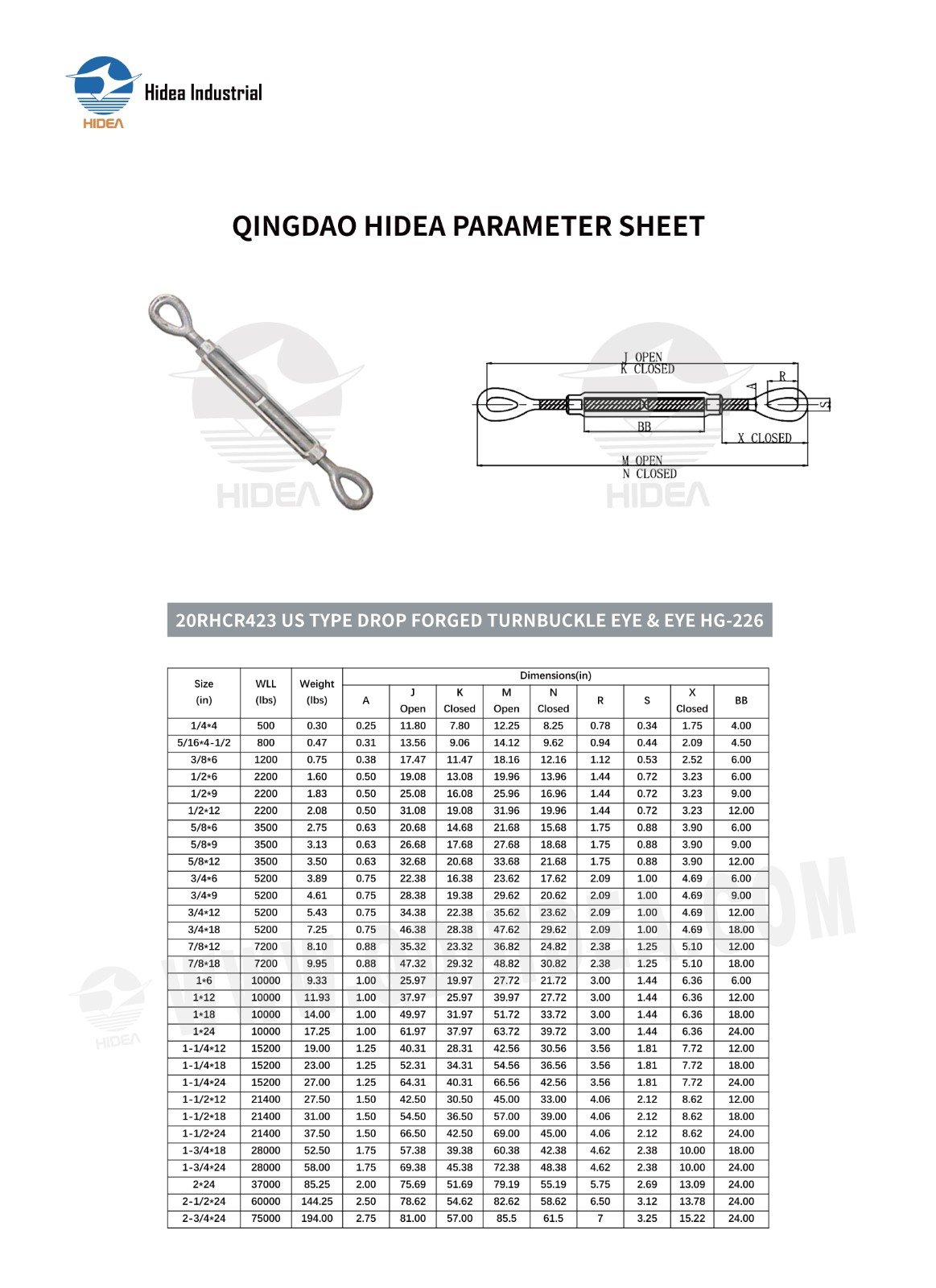

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR423 US TYPE DROP FORGED TURNBUCKLE EYE&EYE HG-226

Size
(in)
WLL
(Ibs)
Weight
(lbs)
                                              Dimensions(in)
   AJ
Open
K
Closed
M
Open
N
Closed
RSX
Closed
BB
1/4*4500 0.30  0.25 11.80 7.80 12.25 8.25 0.78 0.34 1.75 4.00
5/16*4-1/2800 0.47  0.31 13.56 9.06 14.12 9.62 0.94 0.44 2.09 4.50
3/8*61200 0.75  0.38 17.47 11.47 18.16 12.16 1.12 0.53 2.52 6.00
1/2*62200 1.60  0.50 19.08 13.08 19.96 13.96 1.44 0.72 3.23 6.00
1/2*92200 1.83  0.50 25.08 16.08 25.96 16.96 1.44 0.72 3.23 9.00
1/2*122200 2.08  0.50 31.08 19.08 31.96 19.96 1.44 0.72 3.23 12.00
5/8*63500 2.75  0.63 20.68 14.68 21.68 15.68 1.75 0.88 3.90 6.00
5/8*93500 3.13  0.63 26.68 17.68 27.68 18.68 1.75 0.88 3.90 9.00
5/8*123500 3.50  063 32.68 20.68 33.68 21.68 1.75 0.88 3.90 12.00
3/4*65200 3.89  0.75 22.38 16.38 23.62 17.62 2.09 1.00 4.69 6.00
3/4*95200 4.61  0.75 28.38 19.38 29.62 20.62 2.09 100 4.69 9.00
3/4*125200 5.43  0.75 34.38 22.38 35.62 23.62 2.09 1.00 4.69 12.00
3/4*185200 725  0.75 46.38 28.38 47.62 29.62 2.09 1.00 4.69 18.00
7/8*127200 8.10  0.88 35.32 23.32 36.82 24.82 2.38 1.25 5.10 12.00
7/8*187200 9.95  0.88 47.32 29.32 48.82 30.82 2.38 1.25 5.10 18.00
1*610000 9.33  1.00 25.97 19.97 27.72 21.72 3.00 1.44 6.36 6.00
1*1210000 11.93  1.00 37.97 25.97 39.97 27.72 3.00 1.44 6.36 12.00
1*1810000 14.00  1.00 49.97 31.97 51.72 33.72 3.00 1.44 6.36 18.00
1*2410000 17.25  1.00 61.97 37.97 63.72 39.72 3.00 1.44 6.36 24.00
1-1/4*1215200 19.00  1.25 40.31 28.31 42.56 30.56 3.56 1.81 7.72 12.00
1-1/4*1815200 23.00  1.25 52.31 34.31 54.56 36.56 3.56 1.81 7.72 18.00
1-1/4=2415200 27.00  1.25 64.31 40.31 66.56 42.56 3.56 1.81 7.72 24.00
1-1/2*1221400 27.50  1.50 42.50 30.50 45.00 33.00 4.06 2.12 8.62 12.00
1-1/2*1821400 31.00  1.50 54.50 36.50 57.00 39.00 4.06 2.12 8.62 18.00
1-1/2*2421400 37.50  1.50 66.50 42.50 69.00 45.00 4.06 2.12 8.62 24.00
1-3/4*1828000 52.50  1.75 57.38 39.38 60.38 42.38 4.62 2.38 10.00 18.00
1-3/4*2428000 58.00  1.75 69.38 45.38 72.38 48.38 4.62 2.38 10.00 24.00
2*2437000 85.25  2.00 75.69 51.69 79.19 55.19 5.75 2.69 13.09 24.00
2-1/2*2460000 144.25  2.50 78.62 54.62 82.62 58.62 6.50 3.12 13.78 24.00
2-3/4*2475000 194.00  2.75 81.00 57.00 85.5 61.5 3.25 15.22 24.00
