HIDEA Industrial Ash Handling Chains – Perfect for Efficient Ash-Handling Conveyor System

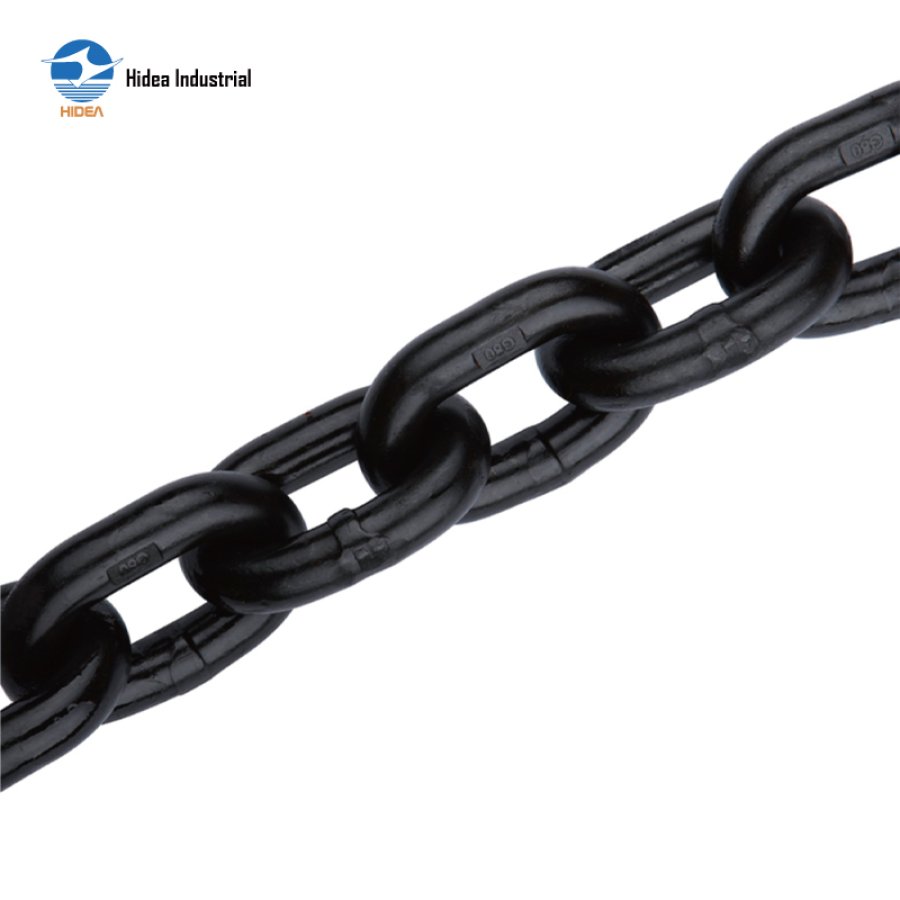

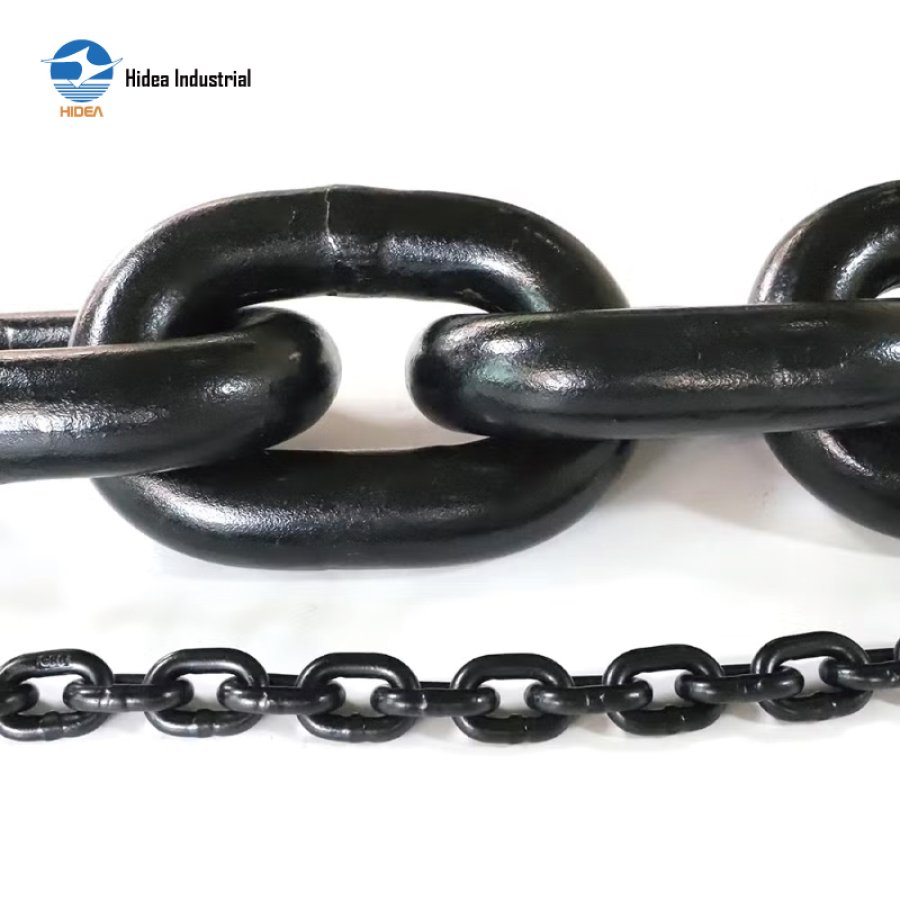

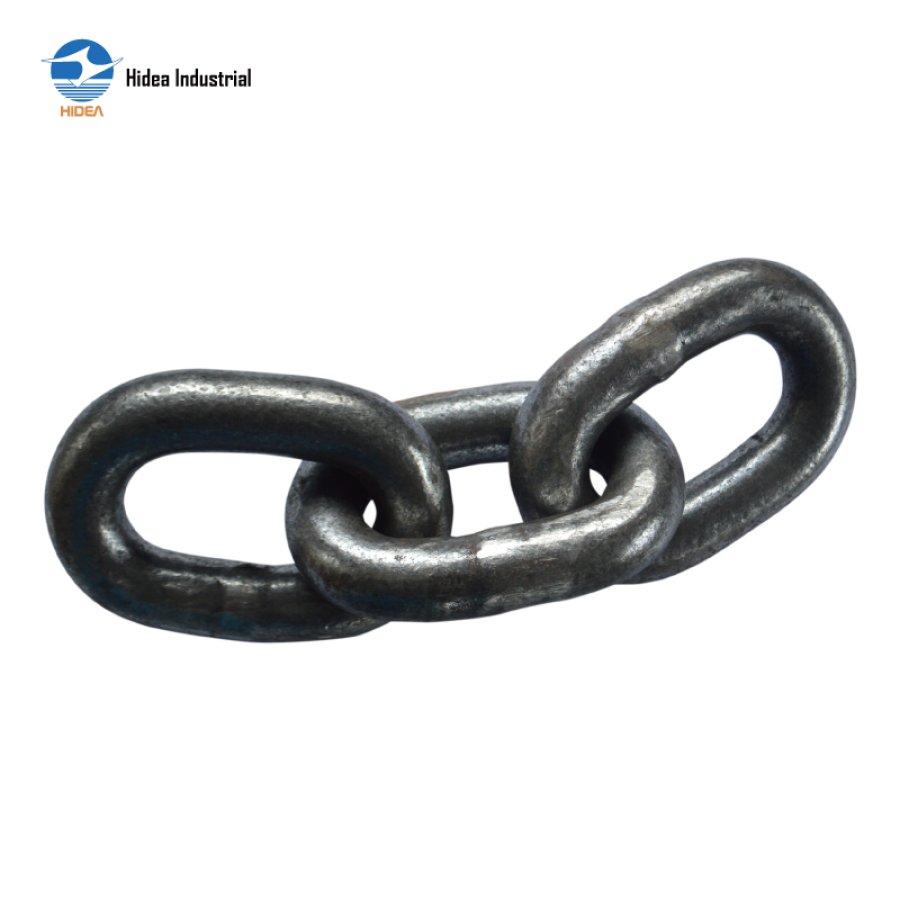

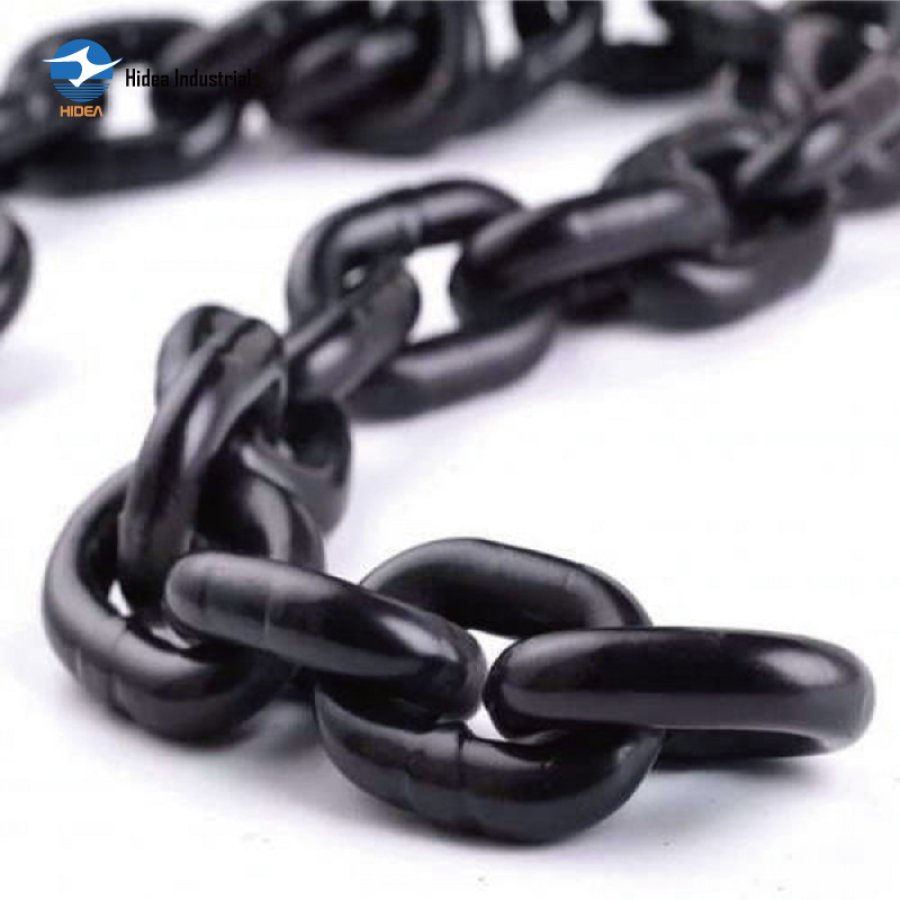

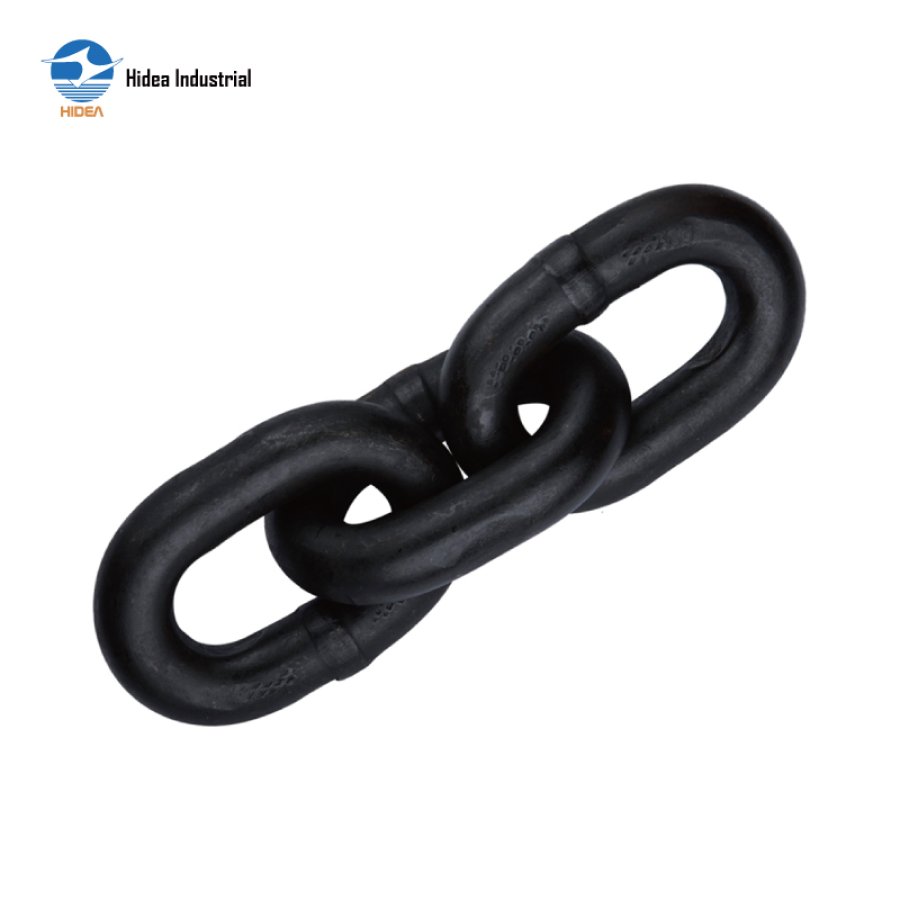

CHAINS FOR ASH HANDLER

Material: High-Quality Alloy Steel
Chains for Ash Handler

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC113 Chains for Ash Handler

Grade B

Size dxp	Inside Width Min.a	Outside Width Max.b	Weight	Breaking Load Min.	Total Elongation at Fracture Min.
mm	mm	mm	kg/m	kn	%
14x50	17	48	4	190	10
16x64	22	58	5	250	10
18x64	21	60	6.6	320	10
19×64.5	22	63	7.6	360	10
22x80	31	83	10	480	10
22x86	26	74	9.5	480	10
24x86	28	79	11.6	570	10
26x91	35	94	14.3	670	10
26x92	30	86	13.7	670	10
26x100	31	87	13.3	670	10
30x108	34	98	18	890	10
30x120	36	102	17.6	590	10

Grade C

Size dxp	Inside Width Min.a	Outside Width Max.b	Weight	Breaking Load Min.	Total Elongation at Fracture Min.
mm	mm	mm	kg/m	kn	%
14x50	17	48	4	250	10
16x64	22	58	5	320	10
18x64	21	60	6.6	410	10
19x64.5	22	63	7.6	450	10
22x80	31	83	10	610	10
22x86	26	74	9.5	610	10
24×86	28	79	11.6	720	10
26x91	35	94	14.3	850	10
26x92	30	86	13.7	850	10
26x100	31	87	13.3	850	10
30x108	34	98	18	1130	10
30x120	36	102	17.6	1130	10
