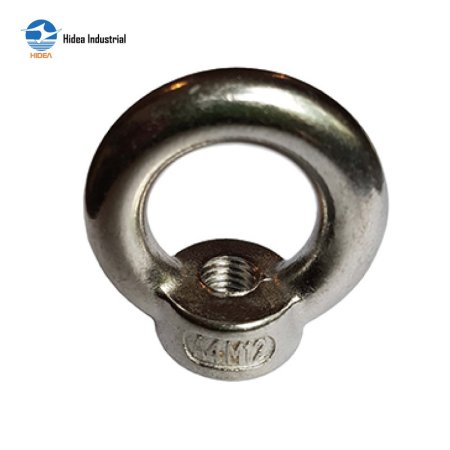

Hidea DIN 582 Stainless Steel Eye Nut – Ideal for Creating Secure Lifting Eyes with Stubs or Bolts

DIN582 EYE NUT

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

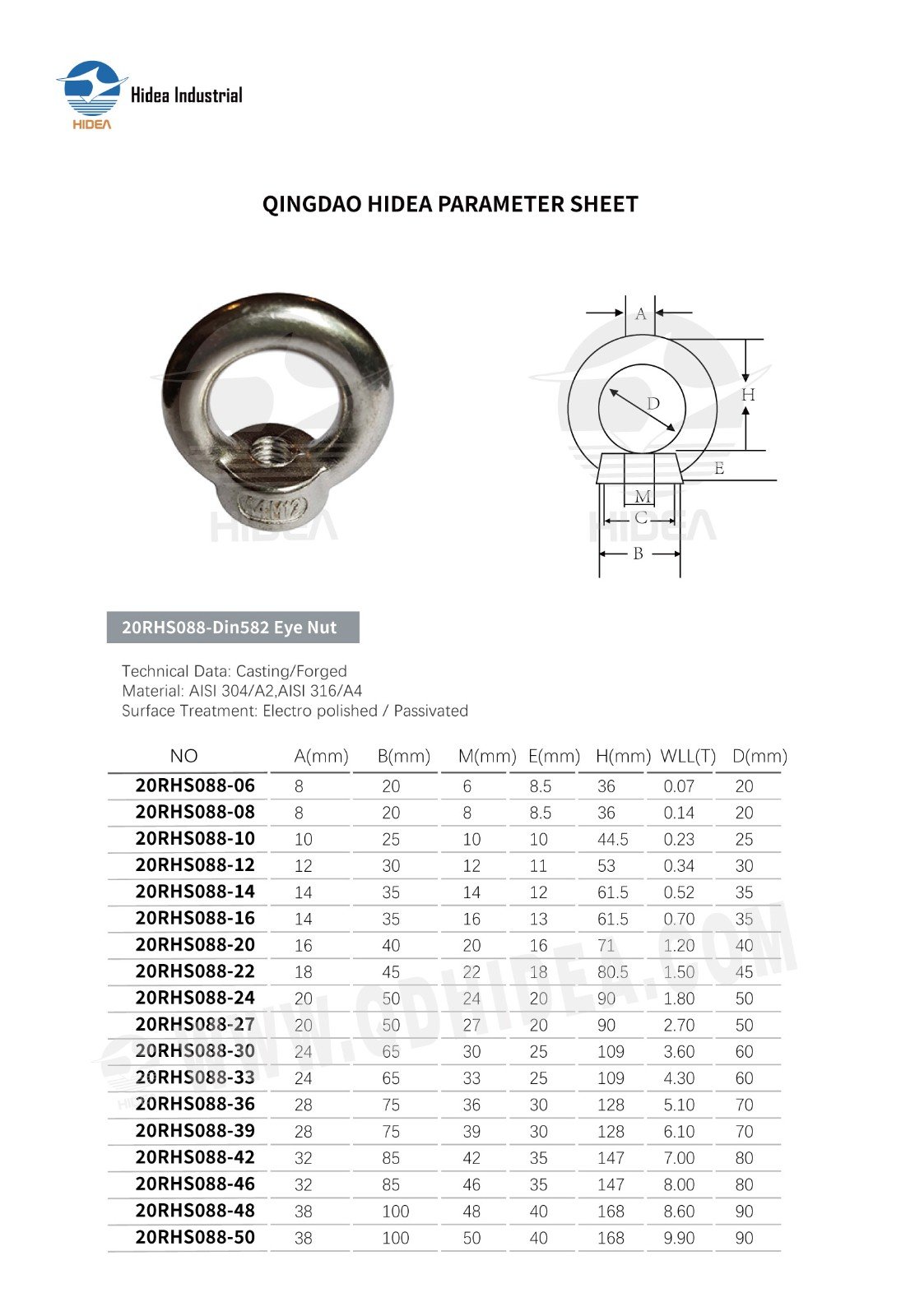

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS088-Din582 Eye Nut

NO	A(mm)	B(mm)	M(mm) E(mm)		H(mm)	WLL(T)	D(mm)
20RHS088-06	8	20	6	8.5	36	0.07	20
20RHS088-08	8	20	8	8.5	36	0.14	20
20RHS088-10	10	25	10	10	44.5	0.23	25
20RHSO88-12	12	30	12	11	53	0.34	30
20RHS088-14	14	35	14	12	61.5	0.52	35
20RHS088-16	14	35	16	13	61.5	0.70	35
20RHS088-20	16	40	20	16	71	1.20	40
20RHS088-22	18	45	22	18	80.5	1.50	45
20RHS088-24	20	50	24	20	90	1.80	50
20RHS088-27	20	50	27	20	90	2.70	50
20RHS088-30	24	65	30	25	109	3.60	60
20RHS088-33	24	65	33	25	109	4.30	60
20RHS088-36	28	75	36	30	128	5.10	70
20RHS088-39	28	75	39	30	128	6.10	70
20RHS088-42	32	85	42	35	147	7.00	80
20RHS088-46	32	85	46	35	147	8.00	80
20RHS088-48	38	100	48	40	168	8.60	90
20RHS088-50	38	100	50	40	168	9.90	90
