Enhanced Load Control with Hidea DIN1480 Turnbuckle Featuring Plane Ends

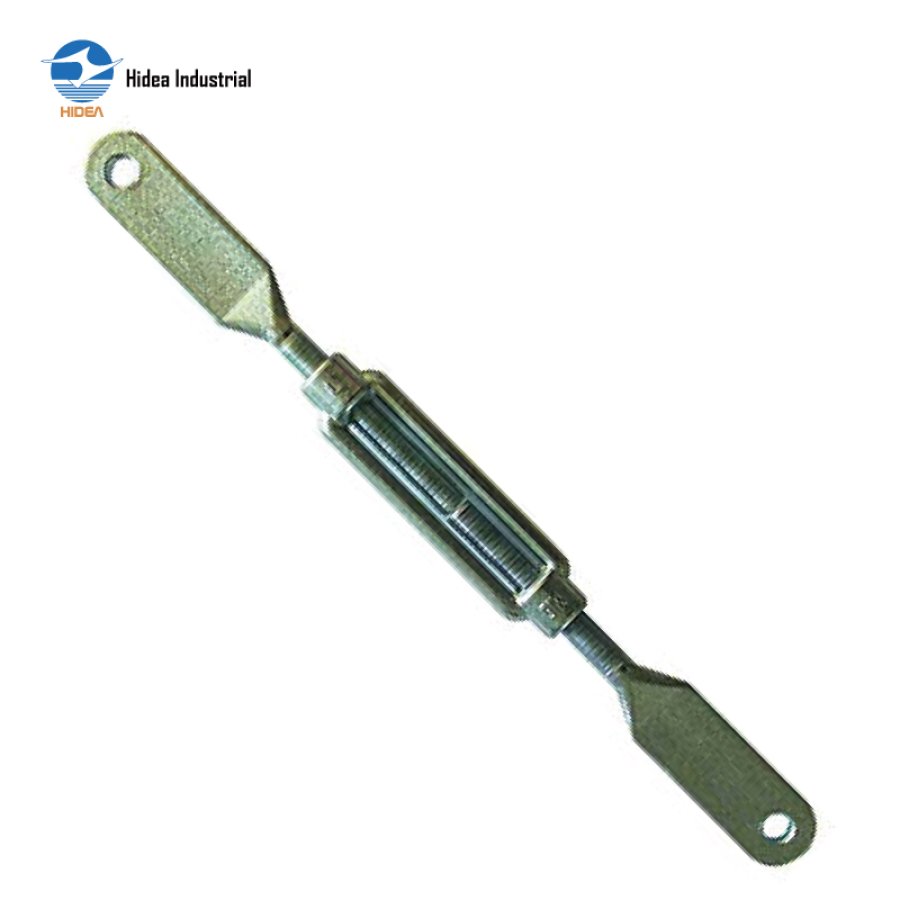

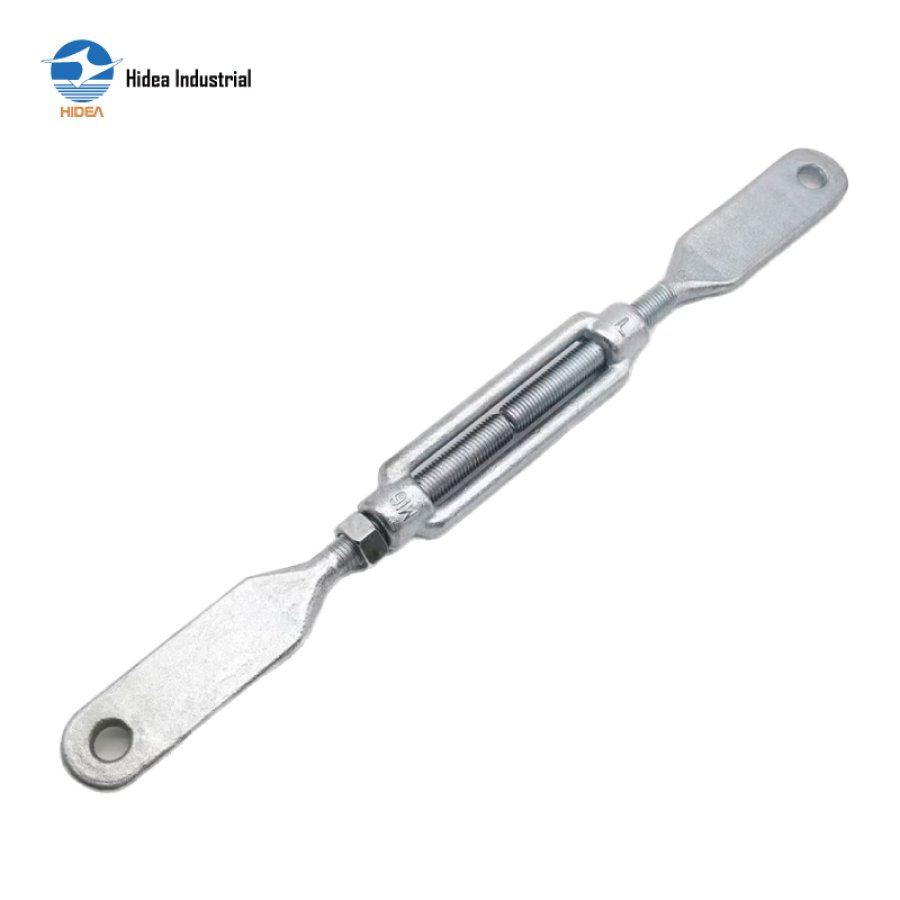

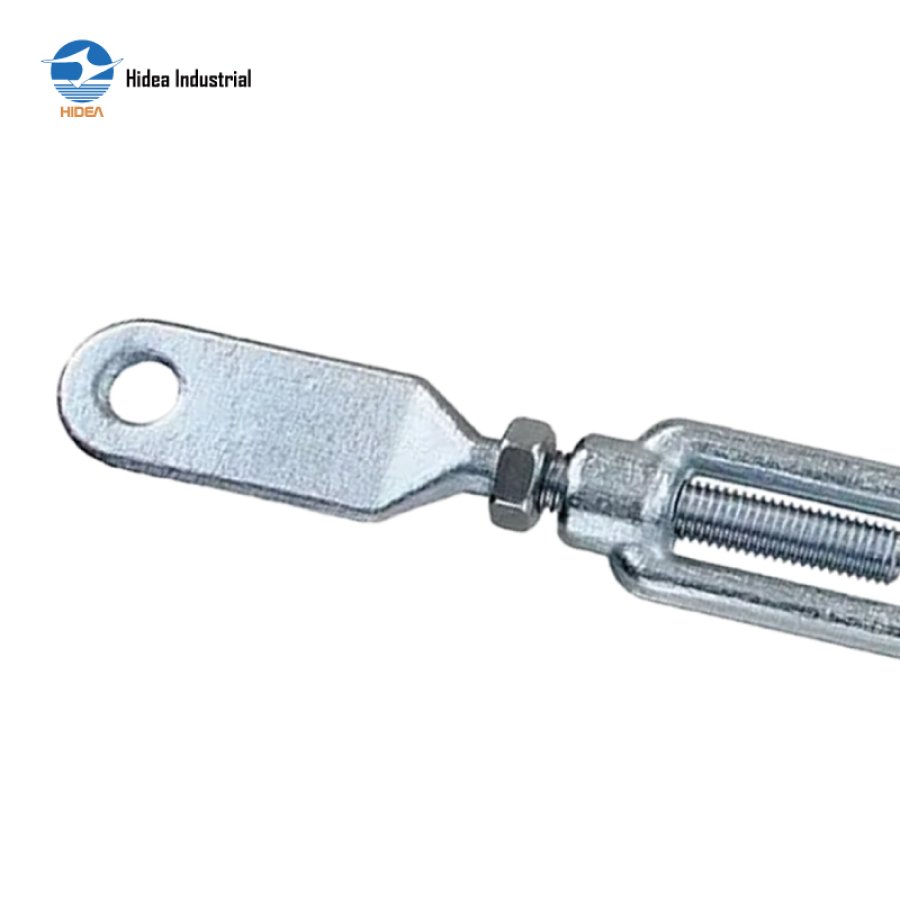

DIN1480 TURNBUCKLES WITH FLAT PLATE ENDS

Material: High tensile carbon steel
Forged, quenched & tempered
Proof tested individually
Surface hot dip galvanized, electro galv. / zinc plated OR as requested

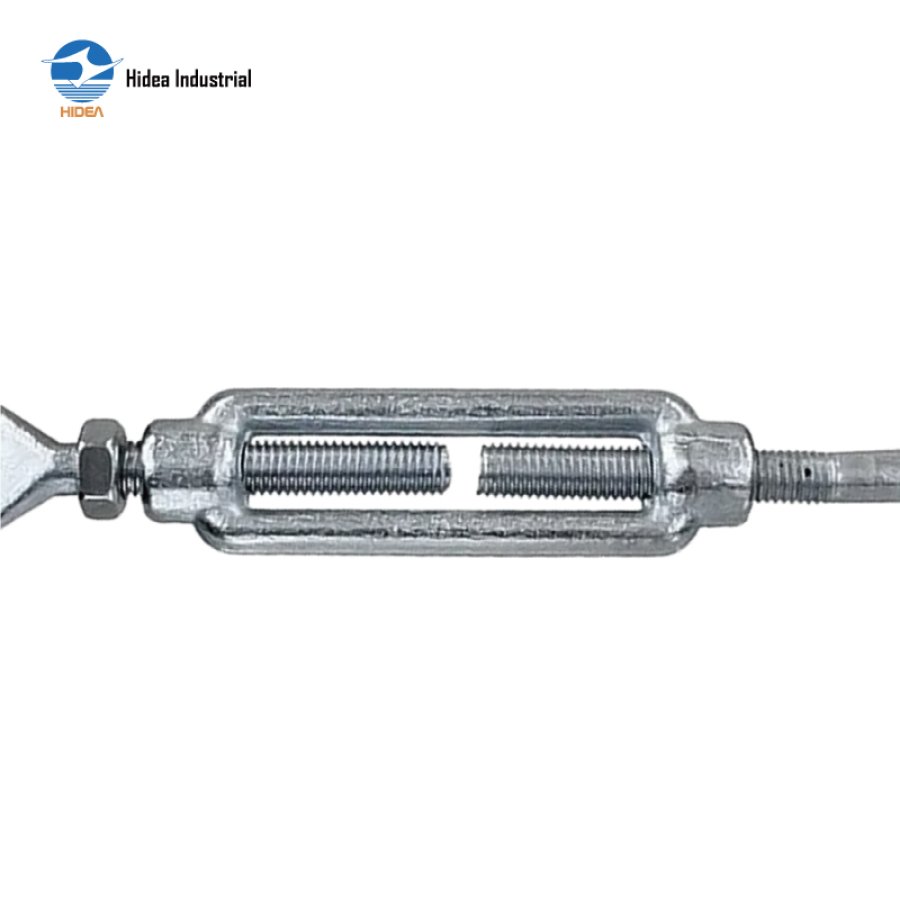

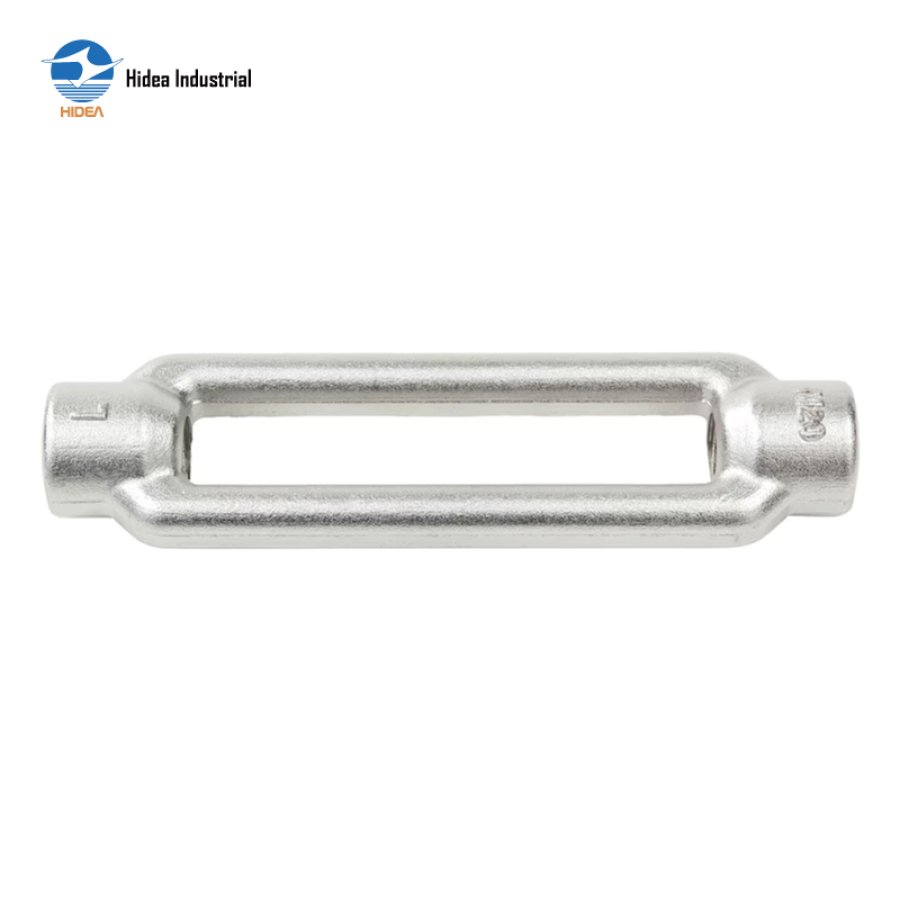

Din1480 plate ends open body type turnbuckles

Inquire Now

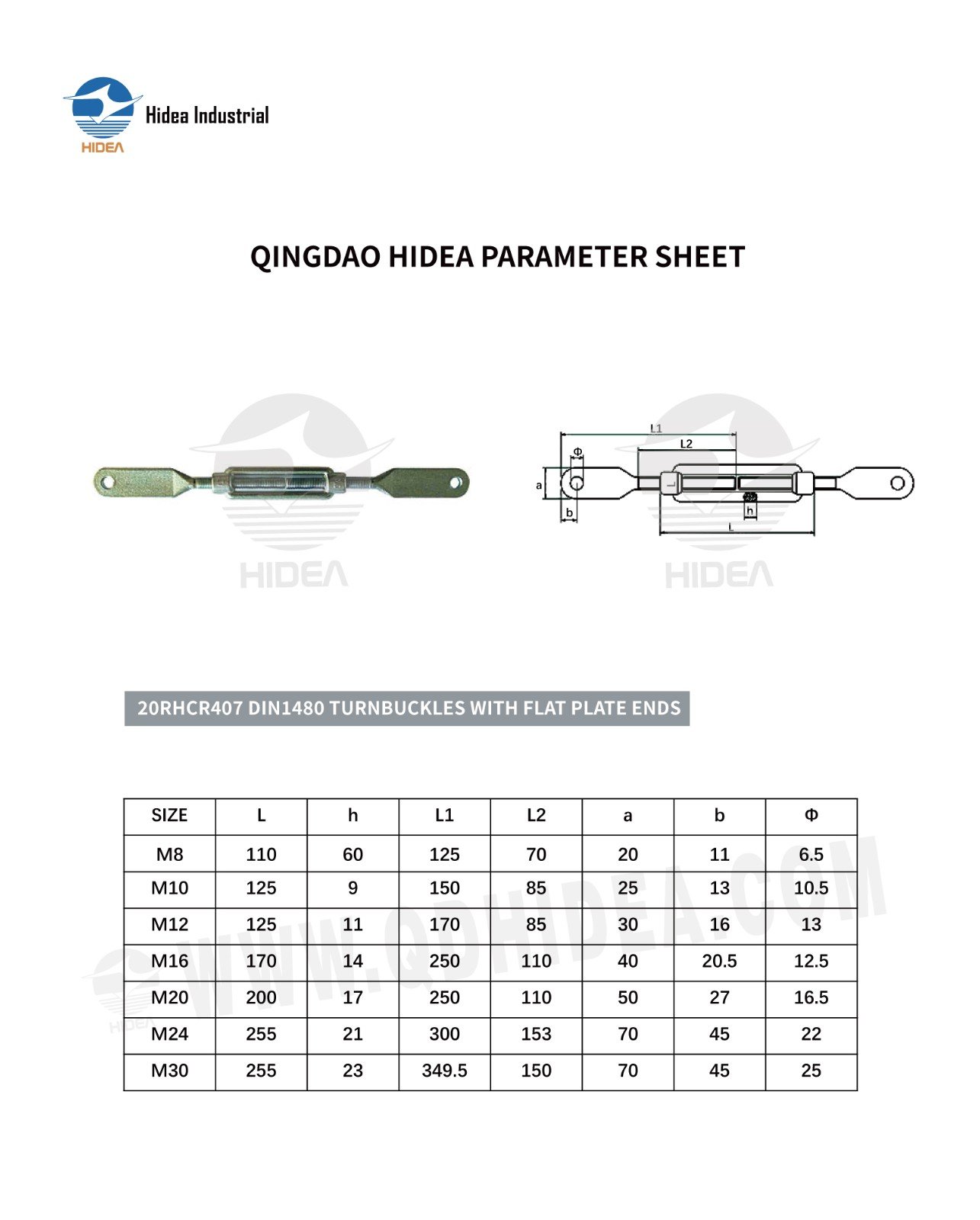

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR407 DIN1480 TURNBUCKLES WITH FLAT PLATE ENDS

SIZE	L	h	L1	L2	a	b	Ф
M8	110	60	125	70	20	11	6.5
M10	125	9	150	85	25	13	10.5
M12	125	11	170	85	30	16	13
M16	170	14	250	110	40	20.5	12.5
M20	200	17	250	110	50	27	16.5
M24	255	21	300	153	70	45	22
M30	255	23	349.5	150	70	45	25
