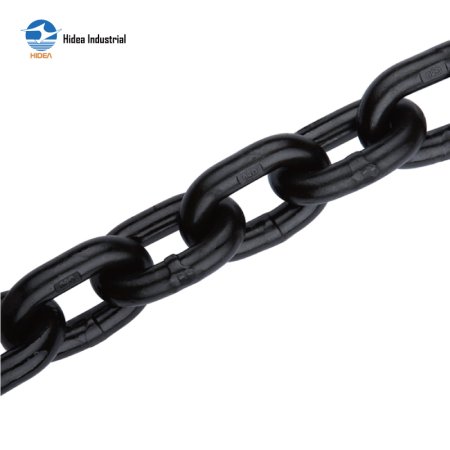

G80 LIFTING CHAIN

Material Super Alloy Steel
Standard Acc. EN818-2:2008 and Meets the latest guidelines of NACM,and ASTM A391/A391M for Grade 8 chain.
Permanently embossed with G80
Proof Tested at minimum 2.5 times and ultimate load 4 times of working load
Cost-effective alloy chain for lifting

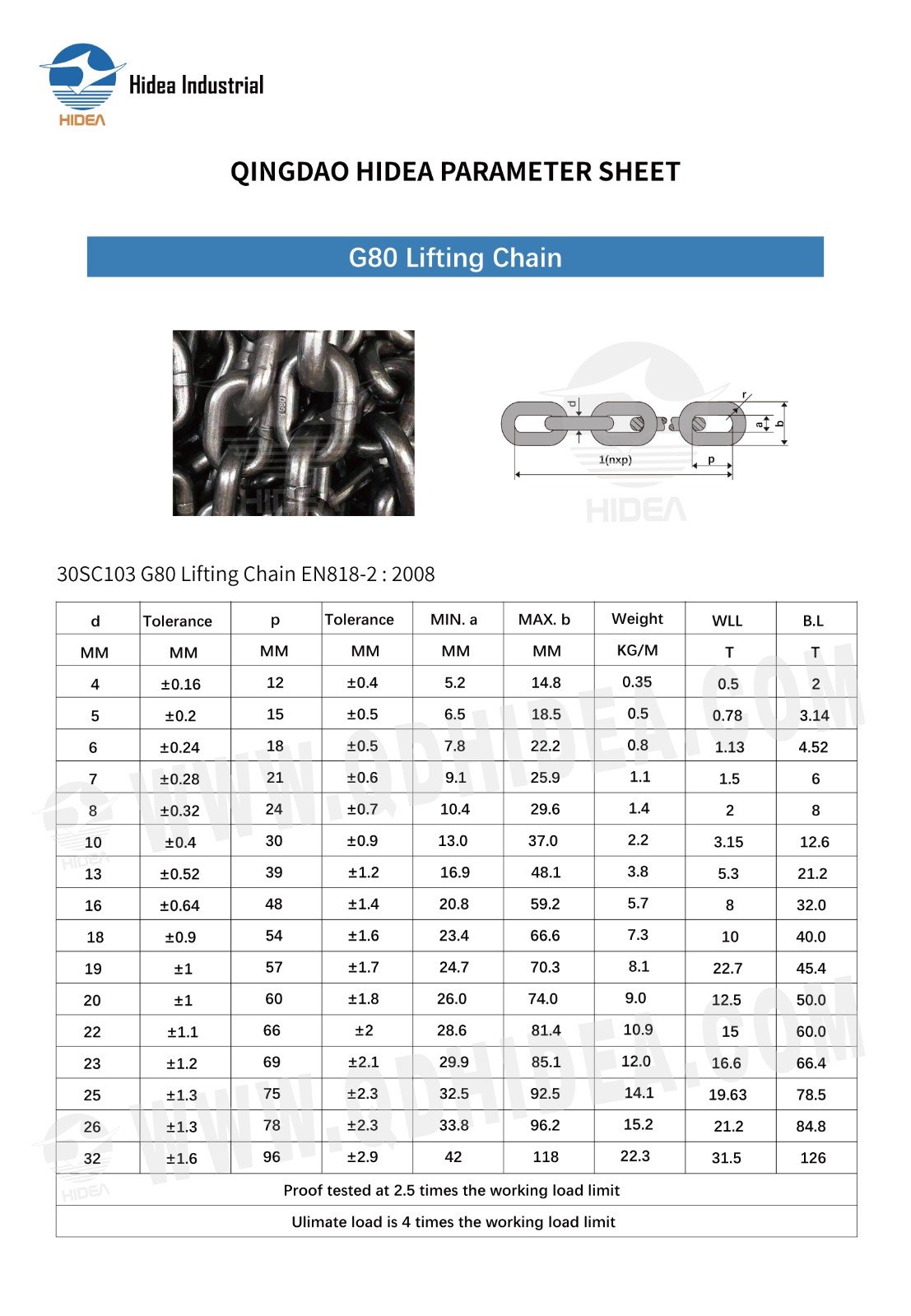

QINGDAO HIDEA PARAMETER SHEET FOR

30SC103 G80 Lifting Chain EN818-2:2008

d	Tolerance	p	Tolerance	MIN.a	MAX.b	Weight	WLL	B.L
MM	MM	MM	MM	MM	MM	KG/M	T	T
4	±0.16	12	±0.4	5.2	14.8	0.35	0.5	2
5	±0.2	15	±0.5	6.5	18.5	0.5	0.78	3.14
6	±0.24	18	±0.5	7.8	22.2	0.8	1.13	4.52
7	±0.28	21	±0.6	9.1	25.9	1.1	1.5	6
8	±0.32	24	±0.7	10.4	29.6	1.4	2	8
10	±0.4	30	±0.9	13.0	37.0	2.2	3.15	12.6
13	±0.52	39	±1.2	16.9	48.1	3.8	5.3	21.2
16	±0.64	48	±1.4	20.8	59.2	5.7	8	32.0
18	±0.9	54	±1.6	23.4	66.6	7.3	10	40.0
19	±1	57	±1.7	24.7	70.3	8.1	22.7	45.4
20	±1	60	±1.8	26.0	74.0	9.0	12.5	50.0
22	±1.1	66	±2	28.6	81.4	10.9	15	60.0
23	±1.2	69	±2.1	29.9	85.1	12.0	16.6	66.4
25	±1.3	75	±2.3	32.5	92.5	14.1	19.63	78.5
26	±1.3	78	±2.3	33.8	96.2	15.2	21.2	84.8
32	±1.6	96	±2.9	42	118	22.3	31.5	126
Proof tested at 2.5 times the working load limit
Ulimate load is 4 times the working load limit
