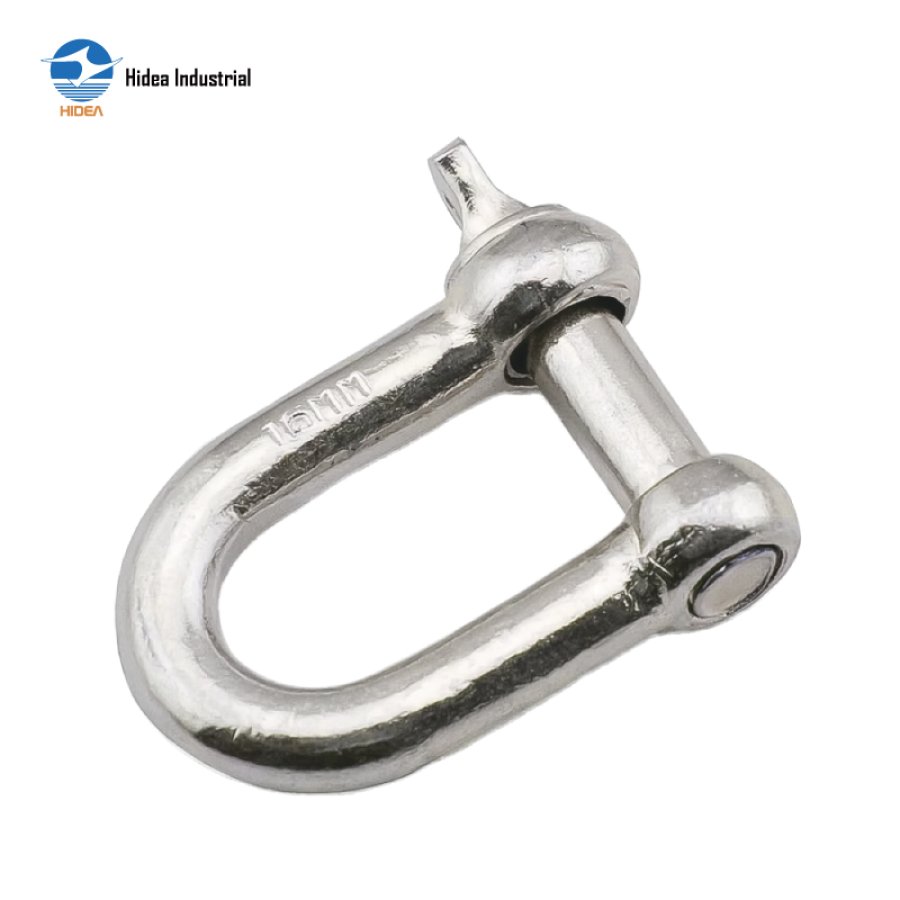

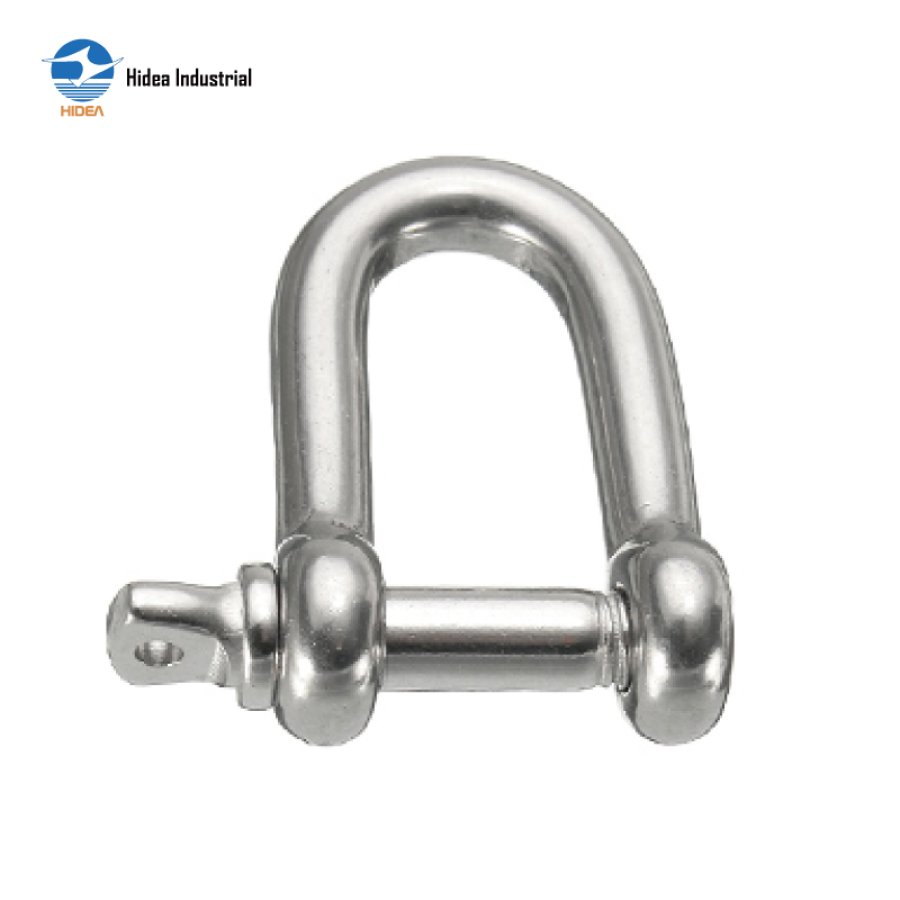

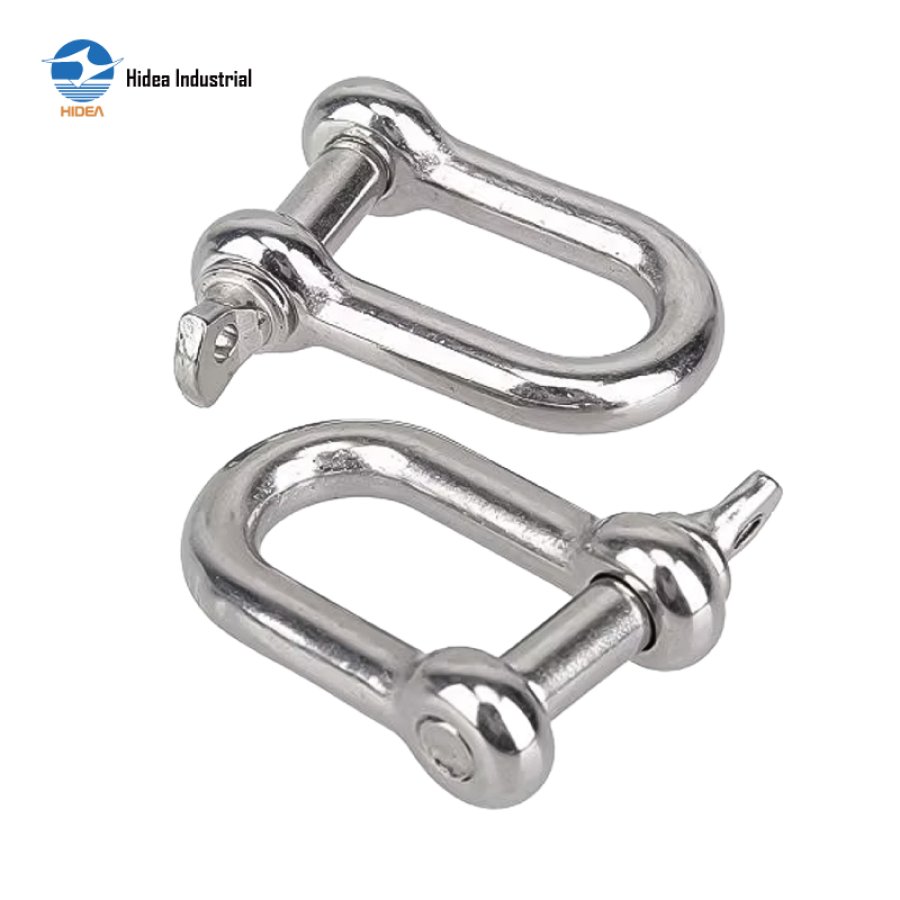

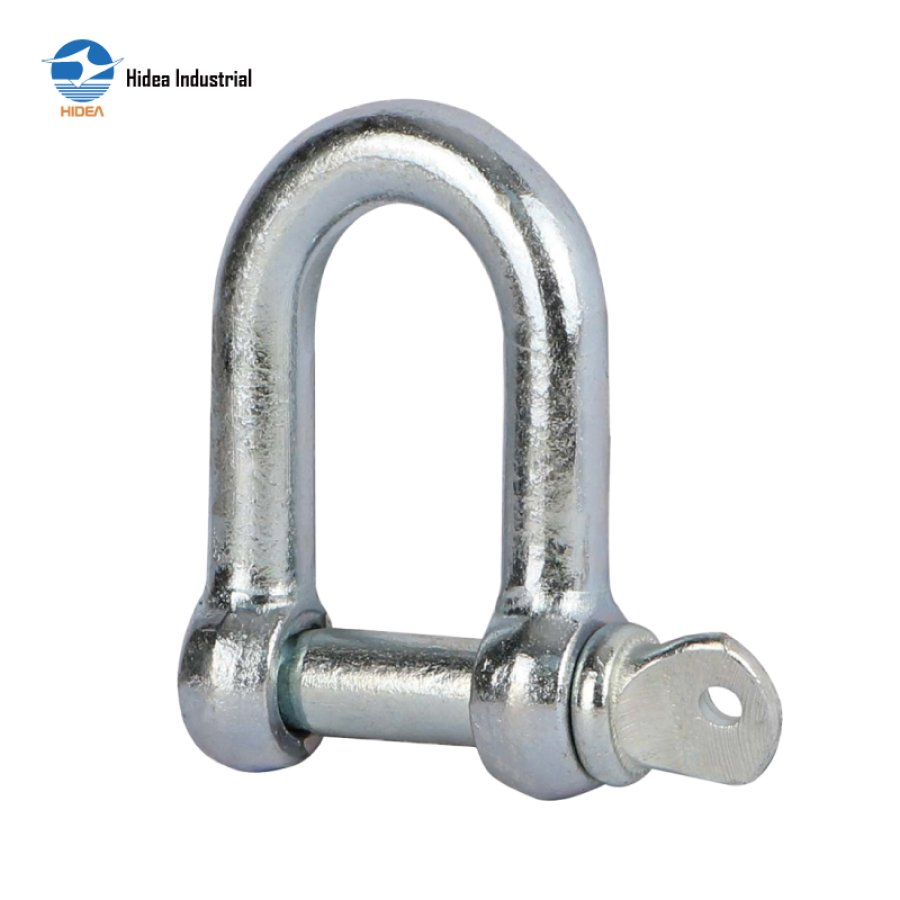

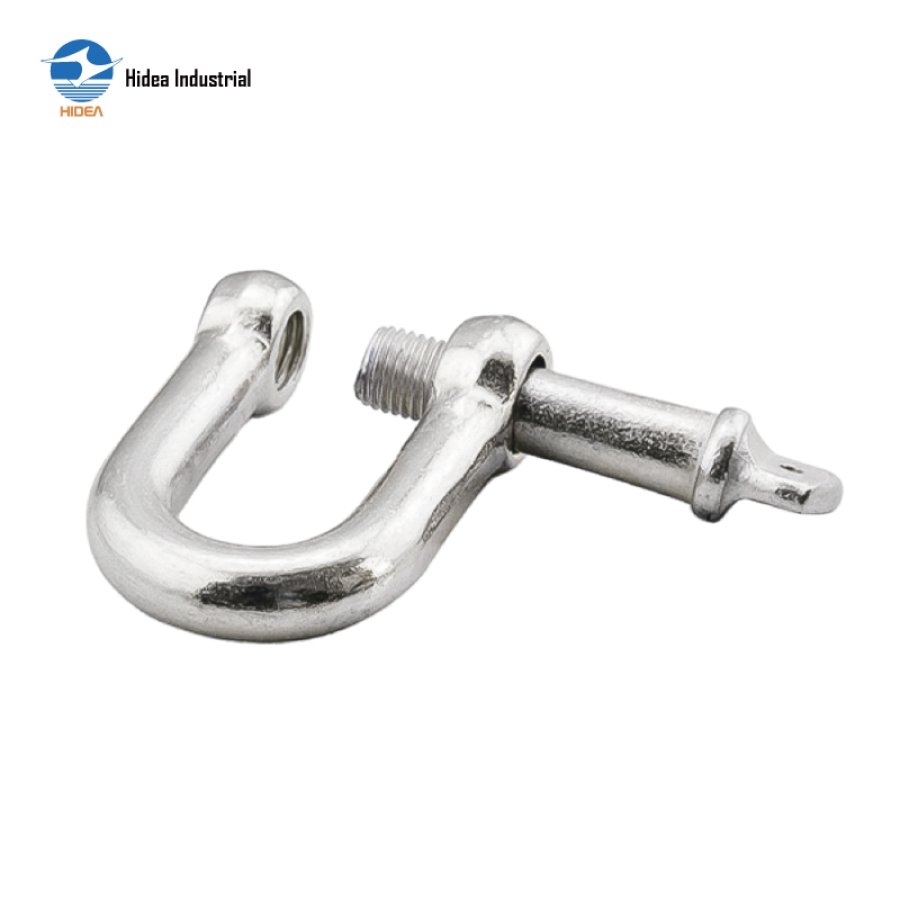

HIDEA Dee Shackles - Available in EU & JIS Types, Made from AISI 304/316

DEE SHACKLE-EU & JIS DEE SHACKLE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

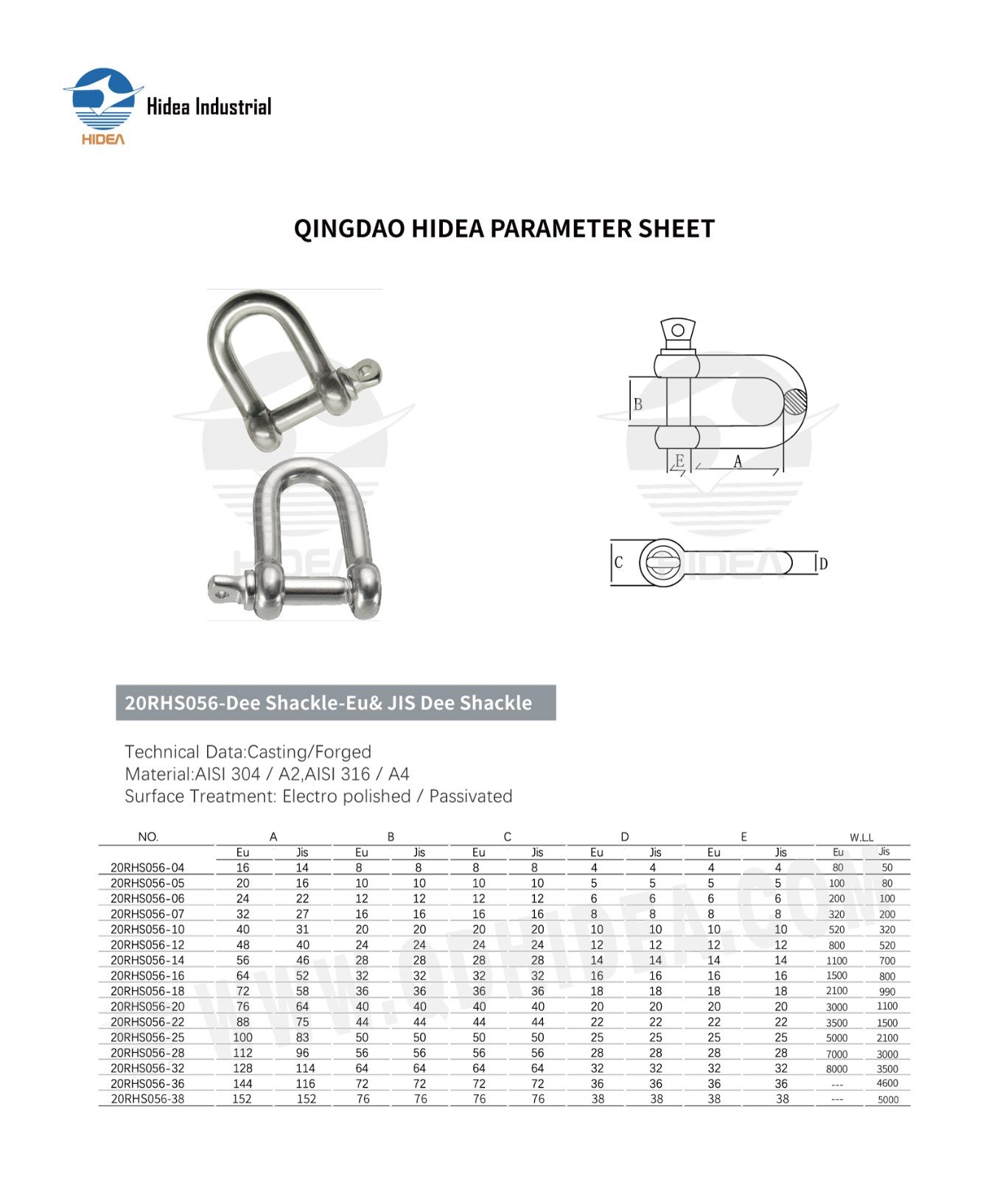

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS056-Dee Shackle-Eu&JIS Dee Shackle

NO.	A		B		C		D		E	WLL
NO.	Eu	Jis	Eu	Jis	Eu	Jis	Eu	Jis	Eu	Jis	T
20RHS056-04	16	14	8	8	8	8	4	4	4	4	0.09
20RHS056-05	20	16	10	10	10	10	5	5	5	5	0.1
20RHS056-06	24	22	12	12	12	12	6	6	6	6	0.15
20RHS056-07	32	27	16	16	16	16	8	8	8	8	0.25
20RHS056-10	40	31	20	20	20	20	10	10	10	10	0.5
20RHS056-12	48	40	24	24	24	24	12	12	12	12	0.6
20RHS056-14	56	46	28	28	28	28	14	14	14	14	0.8
20RHS056-16	64	52	32	32	32	32	16	16	16	16	1.1
20RHS056-18	72	58	36	36	36	36	18	18	18	18	1.6
20RHS056-20	76	64	40	40	40	40	20	20	20	20
20RHS056-22	88	75	44	44	44	44	22	22	22	22	2.5
20RHS056-25	100	83	50	50	50	50	25	25	25	25	3
20RHS056-28	112	96	56	56	56	56	28	28	28	28
20RHS056-32	128	114	64	64	64	64	32	32	32	32	4.5
20RHS056-36	144	116	72	72	72	72	36	36	36	36
