Enhanced Load Security with Hidea G43/G70 Eye Slip Hook and Latch

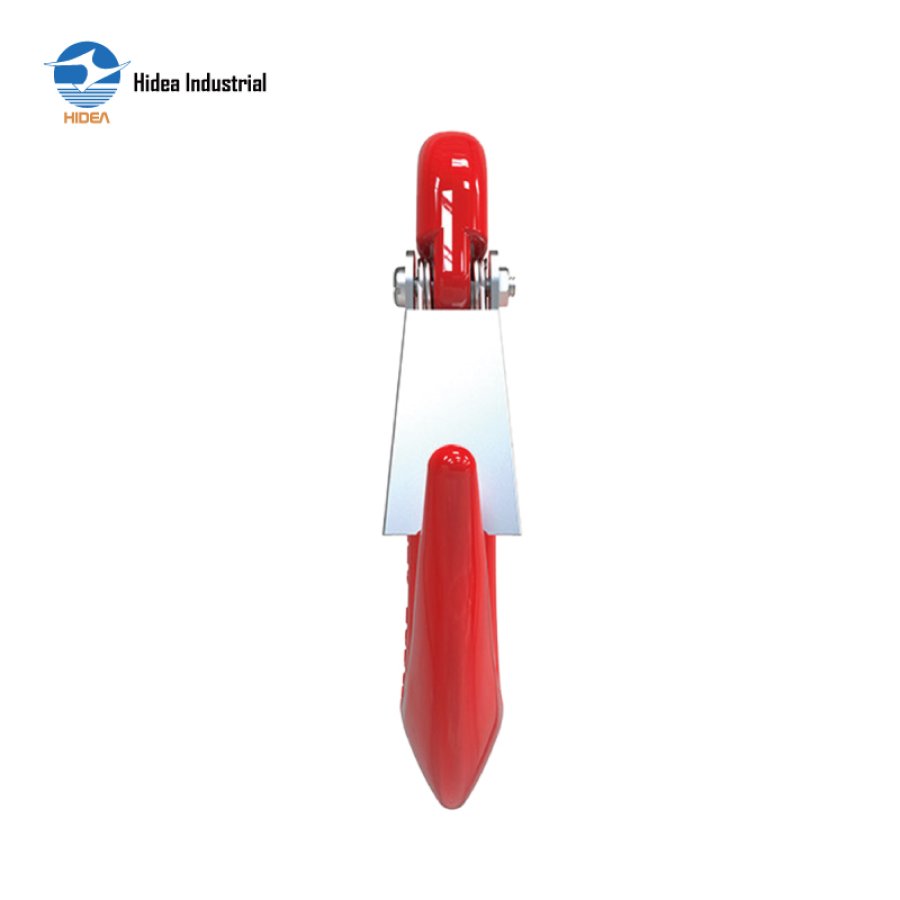

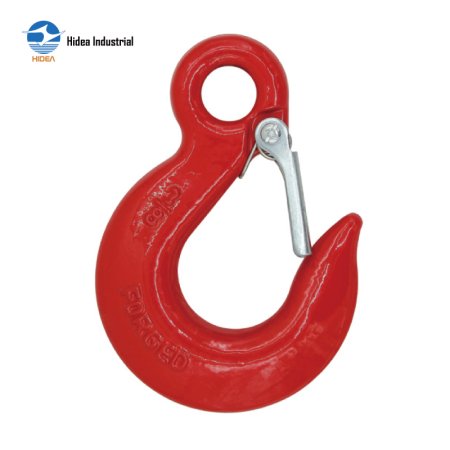

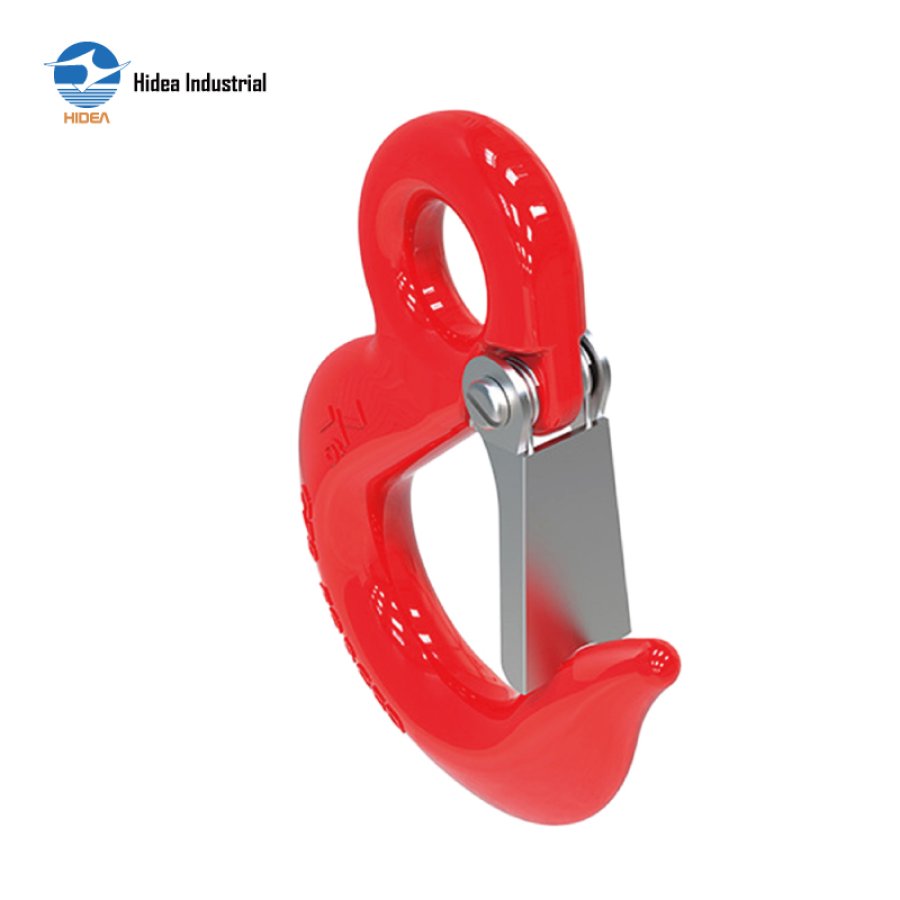

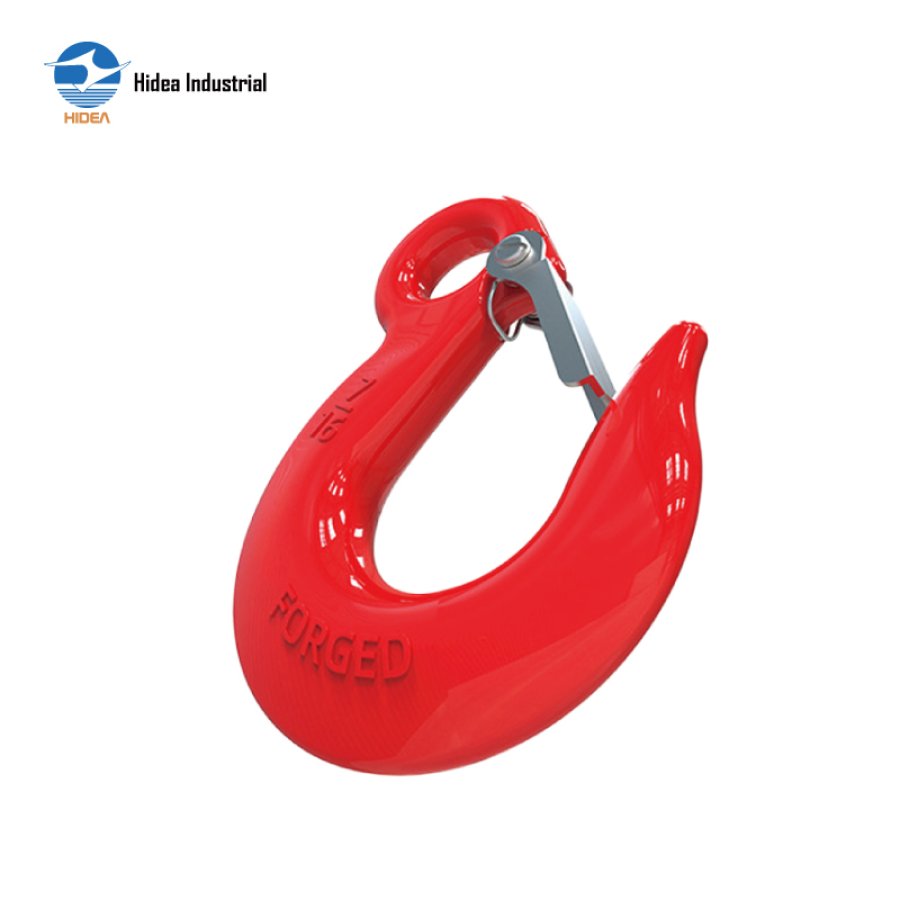

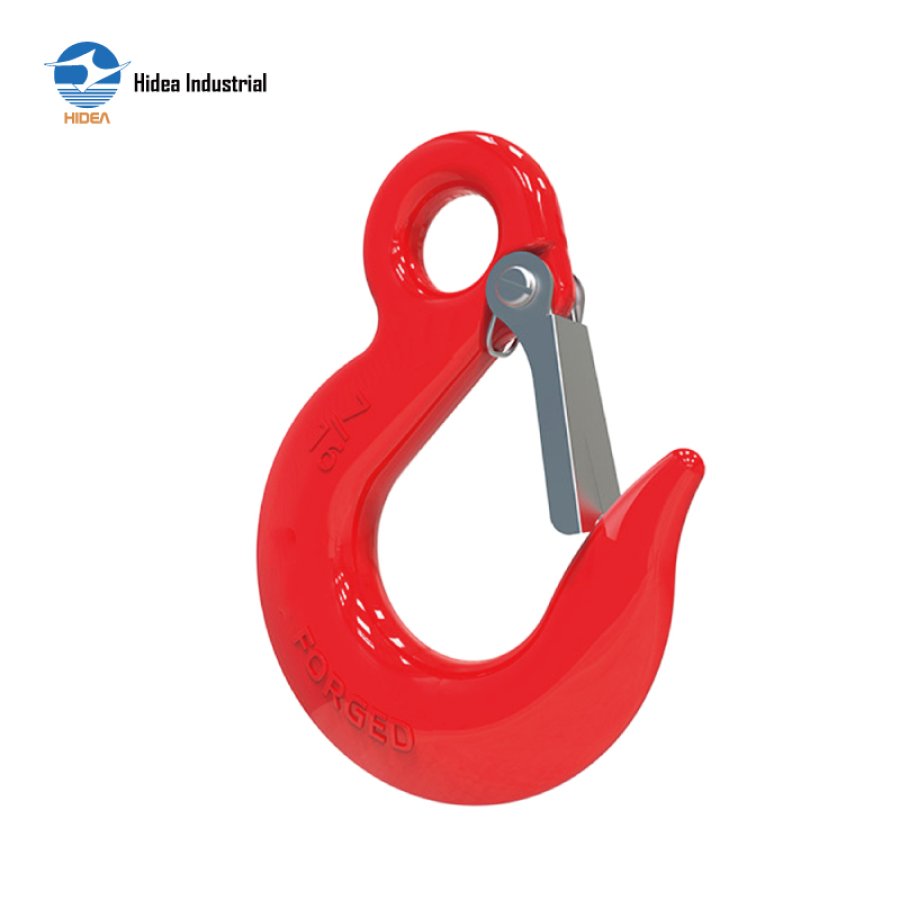

G43/G70 EYE SLIP HOOK WITH LATCH H324/A324

Material: supper alloy steel/carbon steel rated G70/G43
Drop forged, quenched & tempered
Breakage test & magnaflux crack detection
Safety factor 4:1 & certificates available
Surface electro galvanized (EG) OR powder coated OR as requested

Inquire Now

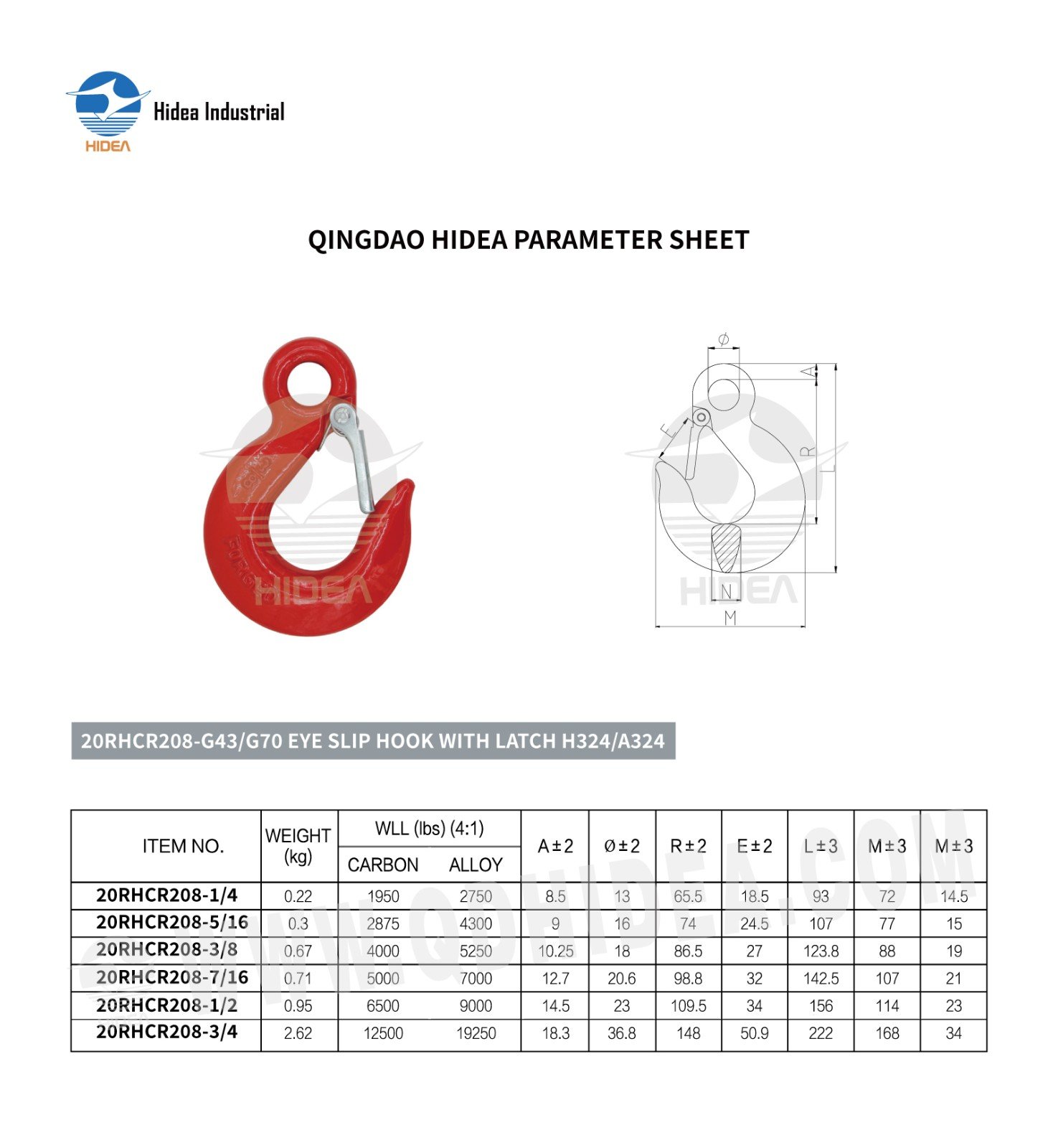

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR208-G43/G70 EYE SLIP HOOK WITH LATCH H324/A324

ITEM NO.	WEIGHT (kg)	WLL(lbs)(4:1)	A±2	Ø±2	R±2	E±2	L±3	M±3	M±3
ITEM NO.	WEIGHT (kg)	CARBON ALLOY	A±2	Ø±2	R±2	E±2	L±3	M±3	M±3
20RHCR208-1/4	0.22	1950 2750	8.5	13	65.5	18.5	93	72	14.5
20RHCR208-5/16	0.3	2875 4300	9	16	74	24.5	107	77	15
20RHCR208-3/8	0.67	4000 5250	10.25	18	86.5	27	123.8	88	19
20RHCR208-7/16	0.71	5000 7000	12.7	20.6	98.8	32	142.5	107	21
20RHCR208-1/2	0.95	6500 9000	14.5	23	109.5	34	156	114	23
20RHCR208-3/4	2.62	12500 19250	18.3	36.8	148	50.9	222	168	34
