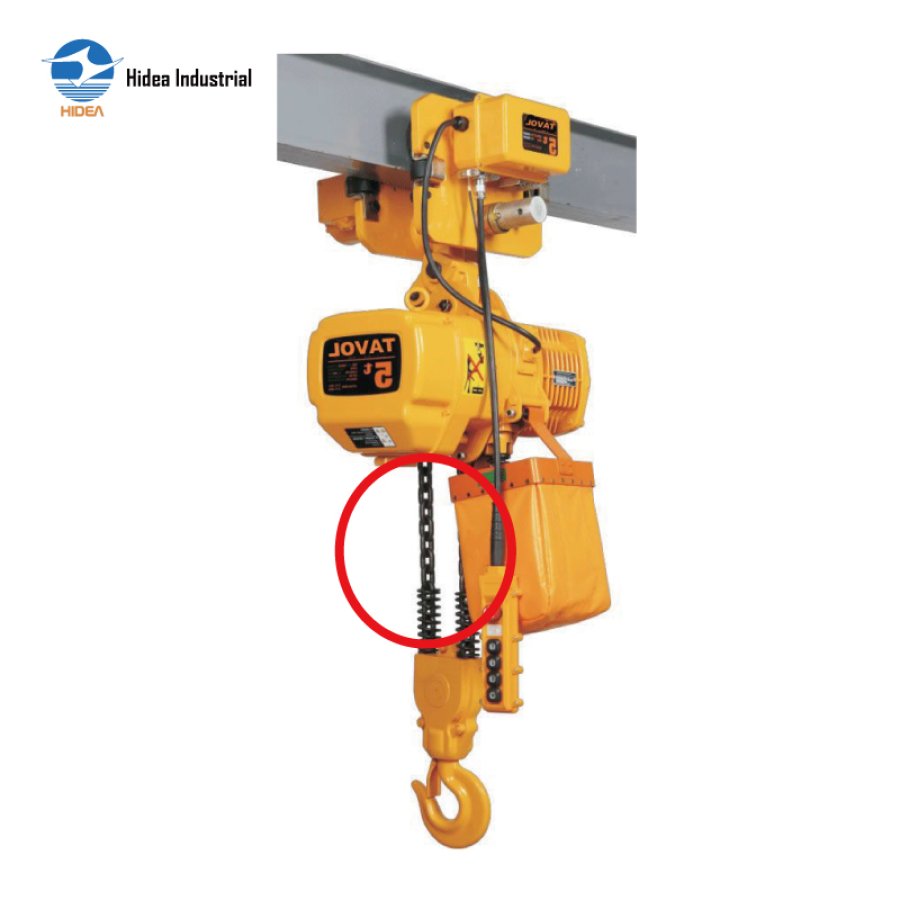

HIDEA Electric Motor Hoist Load Chain: Optimal Solution for Industrial Hoisting

MOTOR DRIVEN HOISTS CARBURIZING CHAIN

Material Super Alloy Steel
Super Hard Load Chain for Motor-Driven Hoists Carburized Chain
Proof Tested at minimum 2.5 times and ultimate load 4 times of working load
Long Fatigue Life

Inquire Now

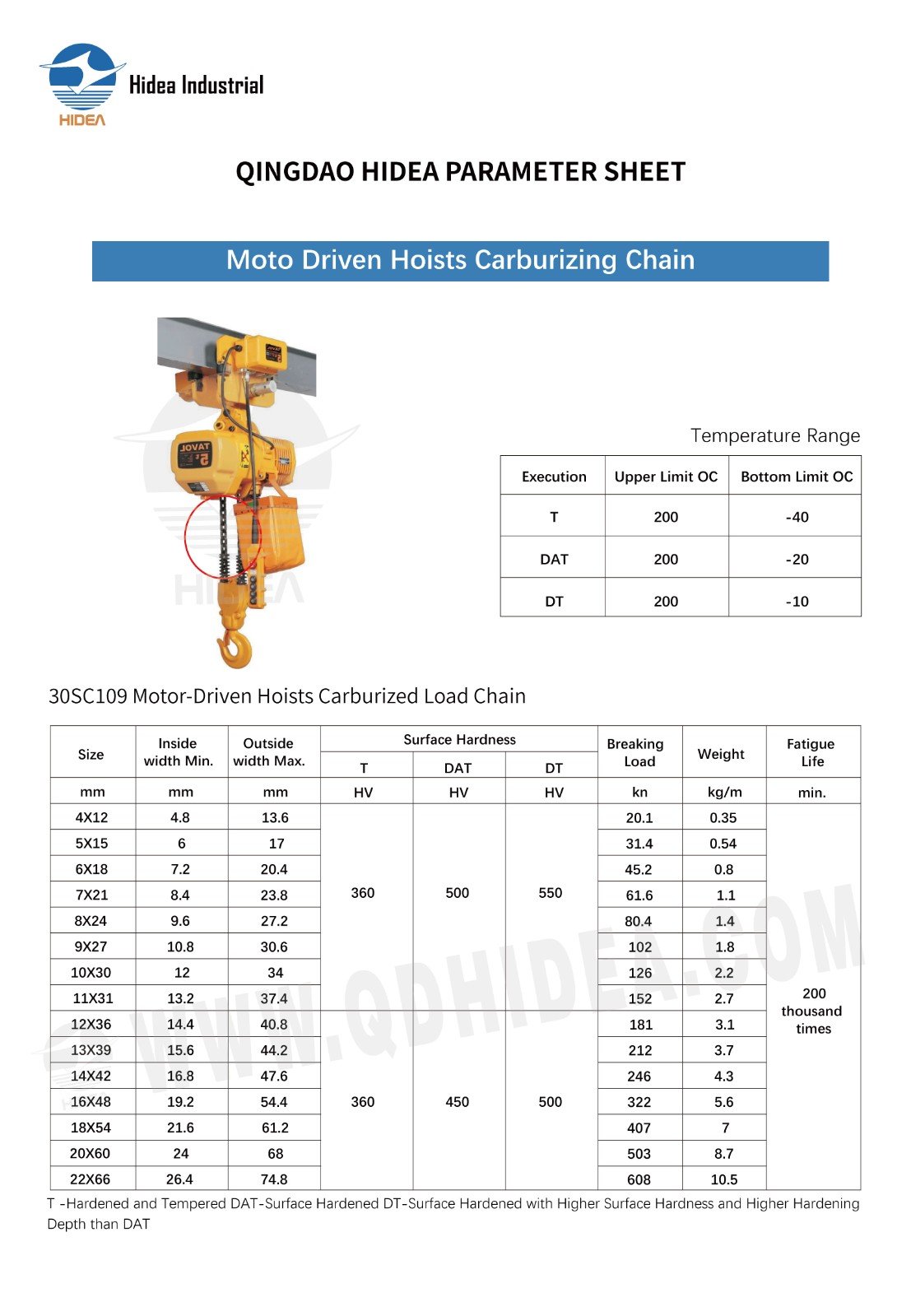

QINGDAO HIDEA PARAMETER SHEET FOR

30SC109 Motor-Driven Hoists Carburized Load Chain

Size	Inside width Min.	Outside width Max.	Surface Hardness			Breaking Load	Weight	Fatigue Life
			T	DAT	DT
mm	mm	mm	HV	HV	HV	kn	kg/m	min.
4X12	4.8	13.6	360	500	550	20.1	0.35	200 thousand times
5X15	6	17				31.4	0.54
6X18	7.2	20.4				45.2	0.8
7X21	8.4	23.8				61.6	1.1
8X24	9.6	27.2				80.4	1.4
9X27	10.8	30.6				102	1.8
10X30	12	34				126	2.2
11X31	13.2	37.4				152	2.7
12X36	14.4	40.8	360	450	500	181	3.1
13X39	15.6	44.2				212	3.7
14X42	16.8	47.6				246	4.3
16X48	19.2	54.4				322	5.6
18X54	21.6	61.2				407	7
20X60	24	68				503	8.7
22X66	26.4	74.8				608	10.5
