Wire Rope Clamp | Chain & Rope Fittings

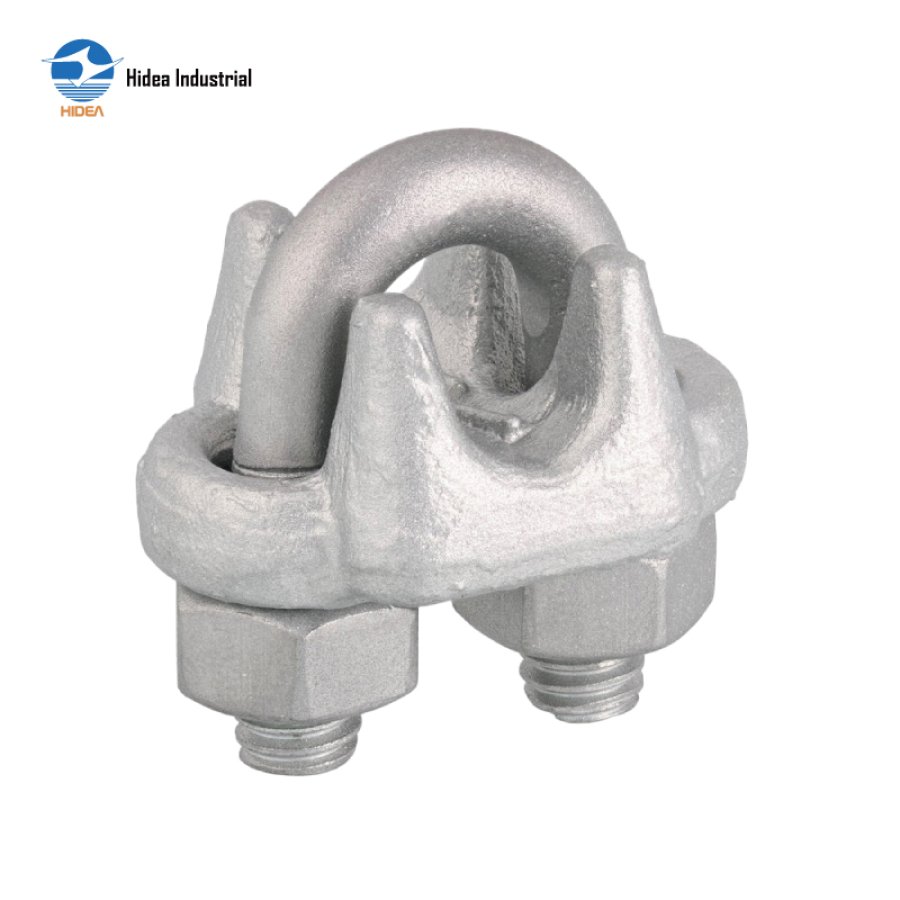

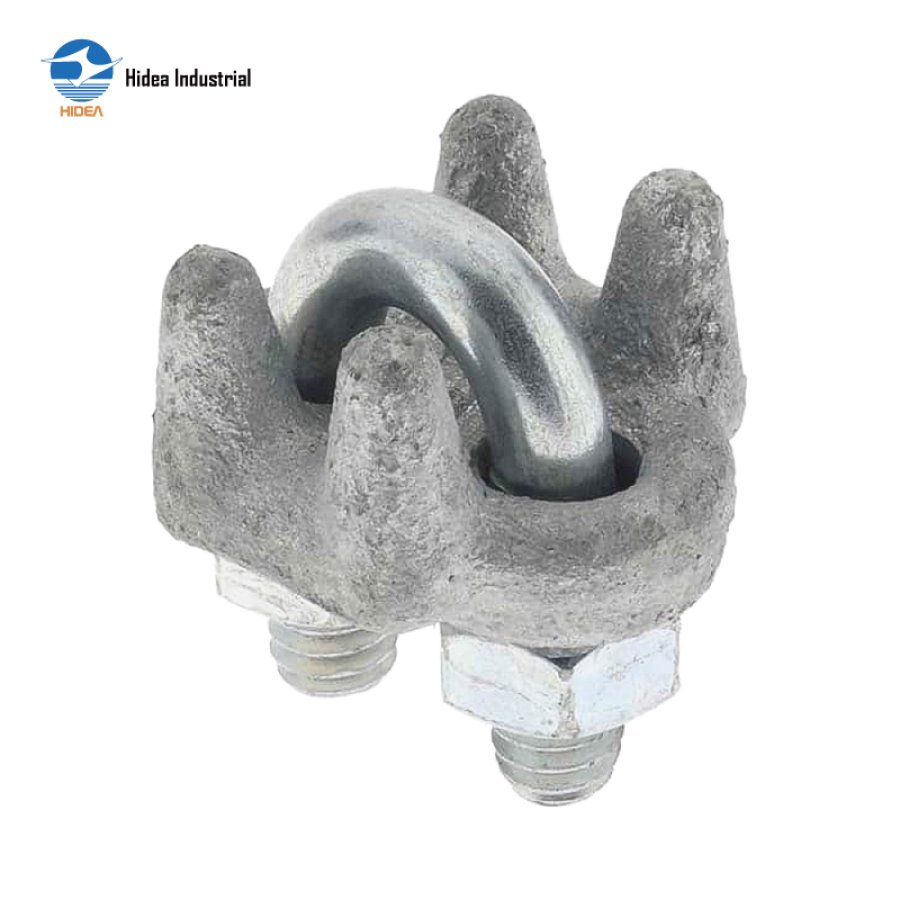

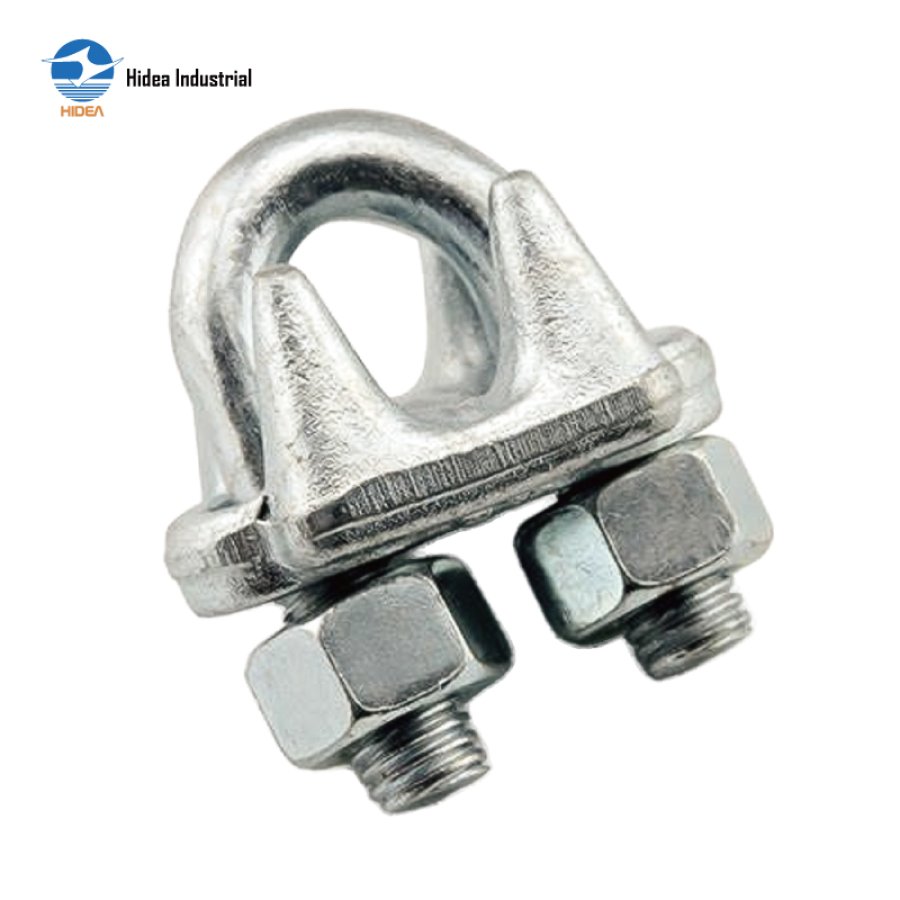

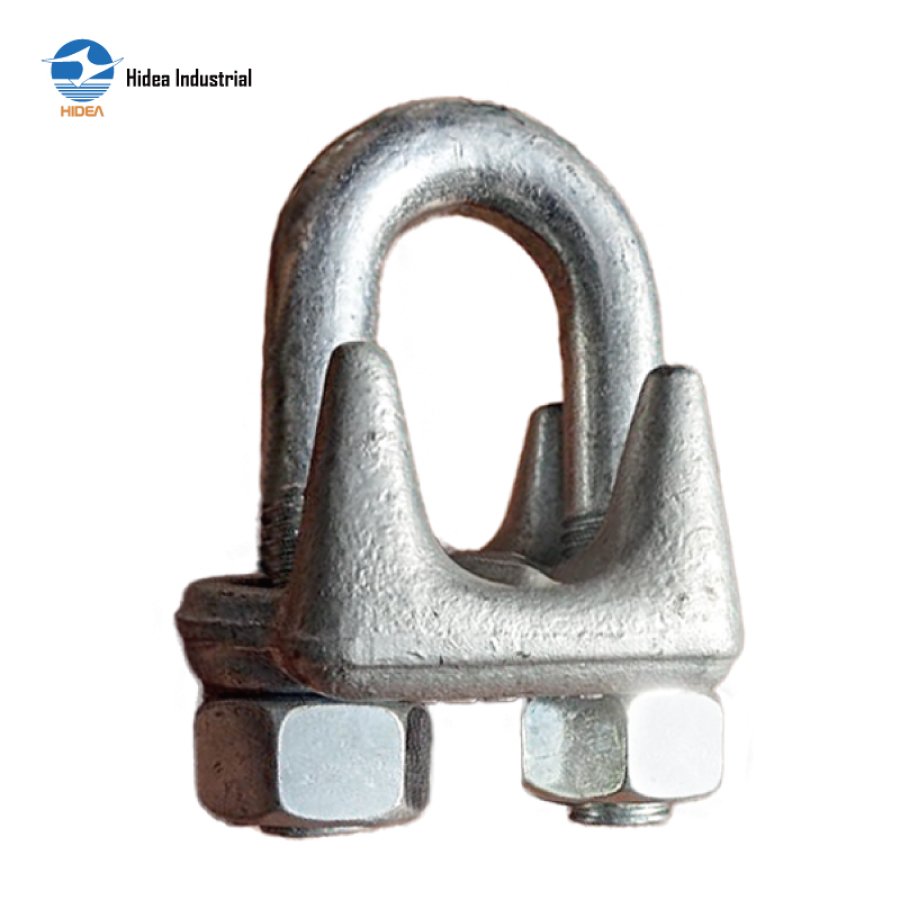

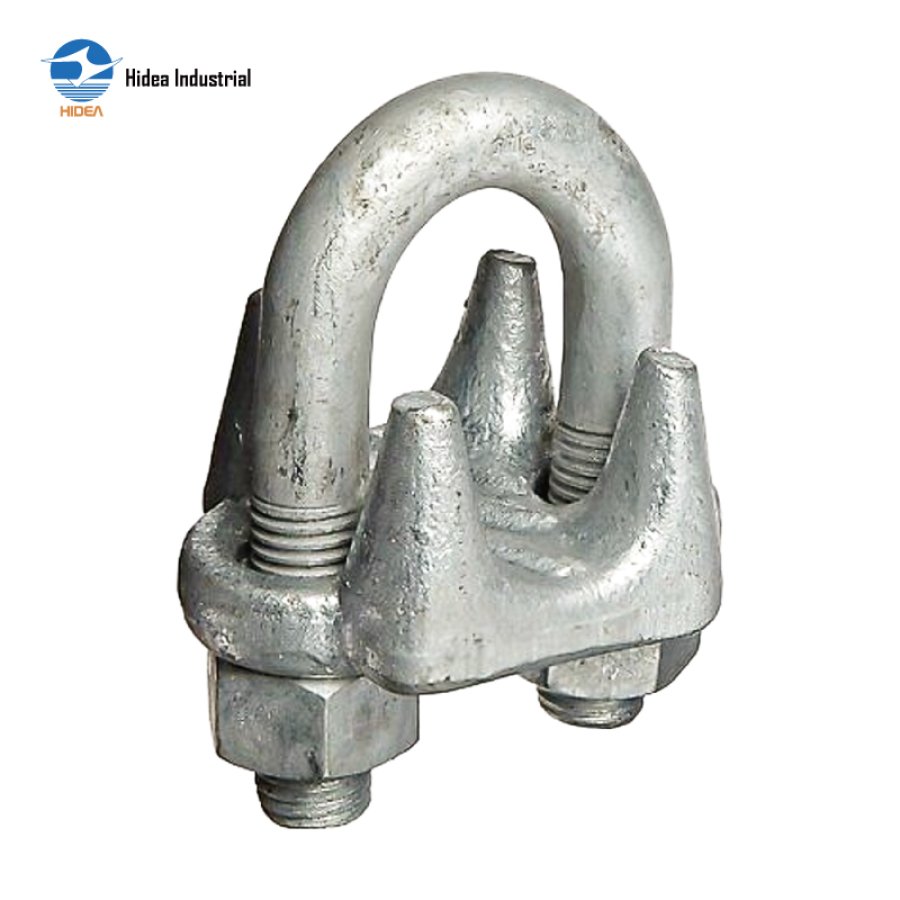

U.S. TYPE G-450 DROP FORGED WIRE ROPE CLIPS Federal Specification FF-C-450 Type 1. Class 1

High Tensile Carbon Steel
Drop Forged, quenched & tempered
Surface Hot Dip Galvanized OR as requested, Stainless Steel version available
Heavy Duty forged Wire Rope Clips G-450, Federal Specification FF-C-450 Type 1. Class 1; Meets or exceeds all performance requirements of ASME B30.26

Inquire Now

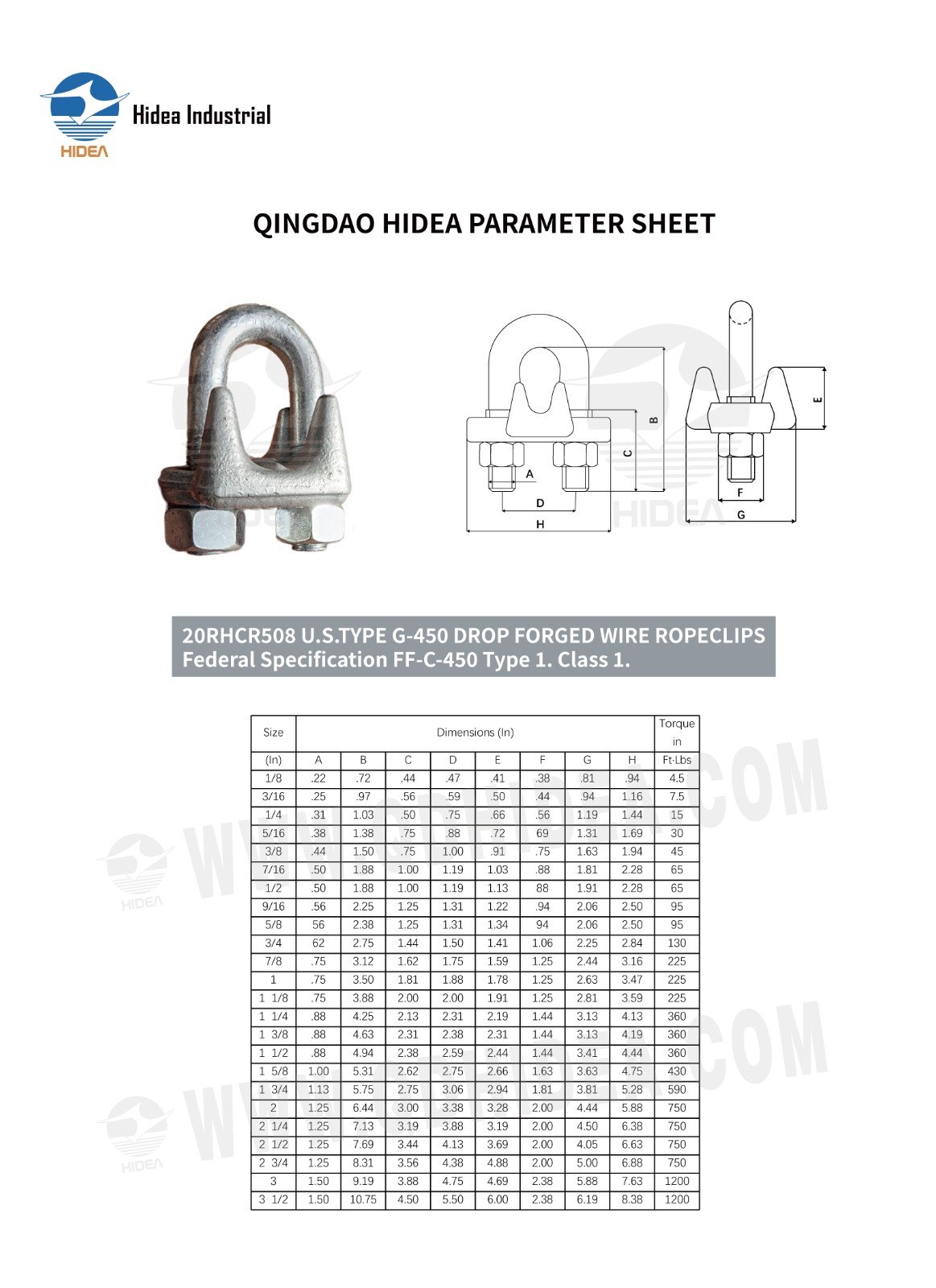

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR508 U.S.TYPE G-450 DROP FORGED WIRE ROPECLIPS

Federal Specification FF-C-450 Type 1.Class 1.

Size	Dimensions(In)								Torque in
(In)	A	B	C	D	E	F	G	H	Ft.Lbs
1/8	22	.72	.44	.47	41	38	81	94	4.5
3/16	25	97	56	59	50	44	94	1.16	7.5
1/4	31	1.03	50	.75	66	56	1.19	1.44	15
5/16	38	1.38	.75	88	72	69	1.31	1.69	30
3/8	44	1.50	.75	1.00	91	.75	1.63	1.94	45
7/16	.50	1.88	1.00	1.19	1.03	88	1.81	2.28	65
1/2	50	1.88	1.00	1.19	1.13	88	1.91	2.28	65
9/16	56	2.25	125	1.31	1.22	.94	2.06	2.50	95
5/8	56	2.38	1.25	1.31	1.34	94	2.06	2.50	95
3/4	62	2.75	1.44	1.50	1.41	1.06	2.25	2.84	130
7/8	.75	3.12	162	1.75	1.59	125	2.44	3.16	225
1	75	3.50	181	1.88	1.78	125	2.63	3.47	225
11/8	75	3.88	2.00	2.00	1.91	1.25	2.81	3.59	225
11/4	88	4.25	2.13	2.31	2.19	1.44	3.13	4.13	360
13/8	88	4.63	2.31	2.38	2.31	1.44	3.13	4.19	360
11/2	88	4.94	2.38	2.59	2.44	144	3.41	4.44	360
15/8	1.00	5.31	2.62	2.75	2.66	1.63	3.63	4.75	430
13/4	1.13	5.75	2.75	3.06	2.94	1.81	3.81	5.28	590
2	1.25	6.44	3.00	3.38	3.28	2.00	4.44	5.88	750
21/4	1.25	7.13	3.19	3.88	3.19	2.00	4.50	6.38	750
21/2	1.25	7.69	3.44	4.13	3.69	200	4.05	6.63	750
23/4	1.25	8.31	3.56	4.38	4.88	200	5.00	6.88	750
3	1.50	9.19	3.88	4.75	4.69	2.38	5.88	7.63	1200
31/2	1.50	10.75	4.50	5.50	6.00	2.38	6.19	8.38	1200
