Durable HIDEA Cargo Lashing Chains – G43, G70, G80, G100 Grades

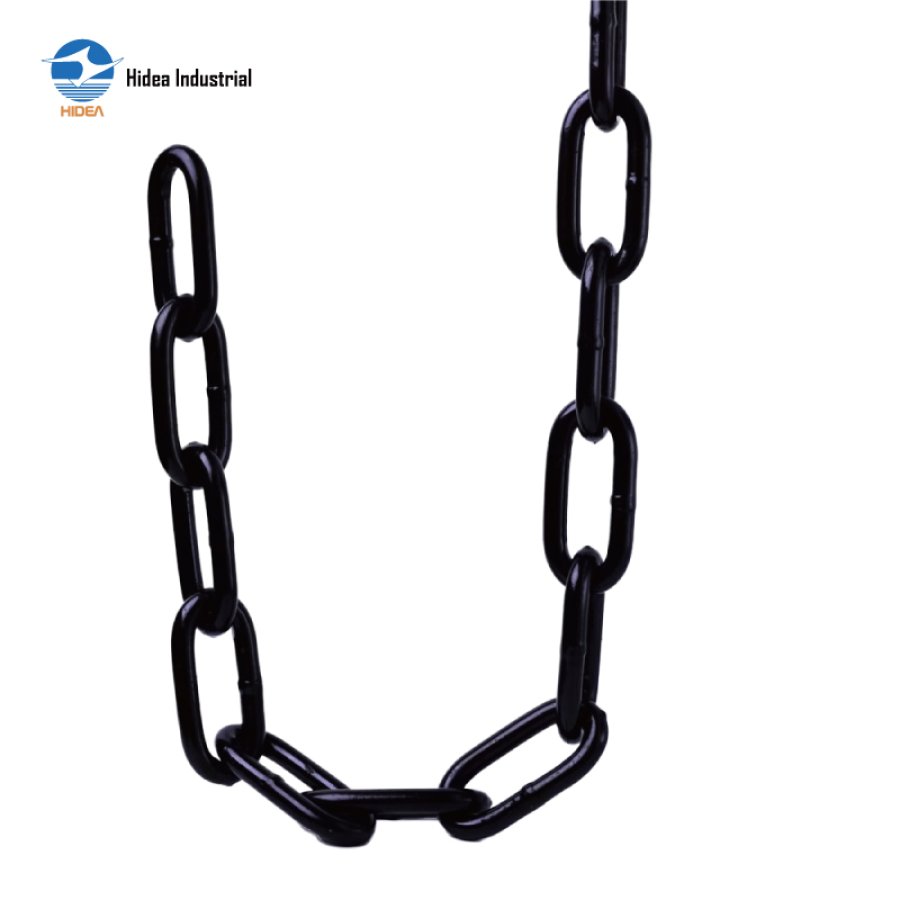

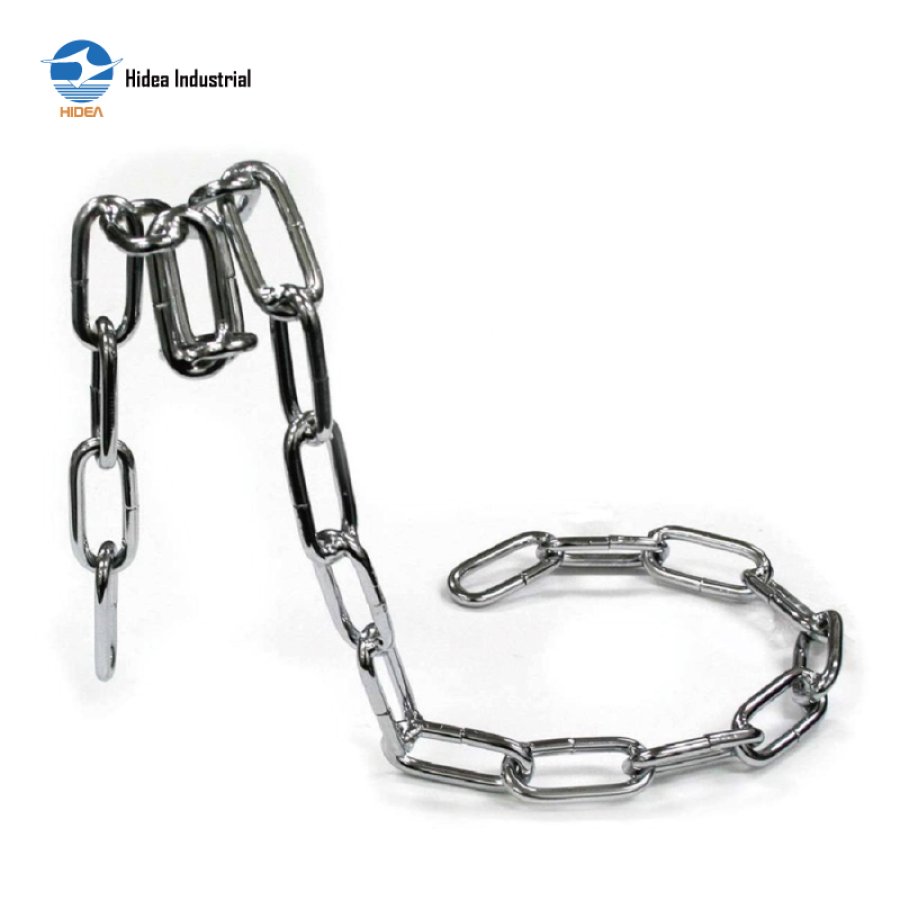

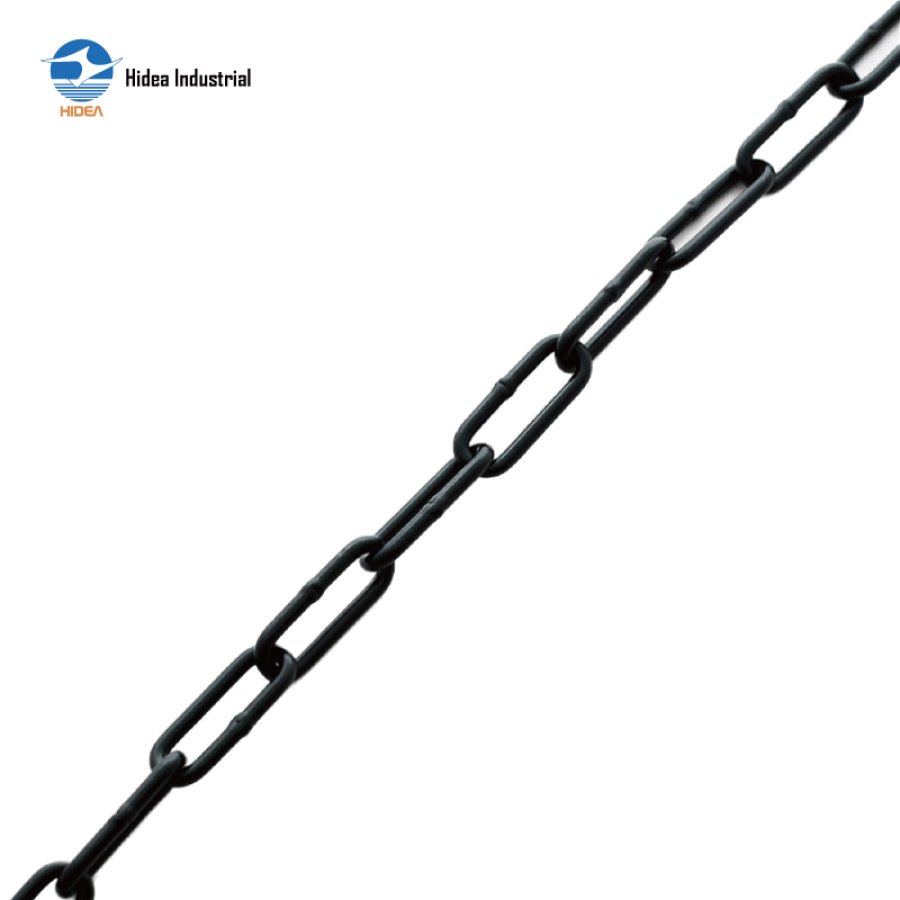

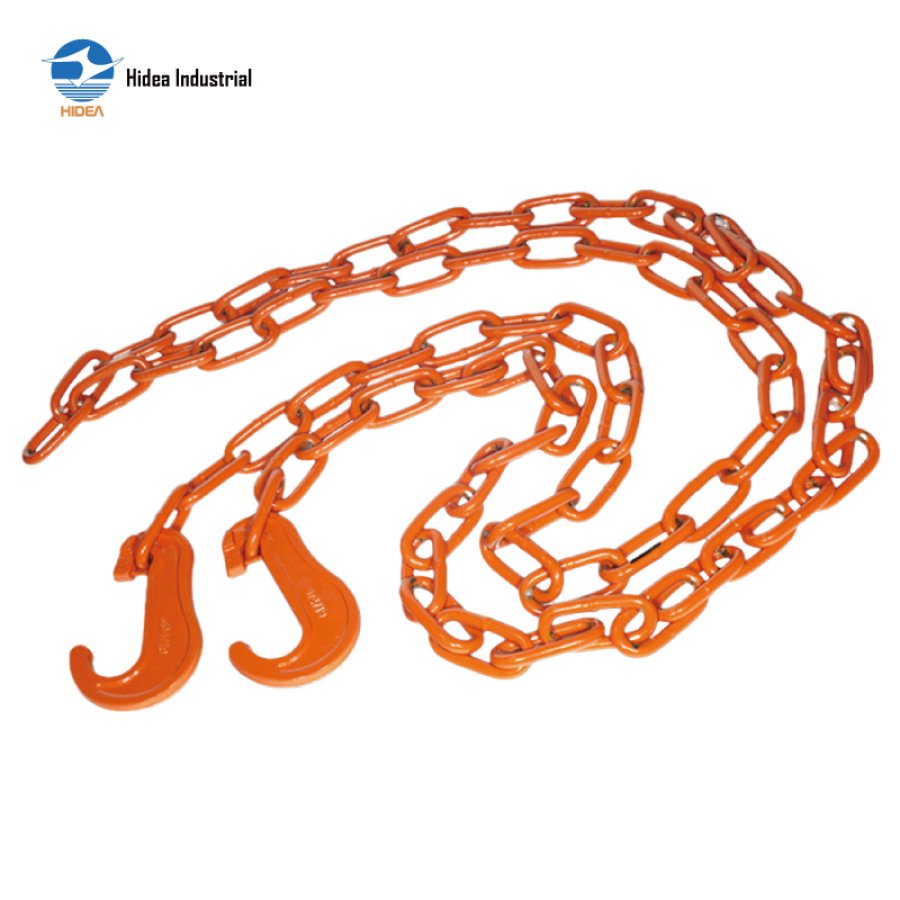

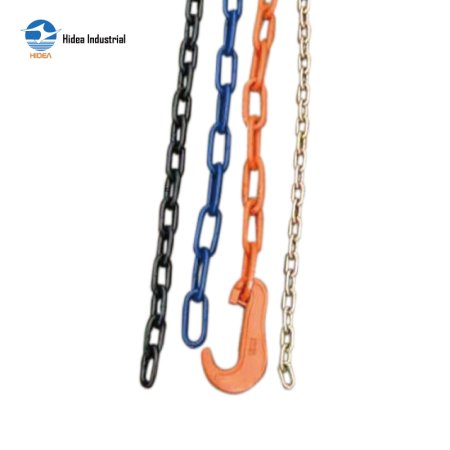

LASHING CHAIN

Material: High-Quality Alloy Steel
Surface treatment: Self-Color, Blackened, Painted, Powder Coated, Hot-Dip Or Electro Galvanized Etc.
Manufacture Standard: ISO, DIN, BS, JIS, ASTM Etc.
Quality Grade: G43, G70, G80, G100
Safety Factor: Min 4:1

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC110 Lashing Chain

Diameter	Pitch(L)	Min.Inside Width	Max.Outside Width	Min.Breaking Load	Weight
mm	mm	mm	mm	kn	kg/m
6	35	7.5	22	45.2	0.66
6.3	18.8	8.2	22.4	50	0.79
7	35	10	24	44	0.64
7	45	10	27	62	0.83
7.3	23.8	11.3	26.95	63	1.15
8	23.85	11.65	28.35	80.4	1.38
9	57	15	34	100	1.42
9	53	15	33	98	1.42
10	29.8	14	35	125	2.14
10	53	15	35	125	1.80
10	65	18	42	125	1.75
10	64	19.5	40	126	1.75
11	63	18	40	147	2.18
11	64	18	40	147	2.18
12	64	18	42	147	2.58
13	38	17.1	45	214	3.69
13	80	22	48	190	3.01
13	82	23.4	54.6	214	2.95
14	80	22	50	200	3.55
16	100	28.8	67.2	320	4.45
19	100	29.2	67.2	320	7.64
22	120	37	82	610	8.76
28	150	44	102	985	14.13
