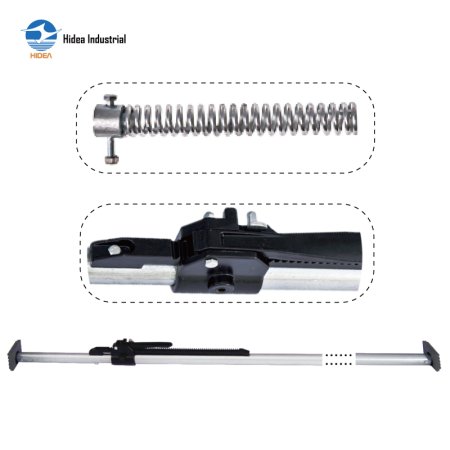

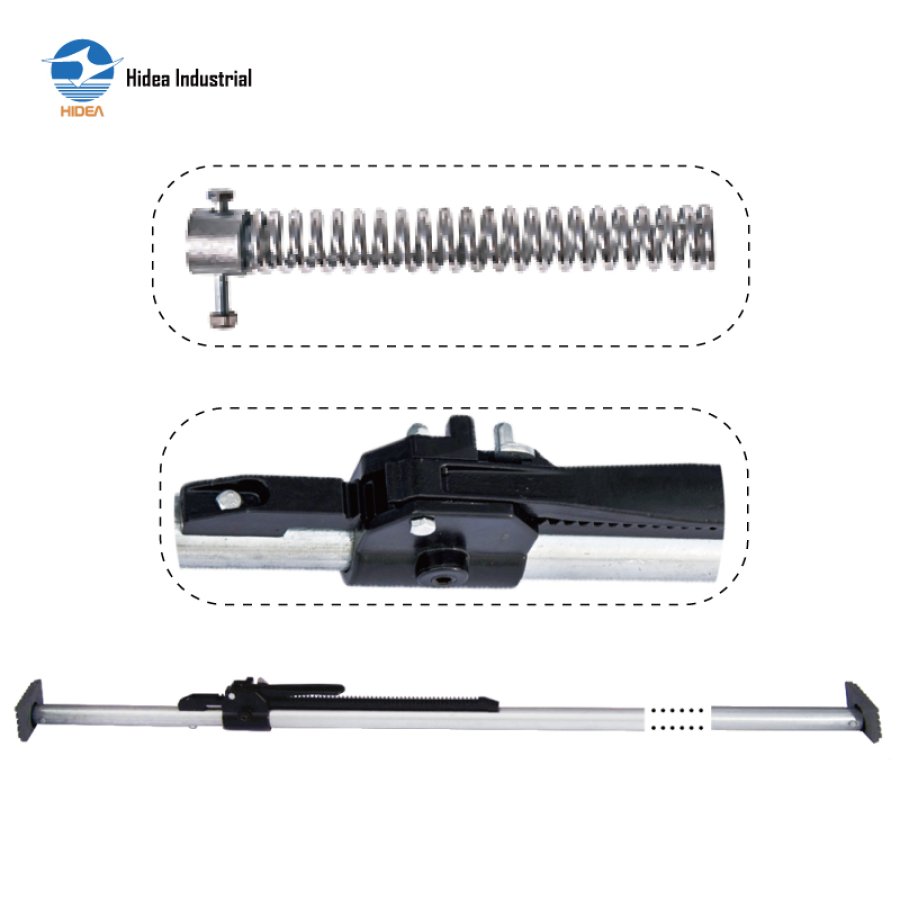

Steel tube cargo bar with spring, known as logistic load bar or load lock, but in particular it contains a compression spring for cushioning, braking, flexibility and providing buffering effects to prevent excessive impact under bumpy road conditions for safer transport

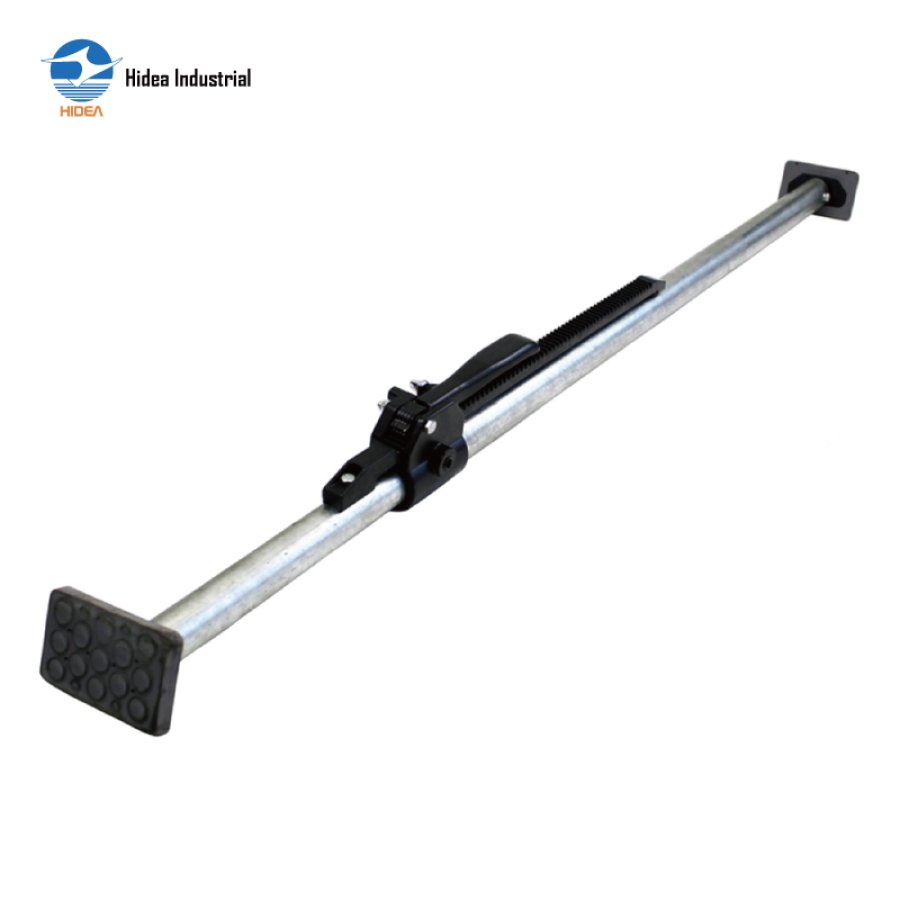

The Cargo Bar consists of adjustable high quality steel tubes either round or square cross section, designed to fit between the walls of trucks, trailers or containers and can be adjusted & extended to a certain length to create tension against the cargo for securing cargo during transit

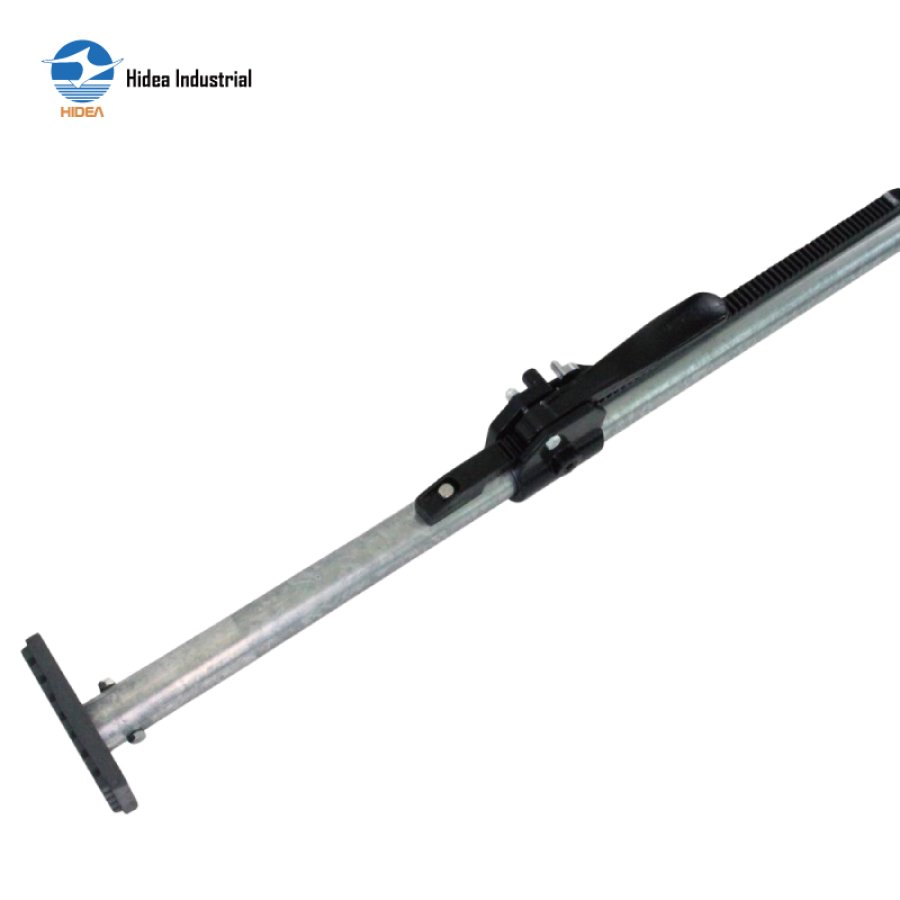

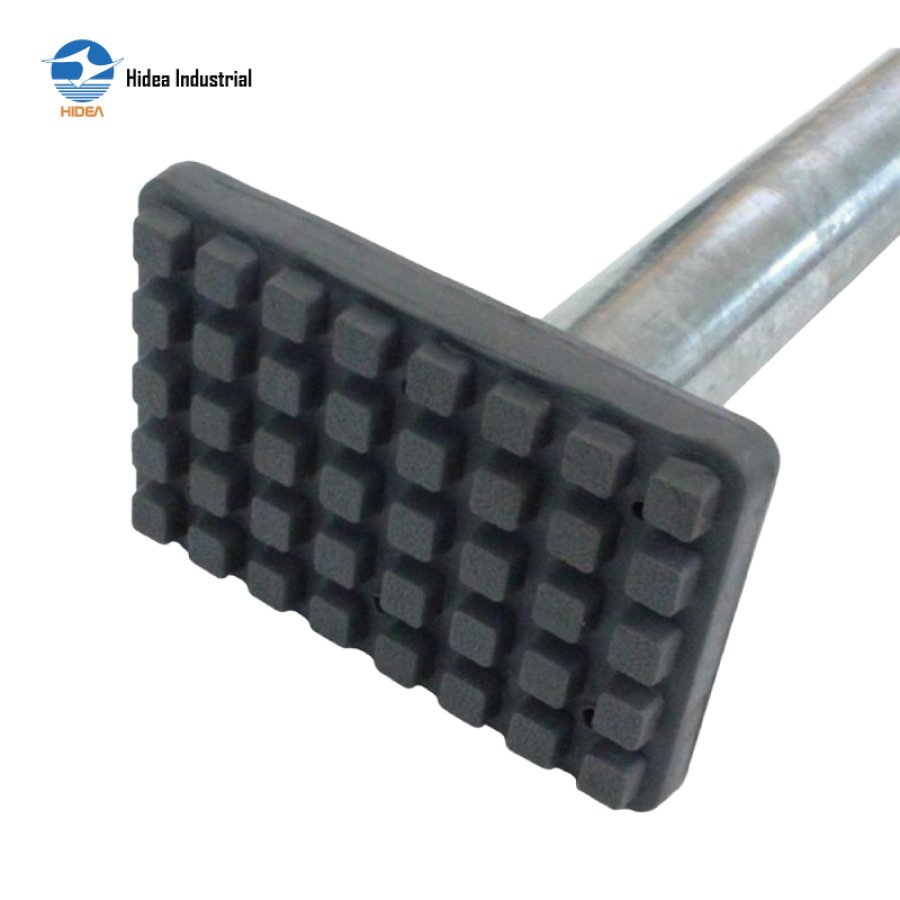

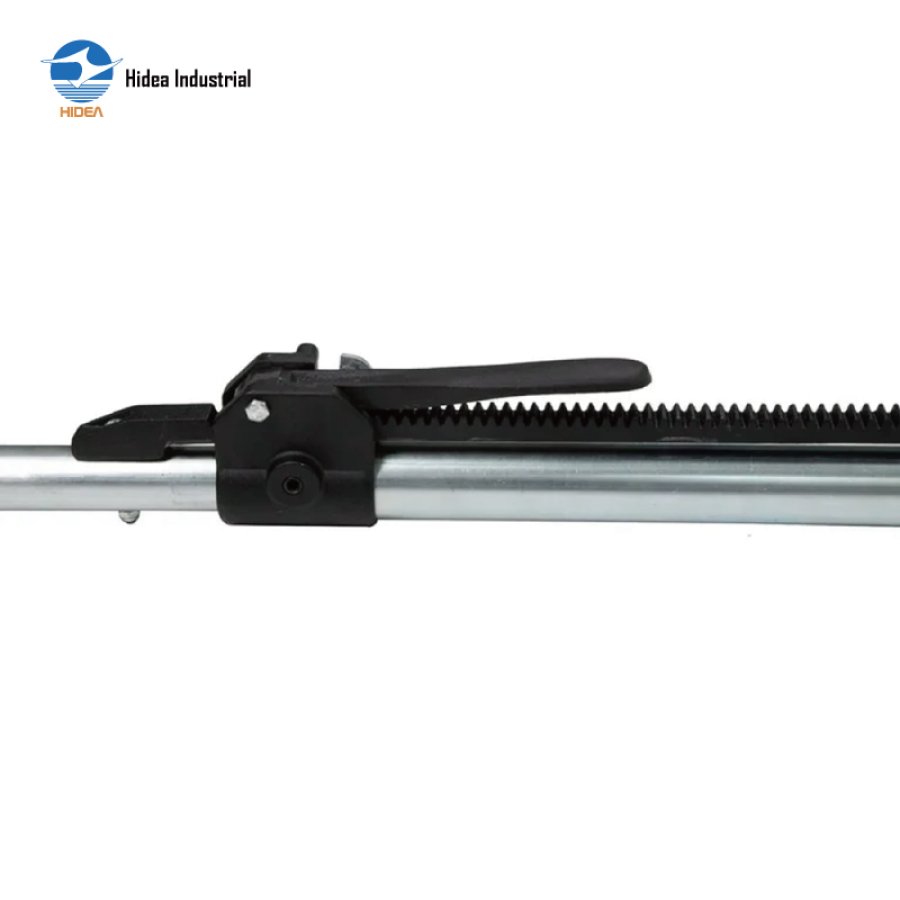

The cargo bar locking mechanism aims to keep the bar remaining in place with a wide range of adjustable lengths for securement of cargo, sturdy enough to secure the loads; While the rubber pads at both ends make the bars to support more firmly
Steel tube cargo bars with springs can also be customized in various sizes and weight capacities to accommodate different types of cargo and vehicles as OEM orders
Steel tube cargo bars with spring meeting & rules of FMCSA Cargo Securement Rules, DOT, and European Cargo Securing for Road Transport

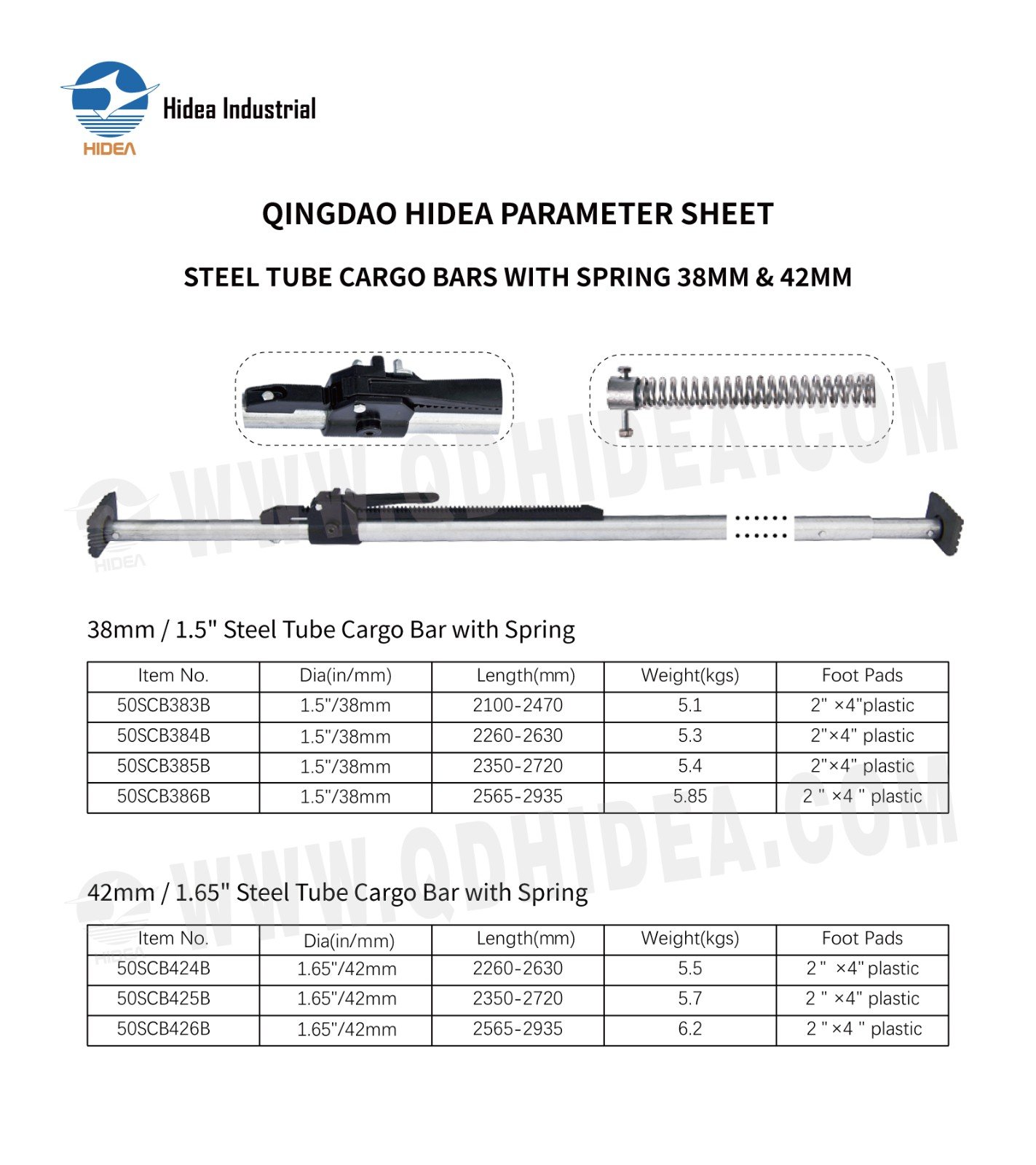

QINGDAO HIDEA PARAMETER SHEET FOR
STEEL TUBE CARGO BARS WITH SPRING 38MM&42MM
38mm/1.5"Steel Tube Cargo Bar with Spring
| Item No. | Dia(in/mm) | Length(mm) | Weight(kgs) | Foot Pads |
| 50SCB383B | 1.5"/38mm | 2100-2470 | 5.1 | 2"×4"plastic |
| 50SCB384B | 1.5"/38mm | 2260-2630 | 5.3 | 2"×4"plastic |
| 50SCB385B | 1.5"/38mm | 2350-2720 | 5.4 | 2"×4"plastic |
| 50SCB386B | 1.5"/38mm | 2565-2935 | 5.85 | 2"×4"plastic |
42mm/1.65"Steel Tube Cargo Bar with Spring
| ltem No. | Dia(in/mm) | Length(mm) | Weight(kgs) | Foot Pads |
| 50SCB424B | 1.65"/42mm | 2260-2630 | 5.5 | 2"×4"plastic |
| 50SCB425B | 1.65"/42mm | 2350-2720 | 5.7 | 2"×4"plastic |
| 50SCB426B | 1.65"/42mm | 2565-2935 | 6.2 | 2"×4"plastic |
