Hidea G80 Special H-Link Twin Clevis for Safe, Efficient, and High-Strength Rigging

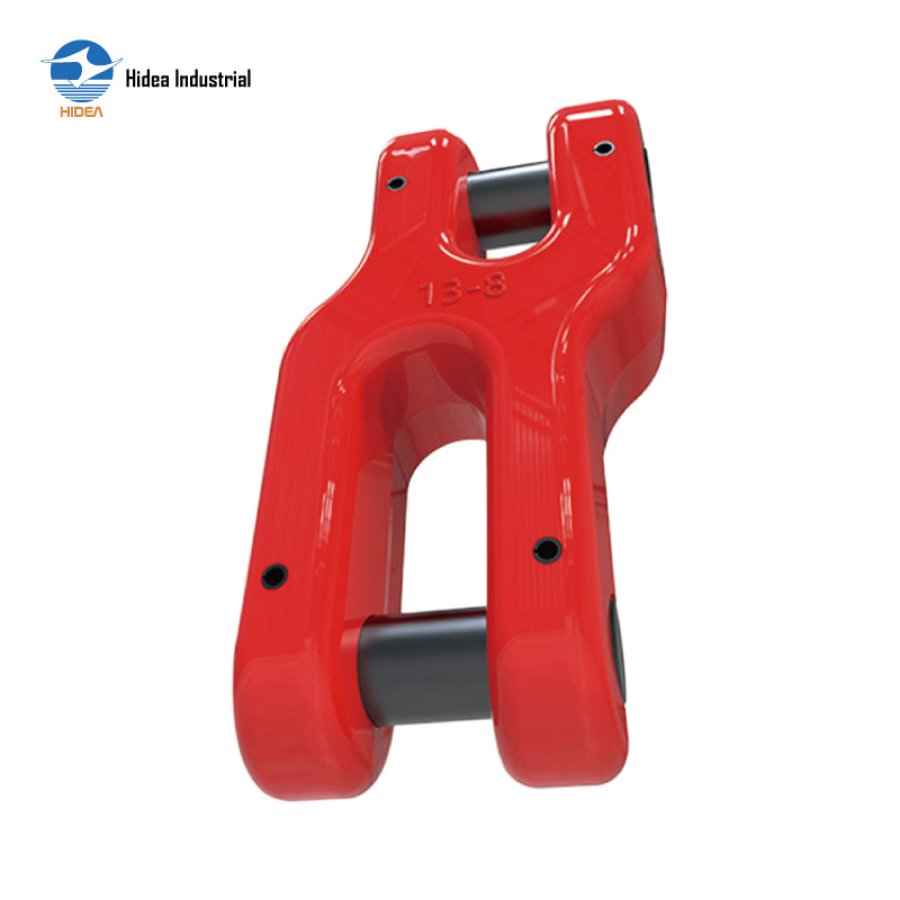

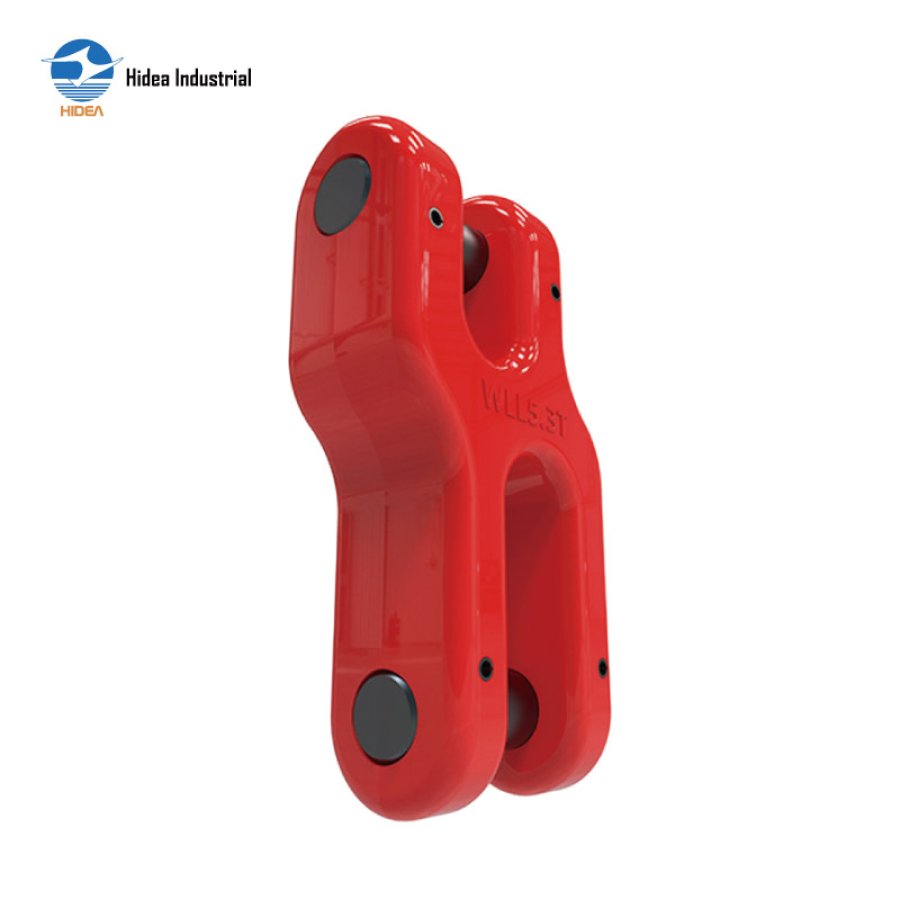

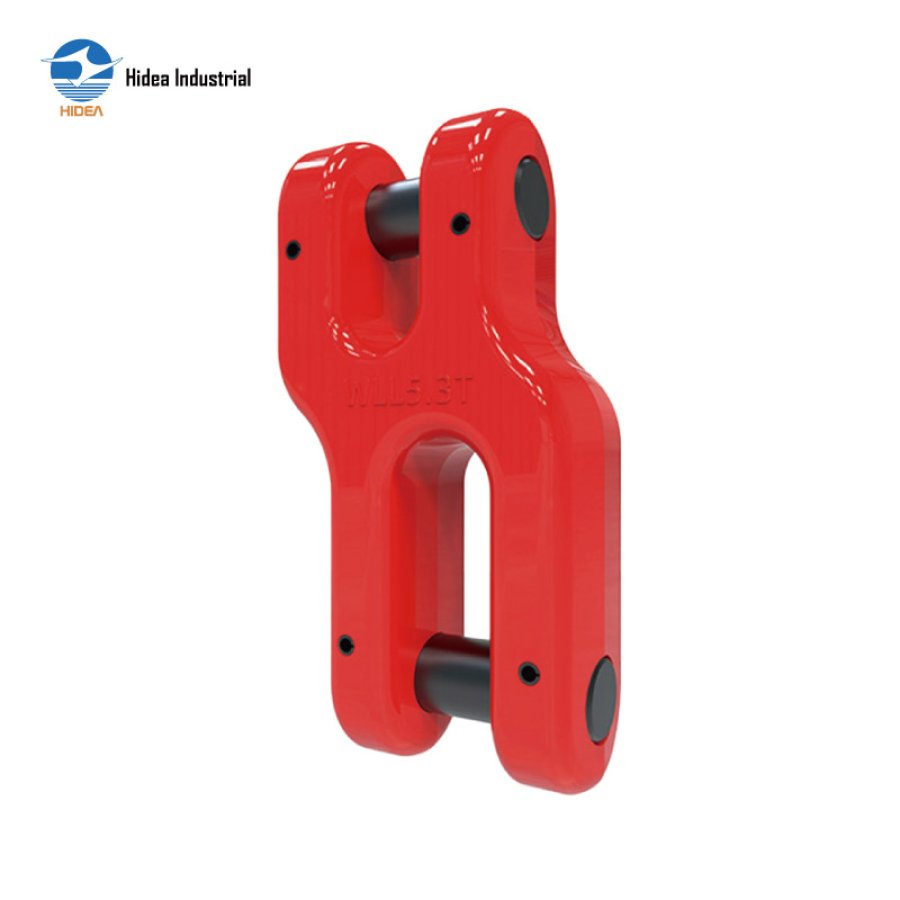

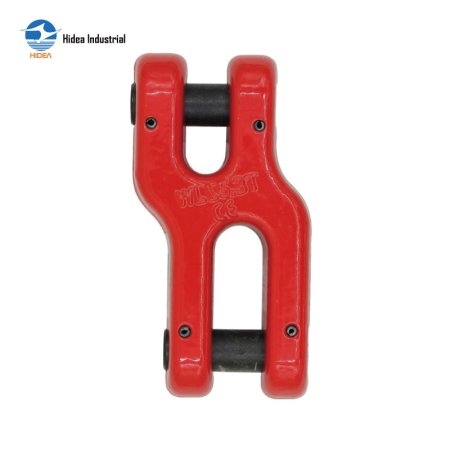

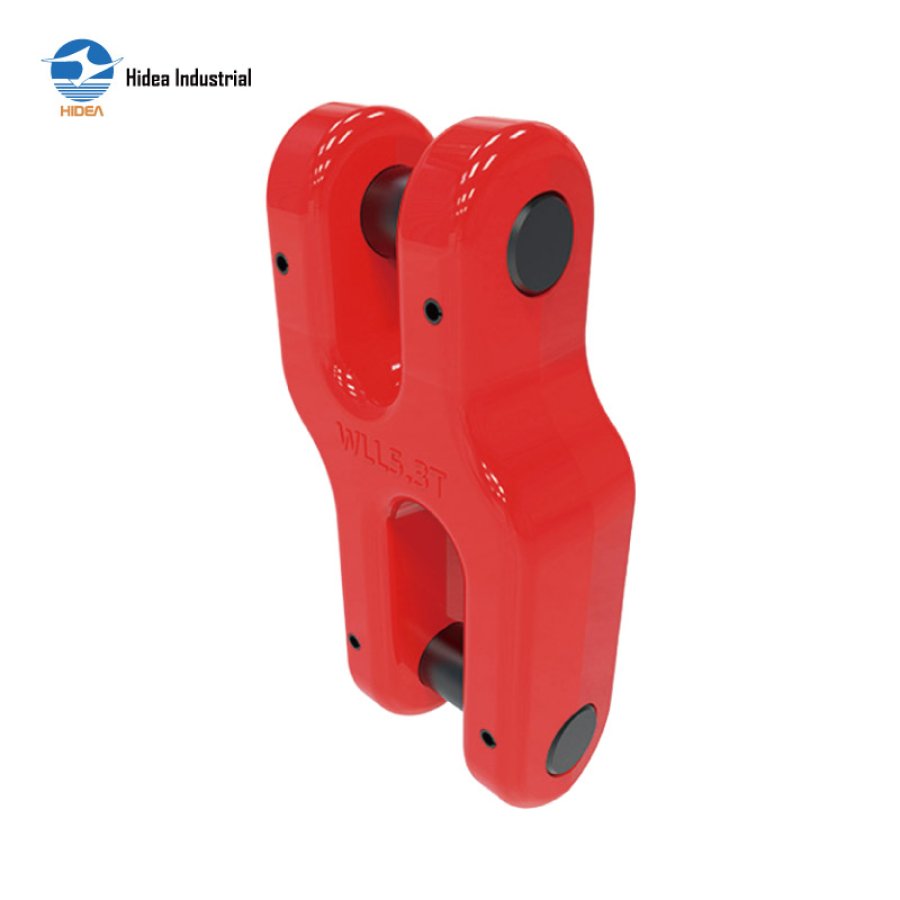

G80 DOUBLE CLEVIS CHAIN LINK SPECIAL H-LINK

Made of super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

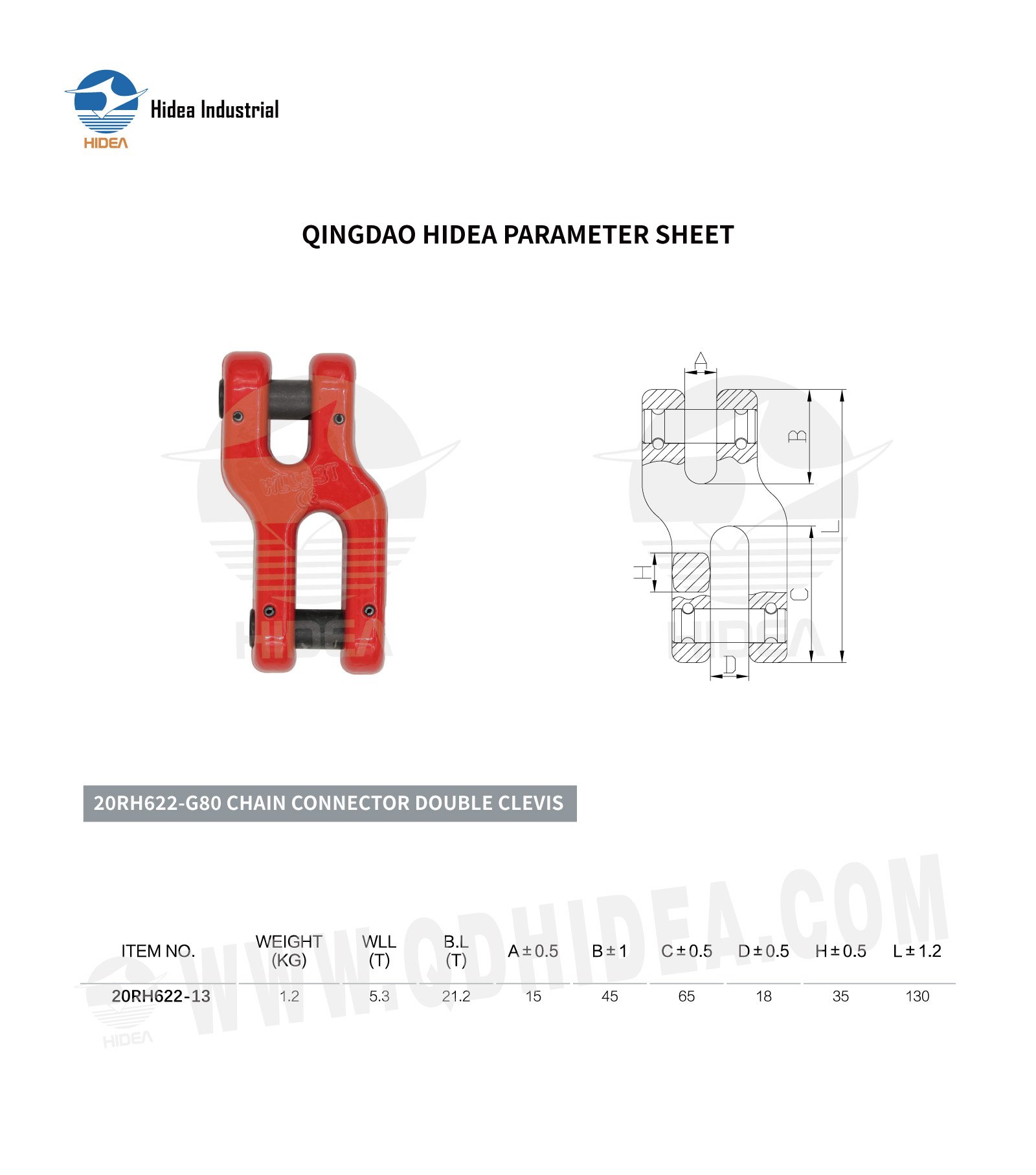

QINGDAO HIDEA PARAMETER SHEET FOR

20RH622-G80 CHAIN CONNECTOR DOUBLE CLEVIS

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±0.5	B±1	C±0.5	D±0.5	H±0.5	L±1.2
20RH622-13	1.2	5.3	21.2	15	45	65	18	35	130
