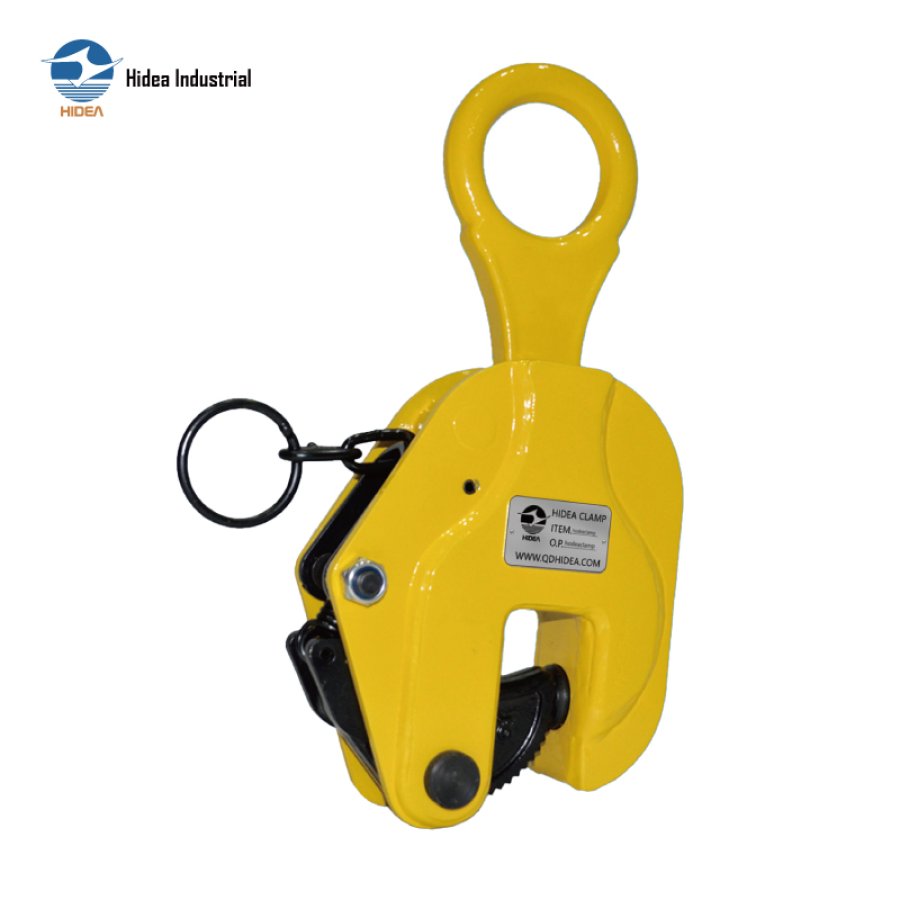

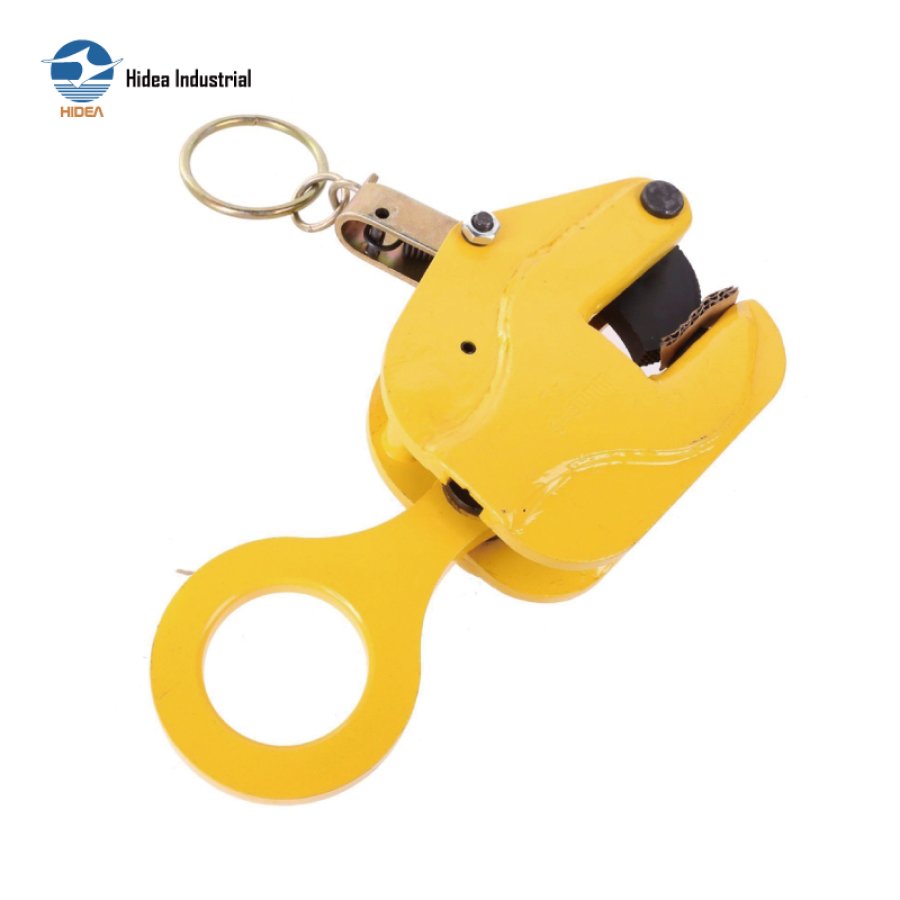

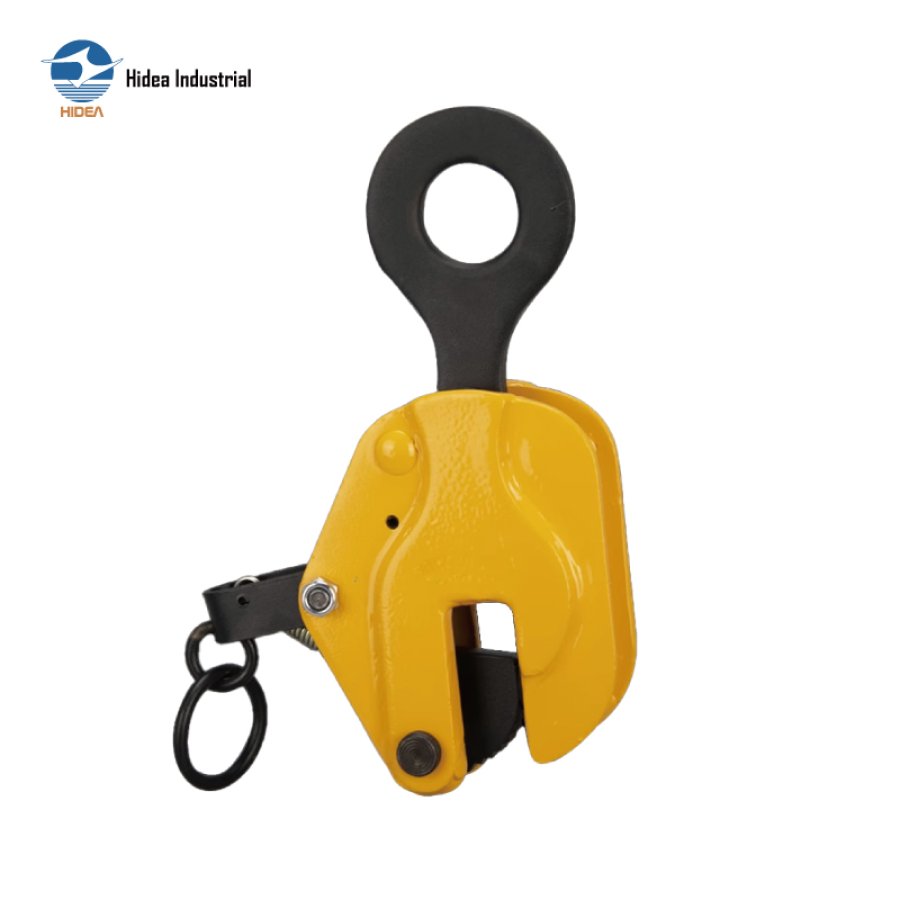

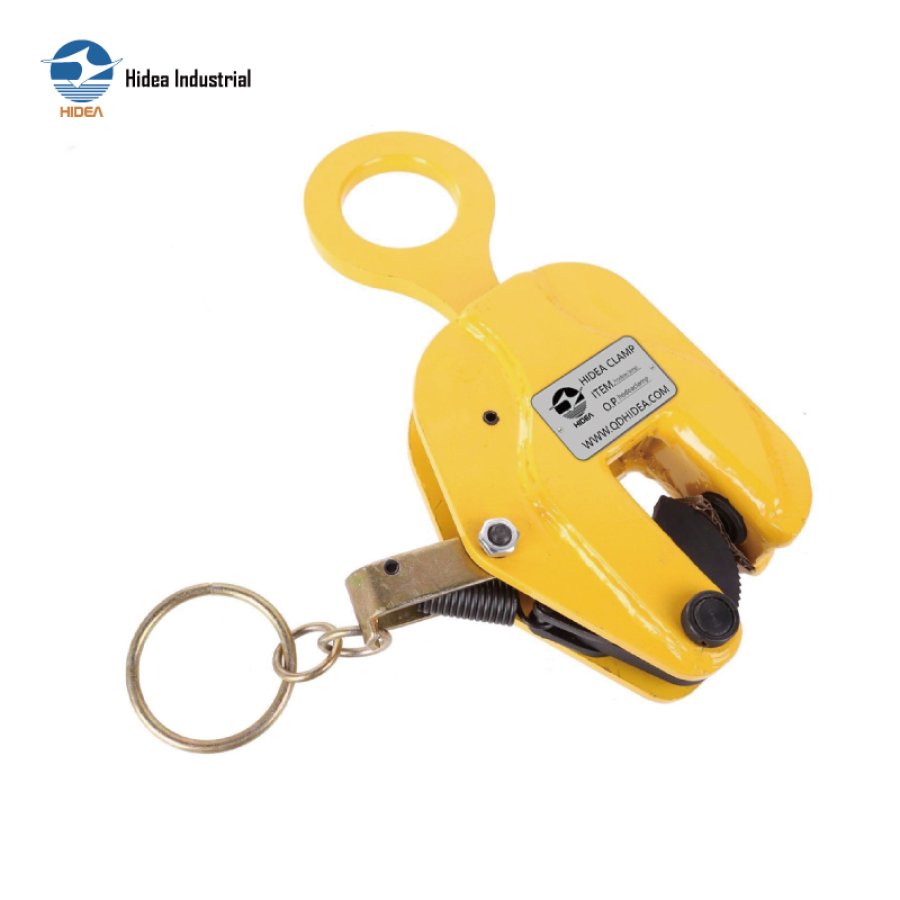

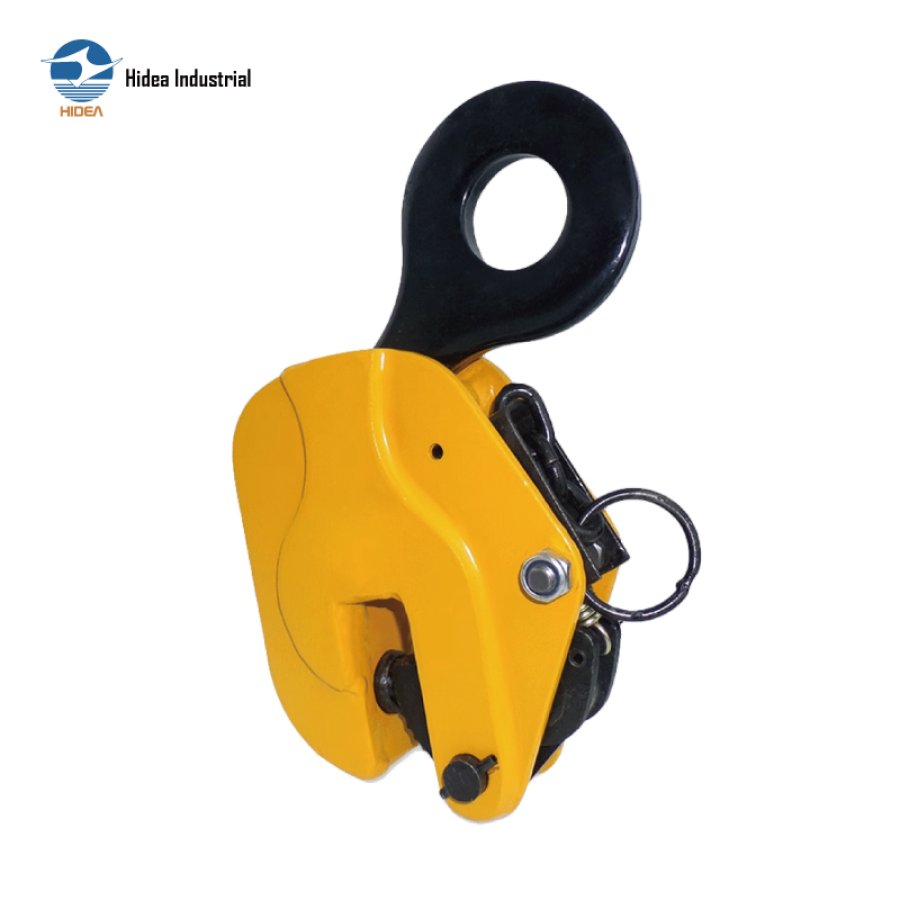

The CDH type vertical plate lifting clamps are designed for vertical lifting and transporting of steel plates and structures
The CDH Type vertical lifting clamps are manufactured from high quality die-forged special alloy steels with High-frequency quenching and with a spring-loaded tightening lock mechanism to assures a positive initial clamping force; for heavy duty lifting with working load from 0.8T up to 30T
The CDH Type vertical clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load released; the clamp is locked in closed as well as in open position
The CD Type vertical clamps meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20

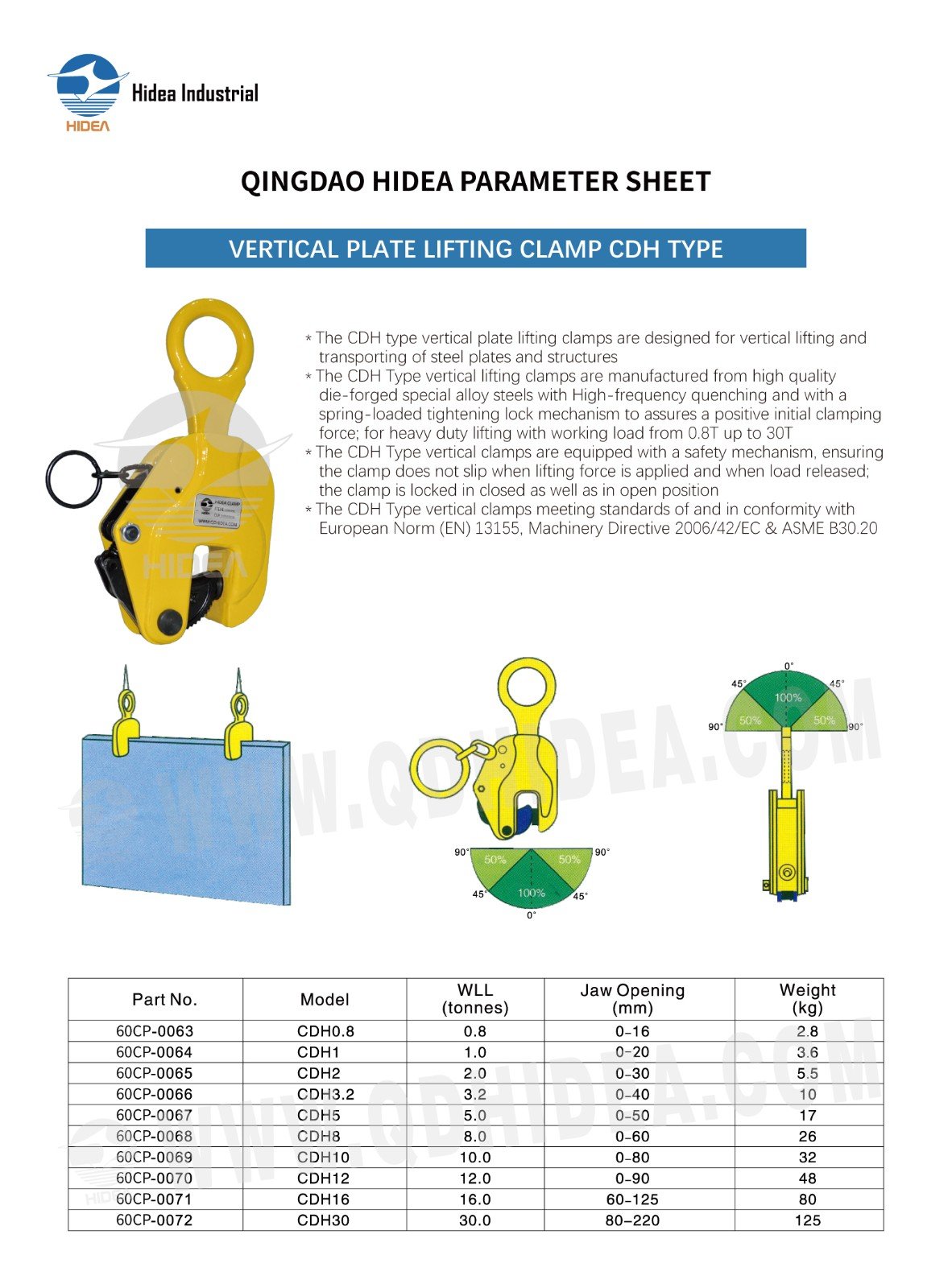

QINGDAO HIDEA PARAMETER SHEET FOR
VERTICAL PLATE LIFTING CLAMP CDH TYPE
| Part No. | Model | WLL (tonnes) | Jaw Opening (mm) | Weight (kg) | |||||
| 60CP-0063 | CDH0.8 | 0.8 | 0-16 | 2.8 | |||||
| 60CP-0064 | CDH1 | 1.0 | 0-20 | 3.6 | |||||
| 60CP-0065 | CDH2 | 2.0 | 0-30 | 5.5 | |||||
| 60CP-0066 | CDH3.2 | 3.2 | 0-40 | 10 | |||||
| 60CP-0067 | CDH5 | 5.0 | 0-50 | 17 | |||||
| 60CP-0068 | CDH8 | 8.0 | 0-60 | 26 | |||||
| 60CP-0069 | CDH10 | 10.0 | 0-80 | 32 | |||||
| 60CP-0070 | CDH12 | 12.0 | 0-90 | 48 | |||||
| 60CP-0071 | CDH16 | 16.0 | 60-125 | 80 | |||||
| 60CP-0072 | CDH30 | 30.0 | 80-220 | 125 | |||||
