Hidea G80 Ratchet Load Binder with Wing Grab Hooks: Strong and Reliable Load Securing

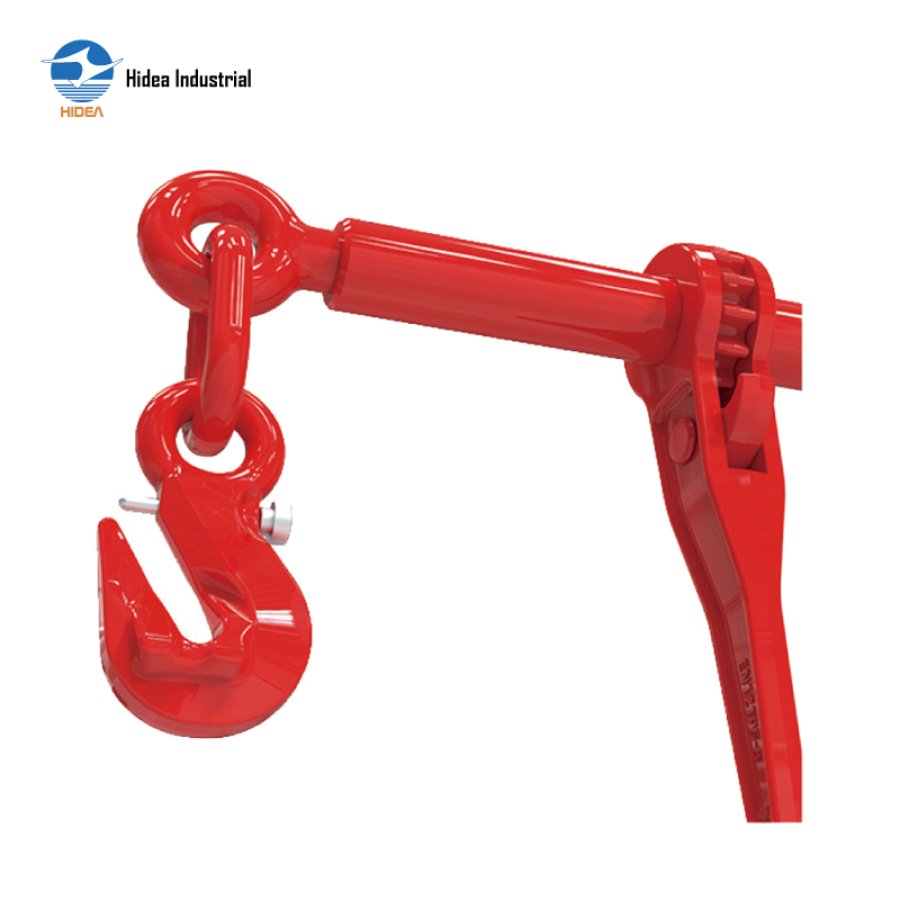

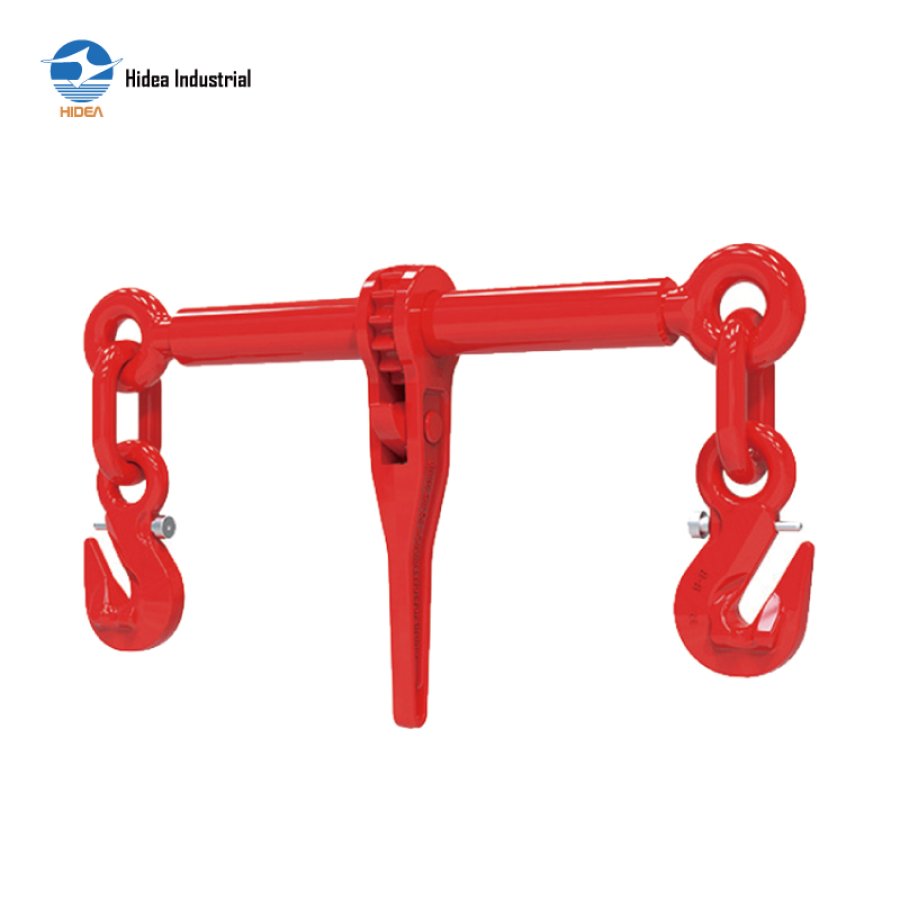

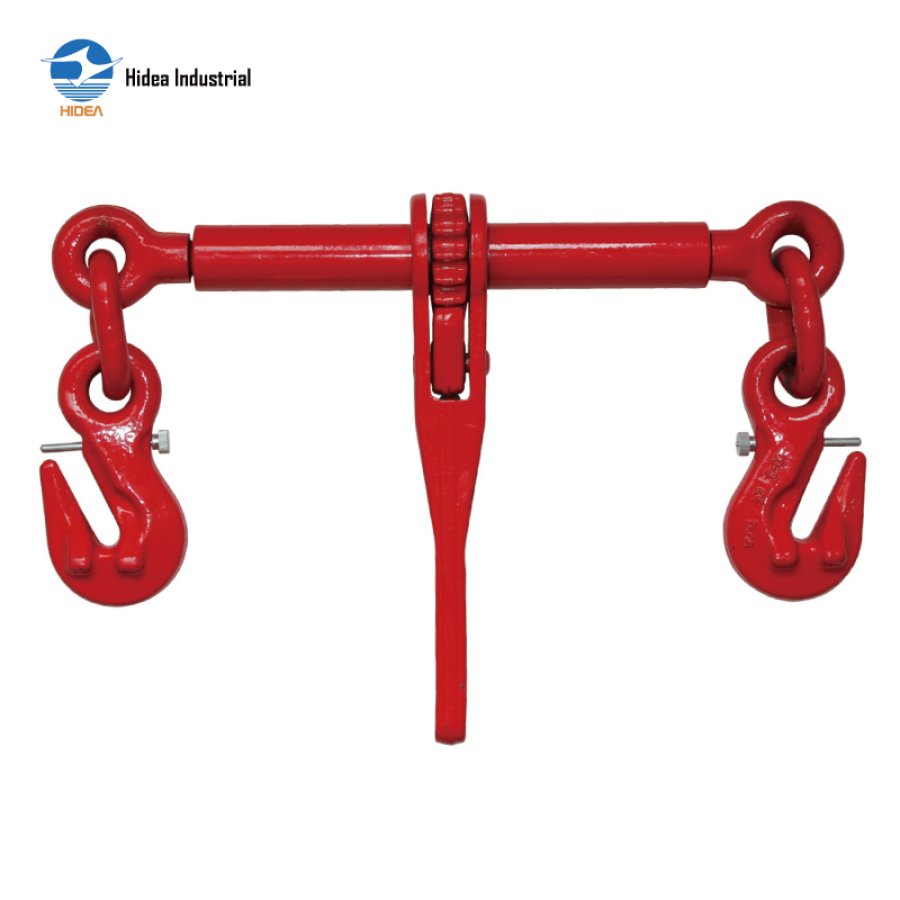

G80 RATCHET BINDER WITH HOOKS

According to EN12195-3 standard
Forged handle
Suitable for G80 chain
With G80 eye grab hook with safety pin
Not for lifting, only for lashing
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

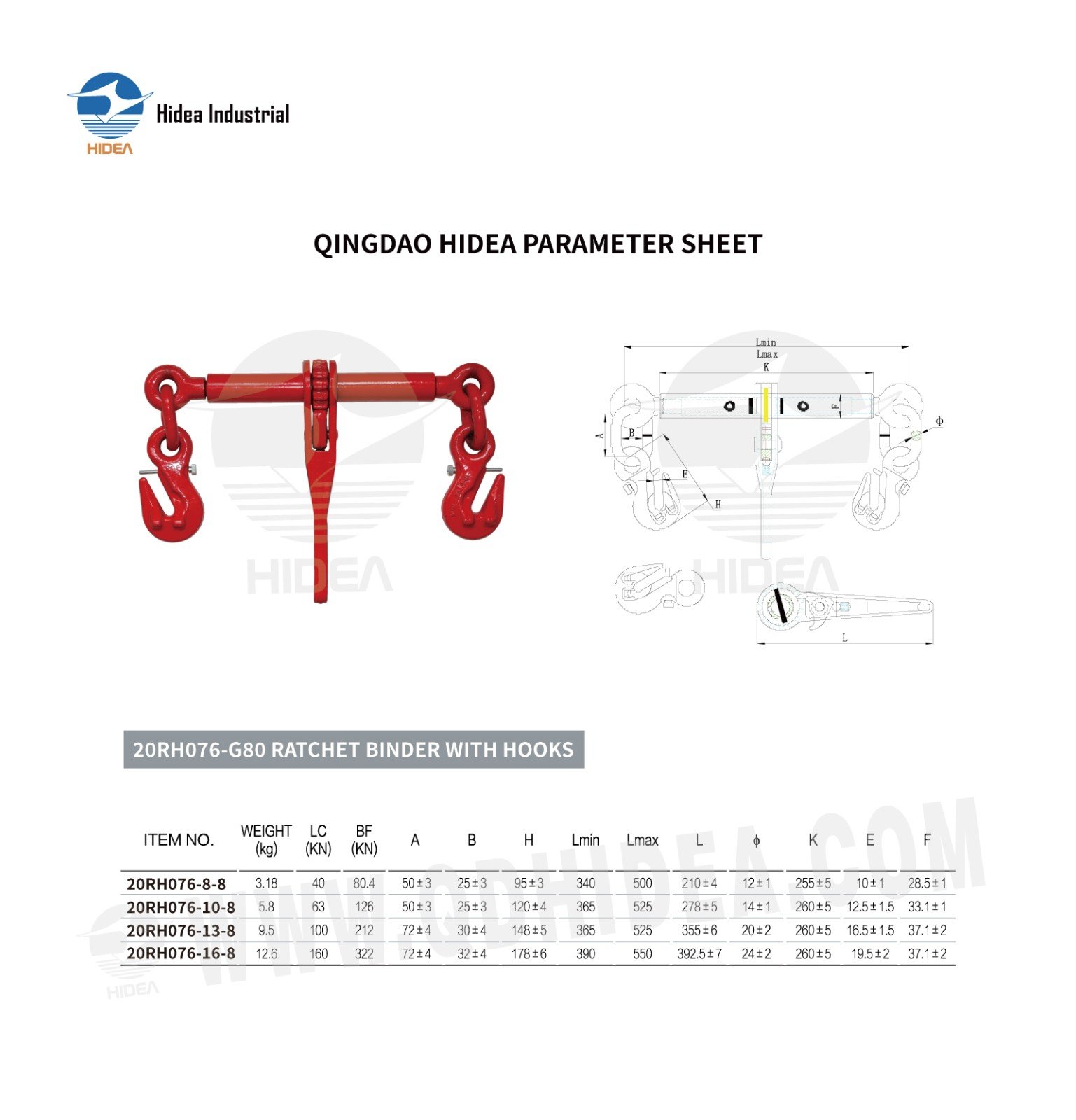

QINGDAO HIDEA PARAMETER SHEET FOR

20RH076-G80 RATCHET BINDER WITH HOOKS

ITEM NO.

WEIGHT (kg)

LC (KN)

BF (KN)

A

B

H

Lmin

Lmax

L

Ф

K

E

F

20RH076-8-8

3.18

40

80.4

50±3

25±3

95±3

340

500

210±4

12±1

255±5

10±1

28.5±1

20RH076-10-8

5.8

63

126

50±3

25±3

120±4

365

525

278±5

14±1

260±5

12.5±1.5

33.1±1

20RH076-13-8

9.5

100

212

72±4

30±4

148±5

365

525

355±6

20±2

260±5

16.5±1.5

37.1±2

20RH076-16-8

12.6

160

322

72±4

32±4

178±6

390

550

392.5±7

24±2

260±5

19.5±2

37.1±2
