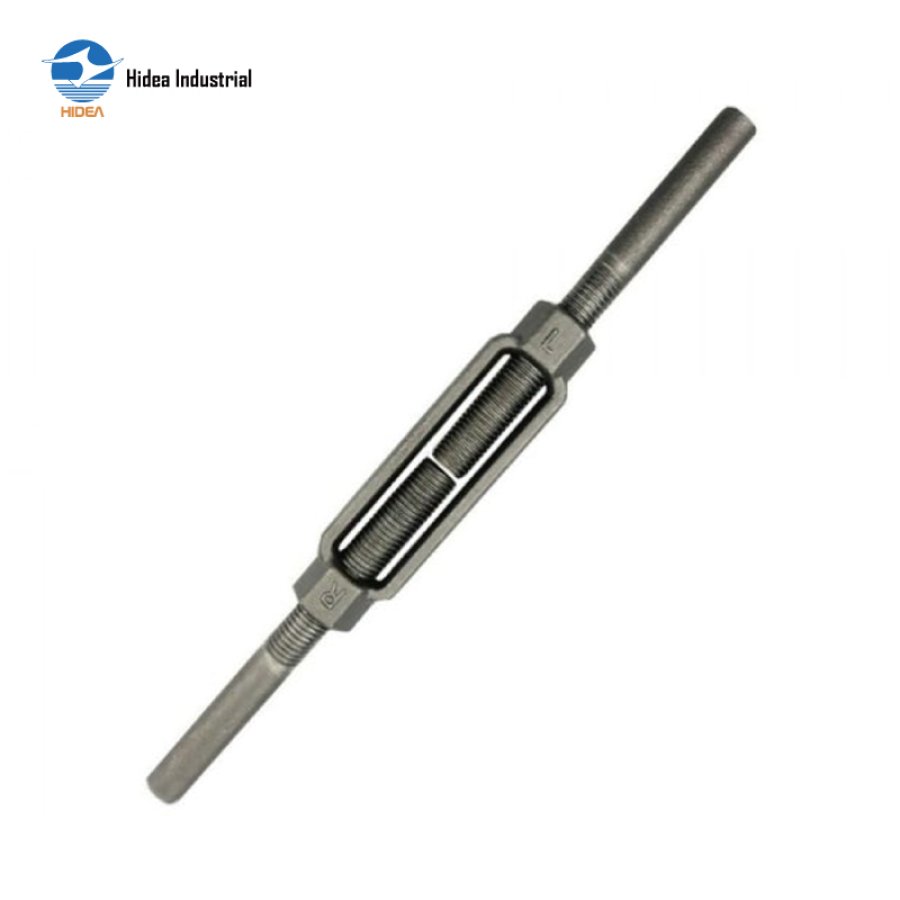

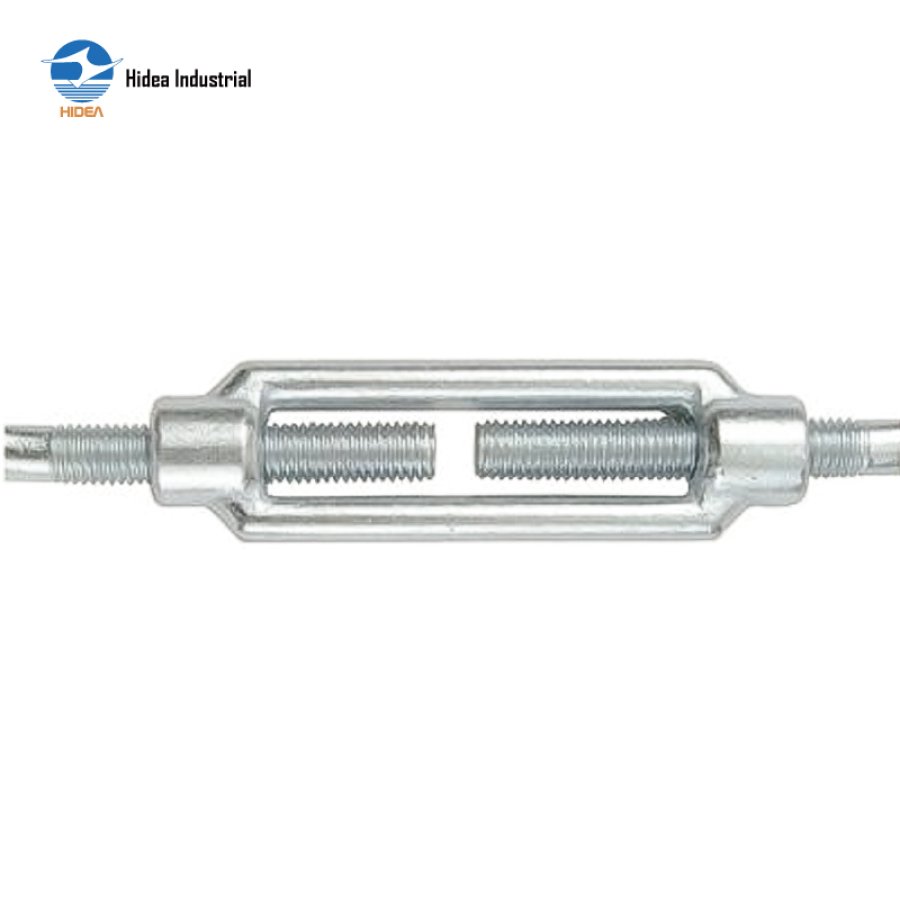

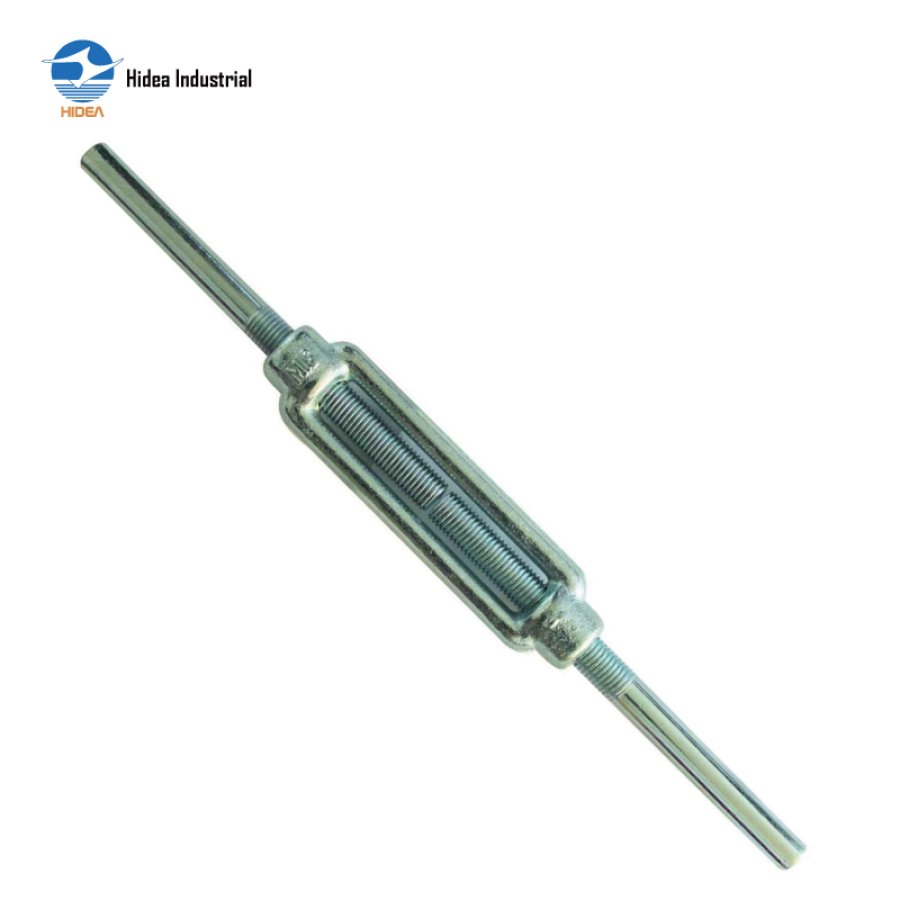

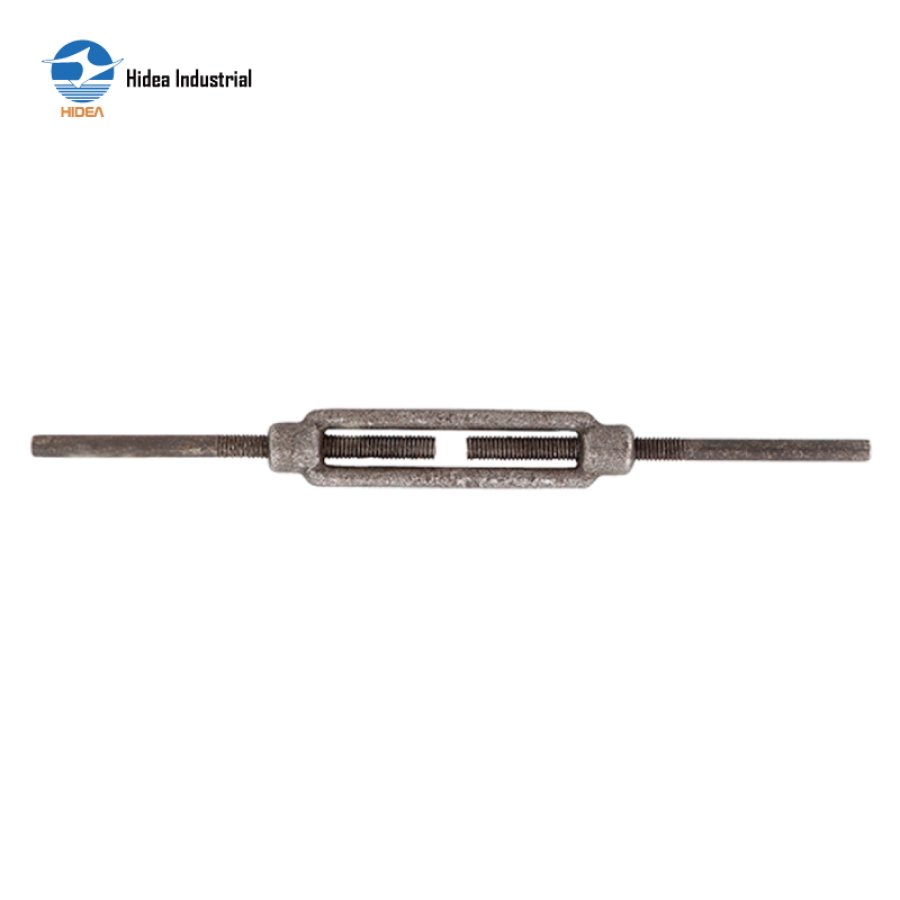

Hidea DIN1480 Galvanized Stub End Turnbuckle – Robust Tensioning for Heavy-Duty Applications

DIN1480 TURNBUCKLES WITH STUB ENDS

Material: High tensile carbon steel
Forged, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1480 stub ends open body type turnbuckles

Inquire Now

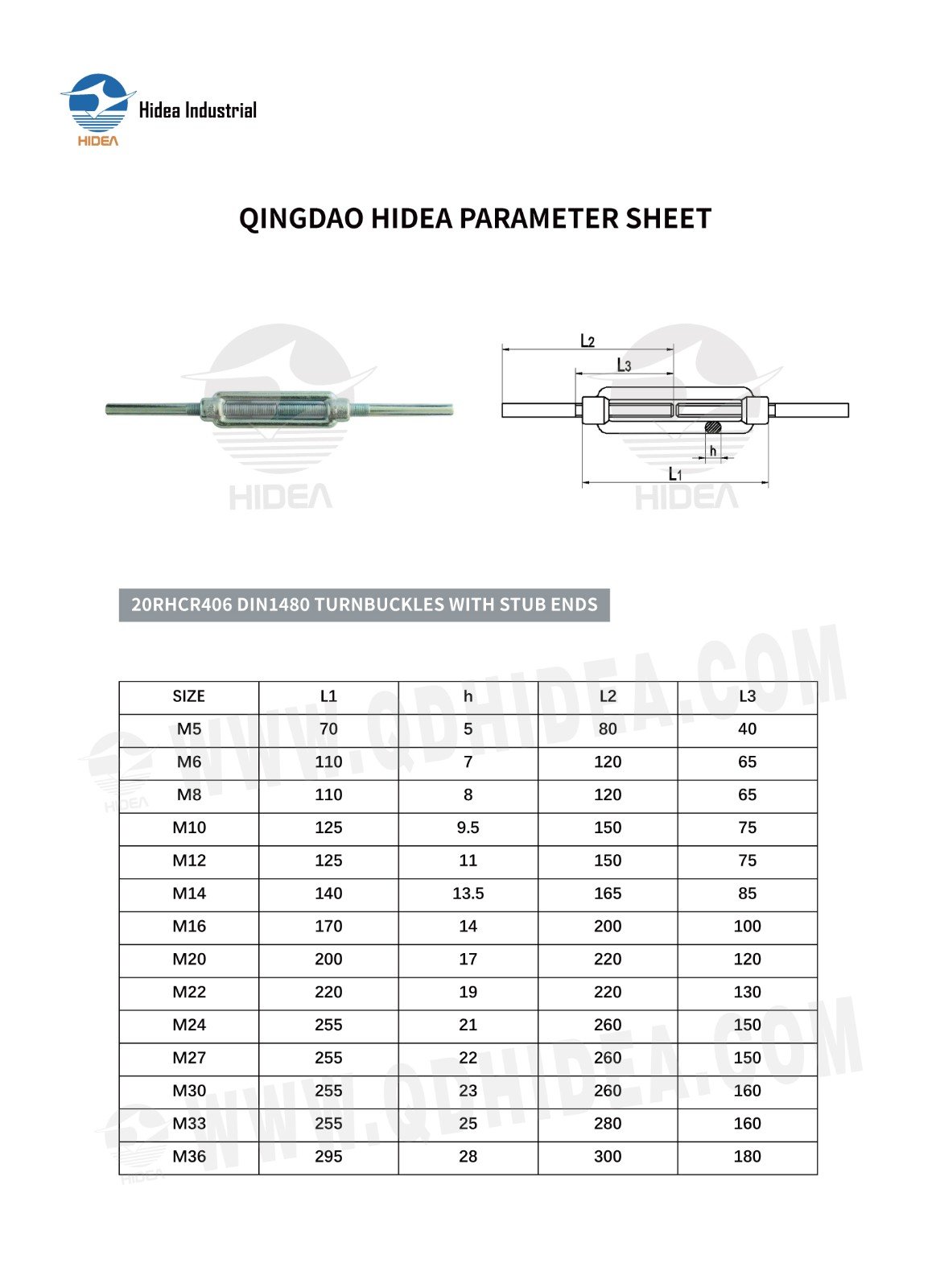

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR406 DIN1480 TURNBUCKLES WITH STUB ENDS

SIZE	L1	h	L2	L3
M5	70	5	80	40
M6	110	7	120	65
M8	110	8	120	65
M10	125	9.5	150	75
M12	125	11	150	75
M14	140	13.5	165	85
M16	170	14	200	100
M20	200	17	220	120
M22	220	19	220	130
M24	255	21	260	150
M27	255	22	260	150
M30	255	23	260	160
M33	255	25	280	160
M36	295	28	300	180
