Premium HIDEA Long Shank Dynamo Eyebolt – Forged, Quenched, and Tempered for Durability

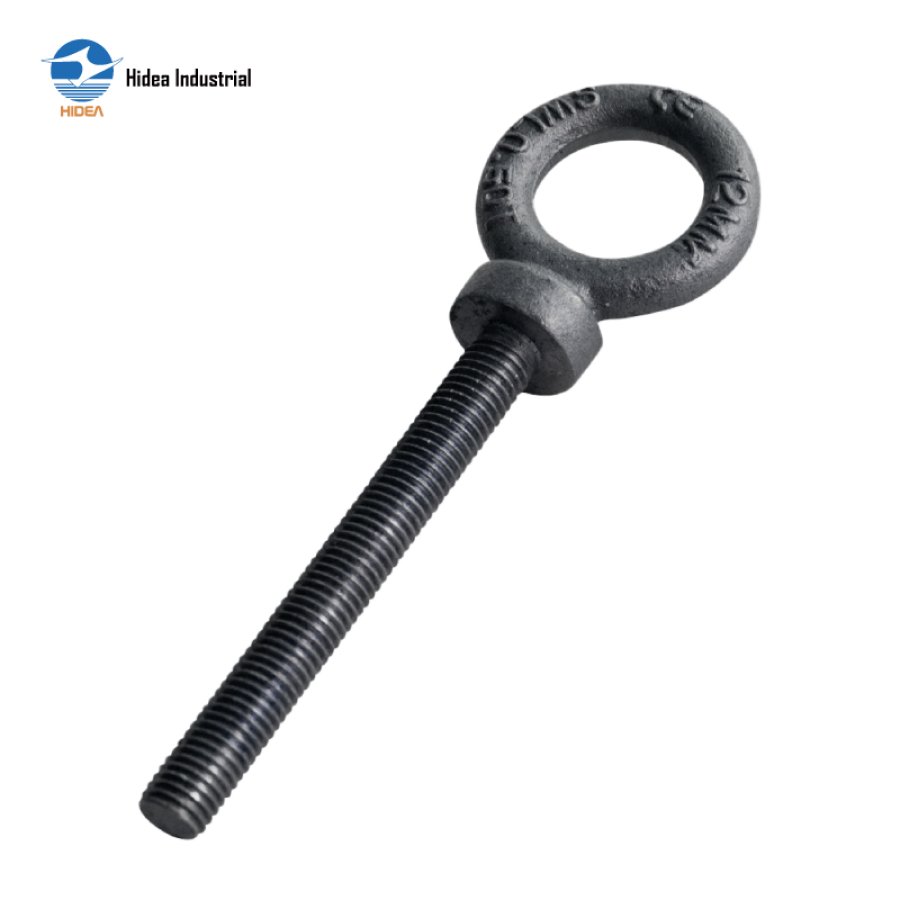

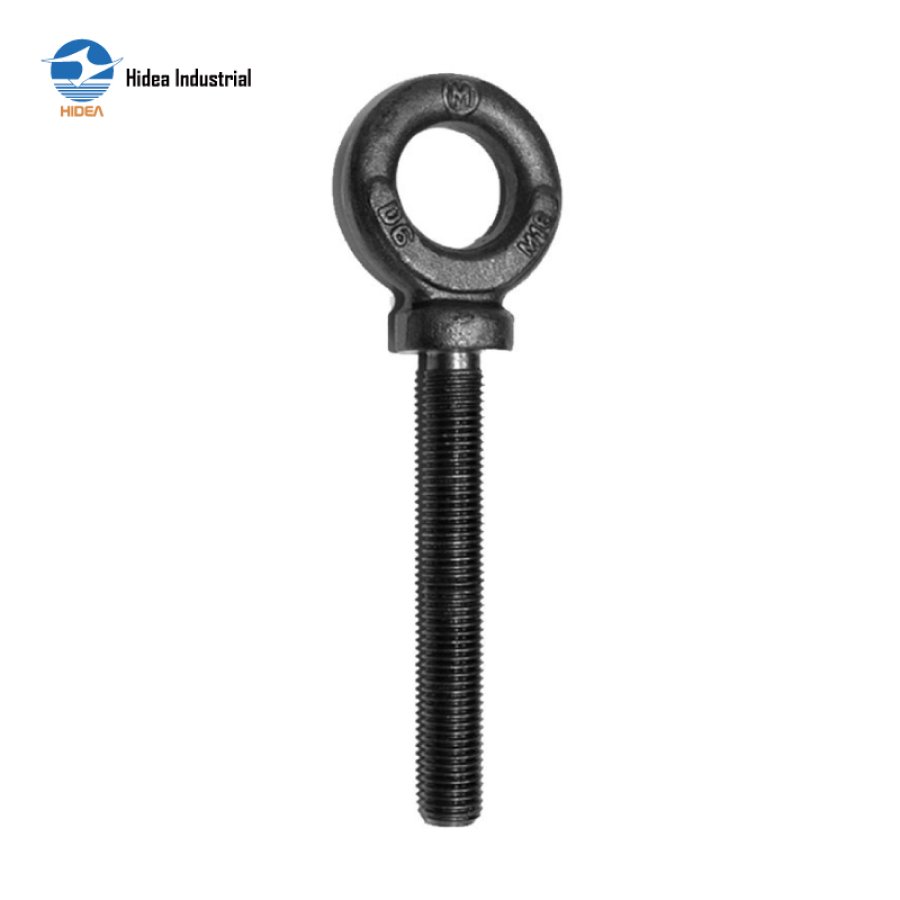

LONG SHANK METRIC DYNAMO EYEBOLT

High tensile carbon steel
Forged, quenched & tempered
Proof tested & certificate available
Surface self-colored, Electro Galv. / zinc plated OR as requested
Dynamo Eyebolts to BS4278-3 Long Shank

Inquire Now

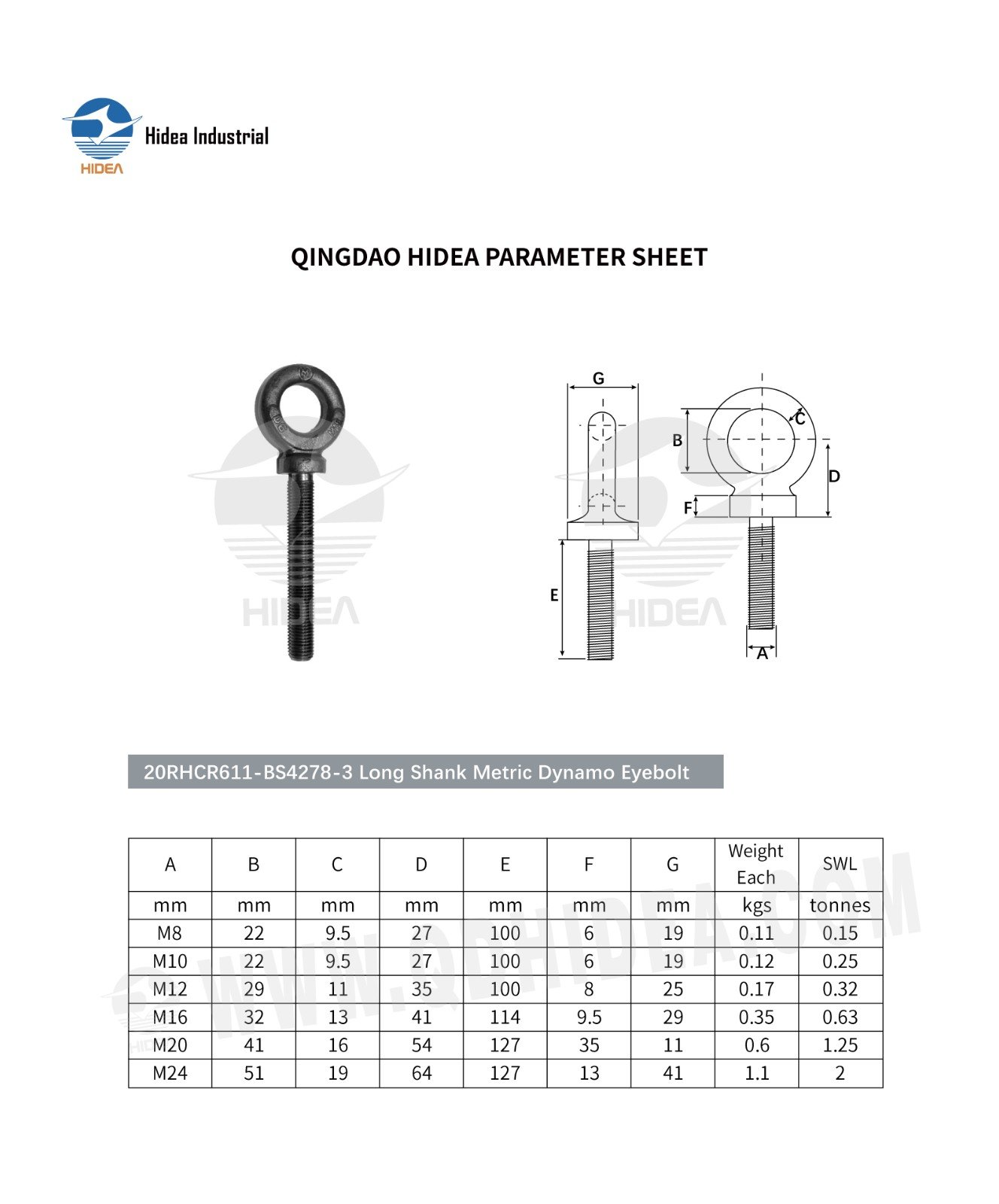

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR611-BS4278-3 Long Shank Metric Dynamo Eyebolt

A	B	C	D	E	F	G	Weight Each	SWL
mm	mm	mm	mm	mm	mm	mm	kgs	tonnes
M8	22	9.5	27	100	6	19	0.11	0.15
M10	22	9.5	27	100	6	19	0.12	0.25
M12	29	11	35	100	8	25	0.17	0.32
M16	32	13	41	114	9.5	29	0.35	0.63
M20	41	16	54	127	35	11	0.6	1.25
M24	51	19	64	127	13	41	1.1	2
