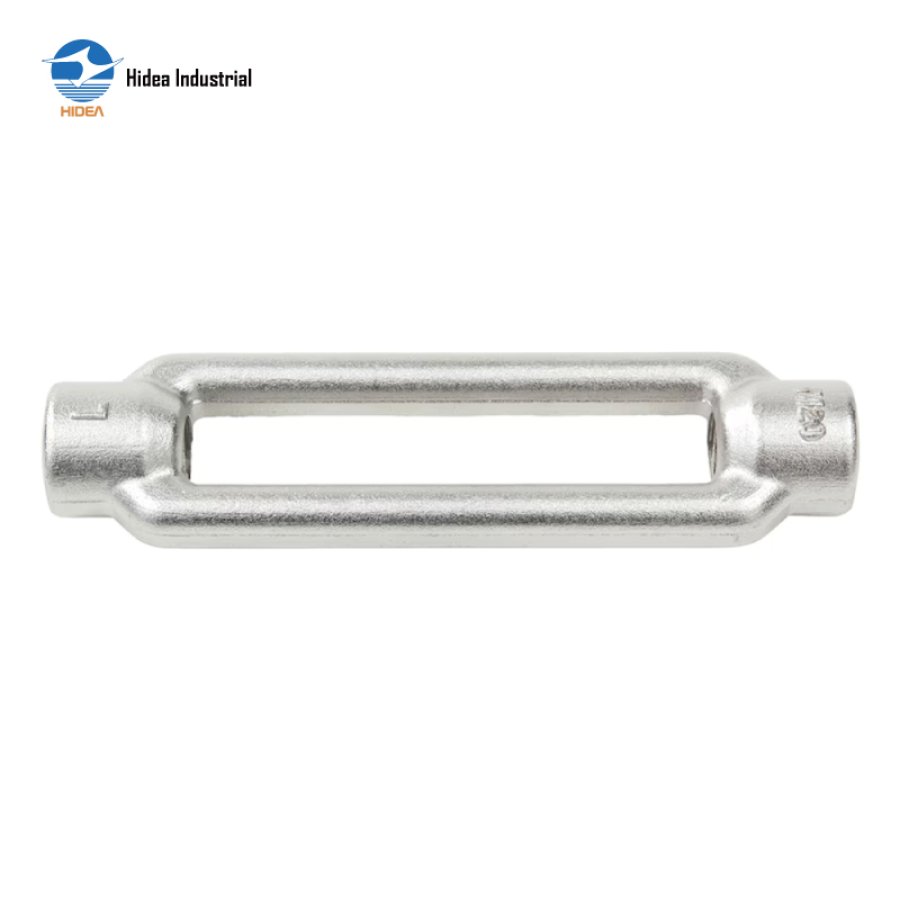

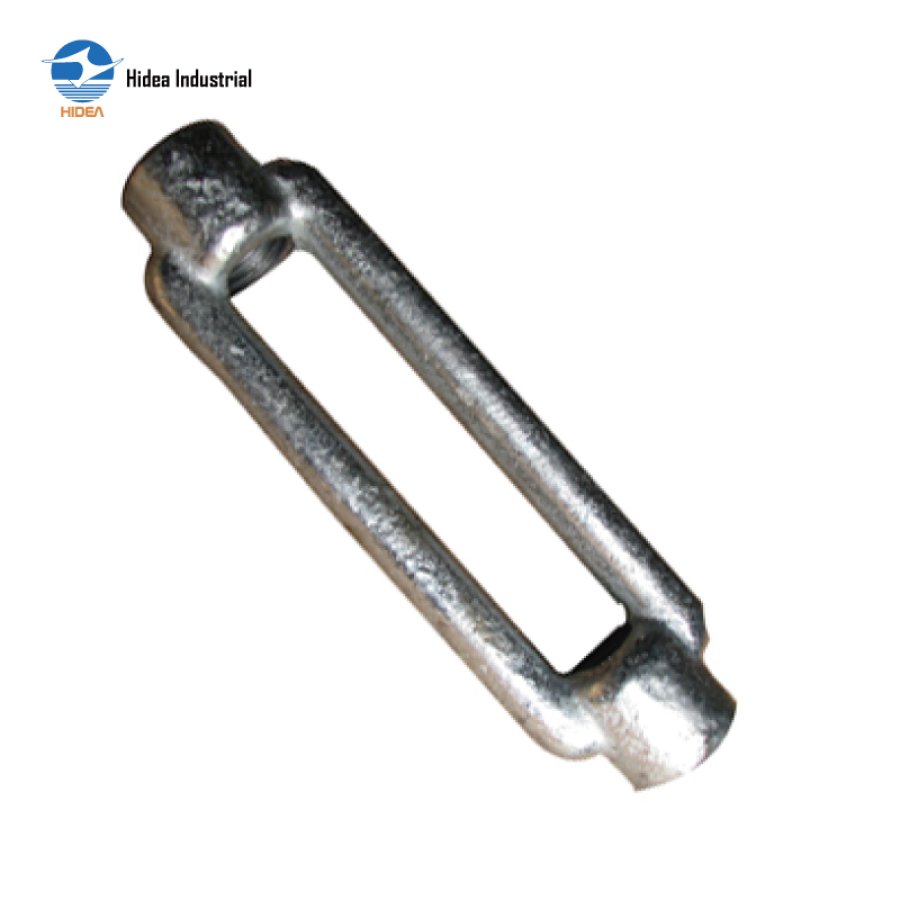

Hidea DIN1480 Turnbuckle Body for Heavy Lifting and Tension Adjustment

DIN1480 TURNBUCKLE BODY ONLY

Material: High tensile carbon steel
Forged, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1480 turnbuckles open body only

Inquire Now

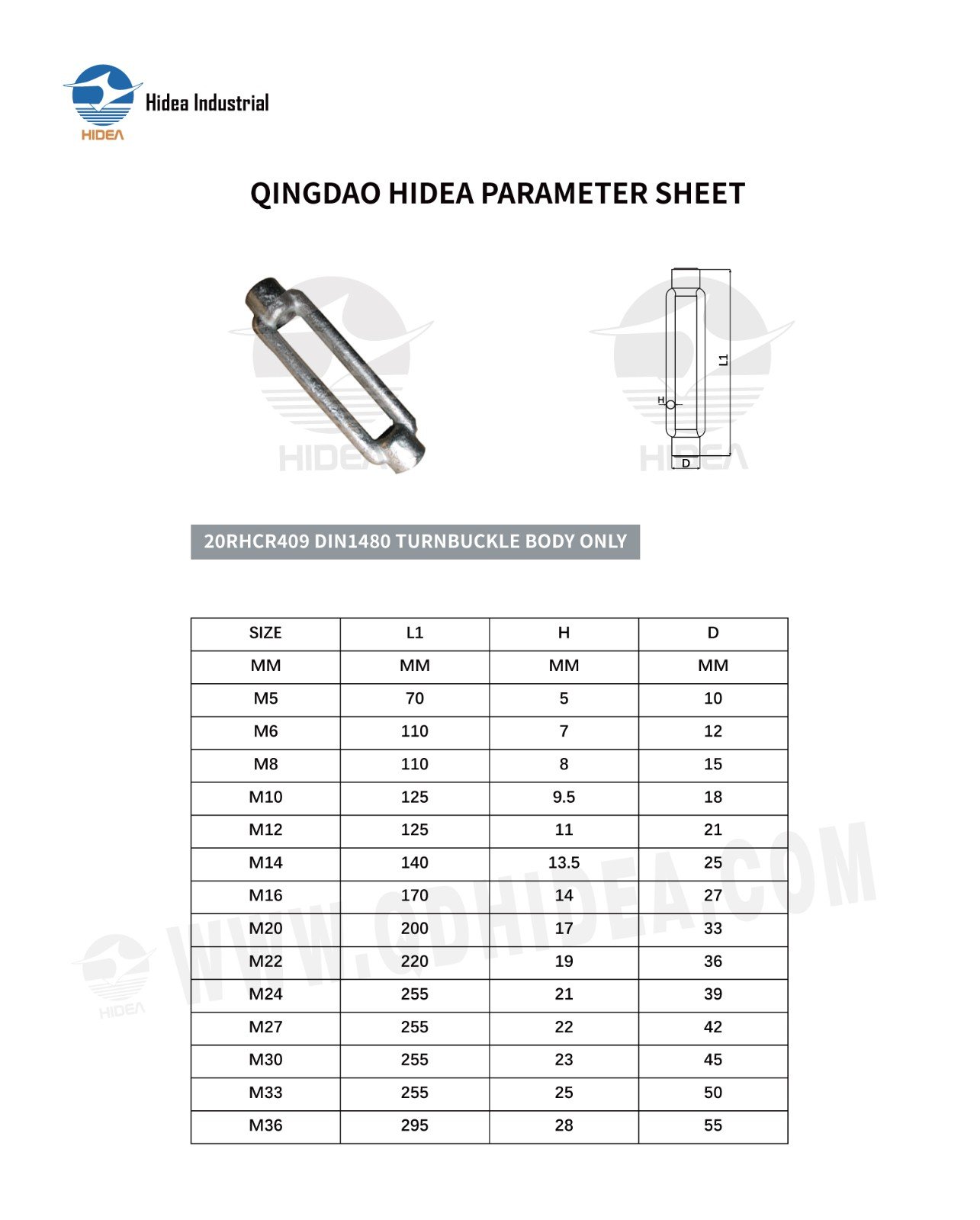

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR409 DIN1480 TURNBUCKLE BODY ONLY

SIZE	L1	H	D
MM	MM	MM	MM
M5	70	5	10
M6	110	7	12
M8	110	8	15
M10	125	9.5	18
M12	125	11	21
M14	140	13.5	25
M16	170	14	27
M20	200	17	33
M22	220	19	36
M24	255	21	39
M27	255	22	42
M30	255	23	45
M33	255	25	50
M36	295	28	55
