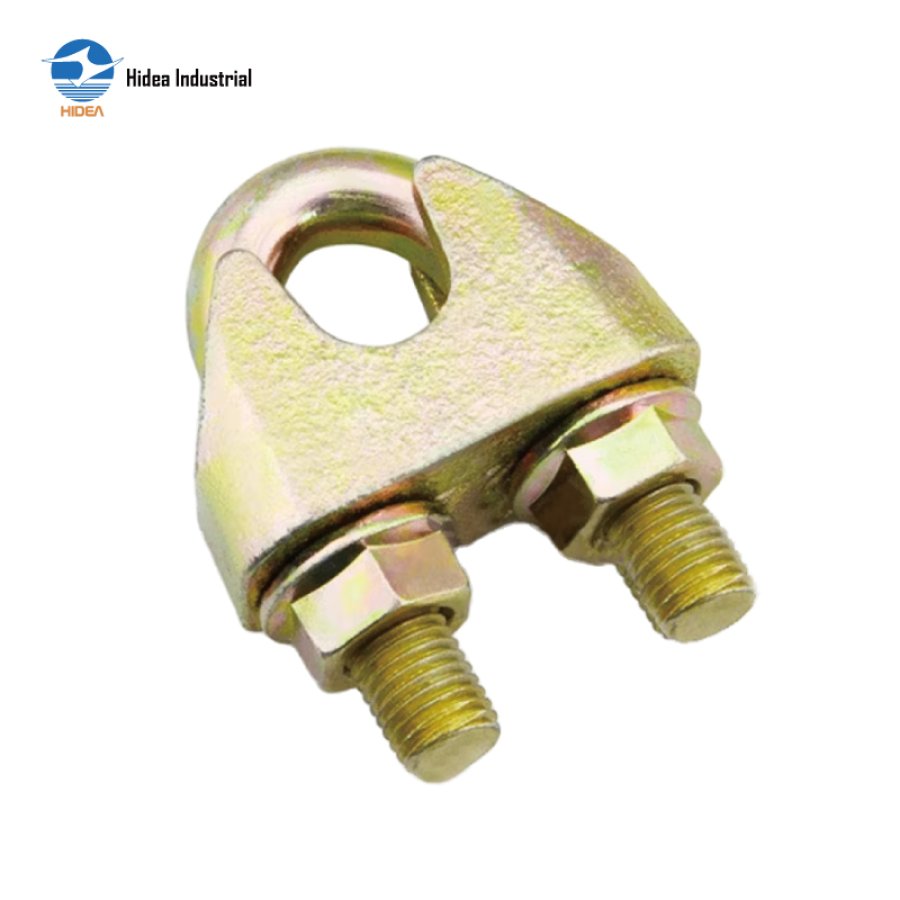

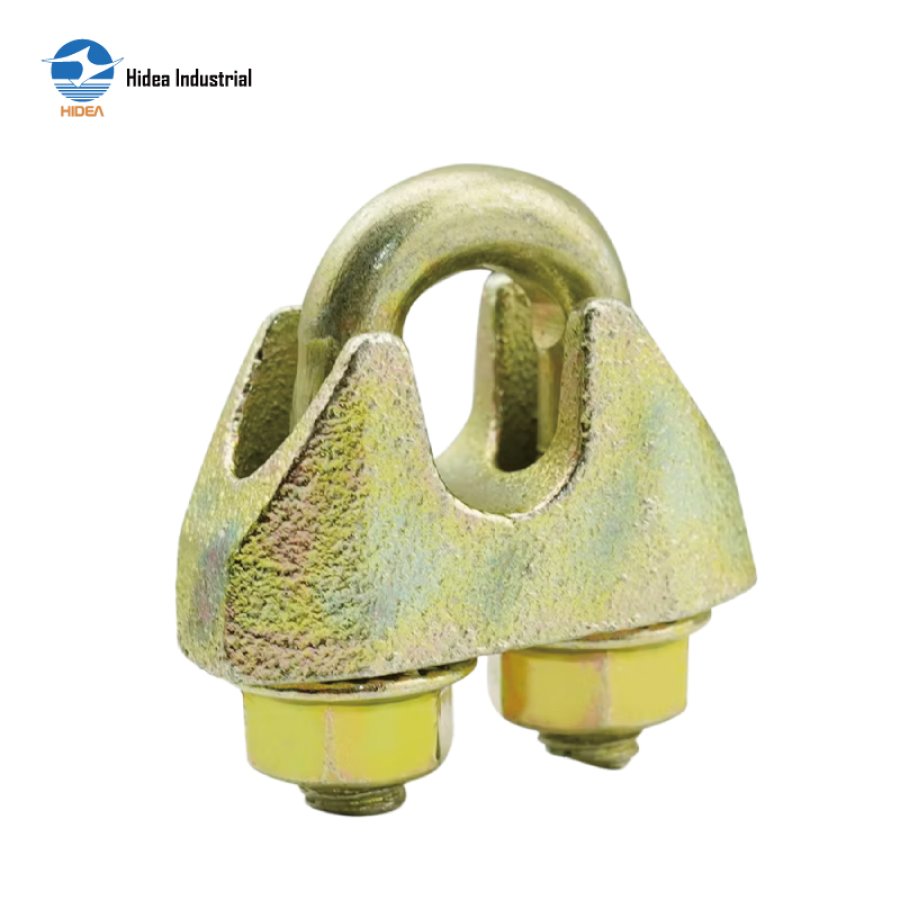

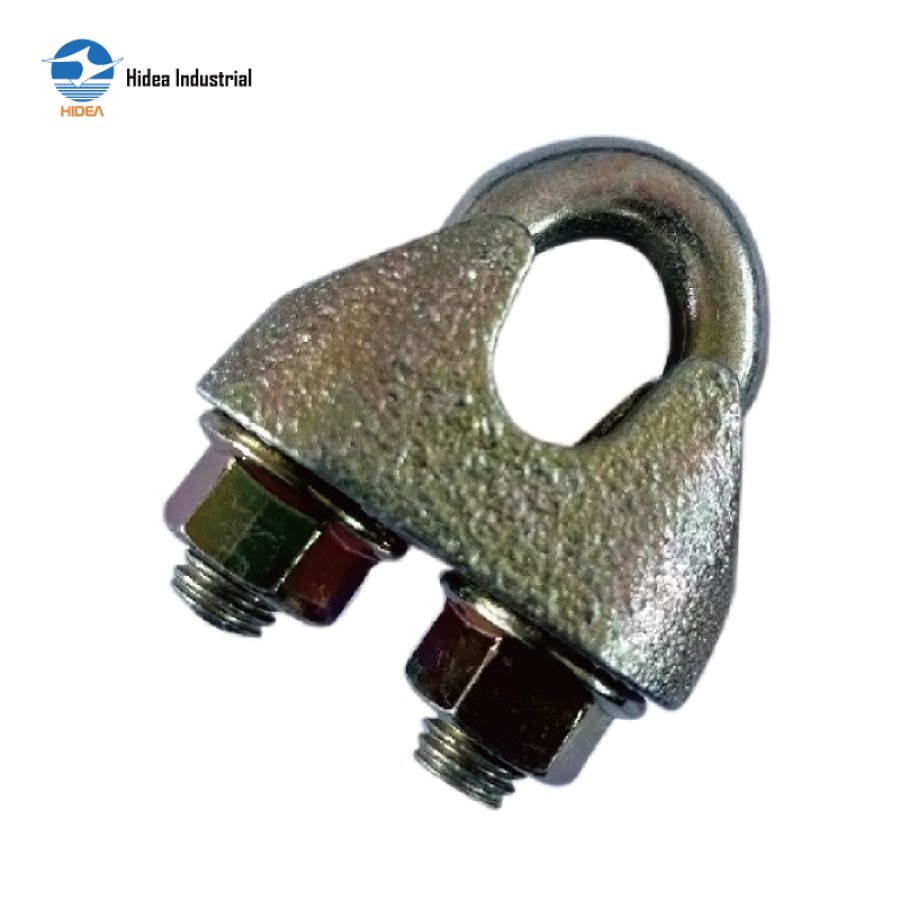

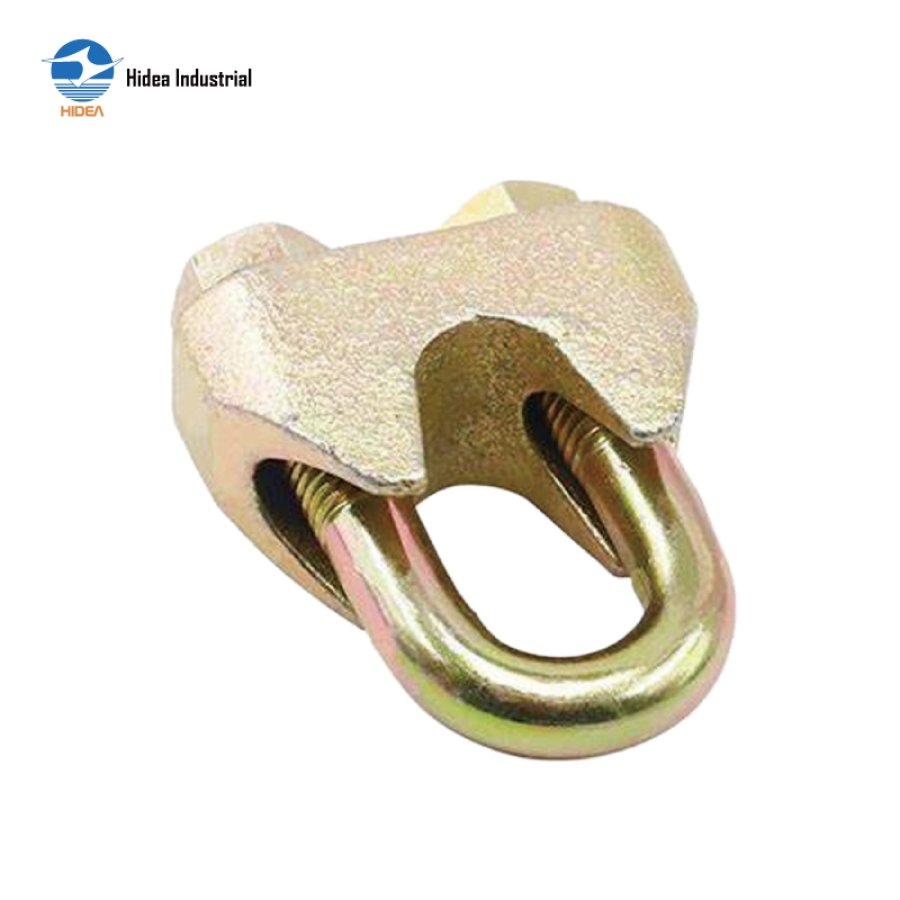

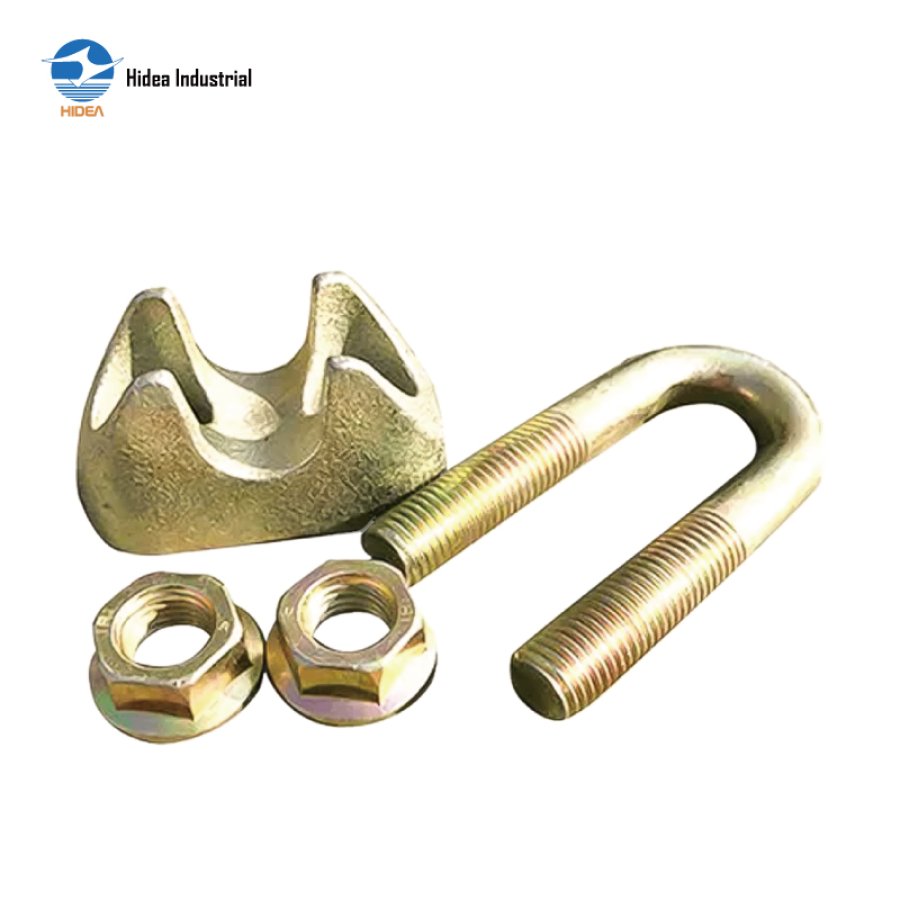

Hidea EN 13411-5 Type A Malleable U-Bolt Wire Rope Clip – High-Performance Wire Rope Connection Solution

DIN 1142 GALV. MALLEABLE WIRE ROPE CLIPS

Casted Malleable Steel
Casted,quenched & tempered
Surface Electro Galv. / zinc plated OR as requested
Casted Malleable DIN1142 Wire Rope Clips, fonformed to BS EN 13411-5 Type A

Inquire Now

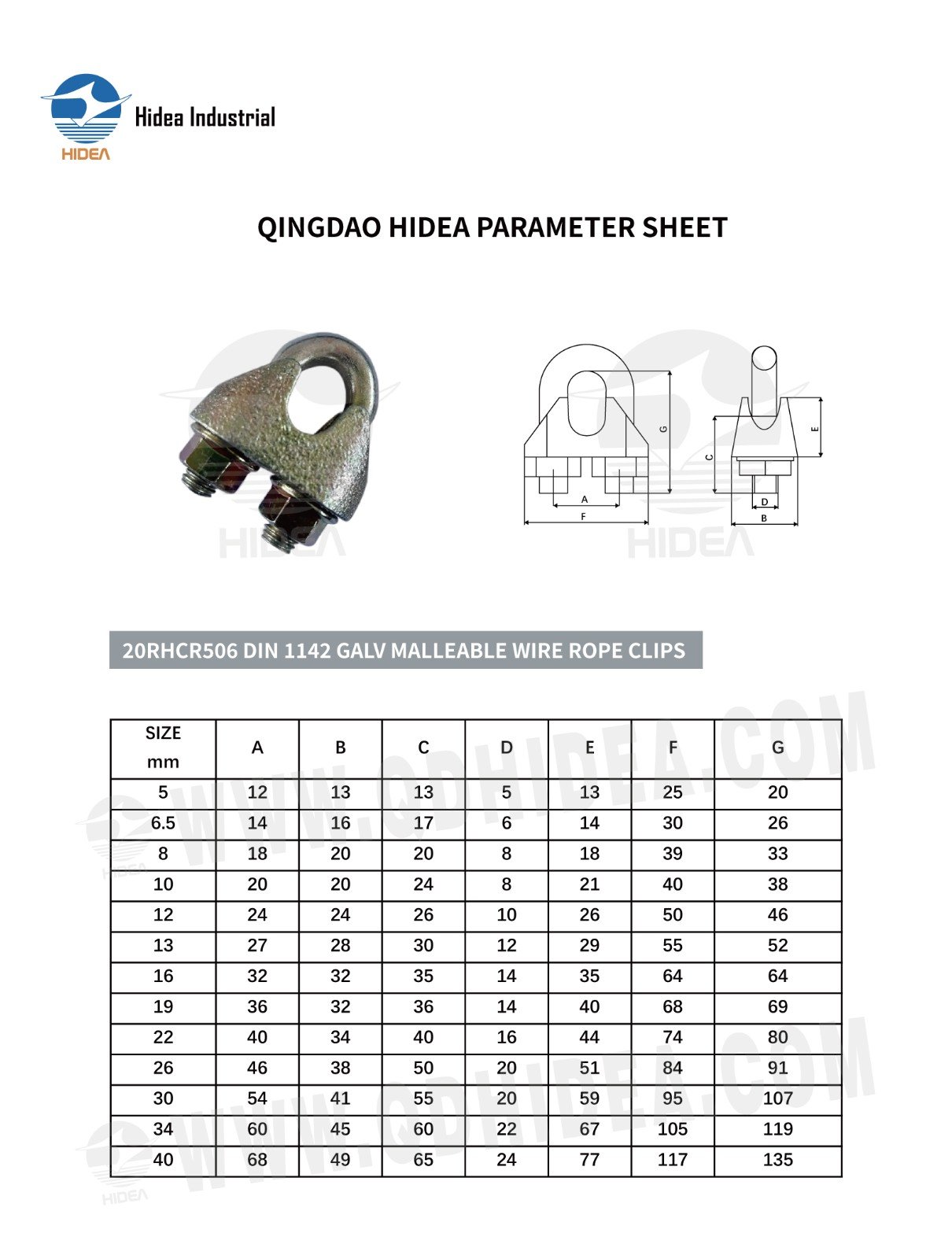

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR506 DIN 1142 GALV MALLEABLE WIRE ROPE CLIPS

SIZE mm	A	B	C	D	E	F	G
5	12	13	13	5	13	25	20
6.5	14	16	17	6	14	30	26
8	18	20	20	8	18	39	33
10	20	20	24	8	21	40	38
12	24	24	26	10	26	50	46
13	27	28	30	12	29	55	52
16	32	32	35	14	35	64	64
19	36	32	36	14	40	68	69
22	40	34	40	16	44	74	80
26	46	38	50	20	51	84	91
30	54	41	55	20	59	95	107
34	60	45	60	22	67	105	119
40	68	49	65	24	77	117	135
