Hidea G80 LFS Type Eye Swivel: High-Performance Swivel for Lifting, Rigging, and Hoisting

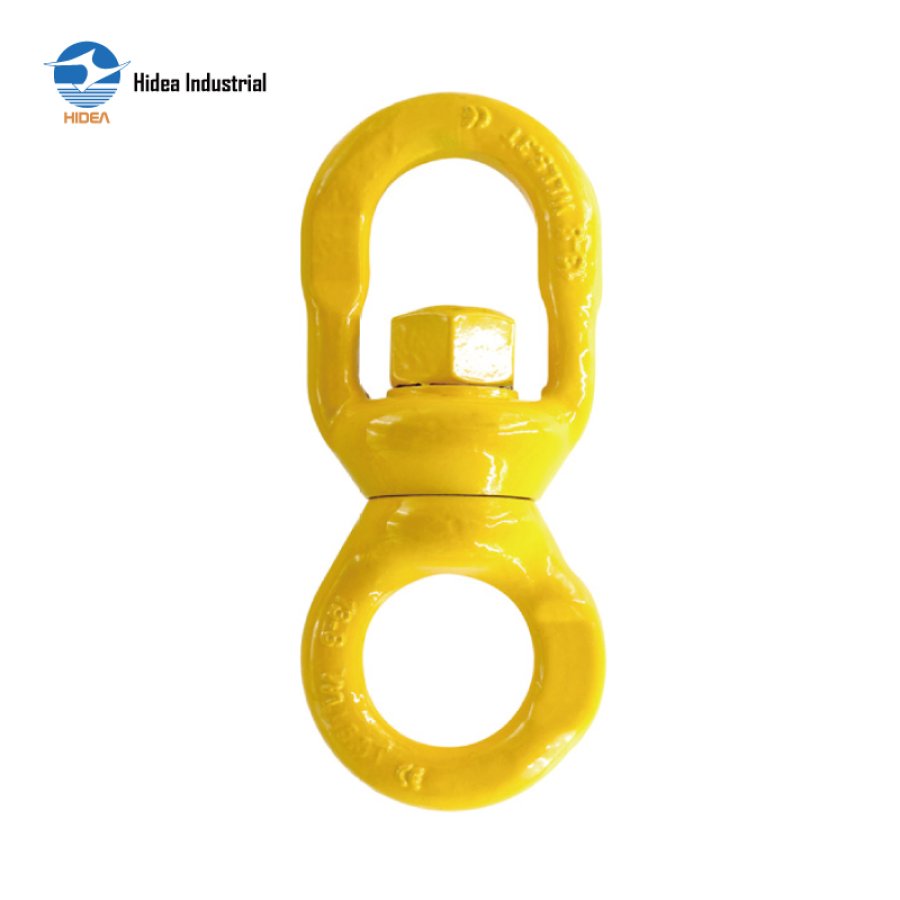

G80 FORGED LFS EYE SWIVEL

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Can be Rotated under Non-load Conditions

Inquire Now

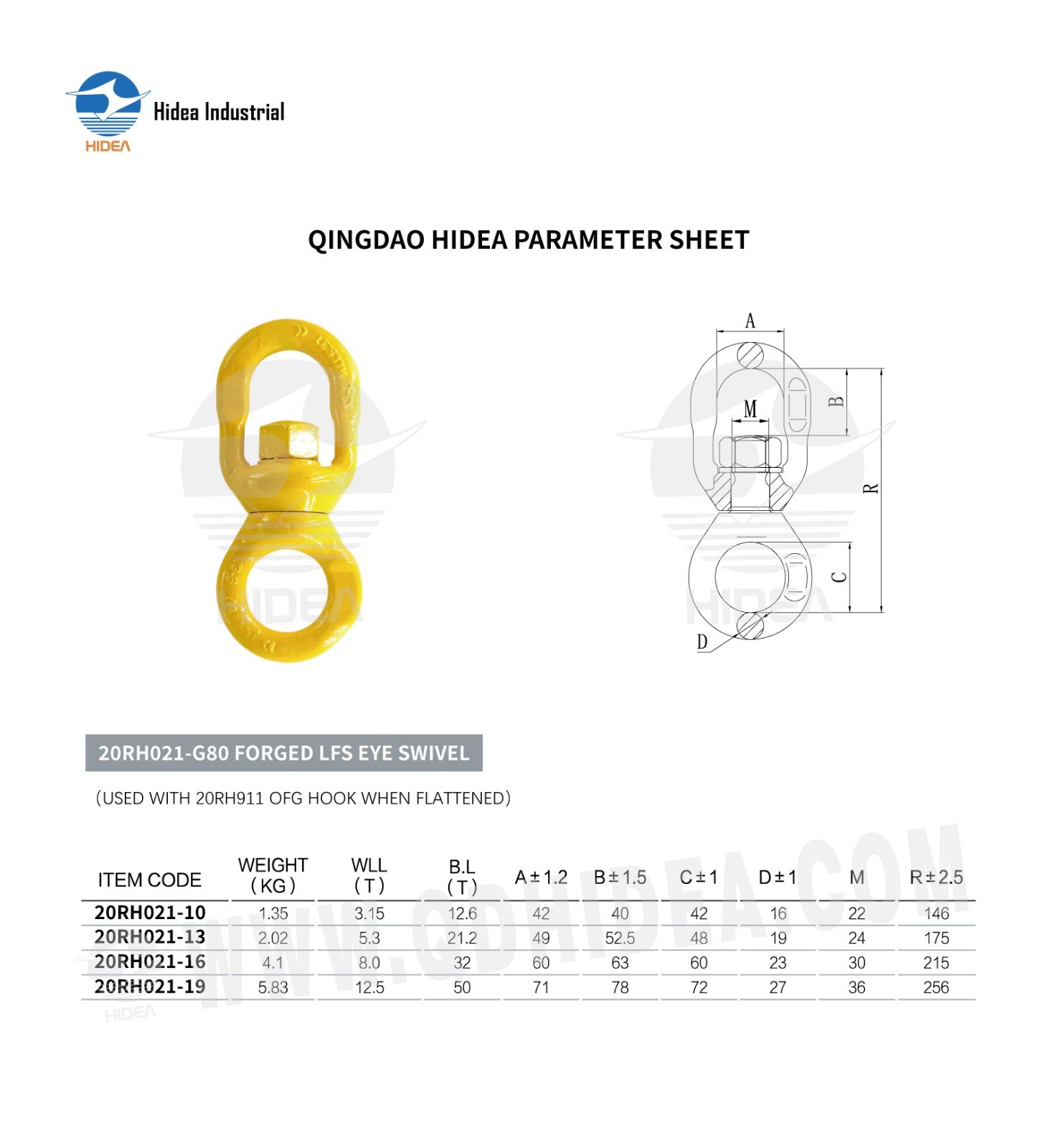

QINGDAO HIDEA PARAMETER SHEET FOR

20RH021-G80 FORGED LFS EYE SWIVEL

ITEM CODE	WEIGHT (KG)	WLL (T)	B.L (T)	A±1.2	B±1.5	C±1	D±1	M	R±2.5
20RH021-10	1.35	3.15	12.6	42	40	42	16	22	146
20RH021-13	2.02	5.3	21.2	49	52.5	48	19	24	175
20RH021-16	4.1	8.0	32	60	63	60	23	30	215
20RH021-19	5.83	12.5	50	71	78	72	27	36	256
